Value

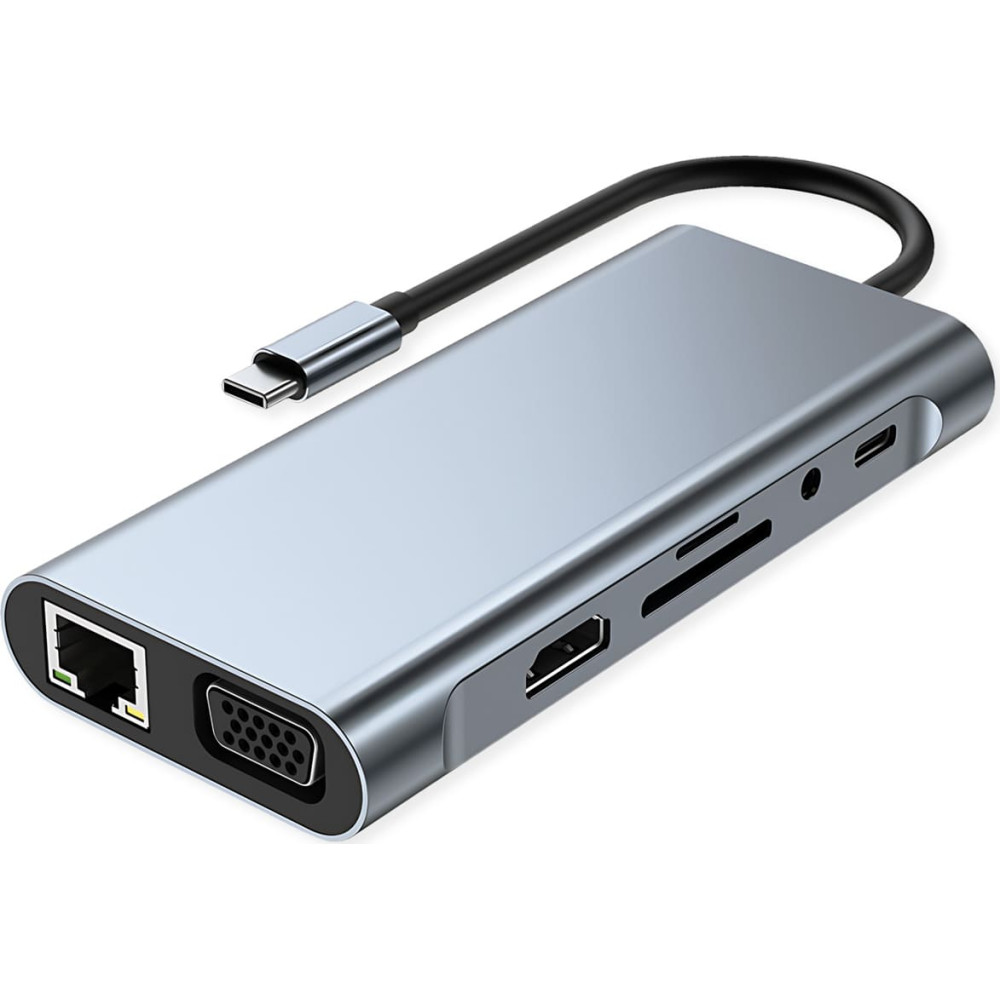

Value Dockingstation Type C, 1x HDMI 4K30, 1x VGA 1080p, 1x Gigabit Ethernet, 3x USB 3.2 Gen1 (A), 1x USB 2.0 (C), 1x SD/TF, 1x Audio, 1x Type C PD (Power Delivery)

Product Code: 12.99.1143
Barcode 7630049660779

To purchase this product you must be registered in our system.



Specification
area of application: External
colour: grey
depth: 119
depth of packaging (single piece): 170
dimensions (hxwxd): 17 x 56 x 119 mm
gross weight: 0.1
height: 17
height of packaging (single piece): 10
length: 0.1
manufacturer: VALUE
max. resolution: 3840 x 2160 @30Hz (4K, Full HD)
package weight (single piece): 0.1
product group: Adapters, Terminators, Converters
product type: Notebook-Docking-Station
scope of delivery: Docking Station
side 1 connection (pc): USB Type C
side 1 connector gender: Male
side 1 connector type: USB Type C (USB-C)
side 2 connection (peripherals): 1x HDMI 4K30, 1x VGA 1080p, 1x Gigabit Ethernet, 3x USB 3.2 Gen1 (A), 1x USB 2.0 (C), 1x SD/MicroSD (TF), 1x Audio Out, 1x Type C PD (Power Delivery)
side 2 connector gender: Female
side 2 connector type: HDMI Type A
technical particularity: Power Delivery Function (100W)
weight: 91
width: 56
width of packaging (single piece): 120

Description

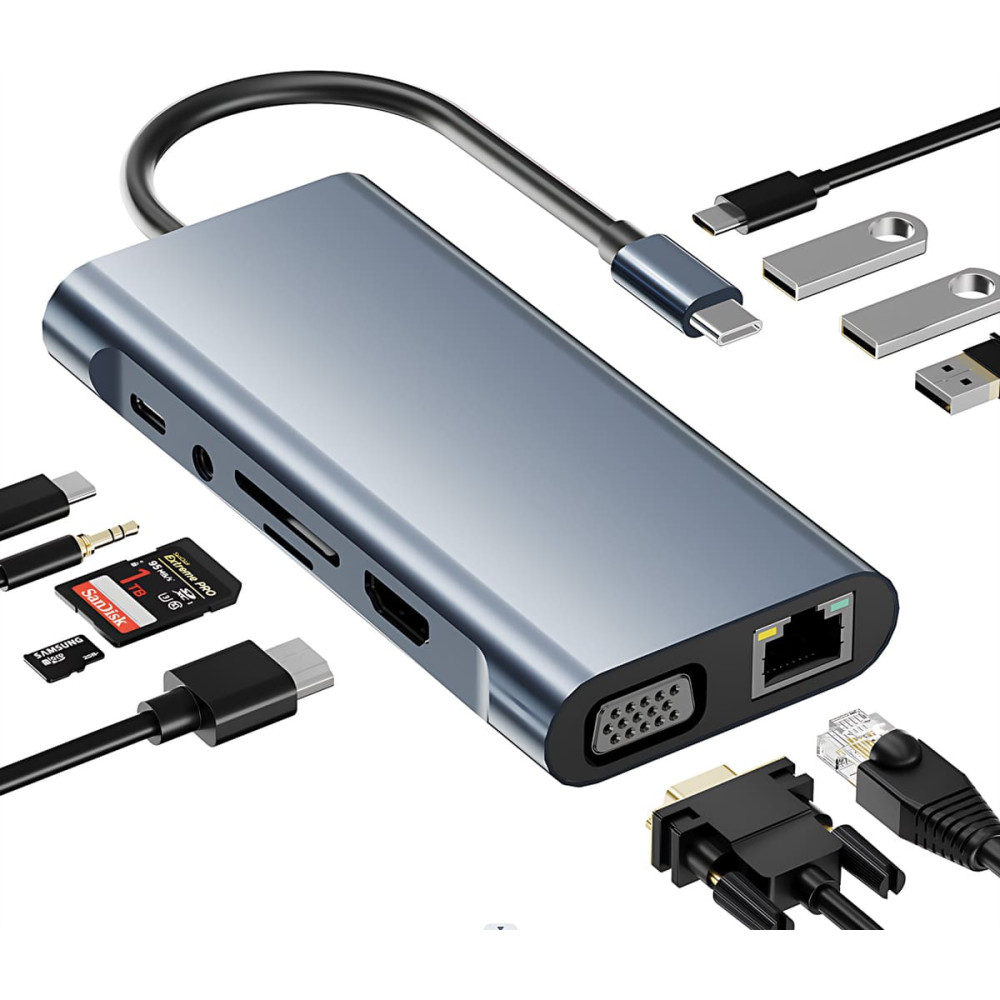

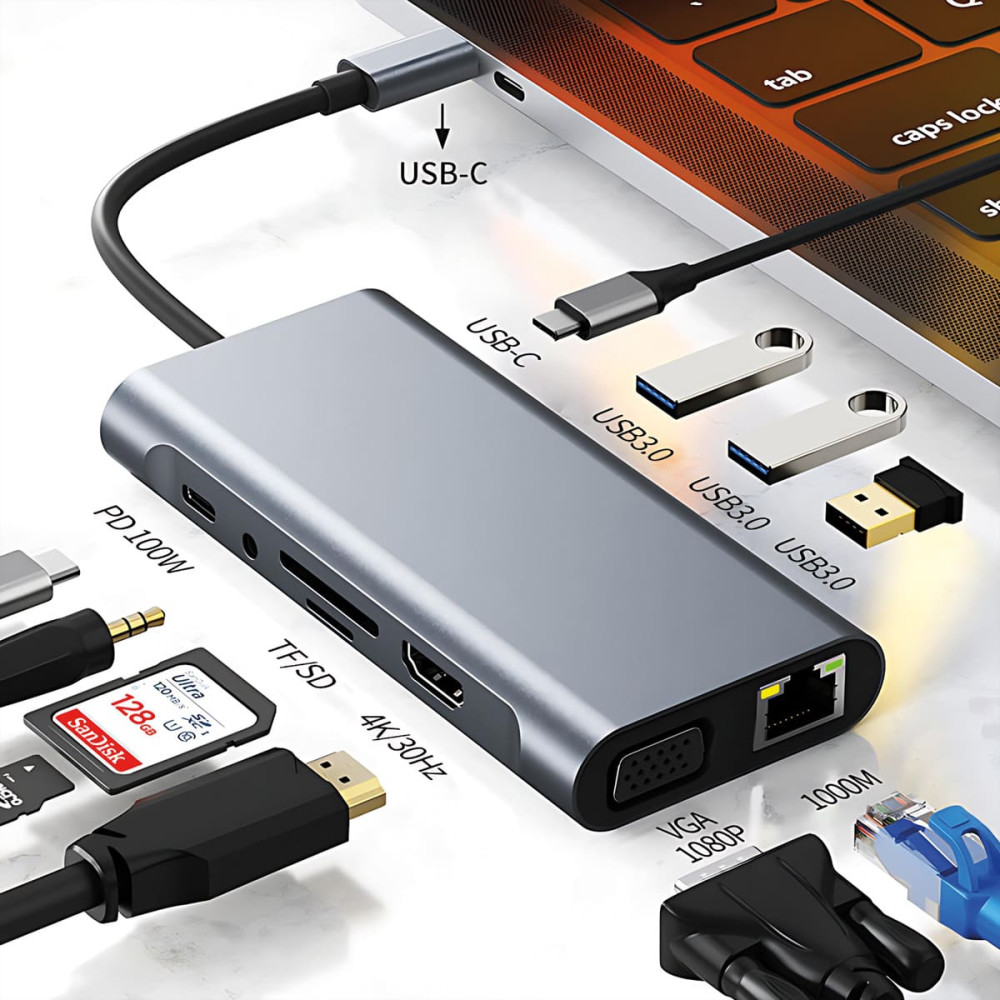

Connect your Macbook, Ultrabook, Notebook/Laptop or PC with USB Type C interface to HDMI (3840x2160@30Hz) or VGA (1080p) displays/monitor or projectors. Also, you can connect USB devices to the additional 4 USB Ports (3x A, 1x C), while charging your device simultaneously over the Type C PD port!

  • Connect your device with USB Type C port to a HDMI or VGA display/monitor or projector
  • 1x HDMI (3840x2160 @30Hz) and 1x VGA (1920x1080 @60Hz)
  • 1x Gigabit Ethernet (GbE - 1000MBit/s)
  • 3x USB-A 3.2 Gen 1 (5Gbit/s) + 1x USB-C 2.0 (480Mbit/s)
  • SD/Micro SD (TF) Card Reader (cannot be supported at the same time)
  • 1x 3.5mm Audio Out
  • USB Type C PD (Power Delivery) up to 100 Watts
  • No power adapter required

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
