Home Computer Components Docking Station Value Dockingstation Type C, 2x HDMI 4K60, 1x DP 4K60, 1x Gigabit Ethernet, 5x USB A, 2x USB C, 1x Type C PD, 1x SD/microSD, 1x Audio
Value Dockingstation Type C, 2x HDMI 4K60, 1x DP 4K60, 1x Gigabit Ethernet, 5x USB A, 2x USB C, 1x Type C PD, 1x SD/microSD, 1x Audio

Value

Value Dockingstation Type C, 2x HDMI 4K60, 1x DP 4K60, 1x Gigabit Ethernet, 5x USB A, 2x USB C, 1x Type C PD, 1x SD/microSD, 1x Audio

Product Code: 12.99.1142
Barcode 7630049660762

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
area of application: External
colour: grey
depth: 122
depth of packaging (single piece): 200
dimensions (hxwxd): 126 x 42 x 122 mm
gross weight: 0.35
height: 126
height of packaging (single piece): 60
length: 0.1
manufacturer: VALUE
max. resolution: 3840 x 2160 @60Hz (4K, UHD-1)
package weight (single piece): 0.35
product group: Adapters, Terminators, Converters
product type: Notebook-Docking-Station
scope of delivery: Docking station, USB-C Host Cable, User Manual
side 1 connection (pc): USB Type C
side 1 connector gender: Male
side 1 connector type: USB Type C (USB-C)

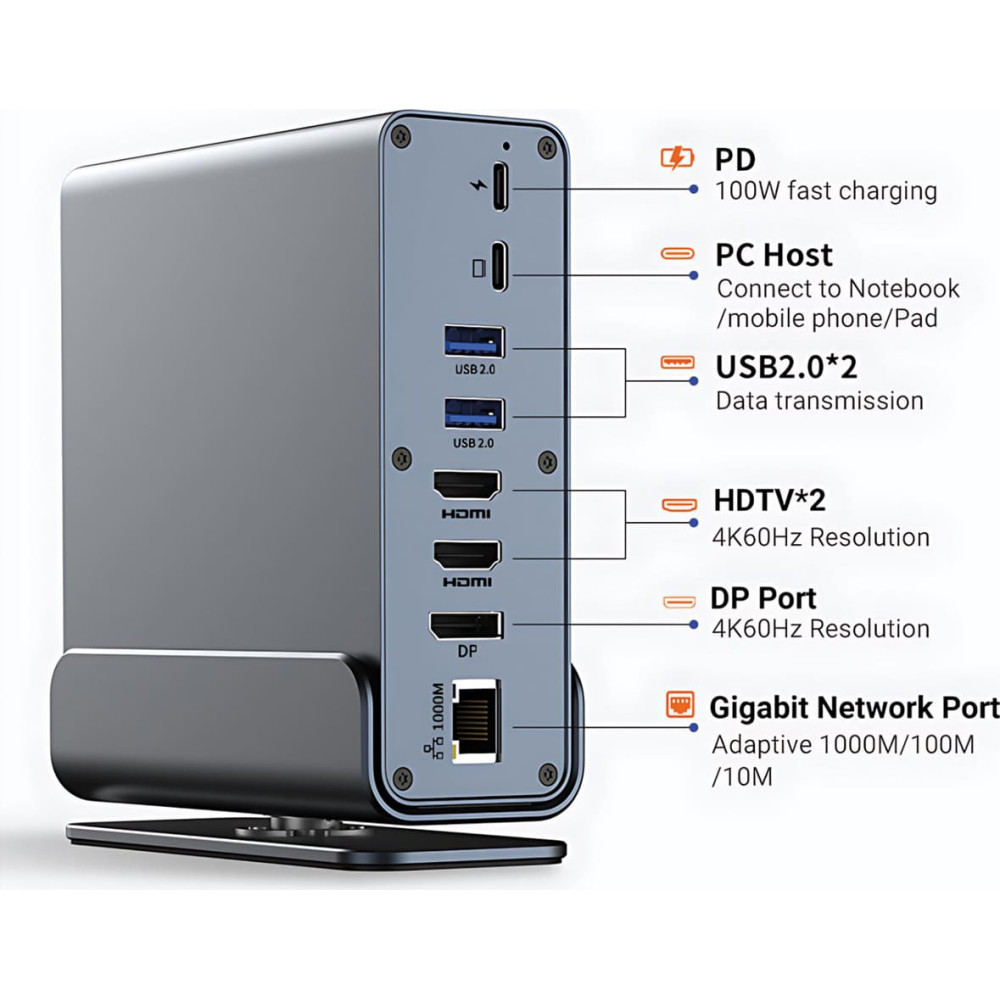

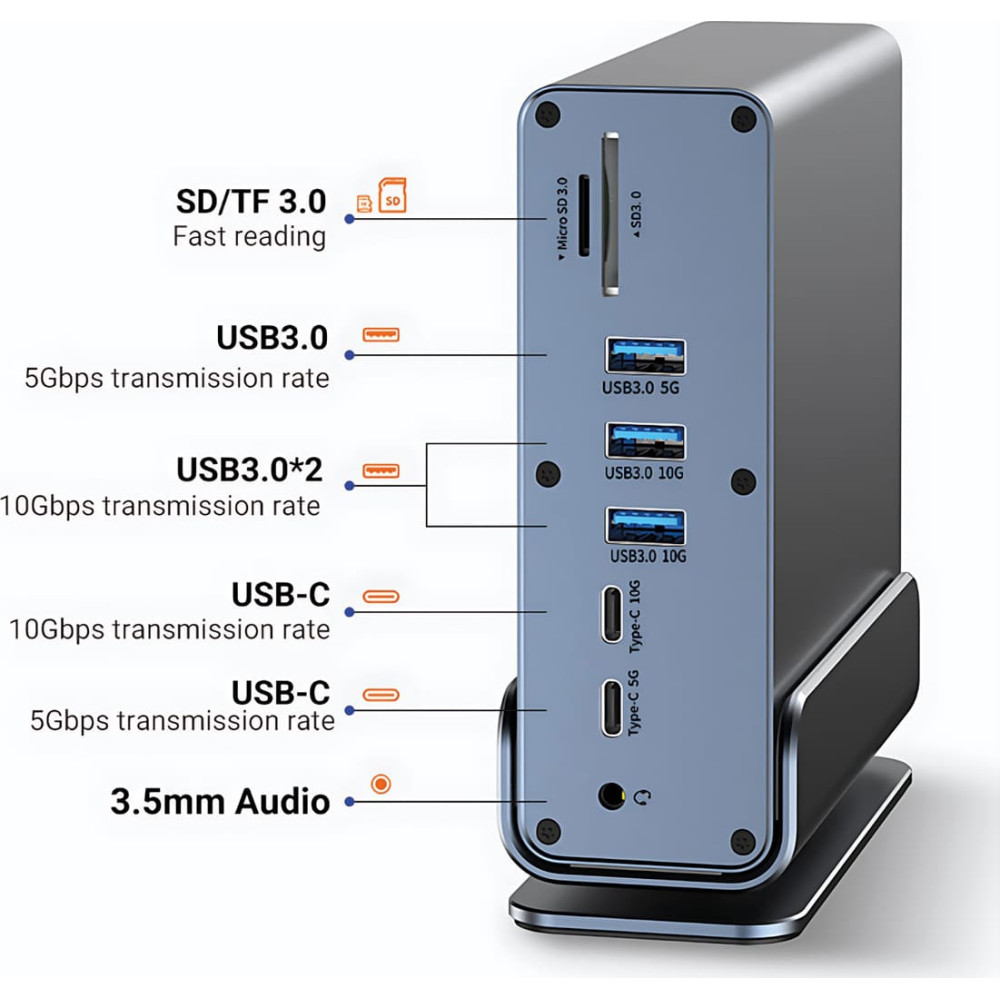

side 2 connection (peripherals): 2x HDMI, 1x DisplayPort, USB (5x A and 2x C), 1x USB-C PD (Power Delivery), 1x RJ-45 (GbE), 1x SD/TF Card Reader, 1x 3.5mm Audio Out
side 2 connector gender: Female
side 2 connector type: HDMI Type A
technical particularity: Power Delivery Function (100W)
weight: 528
width: 42
width of packaging (single piece): 160
Description

Connect your Macbook, Ultrabook, Notebook/Laptop or PC with USB Type C interface to HDMI or DP displays/monitor or projectors (with a maximum resolution of up to 3840x2160@60Hz). Also, you can connect USB devices to the additional USB Type A Ports, while charging your device simultaneously over the Type C PD port!

  • This docking station allows you to mirror or extend your display to your HDMI or DisplayPort monitor/display or projector
  • 2x HDMI, 1x DisplayPort (max. resolution: 3840x2160 @60Hz)
  • 1x Gigabit Ethernet (GbE - 1000MBit/s)

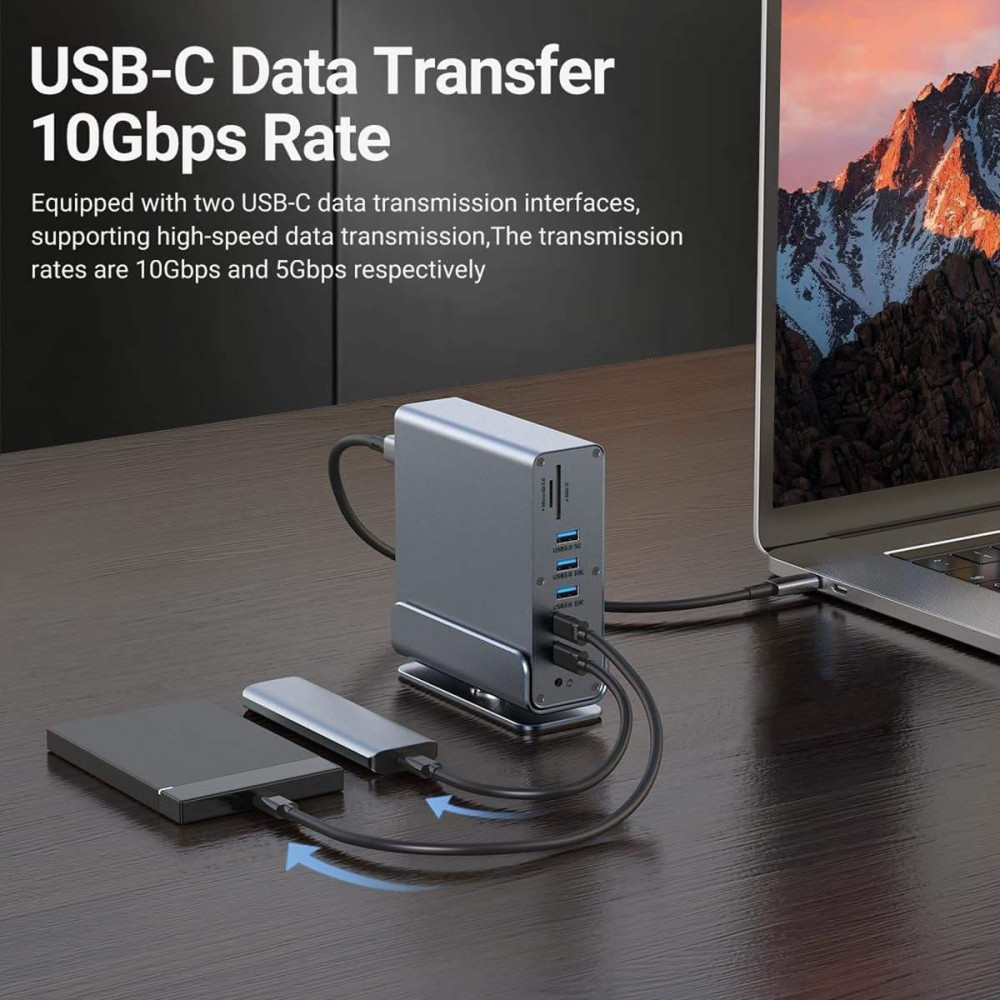

  • 1x C USB 3.2 Gen2 (10G) + 1x C USB 3.2 Gen1 (5G) + 2x A USB 3.2 Gen2 (10G) + 1x A USB 3.2 Gen1 (5G) + 2x A USB 2.0 (480Mbit/s)
  • USB Type C PD (Power Delivery) up to 100 Watts

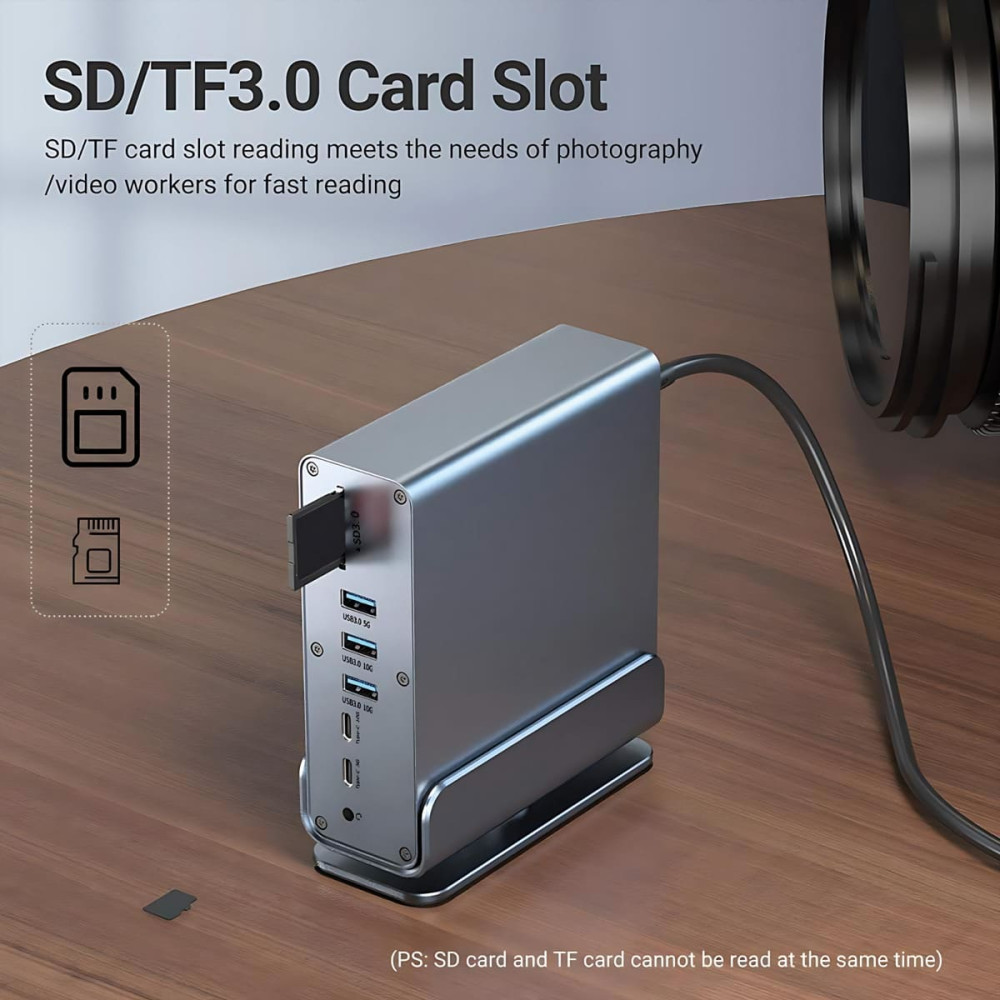

  • 1x SD/TF Card Reader
  • 1x 3.5mm Audio Out
  • Full metal construction, ensuring effective heat dissipation

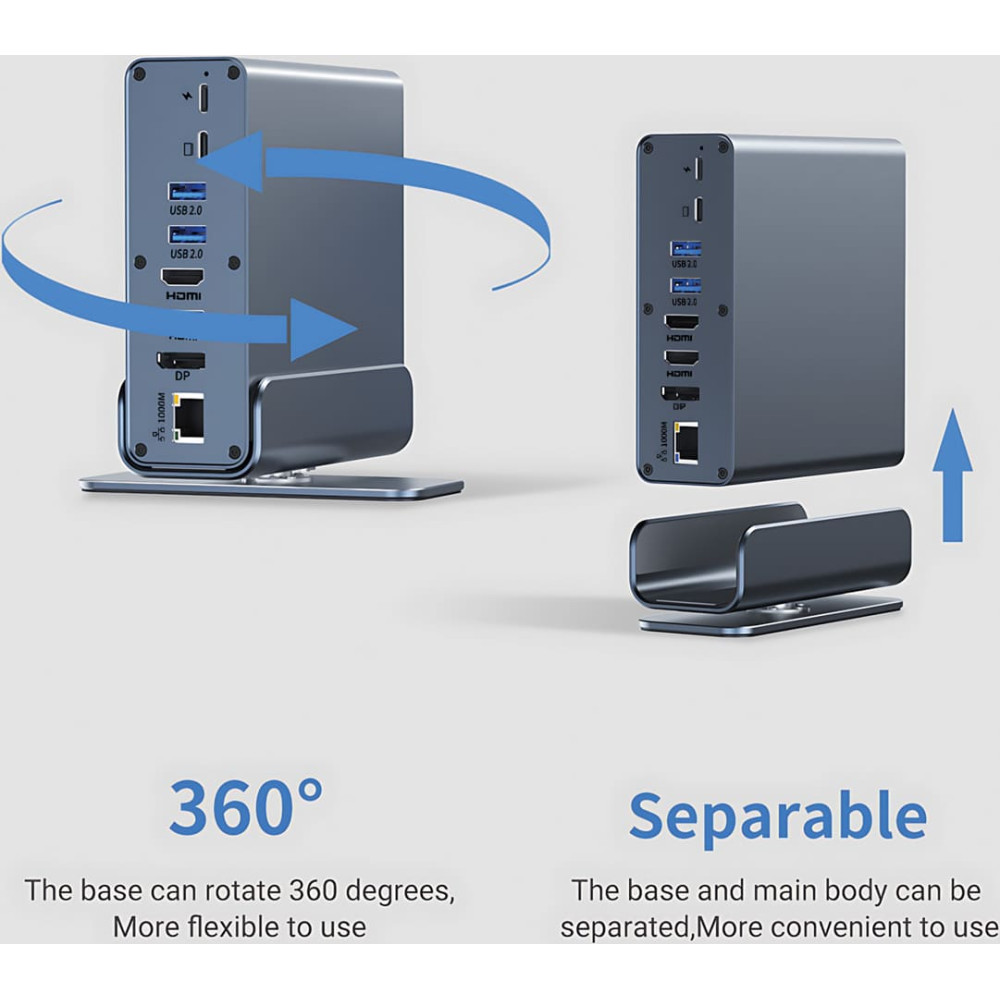

  • Comes with stand and detachable magnetic base, supporting 360° horizontal rotation for enhanced adaptability in various application environments.

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
