Delock M.2 Card to 2 x Serial RS-232 DB9 with Standard and Low Profile slot brackets

Product Code: 95284

Barcode 4043619952847

To purchase this product you must be registered in our system.

Description

Related products

Description

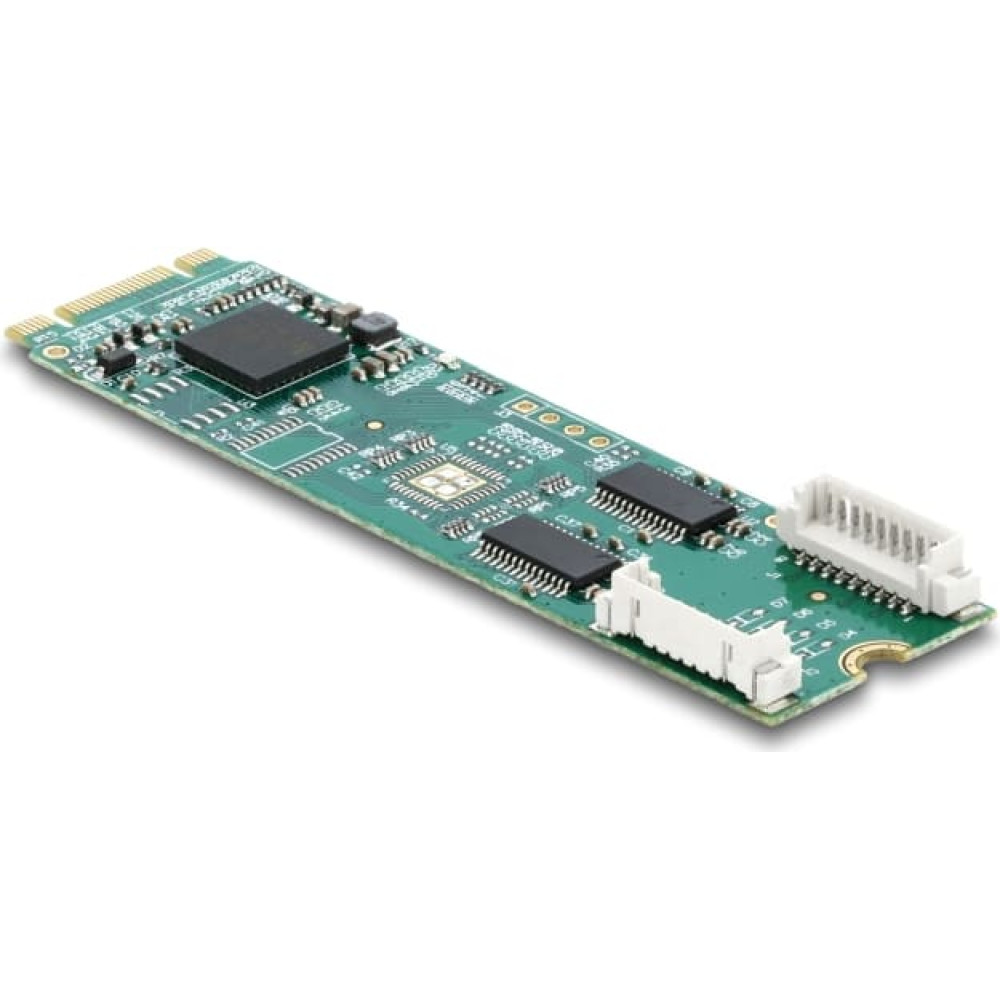

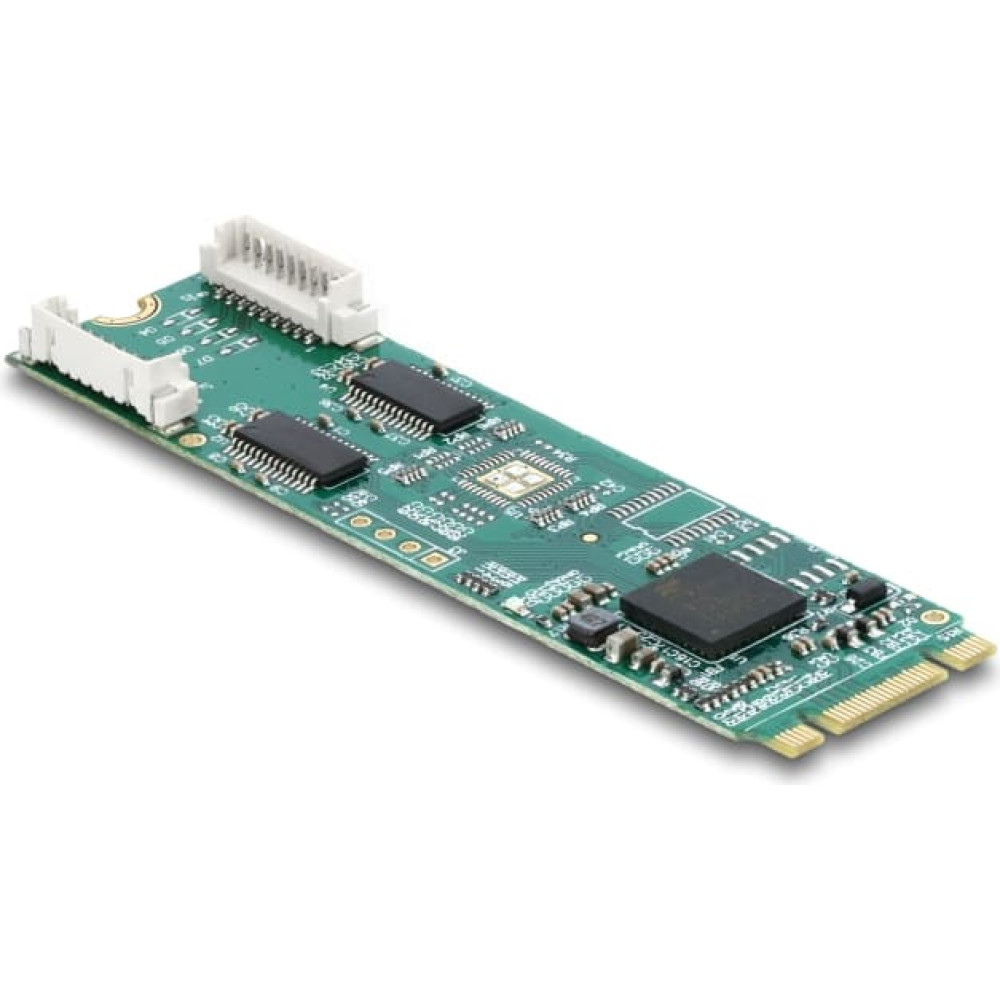

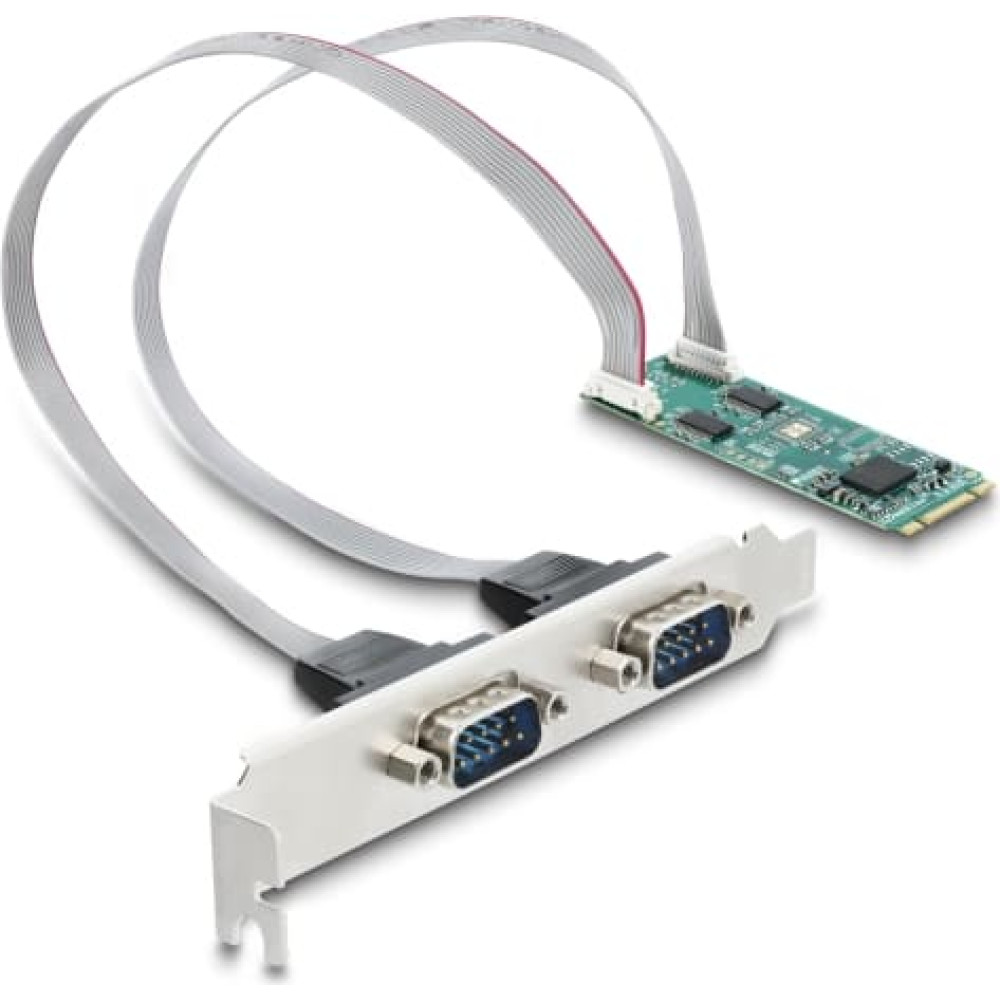

The M.2 to serial card by Delock expands the PC by two external RS-232 port. Different devices such as scanners, protocol converters, IoT devices etc. can be connected to the card. With the help of the included slot brackets and RS-232 cables, the M.2 card is suitable for installation into any computer case.

System requirements:
• Linux Kernel 2.6.32 or above
• Windows 10/10-64/11

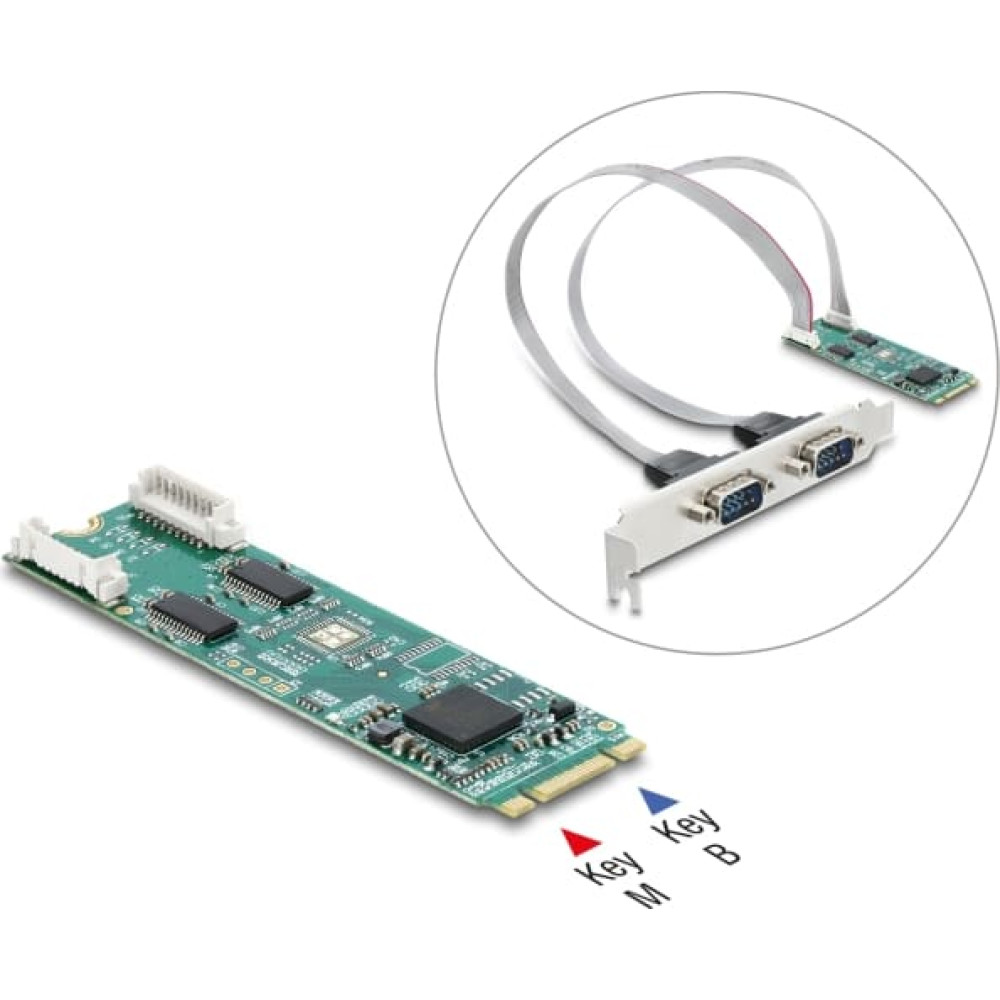

• A free M.2 key B or key M slot

Specification:
• Connectors:
  1 x M.2 key B+M male
  2 x serial RS-232 DB9 male
• Chipset: MaxLinear 17V352
• Form factor: M.2 2280
• Interface: PCIe 2.0
• Compatible with 16C550 UART
• Data transfer rate up to 921.6 Kbps
• FIFO:
  2 x 256 Byte - RX
  2 x 256 Byte - TX
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS or DTR / DSR, software XON / XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Cable length incl. connectors: ca. 30 cm
• Dimensions (LxWxH): ca. 80 x 22 x 8 mm

Package content:
• M.2 card
• 1 x fixing screw for M.2 module
• 2 x serial connecting cable (ca. 30 cm)

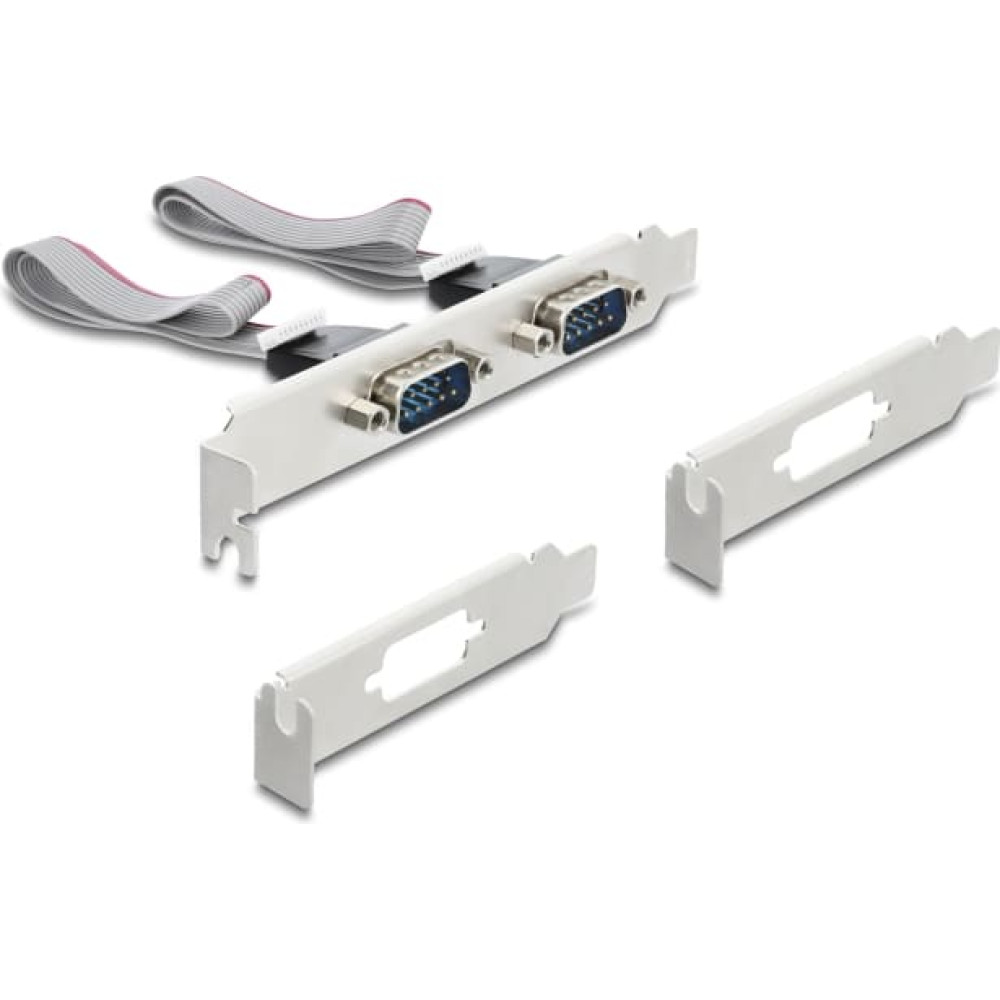

• 2 x low profile bracket

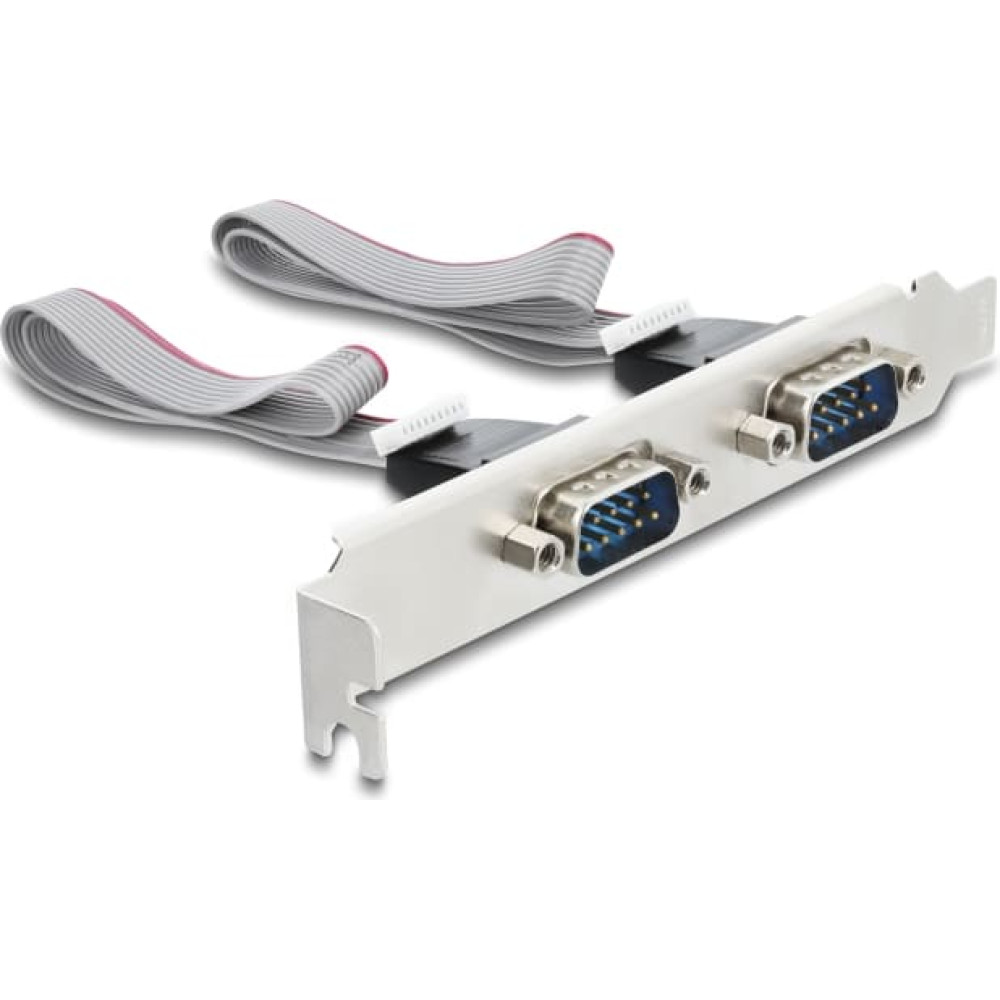

• 1 x standard bracket
• User manual

Data sheet:
https://www.delock.de/produkt/95284/pdf.html?sprache=en
