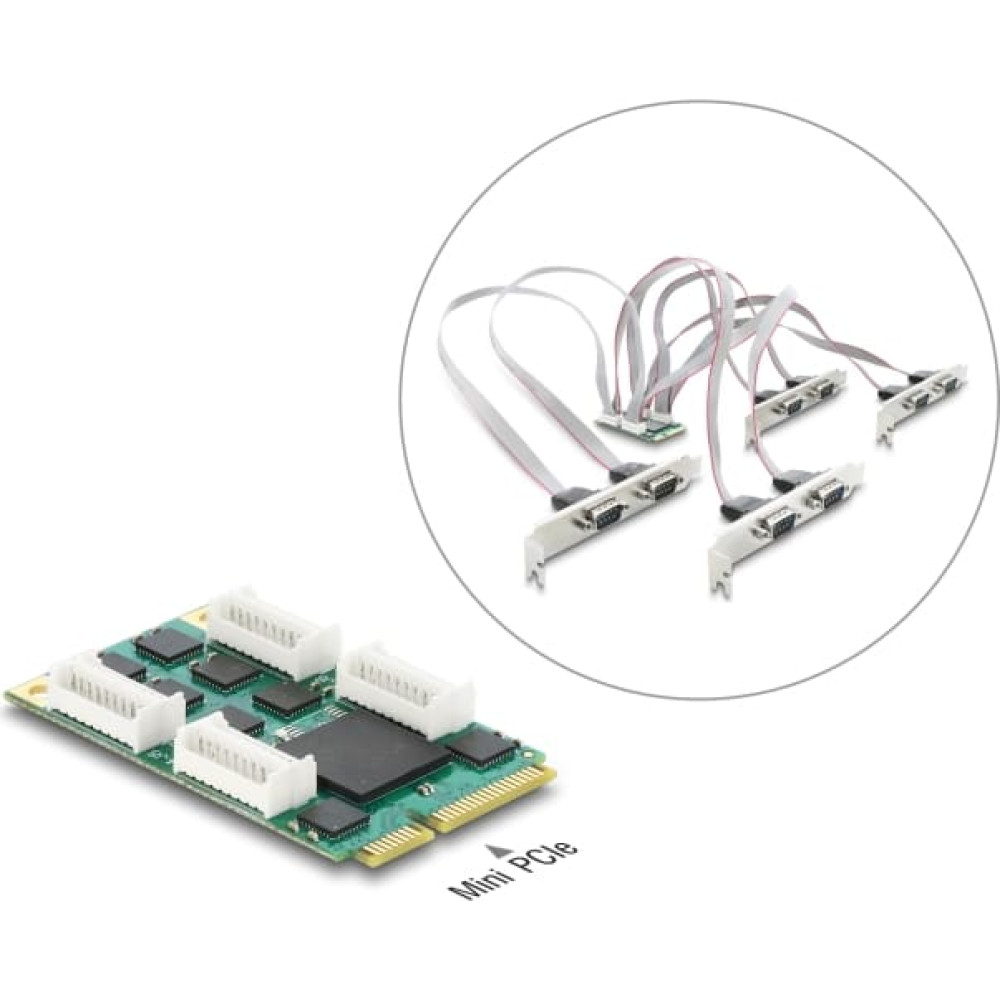

Delock Mini PCIe I/O full size Card to 8 x Serial RS-232 DB9 with Standard and Low Profile slot brackets

DELOCK

Delock Mini PCIe I/O full size Card to 8 x Serial RS-232 DB9 with Standard and Low Profile slot brackets

Product Code: 95283
Barcode 4043619952830

To purchase this product you must be registered in our system.



Description
Related products
Description

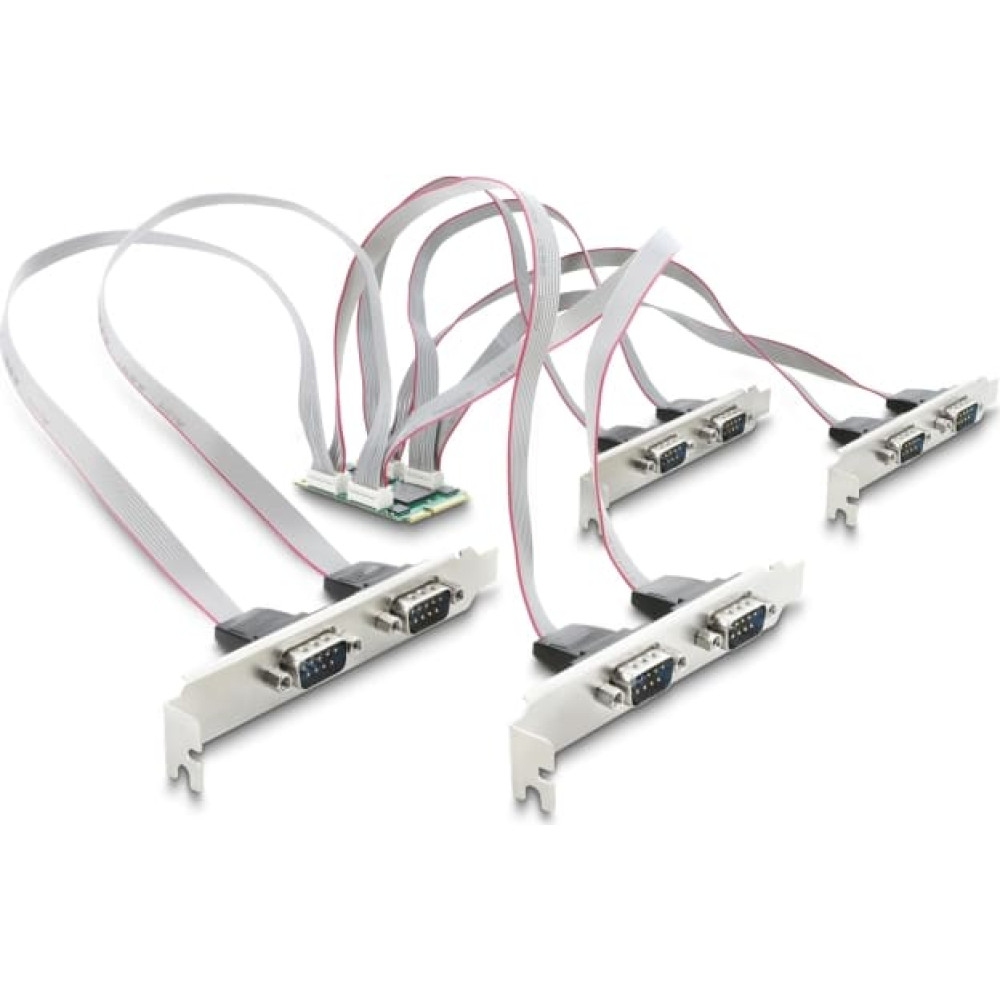

This Mini PCIe card by Delock expands your system by eight additional RS-232 ports. This allows various serial devices like printer, POS systems and modems to be connected to the computer.
System requirements:
• Linux Kernel 2.6.32 or above
• Windows 10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
Specification:
• Connectors:
  external:
  8 x serial D-Sub 9 pin male
  internal:
  1 x Mini PCI Express, PCIe 2.0 Gen 1
  8 x 9 pin pin header male
• Chipset: MaxLinear XR17V358 + WS3243FCQ
• Form factor: Mini PCIe full size
• Data transfer rate up to 921.6 Kbps
• FIFO:
  8 x 256 Byte - RX
  8 x 256 Byte - TX
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS or DTR / DSR, software XON / XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Cable length incl. connectors: ca. 30 cm
• Dimensions (LxWxH): ca. 51 x 30 x 7 mm

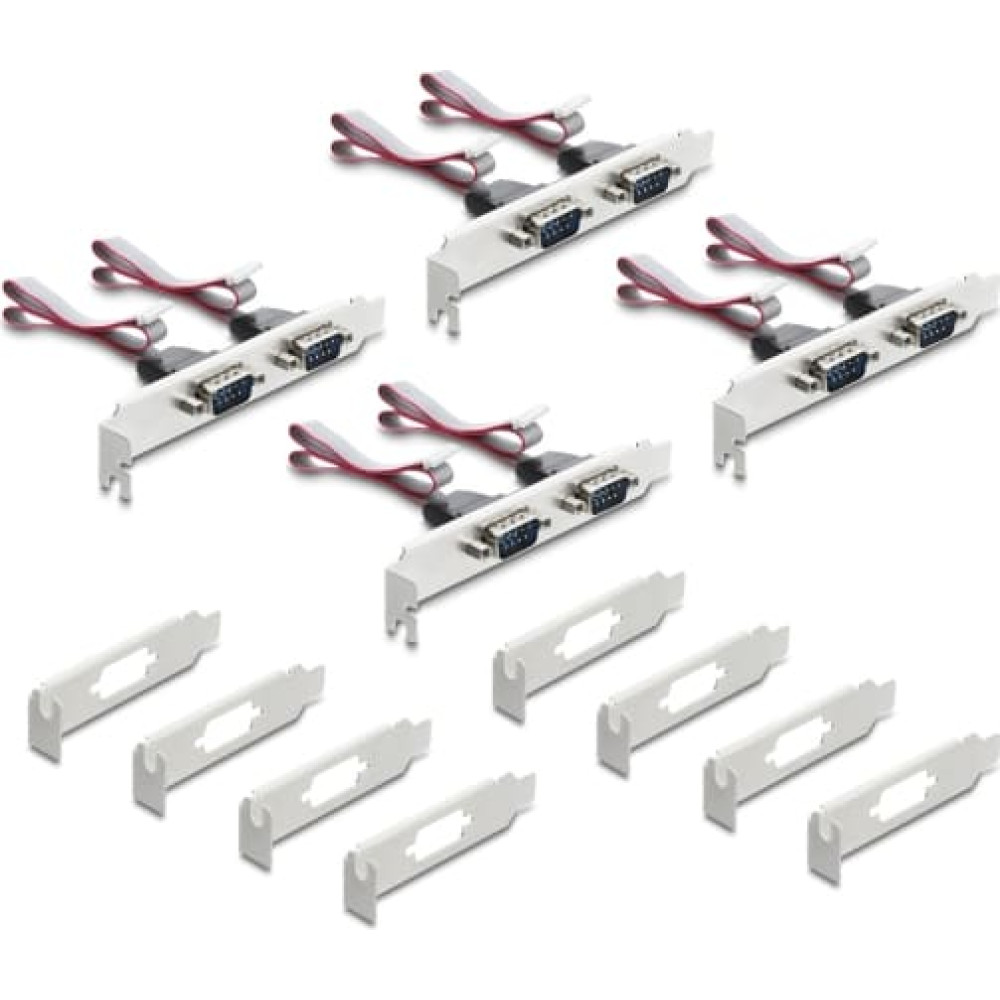

Package content:
• Mini PCIe module
• 8 x serial connecting cable (ca. 30 cm)

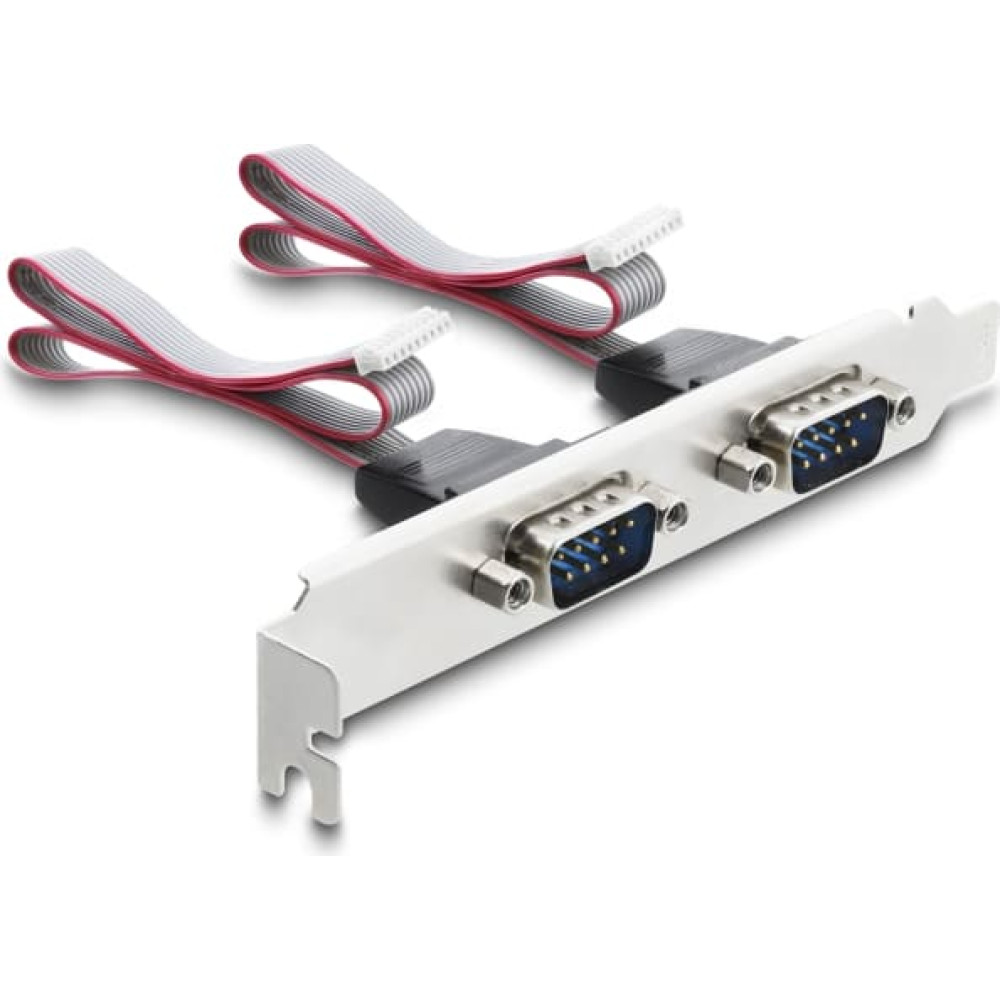

• 4 x standard bracket
• 8 x low profile bracket
• User manual
Data sheet:
https://www.delock.de/produkt/95283/pdf.html?sprache=en
