Home Computer Components Value Field Plug Cat.6A/Class EA, shielded, short screw

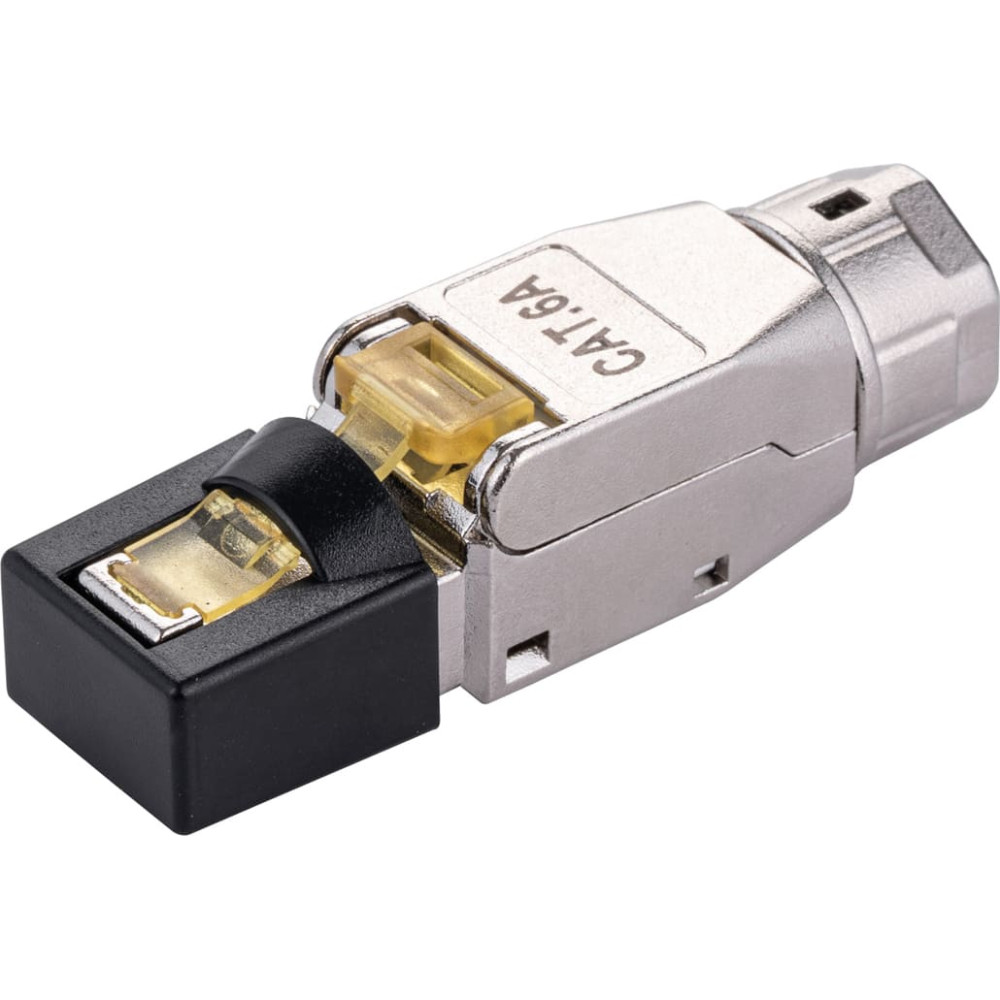

Value Field Plug Cat.6A/Class EA, shielded, short screw

Value

Value Field Plug Cat.6A/Class EA, shielded, short screw

Product Code: 26.99.0374
Barcode 7630049639089

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: silver
depth: 44.9
depth of packaging (single piece): 120
dimensions (hxwxd): 13 x 13.3 x 44.9 mm
gross weight: 0.015
height: 13
height of packaging (single piece): 10
manufacturer: VALUE
material (casing): Zinc alloy
operating temperature max.: 60
operating temperature min.: -10
package weight (single piece): 0.015
product group: Connection technology TP
product type: Connectors RJ-45
quantity of ports: 1
scope of delivery: Field Plug
separate strain relief: yes
shield contacts: ja
shield type: Screened
side 1 connector gender: Male
side 1 connector type: RJ-45
storage temperature max.: 70
storage temperature min.: -40
transfer quality: Cat6A / Class EA
weight: 15
width: 13.6
width of packaging (single piece): 100
Description

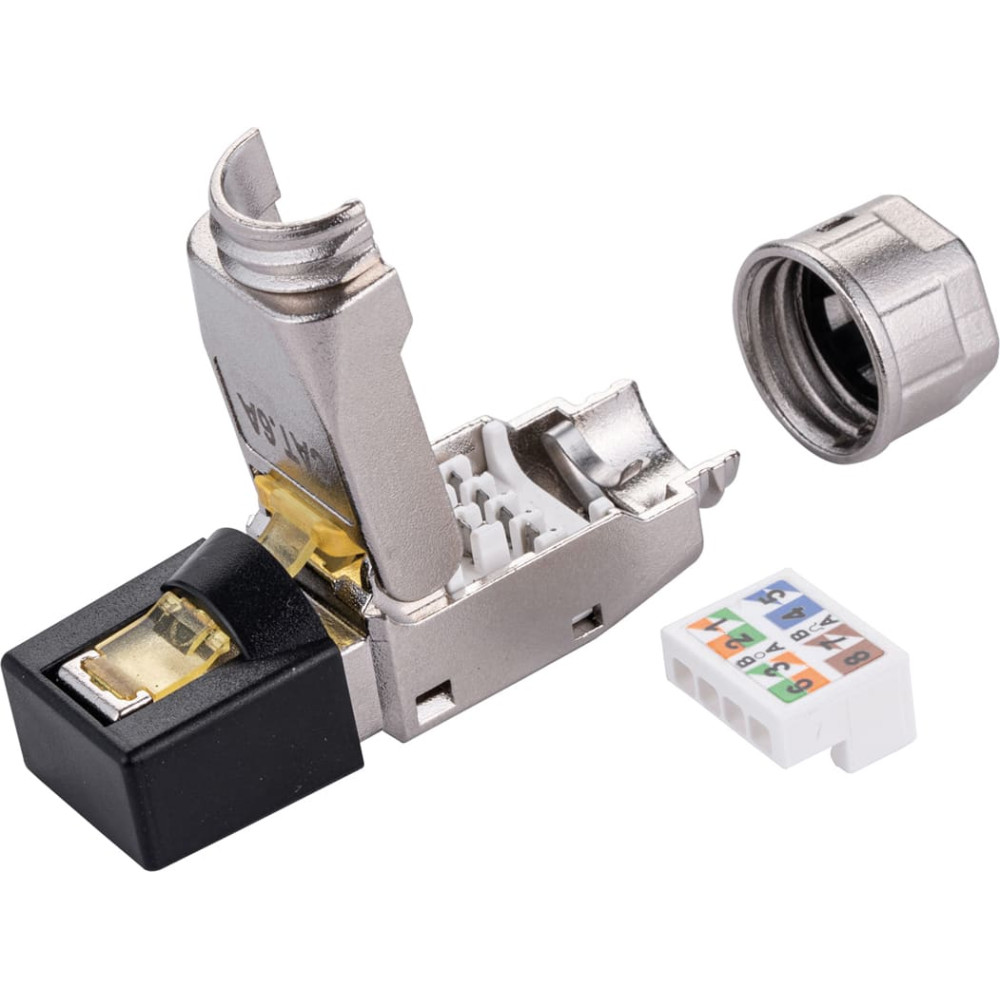

Field Plug Cat.6A/Class EA, shielded, with short screw - for fast and easy tool-free installation

  • Shielded RJ45 field plug with Cat.6A / Class EA performance
  • For round solid cables with AWG26/1 to AWG23/1 (wire diameter from 0.9 to 1.6mm)
  • Fast and easy installation - no special tool required
  • Pair management according to TIA 568B and TIA 568A color codes
  • Fully shielded with zinc alloy housing
  • Strain relief through cable gland
  • The ring ensures 360° forwarding of the cable shielding to the plug shielding.
  • Color: silver
