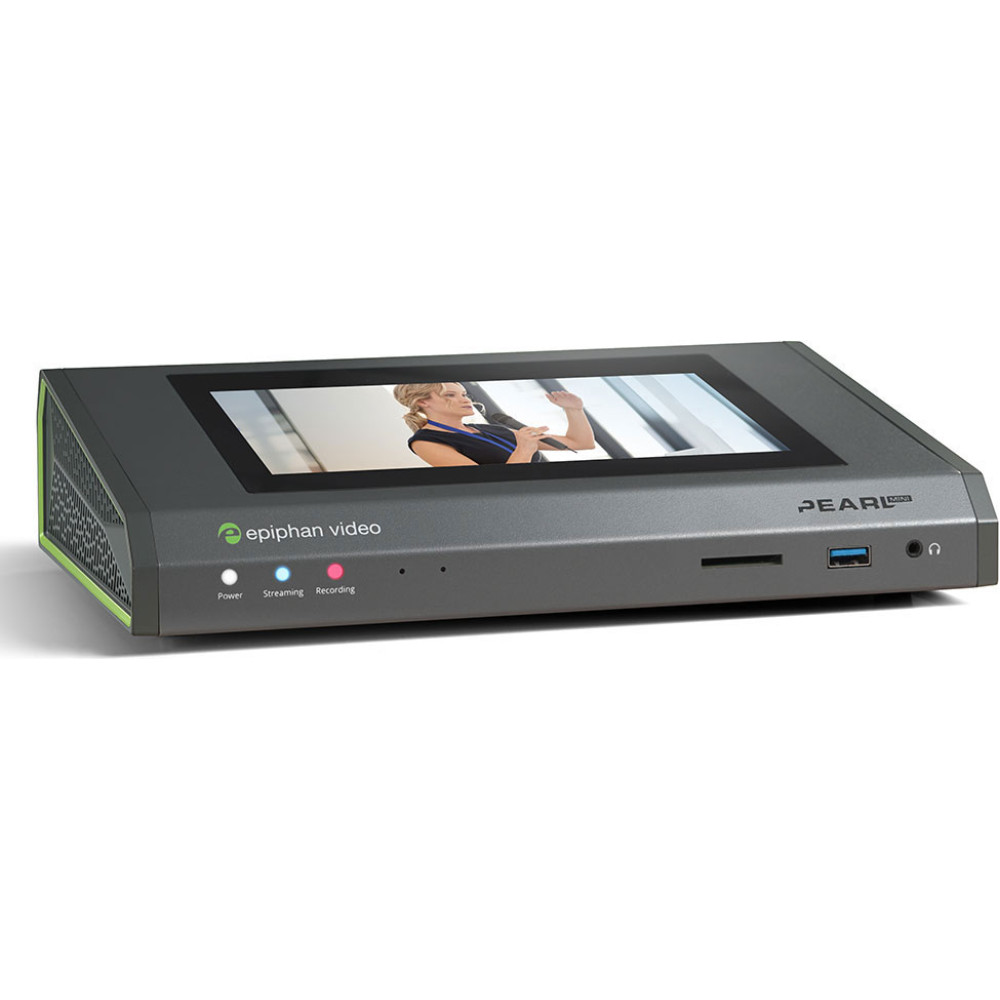

Epiphan PEARL MINI
To purchase this product you must be registered in our system.
Specification
codecs: H.264, Motion JPEG
connections: HDMI, USB, 3.5 mm jack, BNC, RJ45, XLR, RCA
connections (in): RCA female (x2), 3,5 mm jack female (x1), XLR female (x2), HDMI A (full-size) female (x2), RJ45 female (x1), BNC female (x1), USB A female (x2)
connections (out): HDMI A (full-size) female (x1)
control method: Web browser interface, API, On Screen Display (OSD)
country of origin: CA
included: Power cable, Ethernet cable, HDMI cable, power adapter
max. resolution @ 30hz: 1920 x 1200
other signals: USB 3.2 Gen 1 - SuperSpeed (USB 3.0), Digital audio
power supply: External power supply
recording formats: AVI, MP4, MOV or MPEG-TS, SRT, MPEG-DASH
video signal: HDMI, SDI
Description
| The Epiphan Pearl Mini is the smaller version of the Pearl 2. It is an all-in-one video recording, streaming and switching system. The Pearl Mini supports Full HD video quality and is very suitable for use in smaller events, where for example 2 cameras are being used or at lectures where a camera and laptop are being used. The Pearl Mini is very user-friendly. Including local view option, SD slot, built-in touchscreen and possibility to directly connect a microphone. Note: requires an SD card to store video recordings! Recommended SD card size at least 64GB (class 10) up to a maximum of 512 GB U3 SD card.
Phantom power possible on audio inputs Requires an SD card to store video recordings Built-in touchscreen Switch video sources live Multi-encoding, multi-publishing Functions with Kaltura, Moodle, YuJa, YouTube, Facebook Live, Panopto Possibility to connect a microphone 802.1x network security compliance Integrates with Kaltura File - Datasheet 1 |
