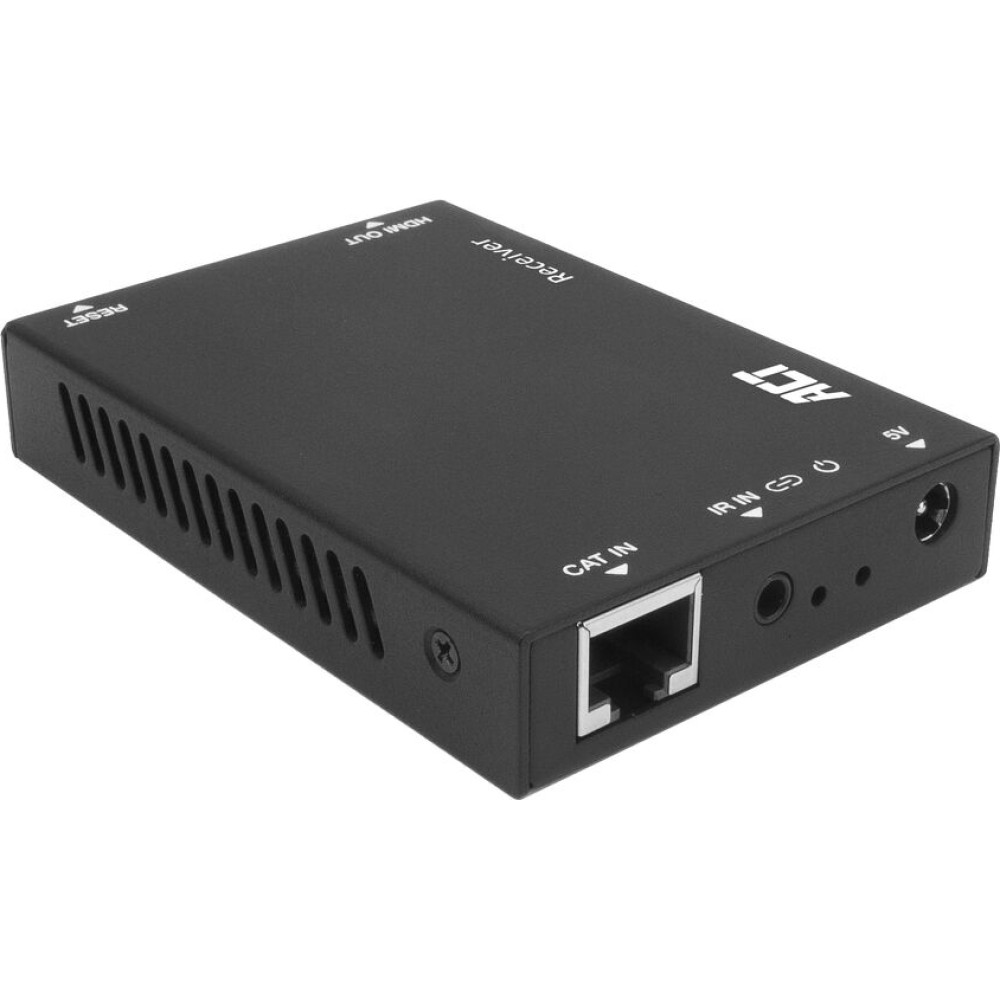

ACT HDMI EXT. RECEIVER,IP INCL. IR
To purchase this product you must be registered in our system.
Specification
audio formats: LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz
chroma sampling: RGB, YCbCr 4:4:4, YCbCr 4:2:2
connections: 3.5 mm jack, HDMI, RJ45
connections (in): RJ45 female (x1)
connections (out): 3,5 mm jack female (x1), HDMI A (full-size) female (x1)
country of origin: CN
extender category: 101-300 m
extension connector: RJ45
extension over: CATx
extension protocol: IP
hdcp version: 1.4
included: 1x 20~60KHz IR Receiver cable (1.5 meters), 1x Power Adapter 5.0V DC 1.0A 5.0W
max. extension distance: 150 m
max. extension distance (full hd): 150 m
max. resolution @ 60hz: 1920 x 1200
power supply: External power supply
power supply specification: 5.0V DC 1.0A 5.0W
video signal: HDMI
Description
| The AC7853 HDMI receiver can be used as an additional receiver unit in a point-to-multipoint setup with the AC7852 HDMI over IP Extender Set. Connect up to 253 receivers to the AC7852 via a network switch. In a point-to-multipoint setup, the switch needs to support Layer 3, Internet Group Management Protocol (IGMP) and Multicast. The AC7853 comes with mounting brackets and an IR receiver.
HDMI receiver unit for use with AC7852 HDMI over IP Extender Set Supports a maximum resolution of 1920x1200@60Hz, 16:10 ratio, EDID, 4:4:4, video encoding H.265 and HDCP 1.4 Connect up to 253 receivers Mounting brackets and IR receiver included |
