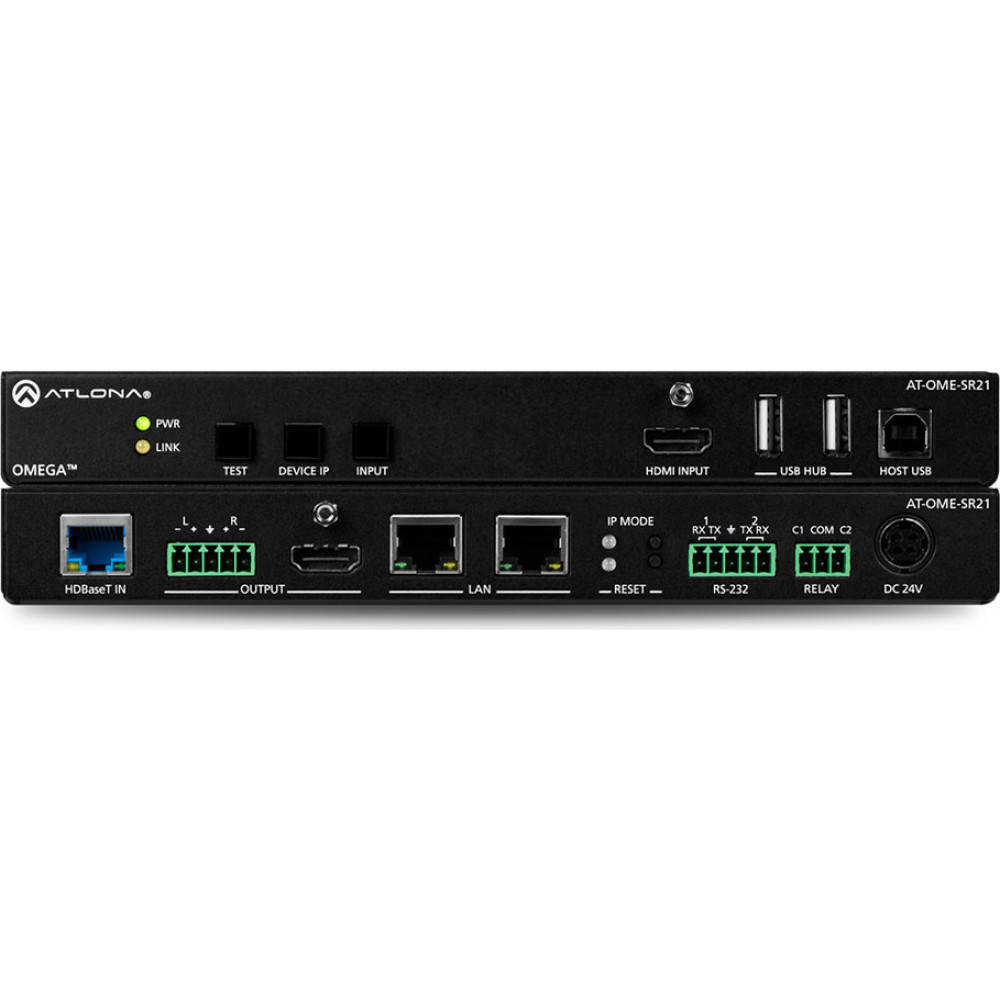

Atlona OMEGA SOFT VID.CONF. HDBT SCA
To purchase this product you must be registered in our system.
Specification
connections: RJ45, USB, Terminal block, HDMI
connections (in): RJ45 female (x1)
connections (out): HDMI A (full-size) female (x1), Terminal block 5-pin female (x1)
control method: Button, Software, Web browser interface
country of origin: TW
hdbaset specification: HDBaseT 5play
hdmi specification: Not specified by manufacturer
included: Captive screw connectors, mounting screws, brackets, power supply, IEC power cord
loop-through: Yes
max. resolution @ 60hz: 2160p
scaler type: Cross scaler
signal (in): HDBaseT
signal (out): HDMI
supported features: EDID, HDCP
video signal: HDMI
Description
| The Atlona AT-OME-SR21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. The OME-SR21 receives HDBaseT for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-SR21 is HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion. Additionally, it receives USB over HDBaseT and includes a USB 2.0 hub for integration with PCs, cameras, microphones, speakers, DSPs, and touch or interactive displays.
Switcher/receiver with scaler and USB Reliable Auto Switching Automatic Display Control HDCP 2.2 compliant Aspect ratio control Easy to configure Field updatable firmware File - Datasheet 1 |
