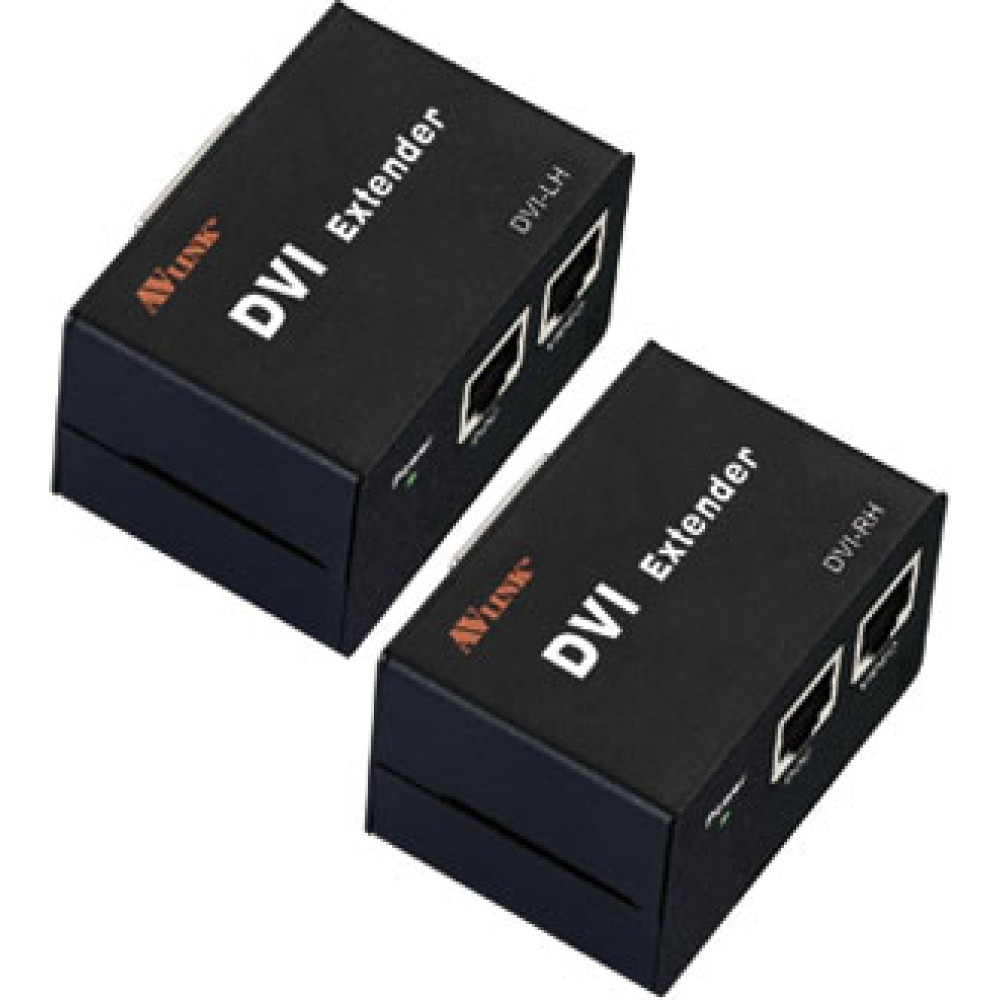

Avlink DVI-D TX/RX DDC/HDCP

Product Code: DVI-EH
Barcode 8716065231731
Brand: AVLINK

To purchase this product you must be registered in our system.



Specification
connections: DVI
connections (in): RJ45 female (x2), DVI 18+5-pin female (x1)
connections (out): DVI 18+5-pin female (x1), RJ45 female (x2)
country of origin: TW
dvi specification: DVI-D Single Link
extender category: 0-50 m
extension cable: CATx (x2)
extension connector: RJ45
extension over: CATx
extension protocol: Own
included: Power adapter x2 (including Euro plugs and adjustable adapters)
max. extension distance: 50 m
max. resolution @ 60hz: 1600 x 1200
power supply: External power supply
supported features: HDCP, DDC
video signal: DVI

Description
This digital video extender set extends DVI-D signals at a distance of max. 50 metres, using regular network cables. Maximum resolution of 1600x1200 @ 60 Hz at 30 metres up to 1280x1024 @ 60 Hz at 50 metres are possible.This extender set supports both DDC and HDCP signals.

Extends a DVI-D single link signal

File - Datasheet 1
