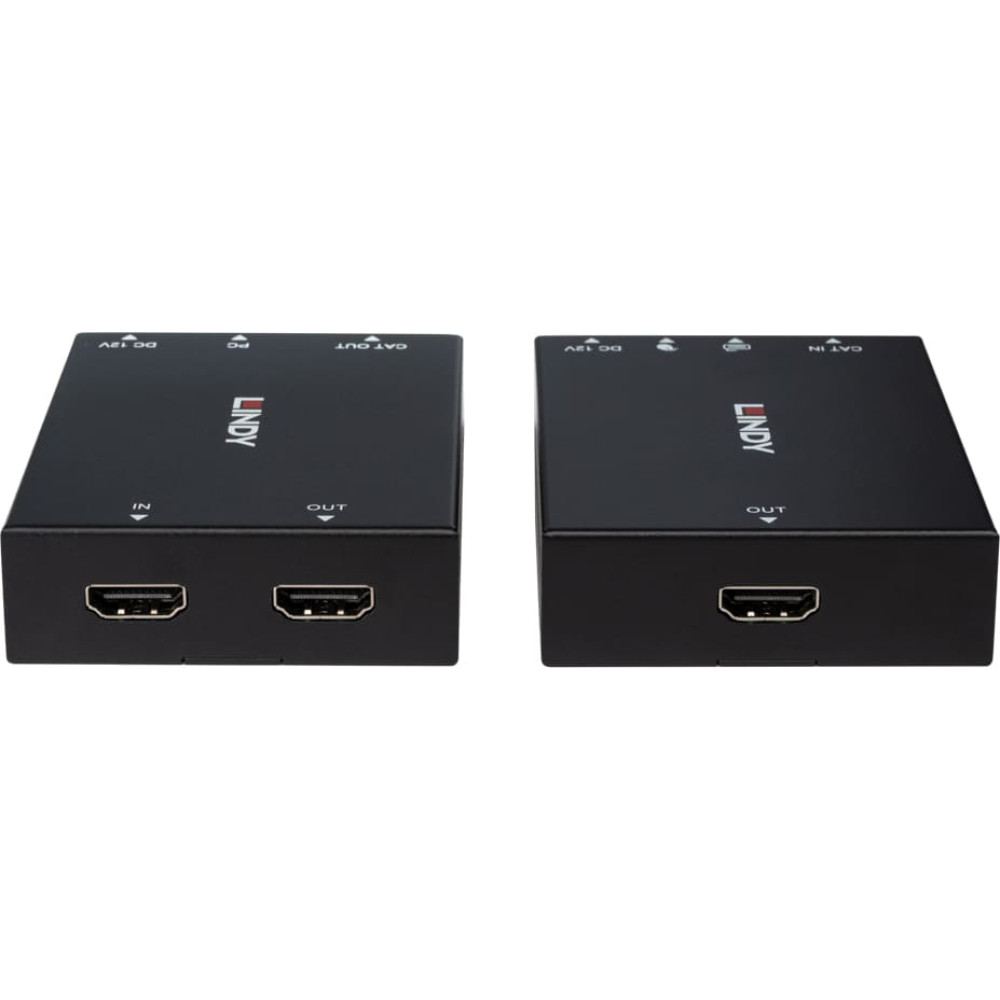

Lindy 100m Cat.6 HDMI & USB KVM Extender

LINDY

Lindy 100m Cat.6 HDMI & USB KVM Extender

Product Code: 39350
Barcode 4002888393508

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
ac adapter included: Yes
ac adapter output current: 1 A
ac adapter output voltage: 12 V
bandwidth: 4.95 Gbit/s
cable types supported: Cat6
cables included: USB Type-A to USB Type-B
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/28/f3/f4/67/67f4f32894a579e504f7befc/CE_39350.pdf
certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
connectivity technology: Wired
country of origin: CN
dc-in jack: Yes
extended display identification data (edid): Yes
gross weight: 0.72
hdcp: Yes
hdcp version: 1.4
manual: Yes
material: Metal
maximum digital resolution: 1920 x 1080 pixels
maximum refresh rate: 60 Hz
maximum transfer distance: 100 m
net weight: 0.55
number of displays supported: 1
operating relative humidity (h-h): -20 - 80%
operating temperature (t-t): 0 - 40 °C
package depth: 135 mm
package height: 75 mm
package weight: 720 g
package width: 215 mm
packaging height: 7.50
packaging lenght: 21.50
packaging width: 13.50
product colour: Black
quick installation guide: Yes
receiver depth: 6.8 cm
receiver height: 2.2 cm
receiver local keyboard/mouse port type: USB
receiver local video port type: HDMI
receiver local video ports quantity: 1
receiver usb type-a ports quantity: 2
receiver weight: 550 g
receiver width: 9 cm
rj-45 ports quantity (receiver): 1
rj-45 ports quantity (transmitter): 1
screws included: Yes
storage temperature (t-t): -20 - 60 °C
sustainability certificates: Certified Enviro Cranberries (CEC)
transmitter depth: 6.8 cm
transmitter height: 2.2 cm
transmitter local keyboard/mouse port type: USB
transmitter local video port: Yes
transmitter local video port type: HDMI
transmitter video port type: HDMI
transmitter weight: 550 g
transmitter width: 9 cm
type: Transmitter & receiver
warranty: 2
Description

Specifications

  • AV Interface: HDMI®
  • Interface Standard: 1.4, USB 1.1
  • Supported Bandwidth: 4.95Gbps
  • Maximum Distance: 100m (328.08ft)
  • Maximum Resolution: 1920x1080@60Hz
  • HDCP Support: 1.4
  • EDID Pass Through: Pass-through
  • Supported Audio: HDMI® Audio Pass-through
  • Separate Audio Ports: -
  • IR Support: -
  • CEC Support: Pass-through
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: HDMI® Loop Out Port, PoC (Power over Cable)

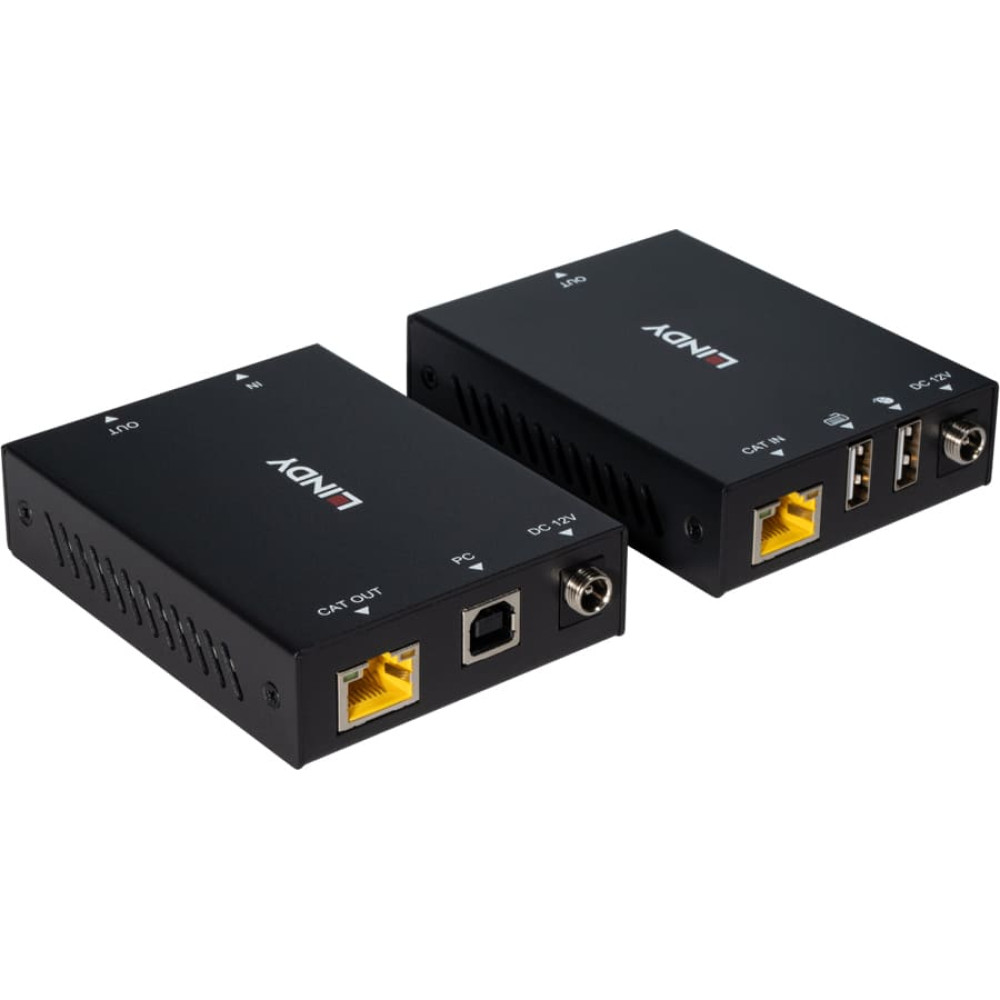

 Connectors

  • Transmitter Input: HDMI® Type A (Female), USB Type B (Female)
  • Transmitter Output: RJ-45 (Female), HDMI® Type A (Female)
  • Receiver Input: RJ-45 (Female)
  • Receiver Output: HDMI® Type A (Female), 2 x USB Type A (Female)
  • Bi-directional Ports: -
  • Power: 5.5/2.1mm

 Physical Properties

  • Dimensions (approx.) WxDxH: 90x68x22mm (3.54x2.68x0.87in) per unit
  • Housing Material: Metal
  • Net Weight: 0.55kg (1.21lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: -20 - 80% RH (non-condensing)
  • Power Requirements: 12VDC 1A
  • Colour: Black

 Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 215x135x75mm (8.46x5.31x2.95in)
  • Gross Weight: 0.72kg (1.59lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

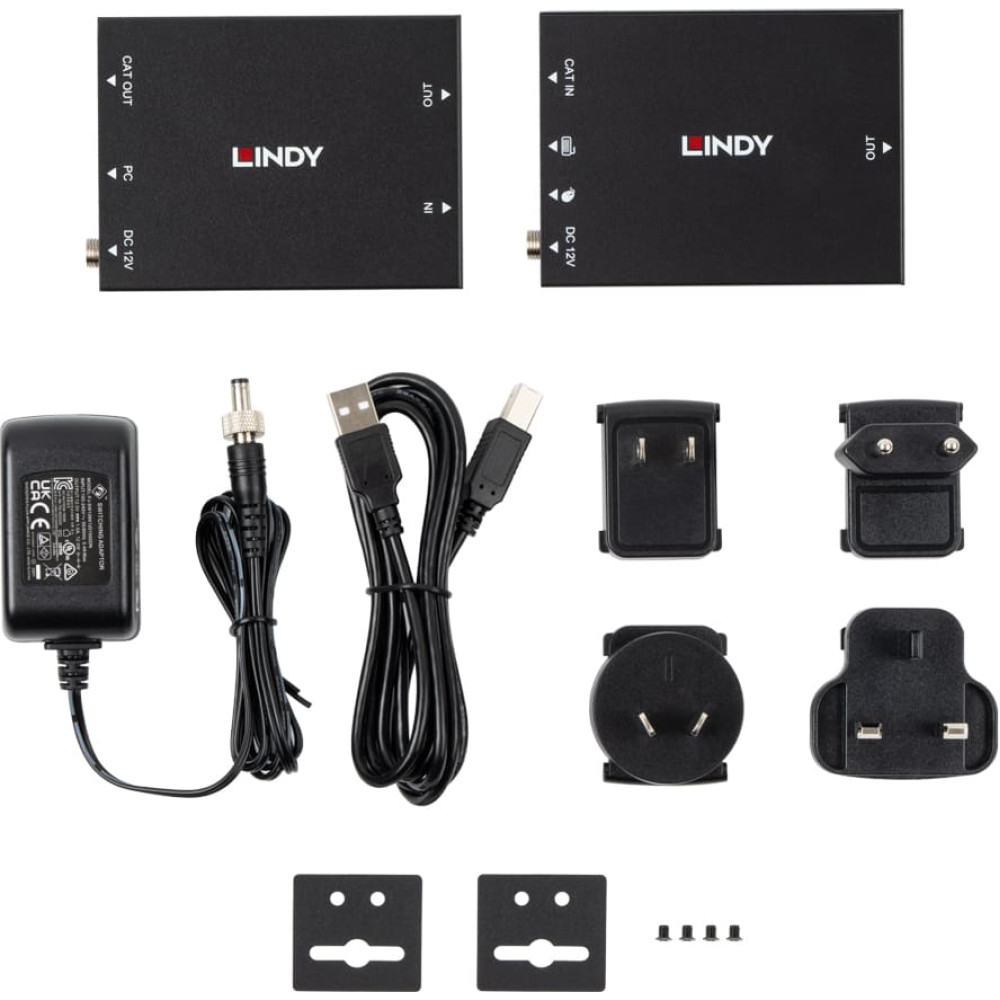

Package Contents

  • Transmitter
  • Receiver
  • USB Type A/B cable, 1.5m
  • 4 x Mounting Ears with screws
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual

 Purchasing Information

  • No.: 39350
  • EAN: 4002888393508


CE Doc: CE_39350.pdf
