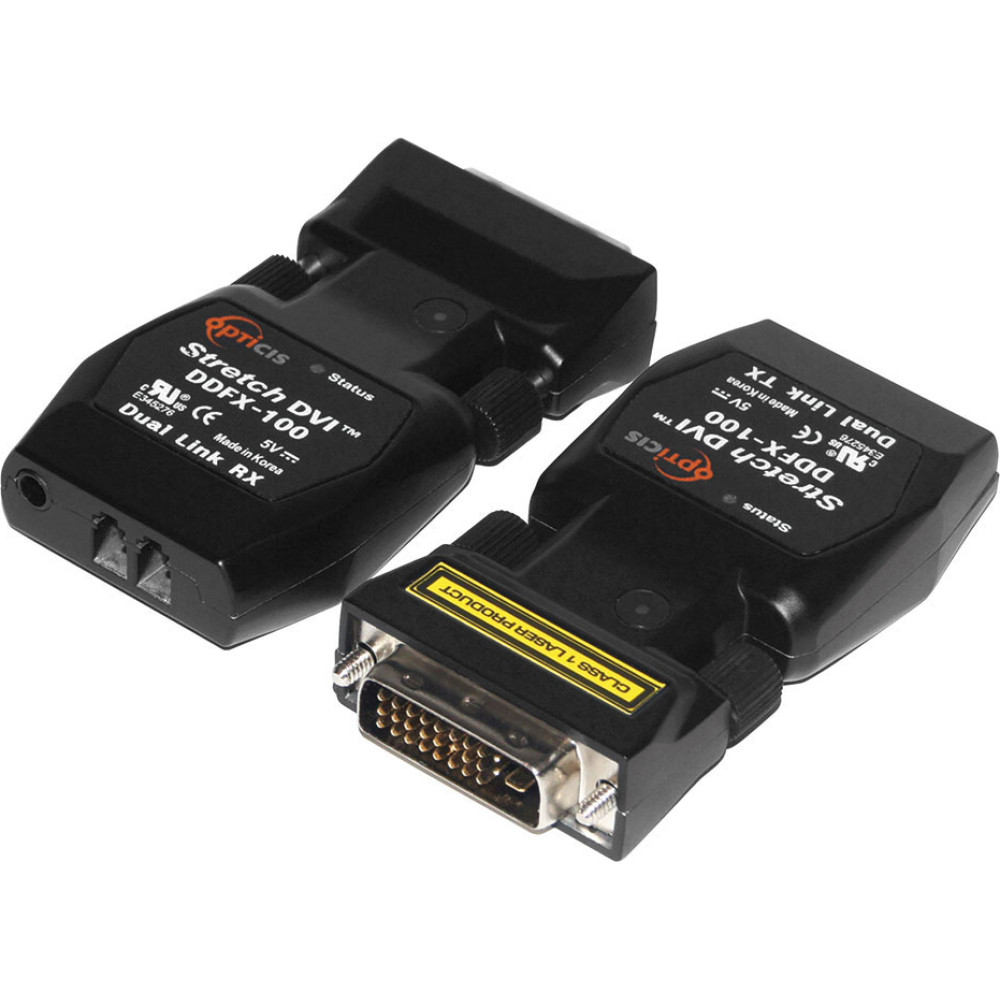

Opticis TWO FIBER DUAL LINK DVI EXT
To purchase this product you must be registered in our system.
Specification
connections: DVI
connections (in): DVI 24+1-pin male (x1)
connections (out): DVI 24+1-pin male (x1)
country of origin: KR
dvi specification: DVI-D Dual Link
extender category: 301-1000 m
extension cable: Fiber multi mode LC (x2)
extension connector: LC
extension over: Fiber
extension protocol: Own
included: Power adapter
max. extension distance: 500 m
max. resolution @ 60hz: 2560 x 1600
power supply: External power supply
supported features: EDID
video signal: DVI
Description
| The DDFX-100-TR detachable dual-Link DVI extender offers easy connection to your existing system with minimum efforts and no modification, since it is designed compactly enough and with all industry standard connectors. The metallic die-casting enclosure gives reliable installation, excellent EMI shields and heat dissipation in harsh and noisy environments. DDFX-100-TR transmits uncompressed WQXGA (2560x1600), 60 Hz or WQUXGA (3840x2400), 33 Hz refresh ratio of dual-link DVI up to 500 metres over two LC multimode fibers.
File - Datasheet 1 |
