Specifications

• AV Interface: -
• Interface Standard: -
• Supported Bandwidth: -
• Maximum Distance: 500m (1640.4ft)
• Maximum Resolution: -
• HDCP Support: -
• EDID Pass Through: -
• Supported Audio: 2Ch Stereo Audio
• Separate Audio Ports: -
• IR Support: -
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.5e / 6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: -
• Special Features: -

Connectors

• Transmitter Input: Phono (Male)
• Transmitter Output: RJ-45 (Female)
• Receiver Input: RJ-45 (Female)
• Receiver Output: Phono (Male)
• Bi-directional Ports: -
• Power : -

Physical Properties

• Dimensions (approx.) WxDxH: 23x31x25mm (0.91x1.22x0.98in)
• Housing Material: Plastic
• Net Weight: 0.041kg (0.09lb)
• Operating Temperature : 0°C - 55°C (32°F - 131°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Humidity: 0 - 95% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm (6.85x7.64in)
• Gross Weight: 0.05kg (0.11lb)
• Warranty (Years): 2
• Product Compliance: REACH & California Proposition 65

Package Content

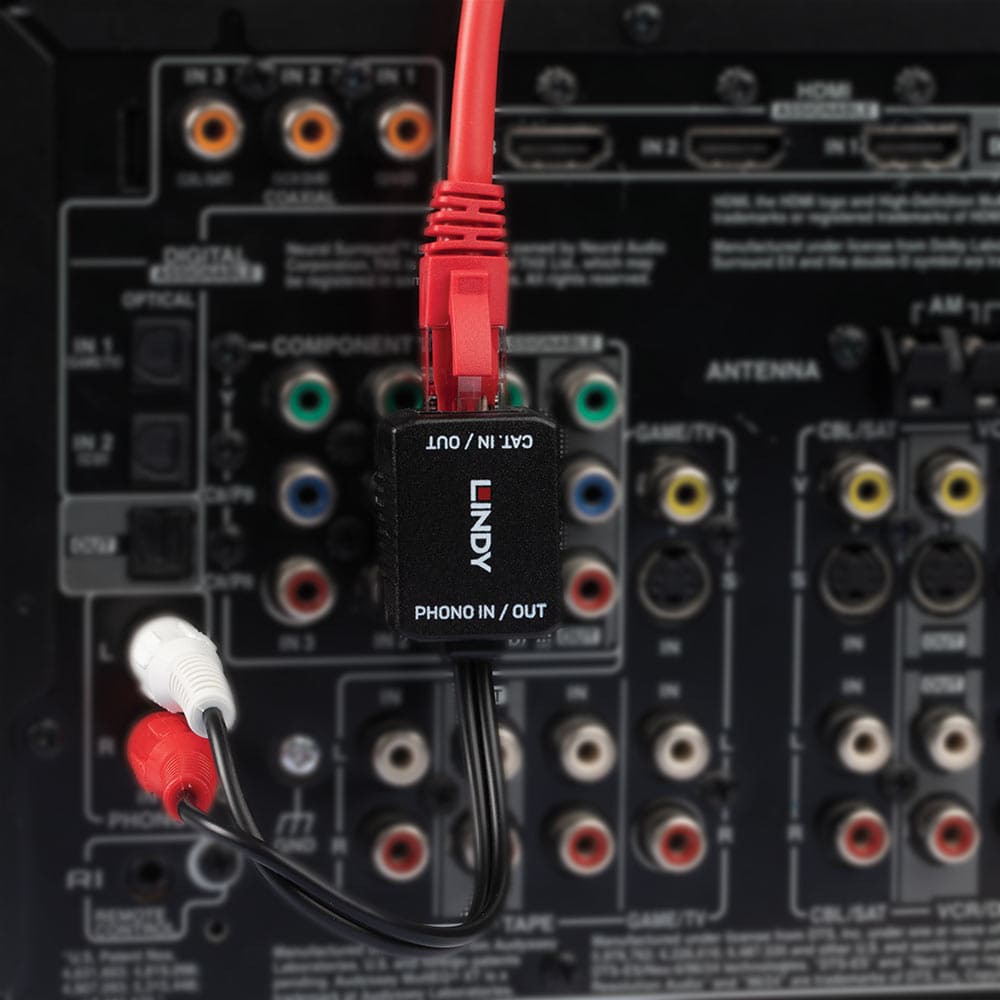

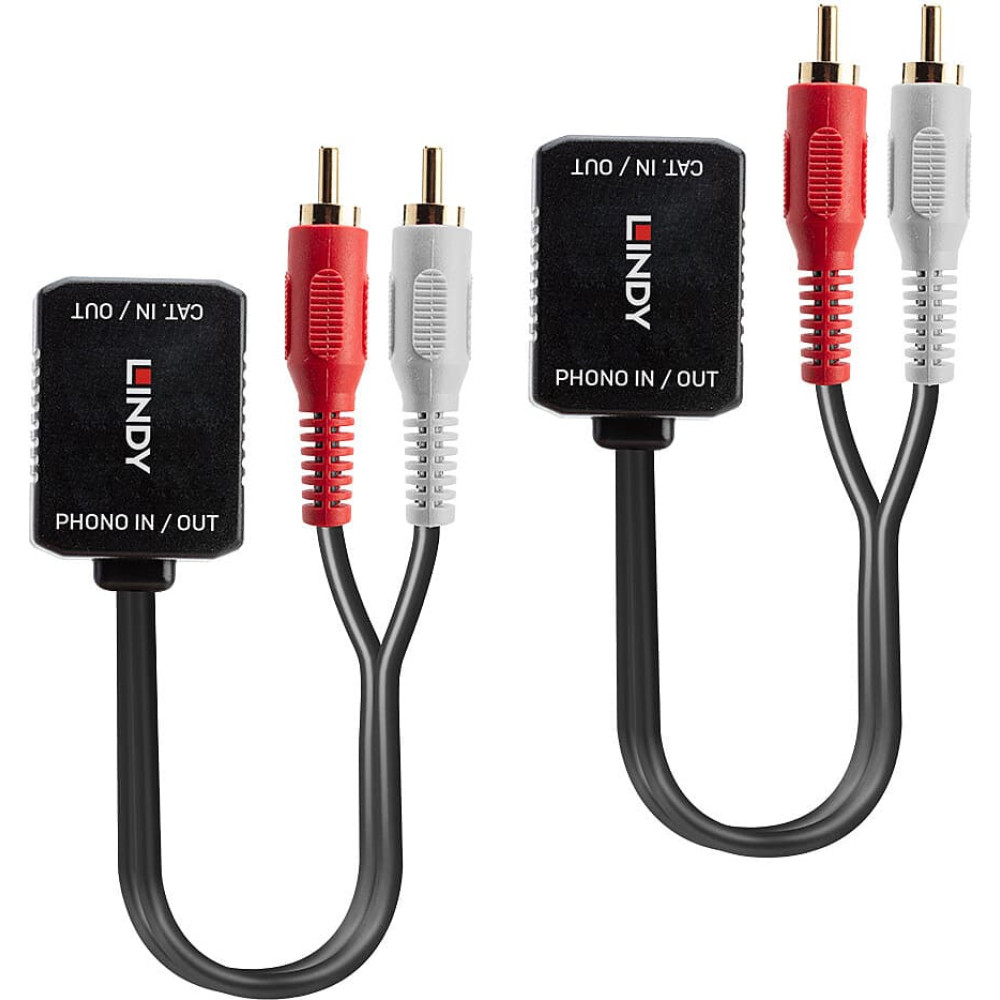

• 500m Cat.6 Phono Analogue Audio Extender

Purchasing Information

• No.: 70460
• EAN: 4002888704601
