LINDY

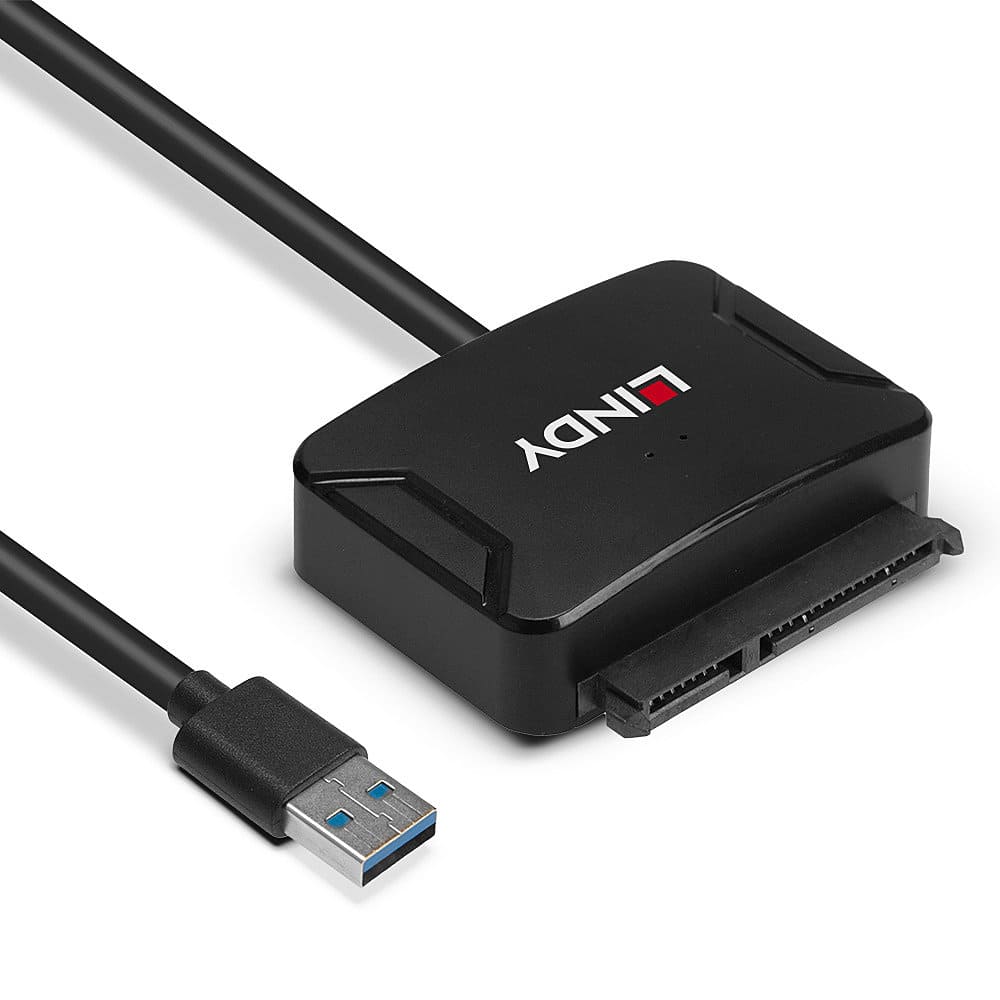

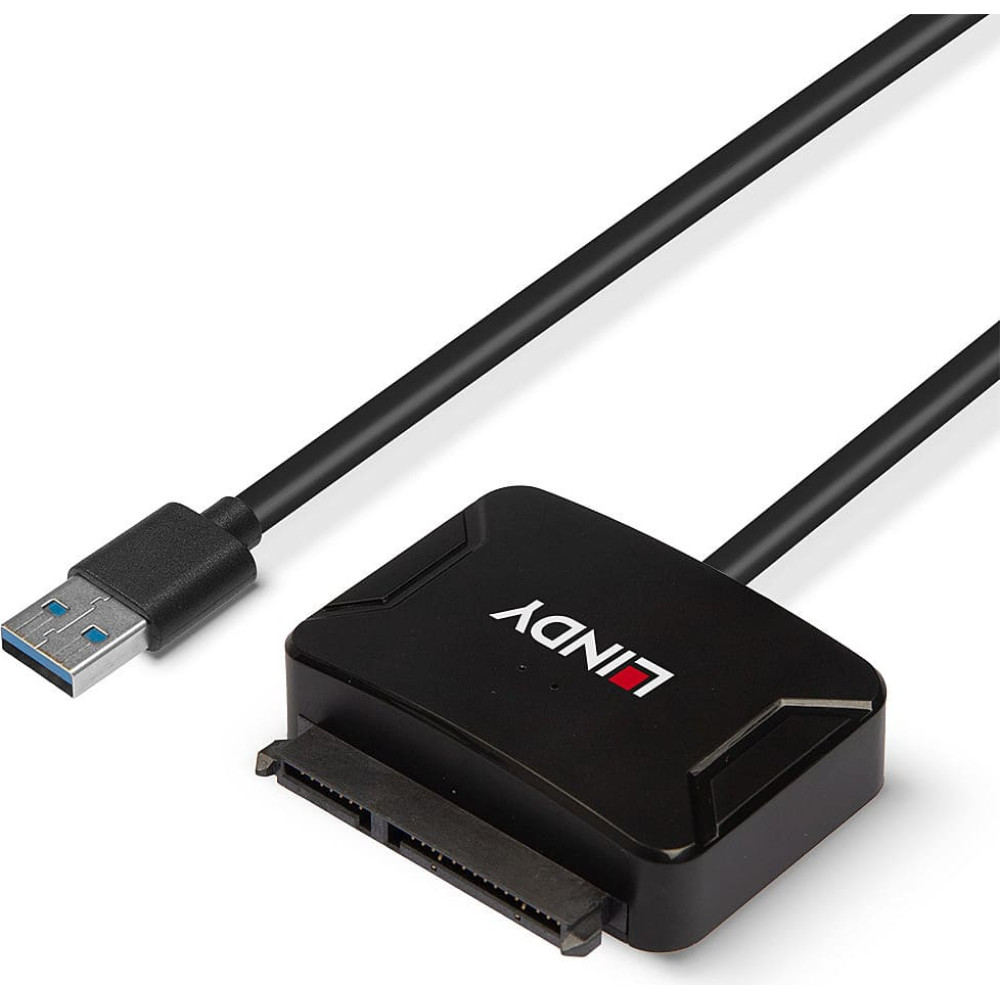

Lindy USB 3.0 to SATA Converter with Power Supply

Product Code: 43311
Barcode 4002888433112

To purchase this product you must be registered in our system.



Specification
cable length: 1 m
chipset: ASM1153E
country of origin: CN
depth: 35.4 mm
gross weight: 0.33
harmonized system (hs) code: 84733020
height: 13.6 mm
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/97/67/97/62/62976797999c8d635dc13e43/LINDY_43311_MAN_0222.pdf
net weight: 0.24
operating temperature (t-t): 0 - 40 °C
package depth: 175 mm
package height: 51 mm
package weight: 238 g
package width: 175 mm
packaging height: 5.10
packaging lenght: 17.50
packaging width: 17.50
product colour: Black
storage temperature (t-t): -10 - 60 °C
warranty: 2
weight: 237 g
width: 50 mm

Description

Specifications

  • Interface: USB to SATA
  • Interface Standard: USB 3.1 Gen 1 / 3.0, SATA 3.0
  • Supported Bandwidth: 5Gbps, 6Gbps
  • Chipset: ASM1153E
  • Compatibility: USB Type A equipped computers
  • Special Features: -

Connectors

  • Inputs: 1 x USB Type A (Male)
  • Outputs: 1 x SATA 22 Pin (Male)
  • Power: 5.5/2.1mm DC socket

Physical Properties

  • Dimensions WxDxH: 50x35.4x13.6mm (1.97x1.39x0.54in)
  • (Fixed) Cable Length: 1m (3.28ft)
  • Housing Material: ABS
  • Net Weight: 0.237kg (0.52lb)
  • Operating Temperature: 0°C - 40°C (32°F - 100°F)
  • Storage Temperature: -10°C - 60°C (14°F - 140°F)
  • Humidity: 20 - 80% RH (non-condensing)
  • Power Requirements: 12VDC 2A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 175x175x51mm (6.89x6.89x2.01in)
  • Gross Weight: 0.328kg (0.72lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS, REACH, CP65

Package Contents

  • USB 3.0 to SATA Converter
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy QIG

Purchasing Information

  • No.: 43311
  • EAN: 4002888433112



Manuals: LINDY_43311_MAN_0222.pdf
