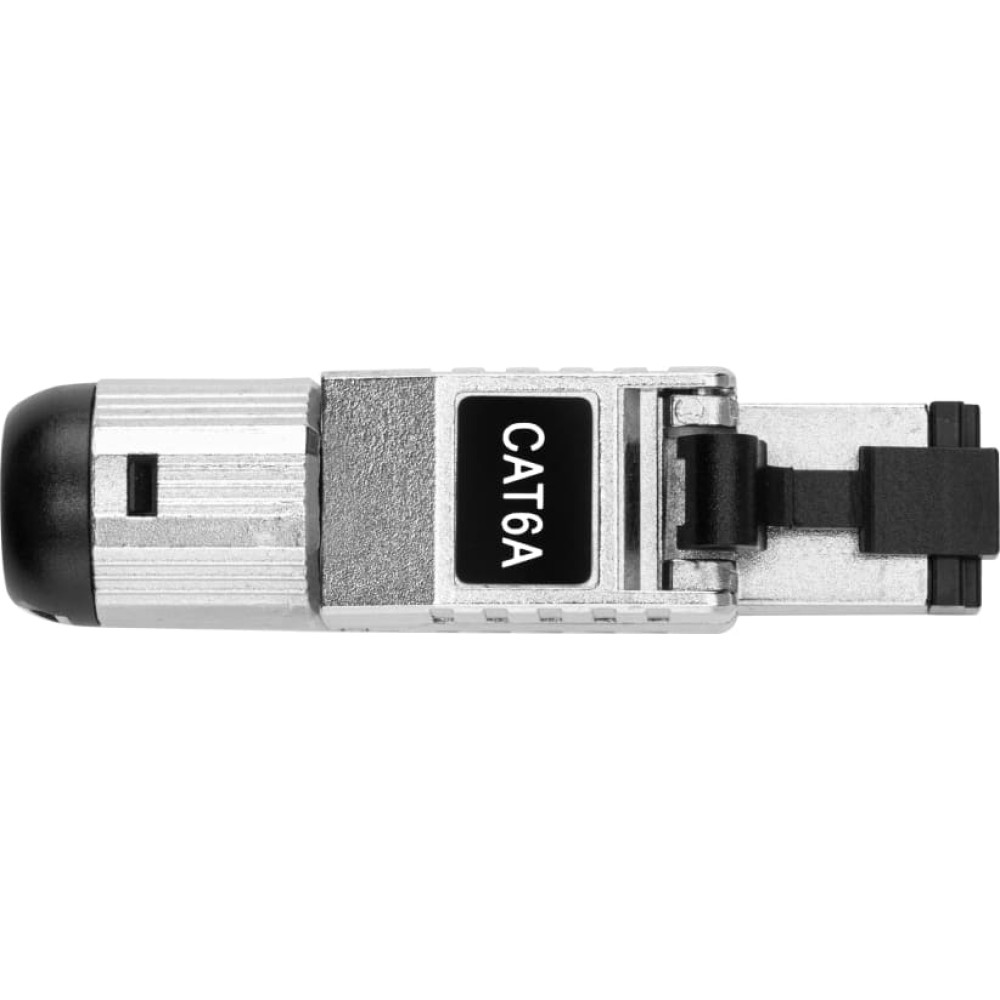

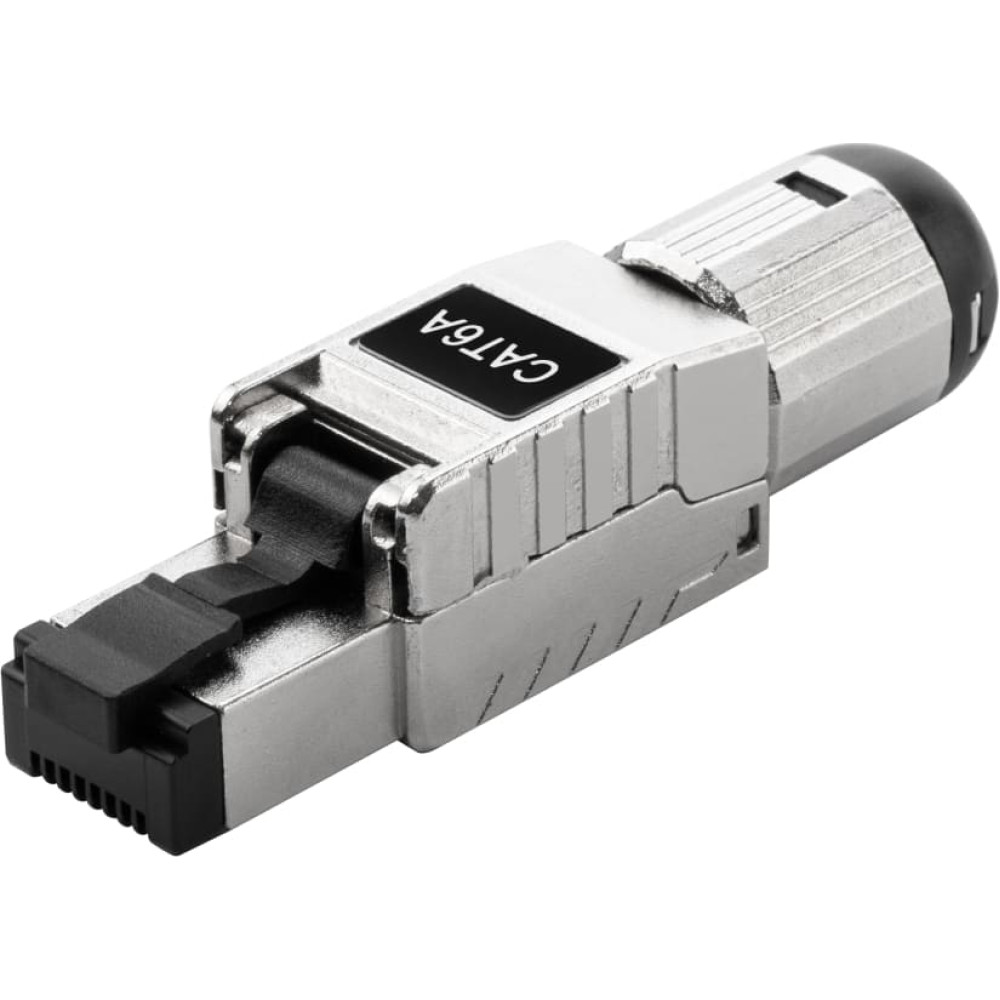

Lindy RJ-45 Cat.6/6A Toolless Field Termination Plug

LINDY

Lindy RJ-45 Cat.6/6A Toolless Field Termination Plug

Product Code: 62411
Barcode 4002888624114

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/0a/25/e8/66/66e8250a92a7d8be4bdd1454/CE_62411.pdf
country of origin: CN
depth: 0.000
gross weight: 0.03
height: 0.000
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/51/76/d1/66/66d176515d1c6128cf5d9629/62411 Manual.pdf.pdf
net weight: 0.03
packaging height: 12.00
packaging lenght: 12.00
packaging width: 1.00
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/78/5f/17/67/67175f78974ebda55ae8d96a/62411_TDS_V1.pdf
warranty: 2
width: 0.000
Description

Physical Properties

  • Dimensions (approx.): 13 x 18 x 68mm (0.5 x 0.7 x 2.6in)
  • Housing Material: Zink Alloy
  • Net Weight: 0.24kg (0.052lb)
  • Supported Bandwidth: 500MHz
  • Colour: Black

Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 133 x 144mm (5.24 x 5.67in)
  • Gross Weight: 0.26kg (0.057lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, RoHS, REACH & California Proposition 65

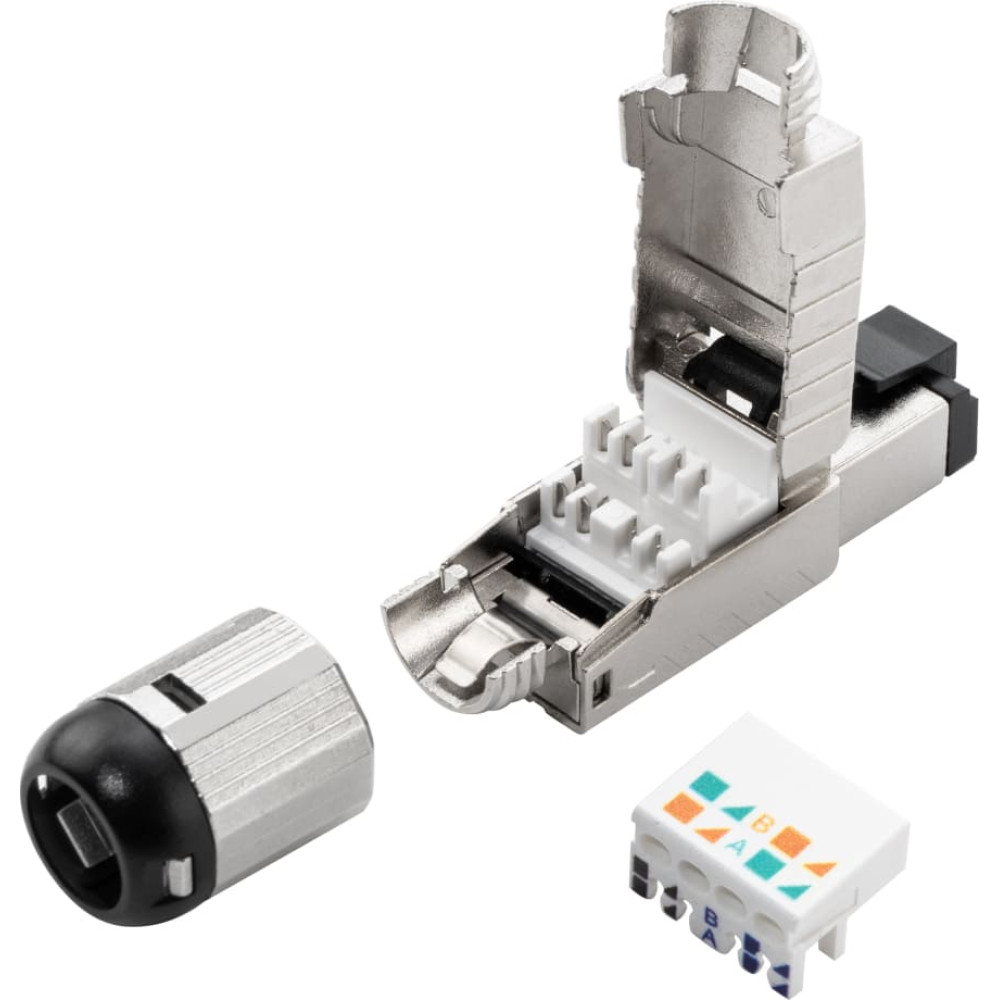

Package Contents

  • 1 x Shielded RJ-45 Field Termination Plug
  • 1 x Lindy Manual
  • 1 x Screw Cap
  • 1 x Dust Cap
  • 1 x Wire Management Bar
  • 1 x Copper Foil Tape

Purchasing Information

  • No.: 62411
  • EAN: 4002888624114


CE Doc: CE_62411.pdf
Tech Data Sheets: 62411_TDS_V1.pdf
Manuals: 62411 Manual.pdf.pdf
