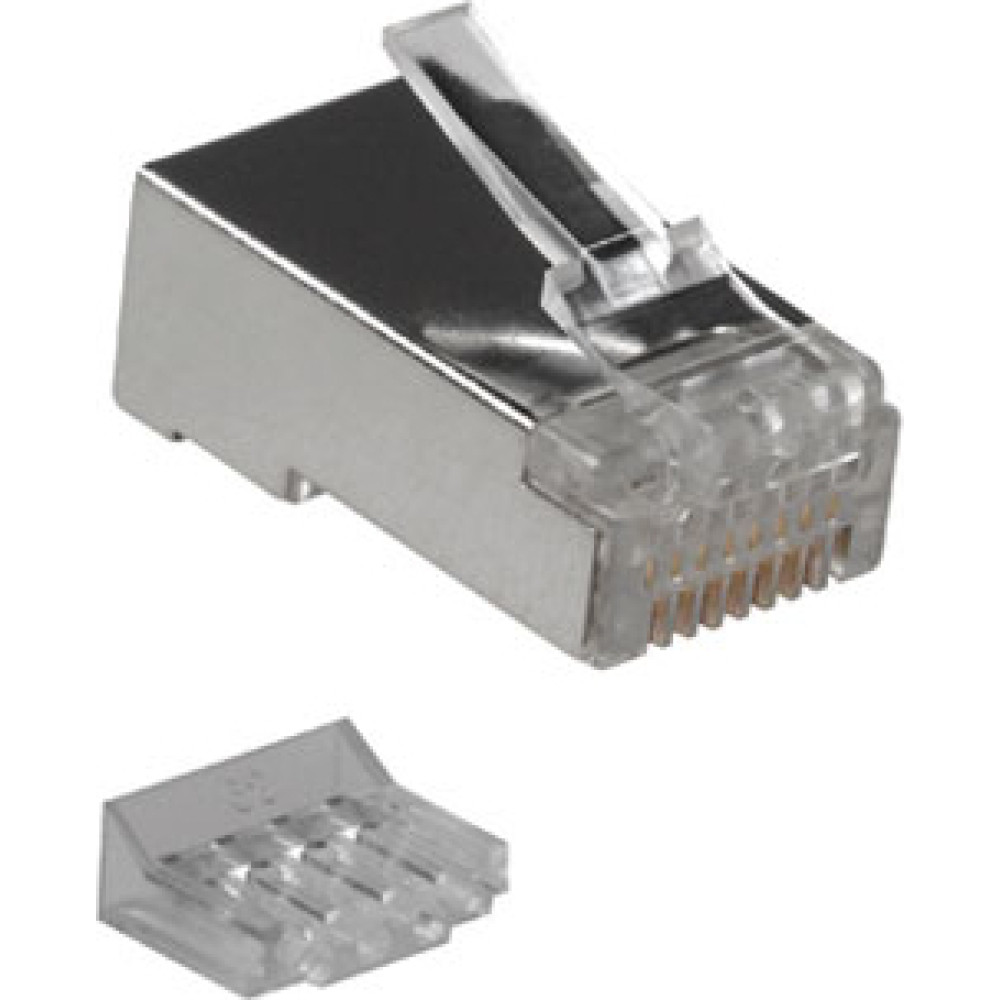

ACT RJ45 CAT5E SHIELDED STRANDED

Product Code: TD1138

Barcode 8716065132267

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

category: CAT5E

compatible wire type: Stranded (litze), Solid

connector type: RJ45

contact material: Phosphor bronze

contact plating: Gold plated

country of origin: CN

housing material: Polycarbonate

max. wire gauge: 24 AWG

min. wire gauge: 26 AWG

rated current: 2 A

rated voltage: 250 V

shielded: Yes

suitable for: Shielded solid and stranded cable

Description

RJ45 (8P/8C) CAT5E shielded modular connector for round cable with solid or standed conductors

For solid and stranded wires
50µ gold plated contacts
With positioning block

File - Datasheet 1
