D-LINK

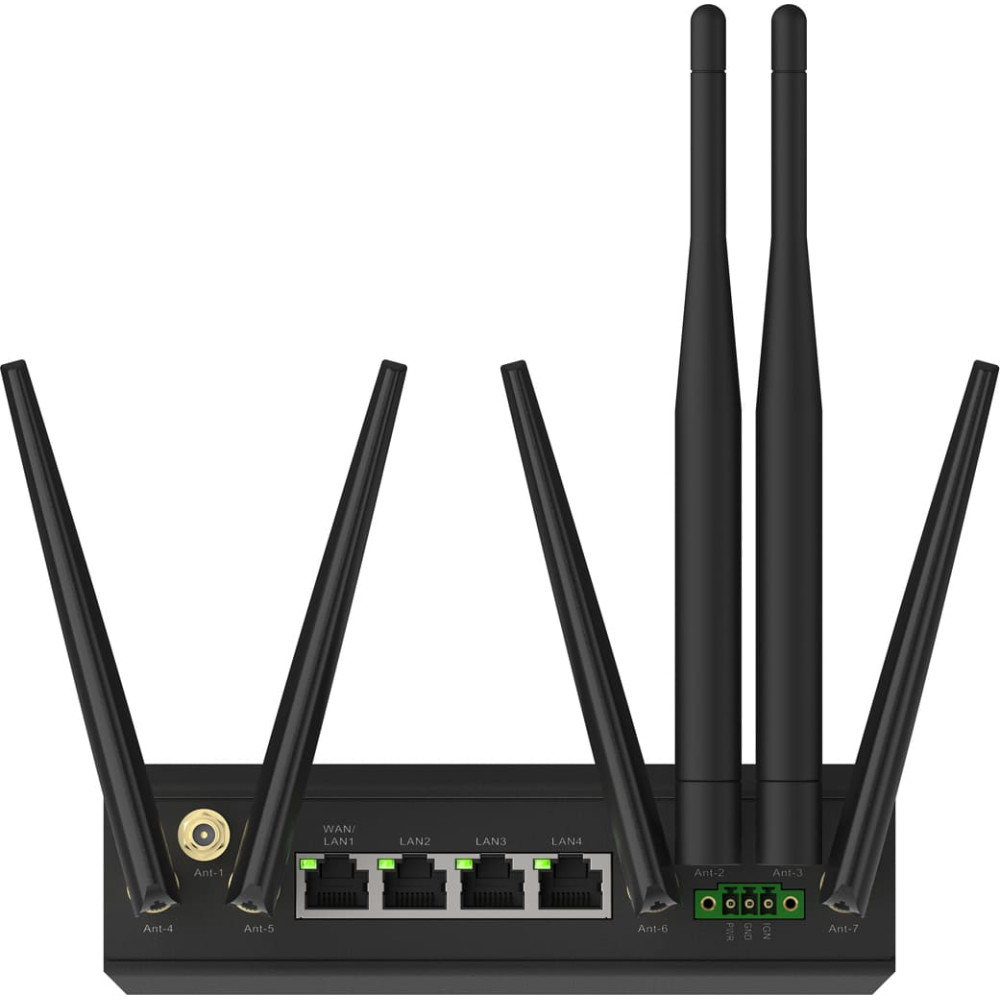

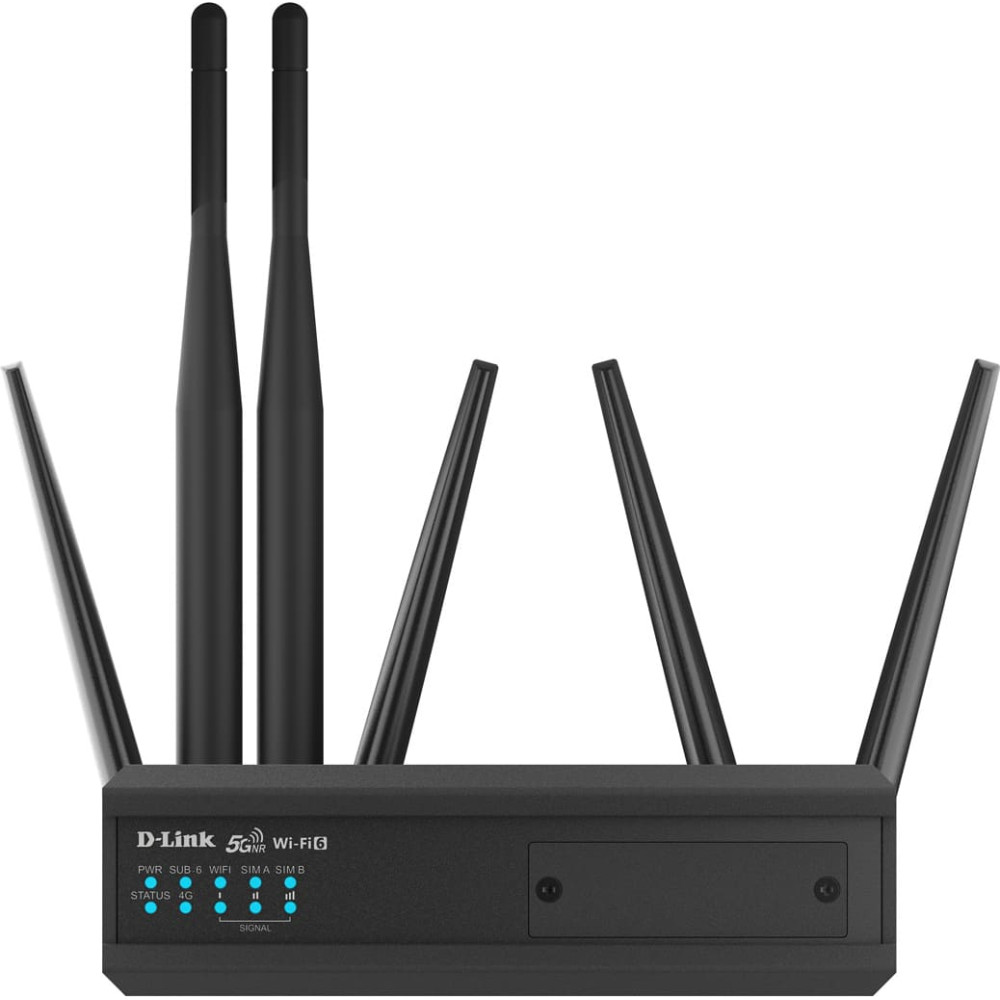

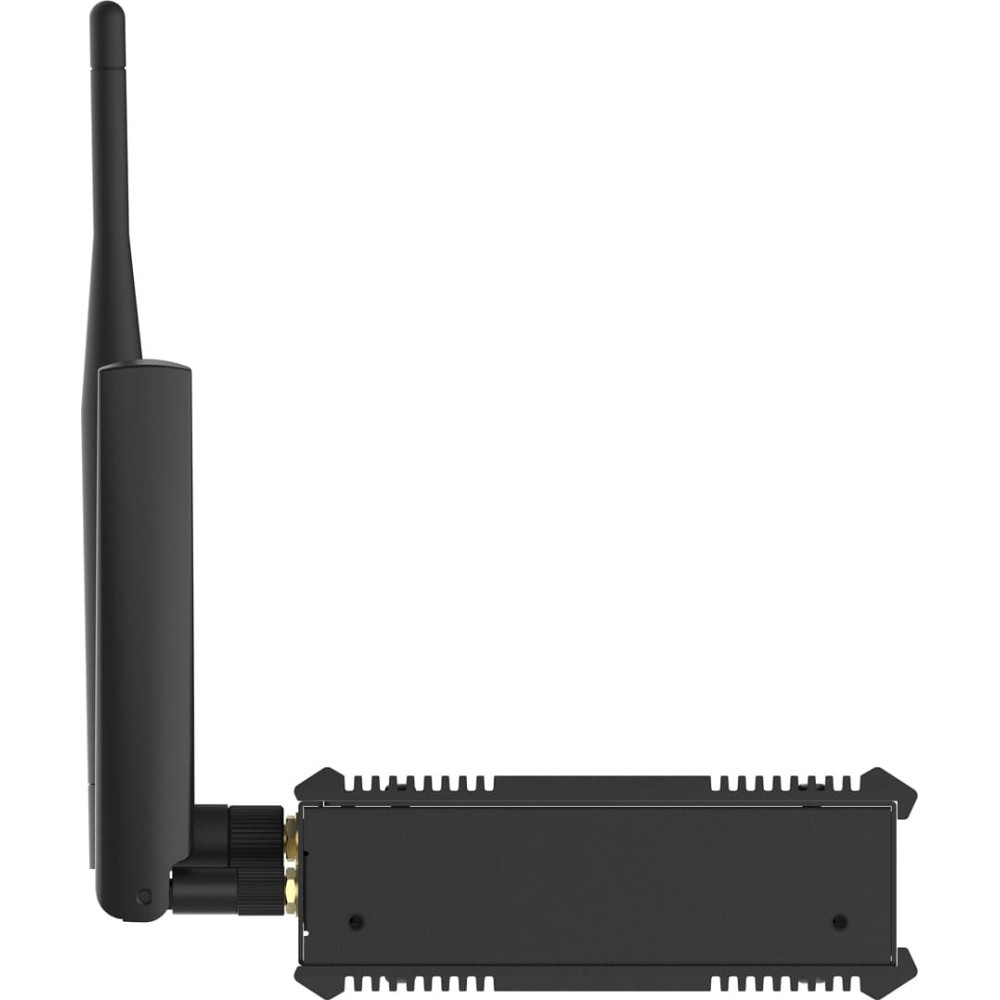

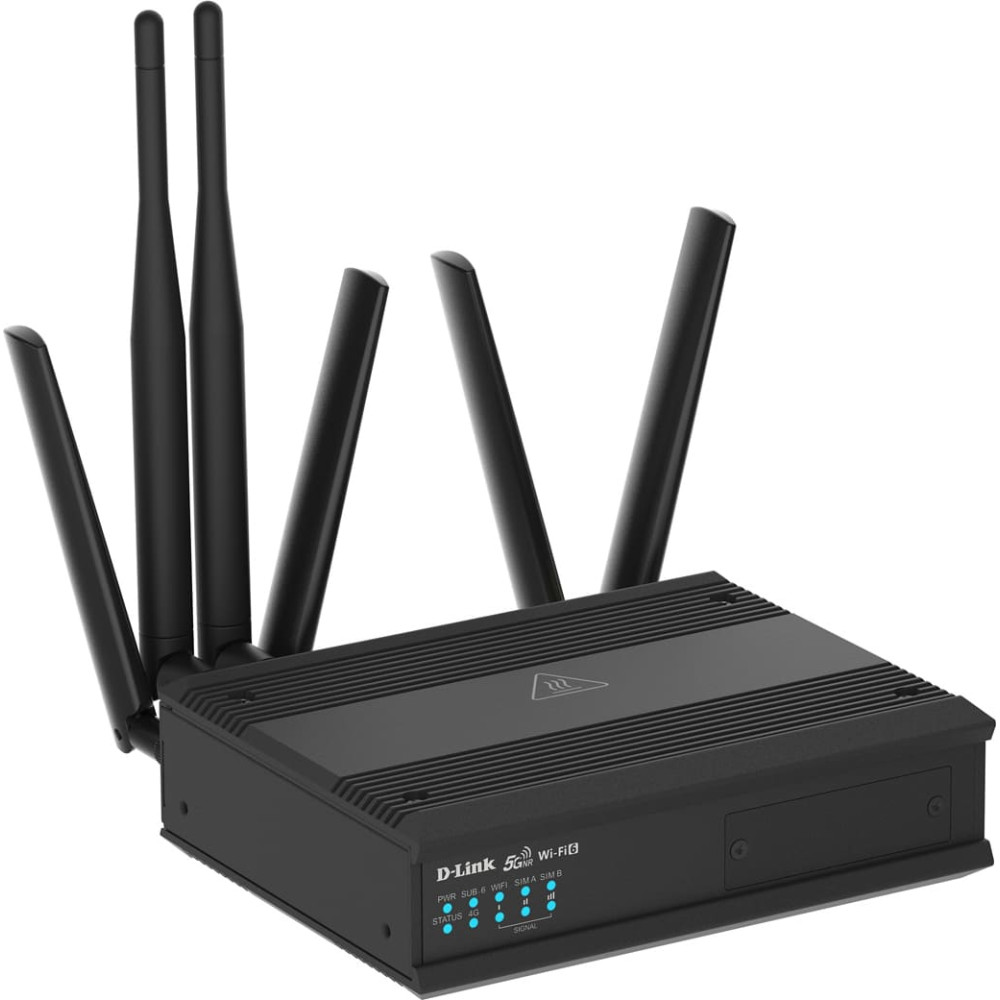

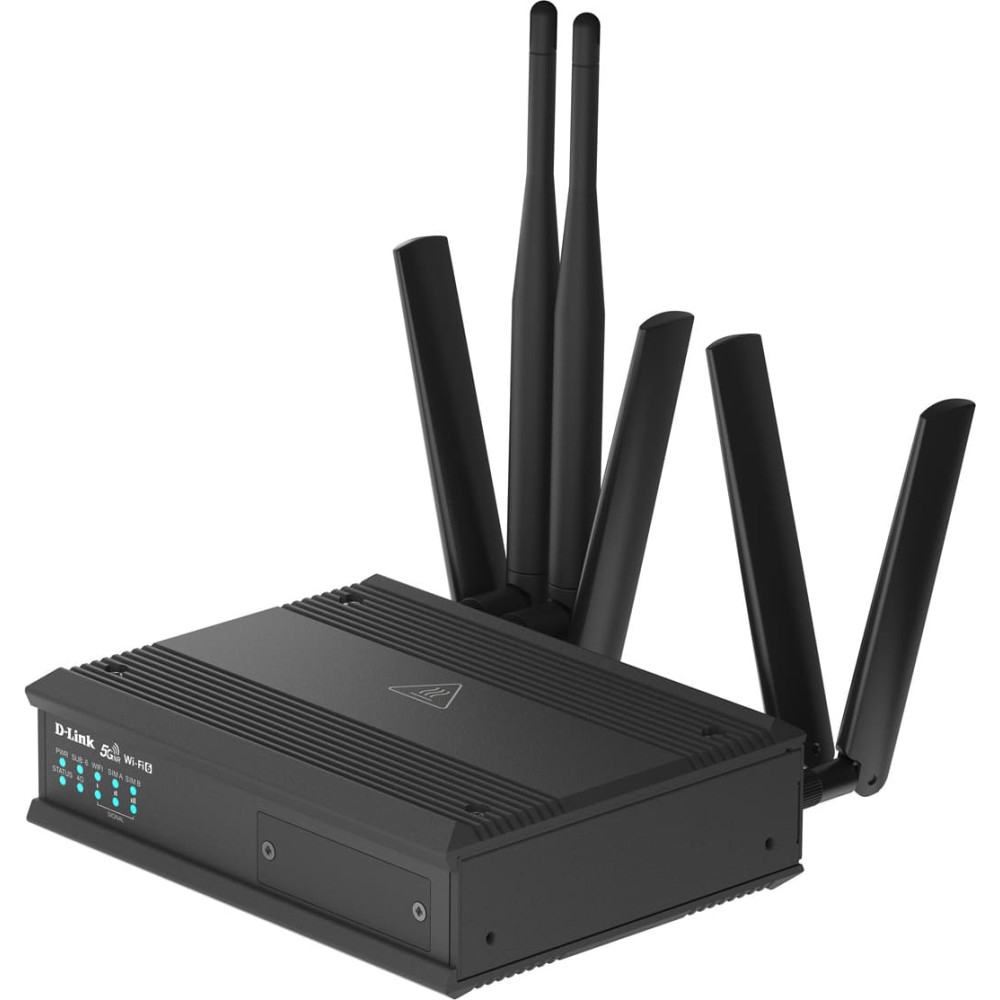

D-Link DTM-550-G 5G-Transit-Router

Product Code: DTM-550-G
Barcode 790069480706

To purchase this product you must be registered in our system.



Specification
2.4 ghz data transfer rate: 574
5 ghz data transfer rate: 1201
colour: black
depth: 125
height: 47
lan connectors: 3x Gigabit-Ethernet
manufacturer: D-LINK
maximum data transfer rate: 1800
operating temperature max.: 70
operating temperature min.: -30
product group: Network Components
product type: Router
radio standard 4g: yes
radio standard 5g: yes
scope of delivery: DTM-550-G, 4x Cellular SMA Antennas, 2x Wi-Fi RP-SMA Antennas, 1x RJ-45 Cable, 1x Terminal Block(3-pin), 2x Wall-Mount Brackets
storage temperature max.: 85
storage temperature min.: -40
wan interface: RJ-45
wi-fi frequency band: Dual-Band
width: 160
wifi standard: WiFi 6 (IEEE 802.11ax)
wlan ieee standard: IEEE 802.11 ax/ac/n/g/b/a/h
wlan support: yes
wlan wpa encryption: yes
wlan wpa2 encryption: yes
wlan wpa3 encryption: yes

Description

The D-Link DTM-550-G 5G Transit Gateway offers seamless 5G NR and LTE connectivity for wireless uplink and downlink. It features a 5G/4G cellular module with dual SIM slots, four Gigabit Ethernet ports, and Wi-Fi 6 AX1800 technology for high-capacity connections.

  • 1x Gigabit Ethernet WAN/LAN port
  • 3x Gigabit Ethernet LAN port
  • Dual 3FF Micro-SIM slots
  • 5G NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
  • 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
  • LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
  • Cellular/Ether‐WAN failover
  • GPS / GLONASS
  • 1x IGN (Ignition Sense)
  • 802.11a/b/g/n/ac/ax Wi-Fi 6, up to 574 Mbps on the 2.4 GHz and 1201 Mbps on the 5 GHz bands
  • WPA2-PSK (AES), WPA2, WPA-PSK/WPA2-PSK(AES,TKIP/AES), WPA/WPA2, WPA3-SAE(AES), WPA2-PSK/WPA3-SAE(AES), WPA3-Enterprise, 802.1x
  • Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
  • IGMP, IPv4/v6
  • VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE, WireGuard
  • Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
  • Configuration: Web UI, CLI, Command Script
  • Management: SNMPv1/2/3, D-Link D-ECS, RESTful API
  • Wide Operating Temperature Range (-30 to +70°C)
  • Power input: 2-pin TB for DC 12V-36V
  • EN50155, E-Mark
