Home Network products Routers / accessories D-Link DWM-550-G 5G M2M VPN Wi-Fi Router
D-Link DWM-550-G 5G M2M VPN Wi-Fi Router

D-LINK

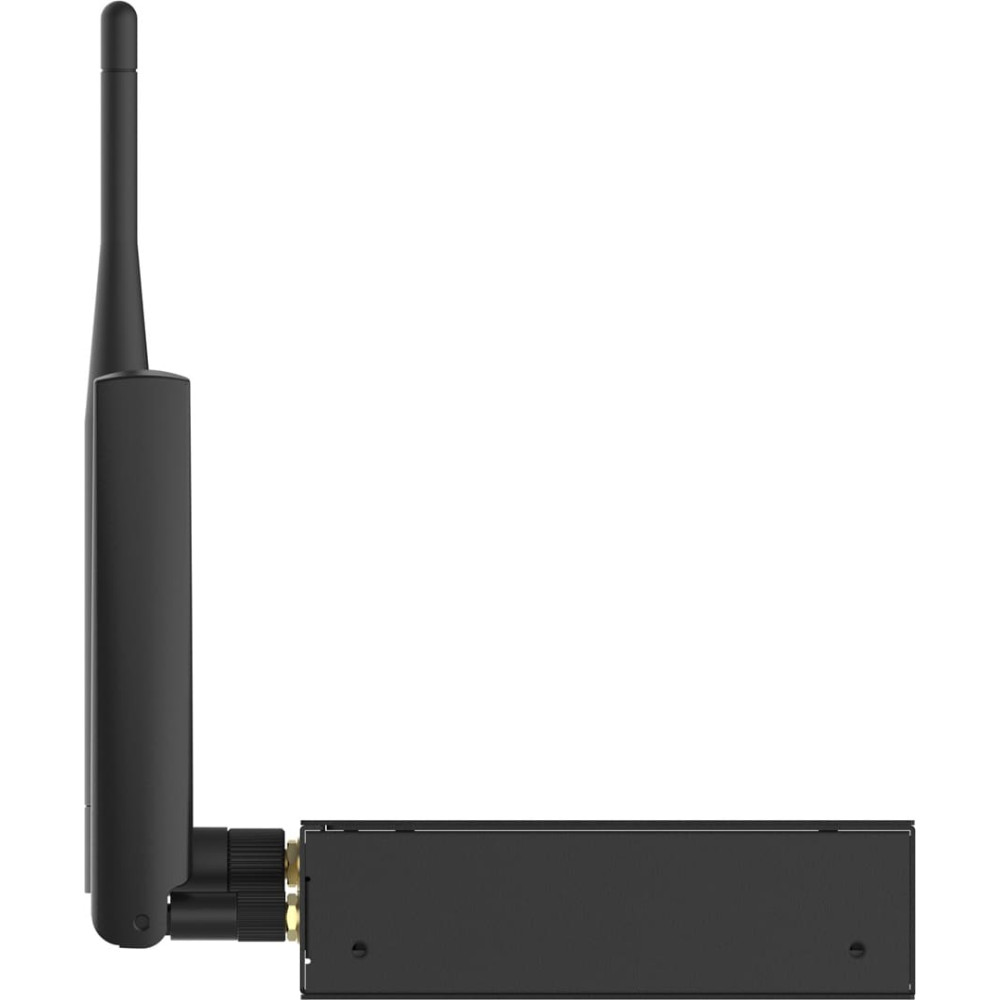

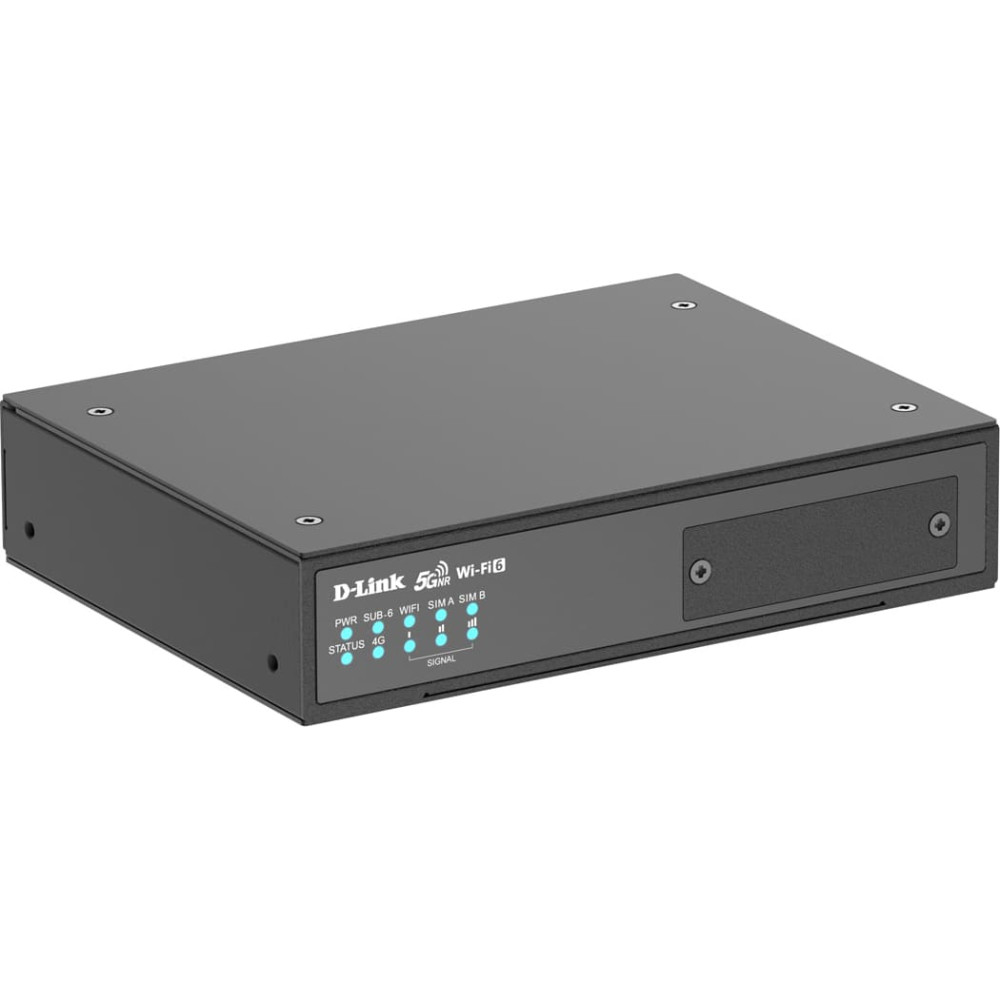

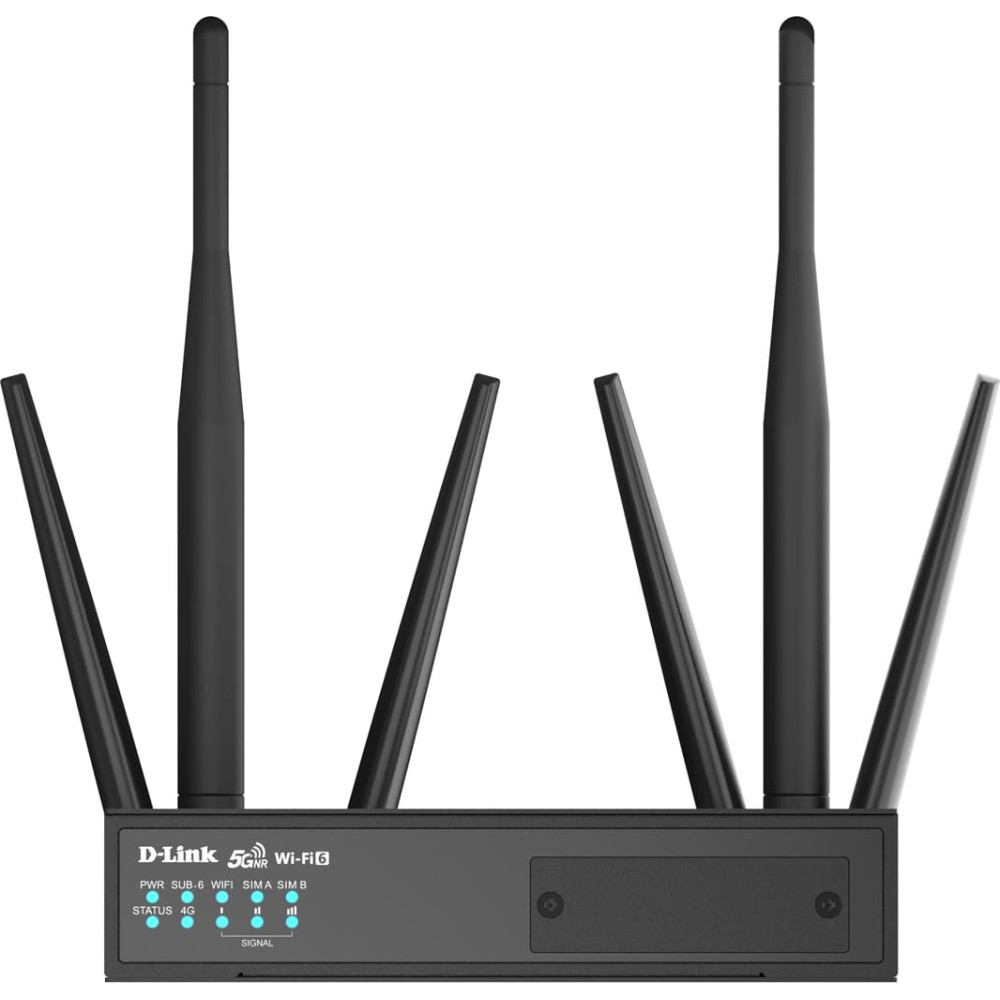

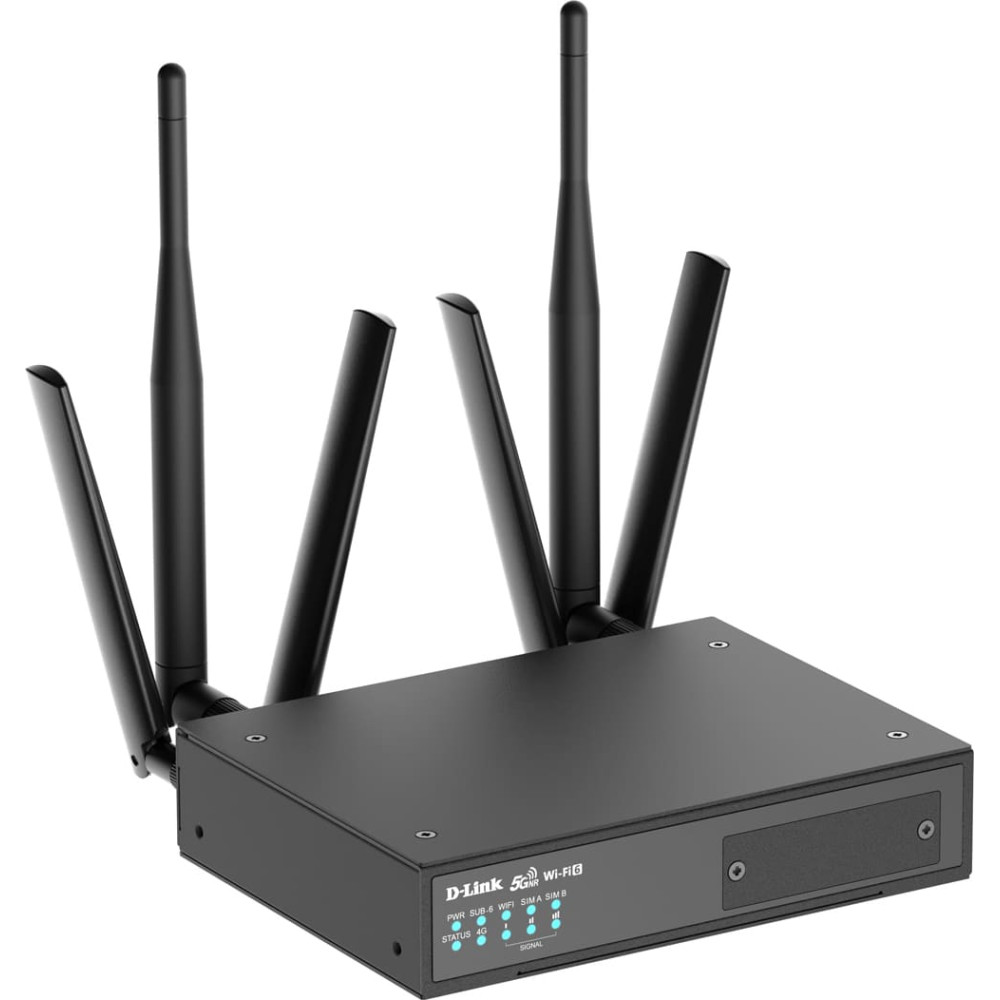

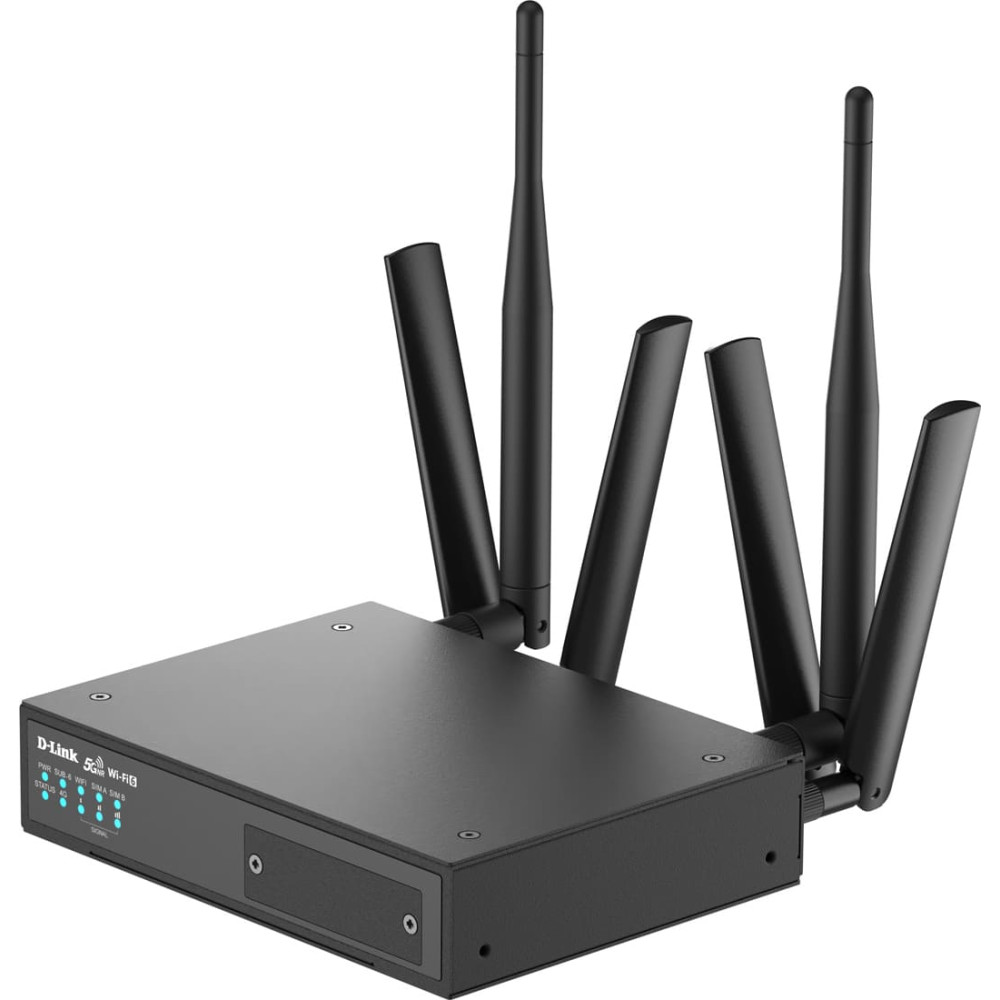

D-Link DWM-550-G 5G M2M VPN Wi-Fi Router

Product Code: DWM-550-G
Barcode 790069475290

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
2.4 ghz data transfer rate: 574
5 ghz data transfer rate: 1201
colour: black
depth: 125
height: 35
lan connectors: 4x Gigabit-Ethernet
mains connection: Appliance Europlug, Type-C
manufacturer: D-LINK
maximum data transfer rate: 1800
operating temperature max.: 70
operating temperature min.: -30
power supply: External power supply unit
product group: Network Components
product type: Router
radio standard 4g: yes
radio standard 5g: yes
scope of delivery: DWM-550-G, 4x Cellular SMA Antennas, 2x WiFi RP-SMA Antennas, 1x RJ-45 Cable, 1x Power Adapter, 1x Terminal Block (3-pin)
storage temperature max.: 85
storage temperature min.: -40
wan interface: RJ-45
wi-fi frequency band: Dual-Band
width: 160
wifi standard: WiFi 6 (IEEE 802.11ax)
wlan ieee standard: IEEE 802.11 ax/ac/n/g/b/a/h
wlan support: yes
wlan wpa encryption: yes
wlan wpa2 encryption: yes
wlan wpa3 encryption: yes
Description

D-Link's DWM-550-G 5G M2M Router provides 5G-NR and 4G-LTE dual-mode connectivity. It is equipped with four Giga Ethernet ports, one of which can be configured as an Ethernet WAN. This allows easy switching between broadband and 4G/5G. Additionally, Wi-Fi 6 AX1800 connectivity is provided, making it suitable for a wide range of M2M applications.

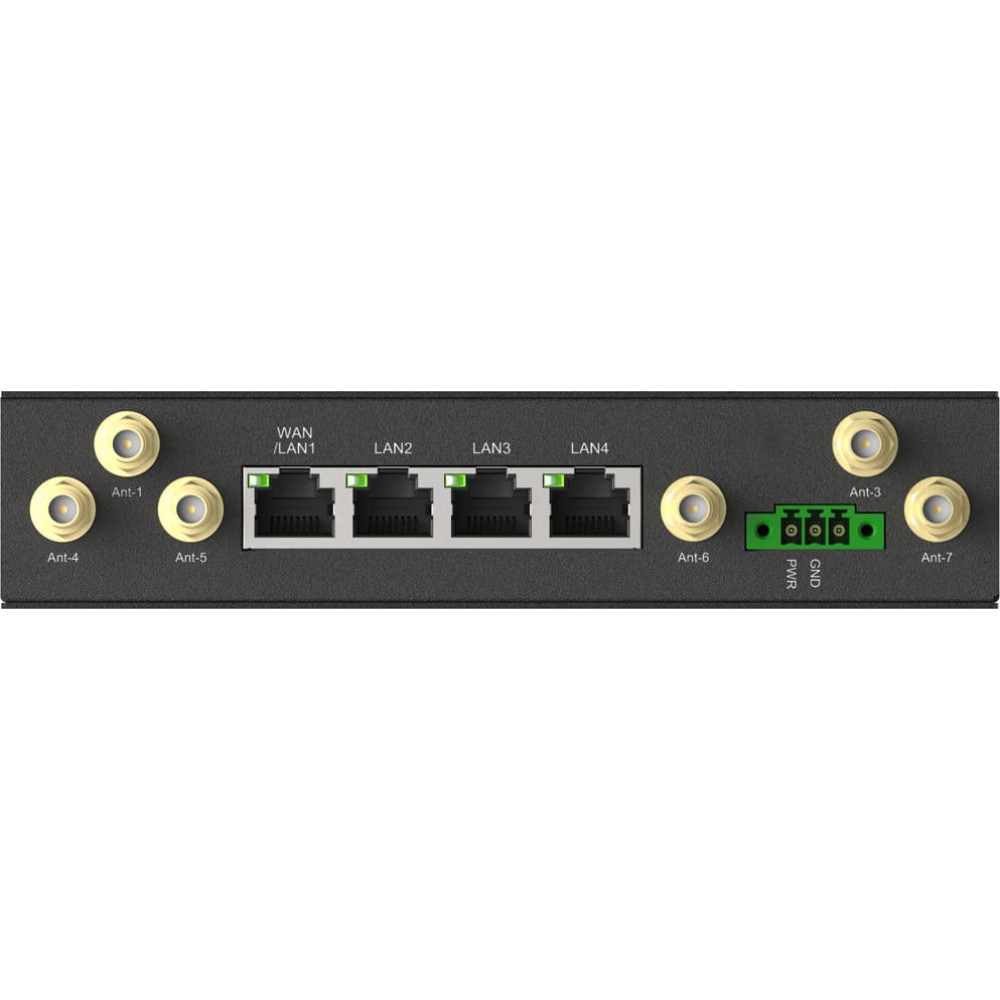

  • 1x Gigabit Ethernet WAN/LAN Port
  • 3x Gigabit Ethernet LAN Ports
  • Dual 4FF Nano-SIM slot
  • 5G NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
  • 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
  • LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
  • Cellular/Ether-WAN failover
  • 802.11b/g/n/ac/ax Wi-Fi 6, up to 574 Mbps on the 2.4 GHz and 1201 Mbps on the 5 GHz bands
  • WPA2-PSK (AES), WPA2, WPA-PSK/WPA2-PSK(AES, TKIP/AES), WPA/WPA2, WPA3-SAE(AES), WPA2-PSK/WPA3-SAE(AES), WPA3-Enterprise, 802.1x
  • IPv4/v6, Static Route, QoS
  • RIPv1/v2, OSPF, BGP
  • IPsec, PPTP, L2TP, OpenVPN, WireGuard, GRE, VPN Pass-through
  • IPS, access control
  • SMS service
  • Management via Web UI, SSH and D-ECS
  • Wide Operating Temperature Range (-30 to +70°C)
  • Power input: 3-pin TB for DC 12V-36V
