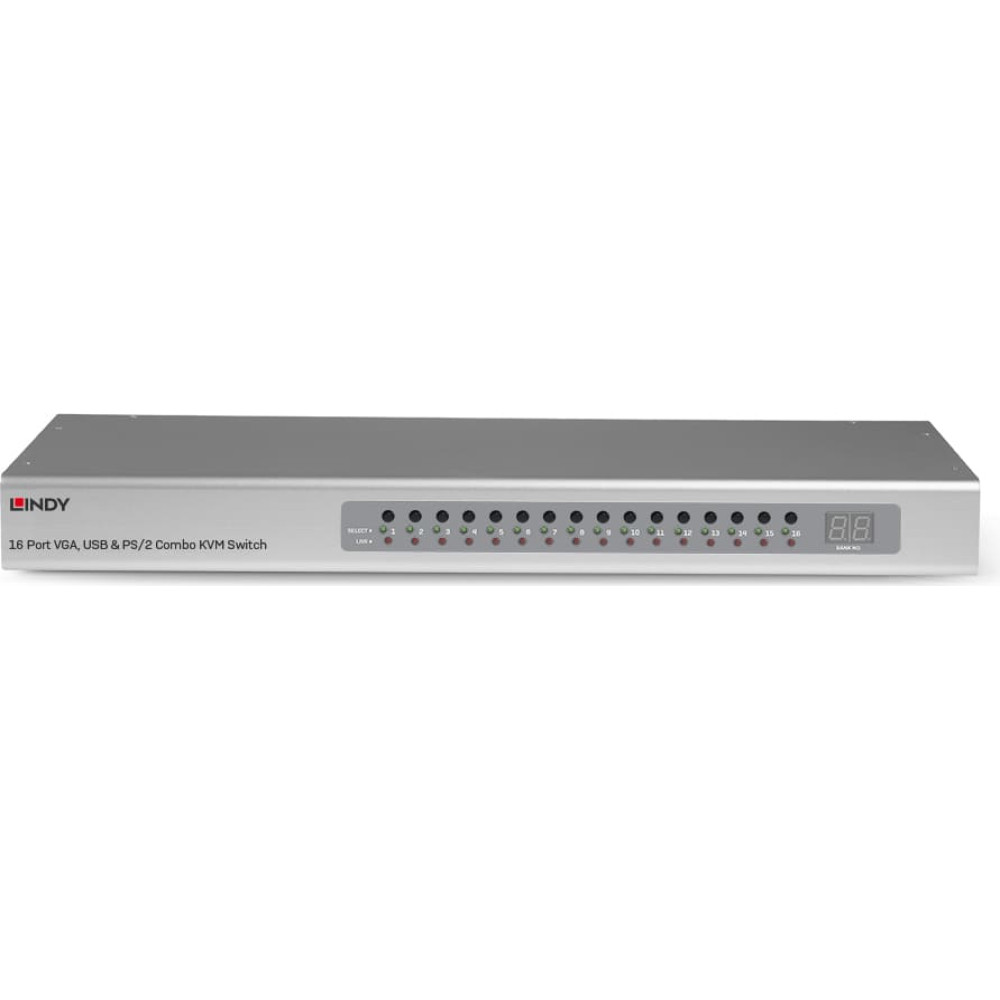

Lindy 16 Port VGA & USB Combo KVM Switch

Product Code: 39527

Barcode 4002888395274

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

built-in display: No

cable length: 0.22 m

ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/70/55/97/62/62975570a7fecca6d5a65f31/CE_DoC_DE_39527.pdf

compliance certificates: CE, REACH, RoHS

console ports: USB A

console usb ports quantity: 2

country of origin: TW

depth: 220 mm

gross weight: 3.42

height: 44 mm

housing material: Metal

input current: 2 A

input voltage: 9 V

manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/99/67/97/62/62976799999c8d635dc13ec6/LINDY_39526 7V2_MAN_0122.pdf

net weight: 1.50

number of computers controlled: 16

operating relative humidity (h-h): 0 - 90%

operating temperature (t-t): 0 - 50 °C

package depth: 250 mm

package height: 110 mm

package weight: 3.3 kg

package width: 570 mm

packaging height: 11.00

packaging lenght: 57.00

packaging width: 25.00

power source: AC

product colour: Silver

quick installation guide: Yes

rack mounting: Yes

storage temperature (t-t): -20 - 60 °C

vga (d-sub) ports quantity: 16

video port type: VGA

warranty: 2

weight: 1.5 kg

width: 440 mm

Description

Specifications:

AV Interface: VGA
Console Interfaces: USB
Interface Standard: VGA, USB 2.0
Maximum Resolution: VGA: 2048x1536@60Hz
HDCP Support: -
Supported Audio:
Separate Audio Ports:
Serial Interface: -
Console Number: 1
Max Number PC/Server: 16
Cascadable: Yes
Switching Method: OSD, port buttons, Hotkey (configurable)
19" Rack Mountable: Yes (1U - Rack Mount Brackets included)

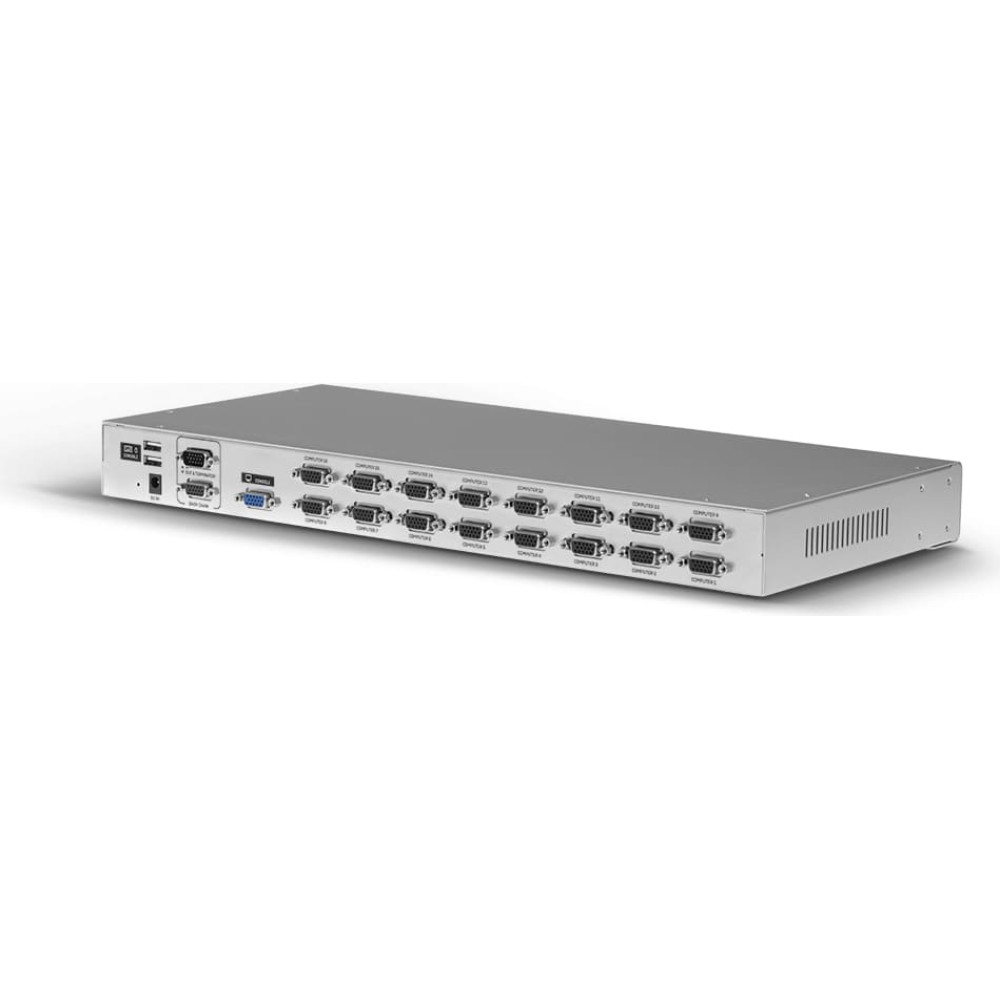

Connectors:

Console Interfaces: VGA (Female), 2 x USB Type A HID (Female)
PC/Server Interfaces: 16 x VGA (Female)
Other Interfaces: 2 x DaisyChain ports (1 x VGA Female + 1 x VGA Male)
Power: 5.5/2.1mm DC

Physical Properties:

Dimensions (approx.) WxDxH: 440x220x44mm (17.32x8.66x1.73in)
Housing Material: Metal
Net Weight: 1.5kg (3.31lb)
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 0~90% RH (non-condensing)
Power Requirements: 9VDC 2A
Colour: Silver

Miscellaneous:

Packaging Type: Carton box
Packaging Dimensions: 570x250x110mm (21.54x10.35x4.17in)
Gross Weight: 3.3kg (7.28lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package content:

KVM Switch
2 x 19" Rack Mount Bracket with Screws
Multi-Country PSU (UK, Euro, US, AUS)
Daisy Chain Cable (HD15 M/F ~0,22m)
Daisy Chain Terminator plug HD15
Quick Start Guide

Purchasing Information:

No.: 39527
EAN: 4002888395274

CE Doc: CE_DoC_DE_39527.pdf
Manuals: LINDY_39526 7V2_MAN_0122.pdf
