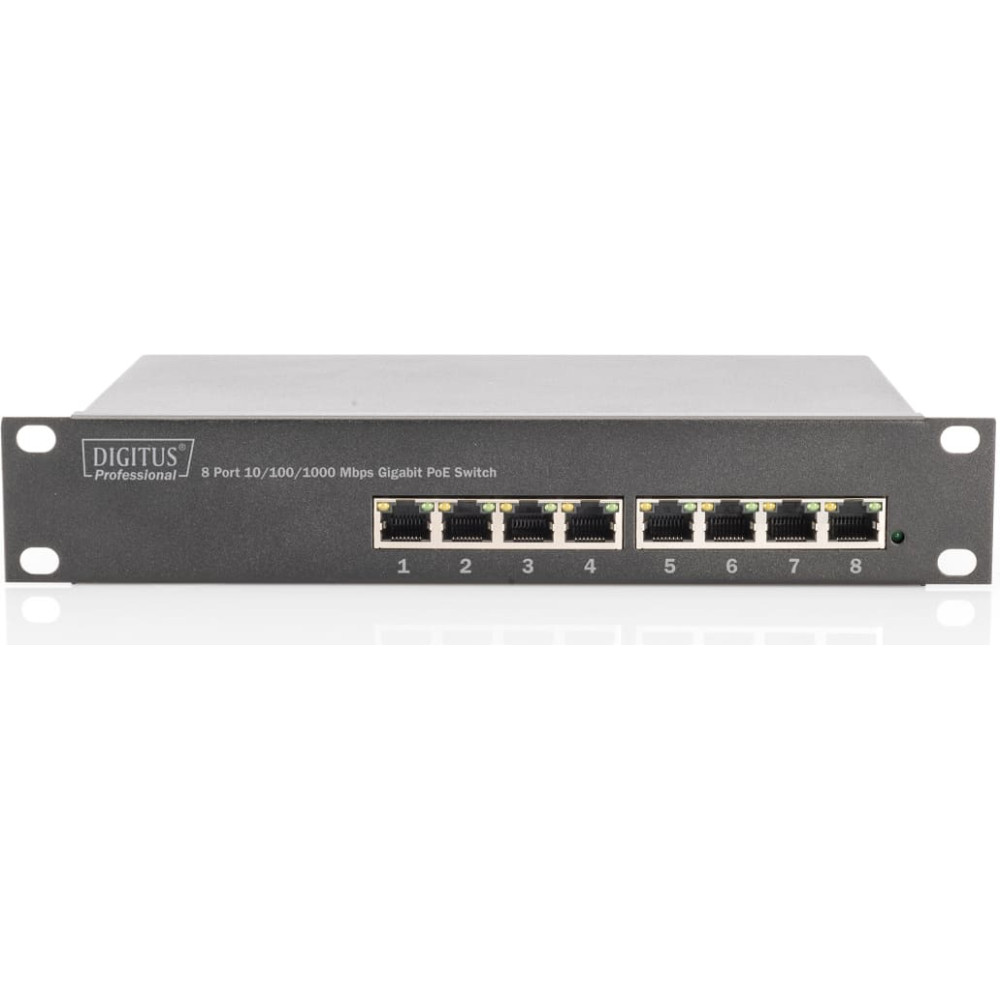

Digitus 8 Port Gigabit PoE Switch, 10 Inch, Unmanaged

Product Code: DN-95317

Barcode 4016032441038

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

depth: 0.310

height: 0.060

height(cm): 6.7

length(cm): 32

volume(cm3): 5145.6

weight(kg): 1.65375

width: 0.235

width(cm): 24

Description

Gigabit Ethernet PoE switch 8-port PoE, 10 inch, 80W PoE budget

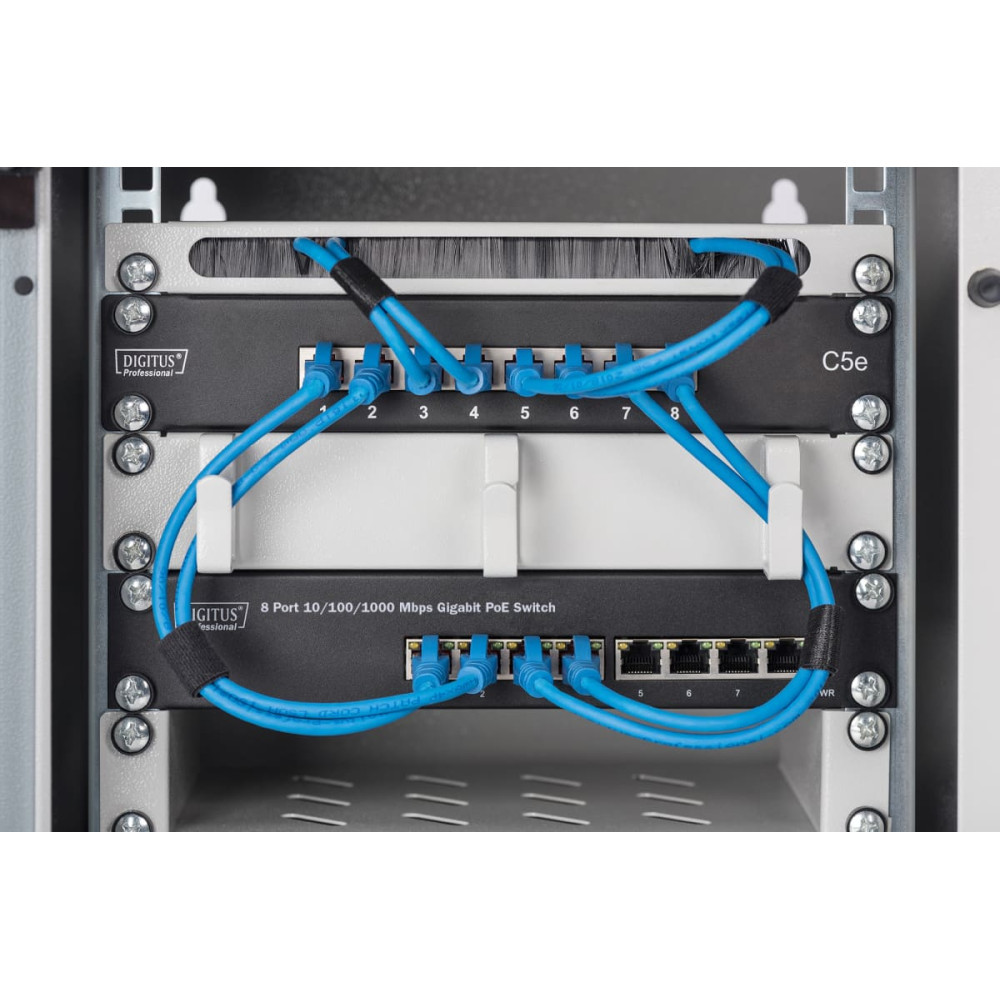

Ideal for use in 10" wall cabinets

8-Port 10/100/1000 Base-T with PoE support
Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x and IEEE 802.3af/at network standards
Supports non-blocking, non-head-of-line forwarding
Includes mounting material for 10-inch installation
PoE budget: 80 w max.

The DIGITUS® 8-Port Gigabit Ethernet PoE Switch provides 8 10/100/1000 Mbps RJ-45 ports with PoE support. All ports support the Auto MDI/MDIX function, which eliminate the need for crossover cables and uplink ports. Low costs, simple use and high performance are the strengths of the DIGITUS® 8-Port Gigabit Ethernet PoE Switch and thus make it an excellent choice for your network. Due to its compact dimensions, the switch can be installed in a 10-inch wall cabinet. The mounting angles are included.

Number of ports: 8
PoE Power budget: 80 W
PoE standard: IEEE802.3at (PoE+)
Ethernet speed: Gigabit
Power output: 24 W
Industrial usage: false
Installation type: 10 inch, Desktop
Managed: false
Number of ports (Uplink): 0
Outdoorsuitable: false
PoE (Power over Ethernet): true
Protection against vanadlism: false
Uplink port connection: RJ45
VLAN: false
8 x 10/100/1000Base-T
Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x and IEEE 802.3af/at network standards
Supports non-blocking, non-head-of-line forwarding
Supports back pressure and bandwidth control in each port
Store and forward technology for optimized data transfer
Automatic speed and half/full duplex recognition/adjustment
20/200/2000 Mbit in full duplex mode
Auto MDI/MDI-X function
Backplane with 16Gbps
Supports up to 8K MAC addresses

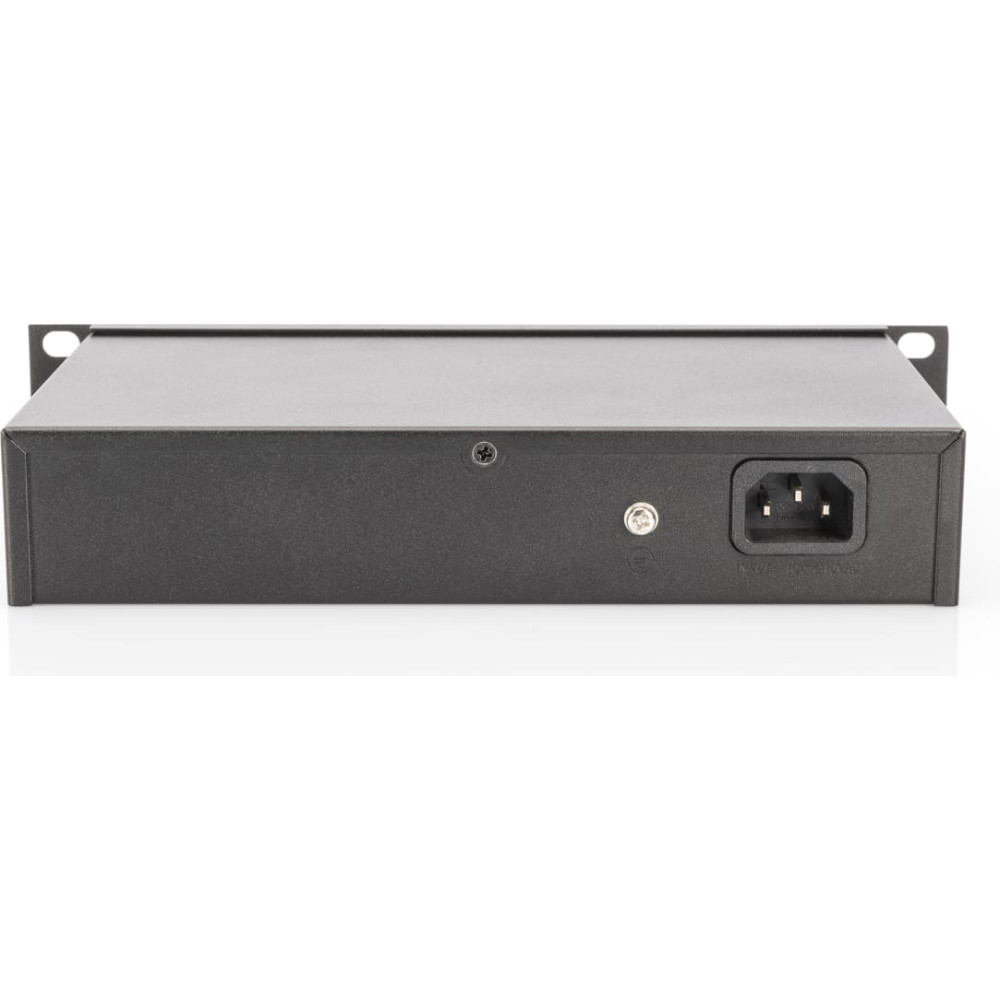

Integrated power supply unit
Maximum power consumption 96W
Dimensions: (W x D x H): 250x150x42 mm
Power Input Spec: AC 100V~240V

Package content:
10-inch 8-Port Gigabit Switch
Quick start guide
Power cord
Mounting accessories
