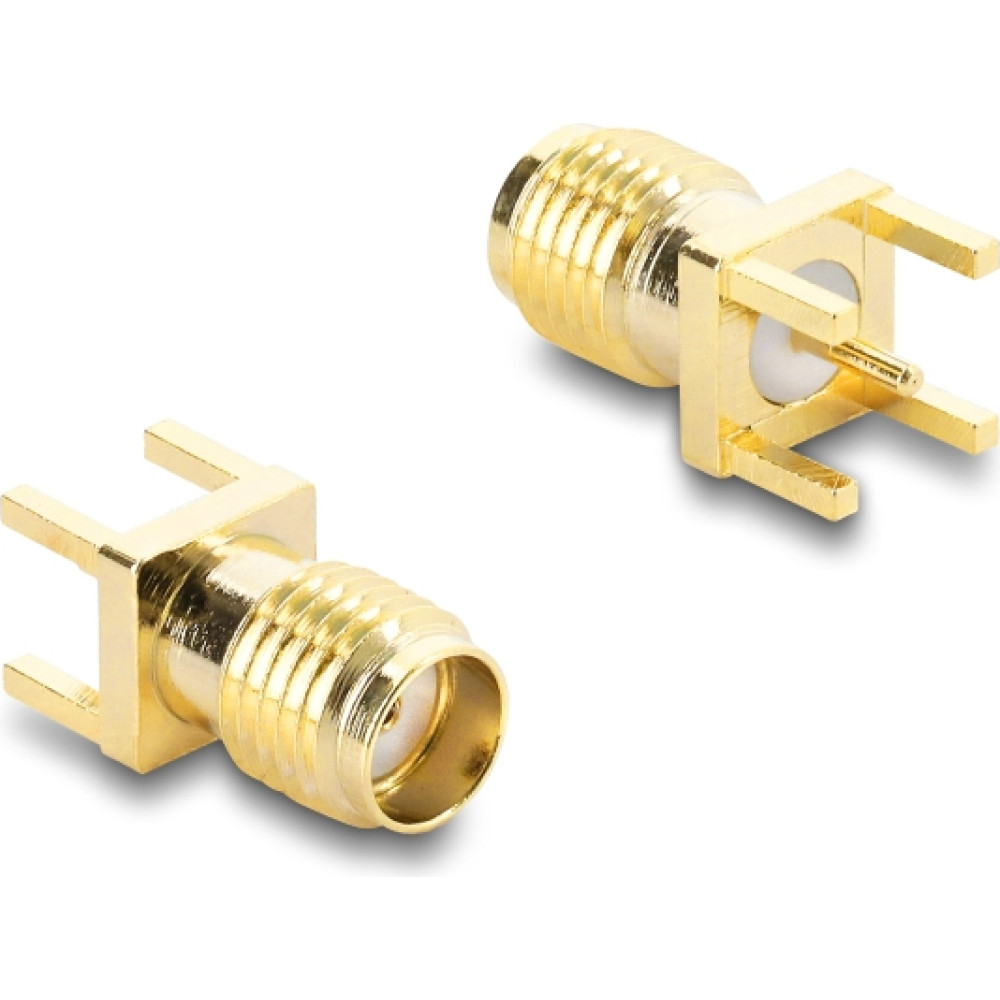

Delock SMA jack straight on printed circuit board thread length 5 mm

Product Code: 67411

Barcode 4043619674114

To purchase this product you must be registered in our system.

Description

The SMA jack connector by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.

Specification:
• Connector: 1 x SMA jack
• Frequency range: DC - 6 GHz
• Housing: copper gold plated
• Impedance: 50 Ohm
• VSWR: < 1.3
• Insulator: PTFE
• Insulation resistance: > 500 MOhm
• Mating Cycles: > 500
• Withstanding voltage: 750 V / 50 Hz
• Mounting type: through-hole mounting
• Soldering: 5 solder points
• Operating temperature: -55 °C ~ 165 °C
• Insertion loss: < 0.1 dB / GHz
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5 mm
• Dimensions (LxWxH): ca. 13.5 x 6.5 x 6.5 mm

Package content:
• SMA Jack

Data sheet:
https://www.delock.de/produkt/67411/pdf.html?sprache=en
