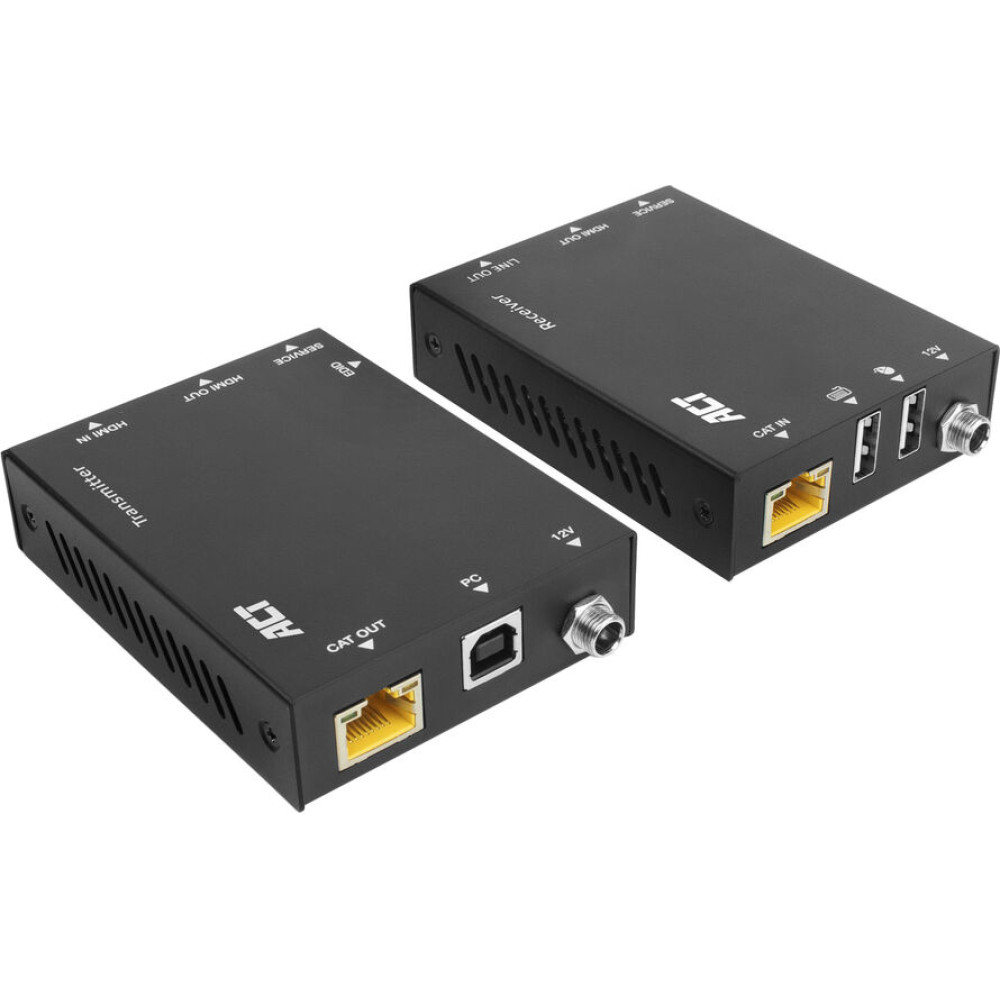

ACT 4K HDMI KVM EXTENDER 70M CAT6
To purchase this product you must be registered in our system.
Specification
4k compatible: Yes
audio formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus
connections: HDMI, USB, RJ45
connections (computer): USB B female (x1), HDMI A (full-size) female (x2)
connections (console): HDMI A (full-size) female (x1), USB A female (x2), 3,5 mm jack female (x1)
country of origin: CN
extender category: 51-100 m
extension cable: CATx (x1)
extension connector: RJ45
extension over: CATx
extension protocol: Own
hdcp version: 2.2
hdmi specification: HDMI Premium High Speed
included: 12v 1A power adapter (1x), mounting ears (4x), USB-A to USB-B 1.5mtr (1x), QiG (1x)
loop-through: Yes
max. extension distance: 70 m
max. resolution @ 30hz: 3840 x 2160
max. resolution @ 60hz: 3840 x 2160
other signals: Analog audio
power supply: External power supply
power supply specification: 12V / 1A
supported features: EDID, HDCP
usb compatibility: USB1.1 HID
video signal: HDMI
Description
| Use the ACT AC7815 HDMI KVM extender set for controlling a computer located at a distance up to 70 meters by using a single CAT6A cable. The connected CAT cable transfers the HDMI signal, keyboard and mouse input, supporting a resolution of 4K@60Hz and 18Gbps bandwidth. The transmitter features a local loop HDMI port for connecting an additional HDMI screen. Control a computer at a distance up to 70 meters The AC7815 HDMI KVM extender is the solution for connecting and controlling a desktop computer over a long distance up to 70 meters via a CAT6A cable. Ideal for situations where the PC is located at a separate located such as a server room. Supports up to 4K@60Hz The HDMI KVM extender supports 4K@60Hz, 4:4:4 12-bit, HDMI 2.0 and is HDCP 2.2 compliant. The EDID emulator in the KVM extender transfers the correct display information from the monitors to the connected computer. Connect a local loop HDMI display The transmitter unit has an additional HDMI output for connecting a local TV or monitor. The content of the source device can be displayed on this screen near the transmitter unit. Power over Cable support via CAT The HDMI KVM extender set supports bi-directional Power over Cable (PoC) via CAT6A. Either the transmitter unit or the receiver unit requires power. The other unit receives power via the connected UTP cable. The power connection on the HDMI KVM extender is secured with a screw lock to prevent accidental disconnection. EDID support The AC7815 supports EDID (Extended Display Identification) copy function to ensure that the resolution is communicated correctly between the source device and the output devices. Additional features The AC7815 has two USB 1.1 ports for connecting input peripherals such as a keyboard and a mouse. The switch also has a 3.5mm audio jack for connecting headphones or speakers. The set comes with mounting brackets for wall or desk installation. User scenarios The AC7815 HDMI KVM extender is suitable for a wide range of applications:
Extend a 4K@60Hz HDMI signal, keyboard and mouse with a maximum of 70 meters point to point over a single CAT6/CAT6A cable USB-A 1.1 ports for connecting a keyboard and mouse; 3.5mm audio out for connecting headphones or speakers; supports HDMI embedded audio Supports up to 3840x2160@60Hz, EDID support, chroma sampling 4:4:4 12-bit, HDMI 2.0 and HDCP 2.2 compliant Additional HDMI output on the transmitter unit for connecting a local display (local loop out) Mounting brackets, power adapter and USB connection cable included HDMI KVM extender set for controlling a computer with high resolution video and audio over a distance up to 70 meters |
