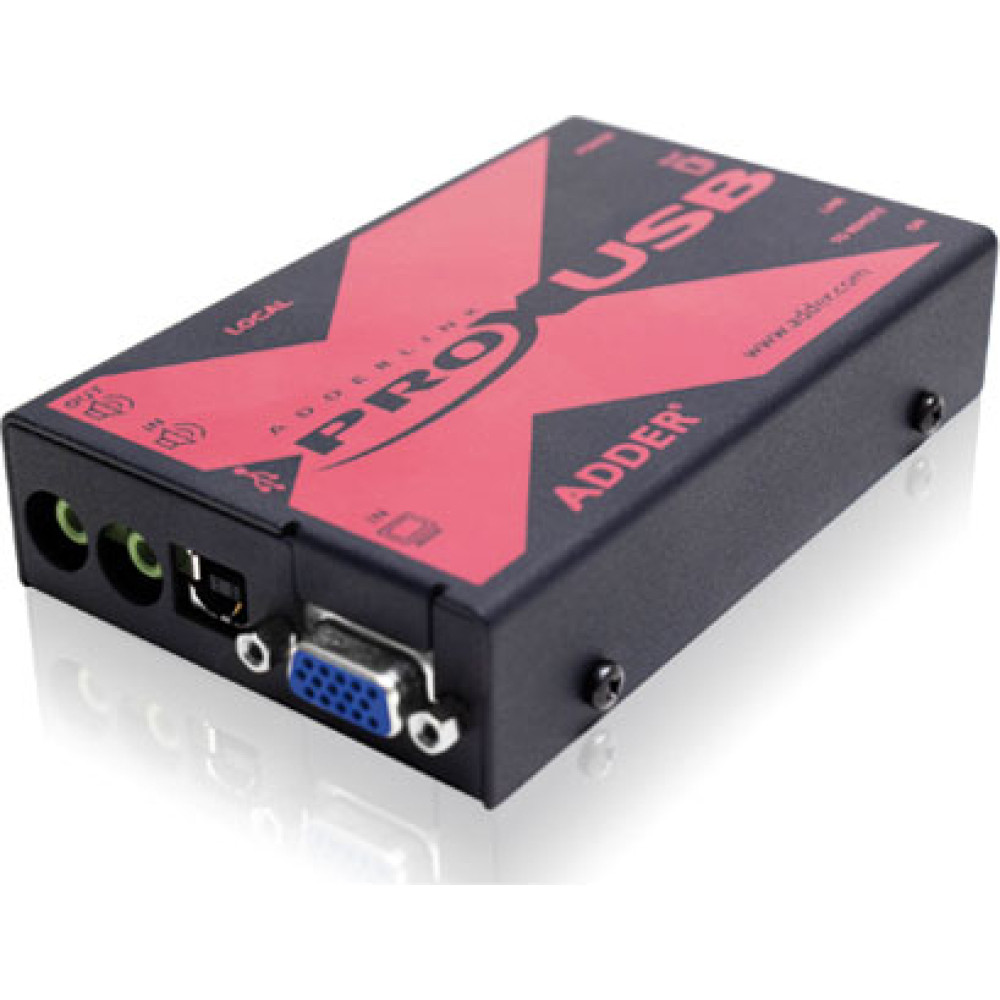

Adder LINK USB PRO SET
To purchase this product you must be registered in our system.
Specification
4k compatible: Yes
connections: VGA
connections (computer): USB B female (x1), 3,5 mm jack female (x1), VGA HD D-sub 15-pin female (x1)
connections (console): 3,5 mm jack female (x1), VGA HD D-sub 15-pin female (x1), USB A female (x4)
country of origin: XU
extender category: 101-300 m
extension cable: CATx (x1)
extension connector: RJ45
extension over: CATx
extension protocol: Own
included: Power supply, video-, USB- and audio connection cable
loop-through: Yes
max. extension distance: 300 m
max. resolution @ 60hz: 1920 x 1200
other signals: USB 1.1 - FullSpeed (Universal), Analog audio
power supply: USB powered, External power supply
supported features: EDID
video signal: VGA
Description
| The Adderlink X-USB Pro is the improved version of the original Adderlink X-USB. The new version supports a higher resolution over longer distances and is compatible with USB 2.0. Thanks to power supply of the local module through USB, the extender set is more easy to use. Additionally, the local video and audio outputs make it possible to also create a local console.
High resolution over long distance with VGA connection. Video and audio loop-through to monitor or even manage computer locally Integrated 4 port USB hub. File - Datasheet 1 |
