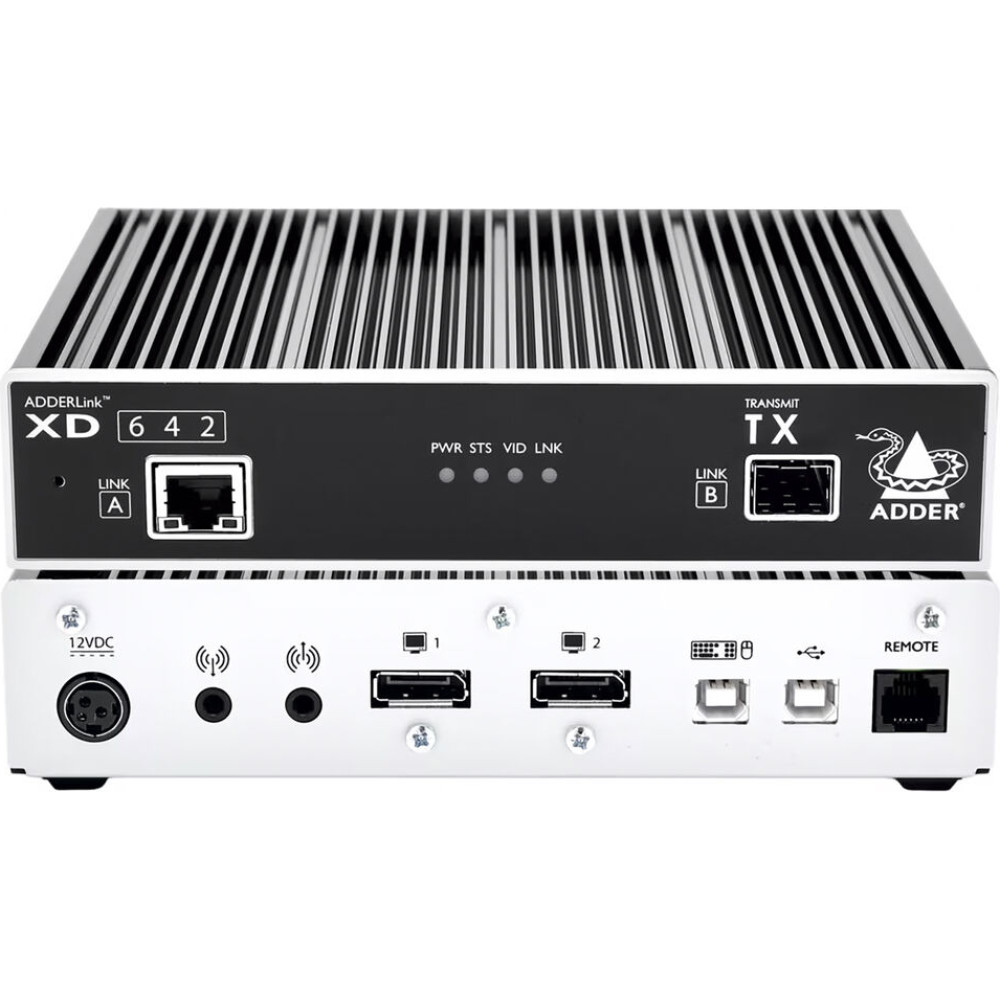

Adder LINK XD DUAL 4K DP EXT
To purchase this product you must be registered in our system.
Specification
connections: DisplayPort, RJ45, 3.5 mm jack, USB
connections (computer): USB B female (x2), 3,5 mm jack female (x2), RJ45 female (x2), DisplayPort female (x2)
connections (console): USB A female (x4), RJ45 female (x2), 3,5 mm jack female (x3), DisplayPort female (x2)
country of origin: XU
displayport specification: DisplayPort 1.2
extender category: 1000+ m
extension cable: Fiber multi mode (x1), CATx (x1), Fiber single mode (x1)
extension connector: LC, RJ45
extension over: CATx, Fiber
extension protocol: Own
included: Power adapter x 2, power cable x 2, DisplayPort cable x 2, audio cable x 1, USB cable x 1
max. extension distance: 4000 m
max. resolution @ 60hz: 1920 x 1200
other signals: Digital audio
power supply: External power supply
supported features: HDCP, EDID
video signal: DisplayPort
Description
| The ADDERLink XD614 is a high performance KVM (Keyboard, Video, Mouse and Audio) extender set that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience. Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.
Dual-head 4K60 video, USB2.0 and audio are transmitted on a single CATx or fiber cable. Flexibility between copper and fiber connectivity. Point-to-point protocol for ultra-low latency Adder’s USB emulation ensures reliable computer bootup Plug and play Compatible with ADDER SFP: AD2073,AD2118,AD8058 and AD2113 File - Datasheet 1 |
