Adder LINK XD612

Adder LINK XD612

Product Code: XD612P-DP
Barcode 8716065485677
Brand: ADDER

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
connections: 3.5 mm jack
connections (computer): USB B female (x2), 3,5 mm jack female (x2), DisplayPort female (x2), RJ45 female (x1)
connections (console): 3,5 mm jack female (x3), USB A female (x4), RJ45 female (x2), DisplayPort female (x2)
country of origin: NL
displayport specification: DisplayPort 1.2
extender category: 1000+ m
extension cable: CATx (x1)
extension connector: RJ45
extension over: Fiber, CATx
extension protocol: Own
included: 2 x poweer adapter, 1 x DP cable, 1 x USB cable, 1x audio cable
max. extension distance: 4000 m
max. resolution @ 60hz: 1900 x 1200
other signals: Analog audio, IR, RS-232
power supply: External power supply
supported features: EDID
video signal: DisplayPort
Description

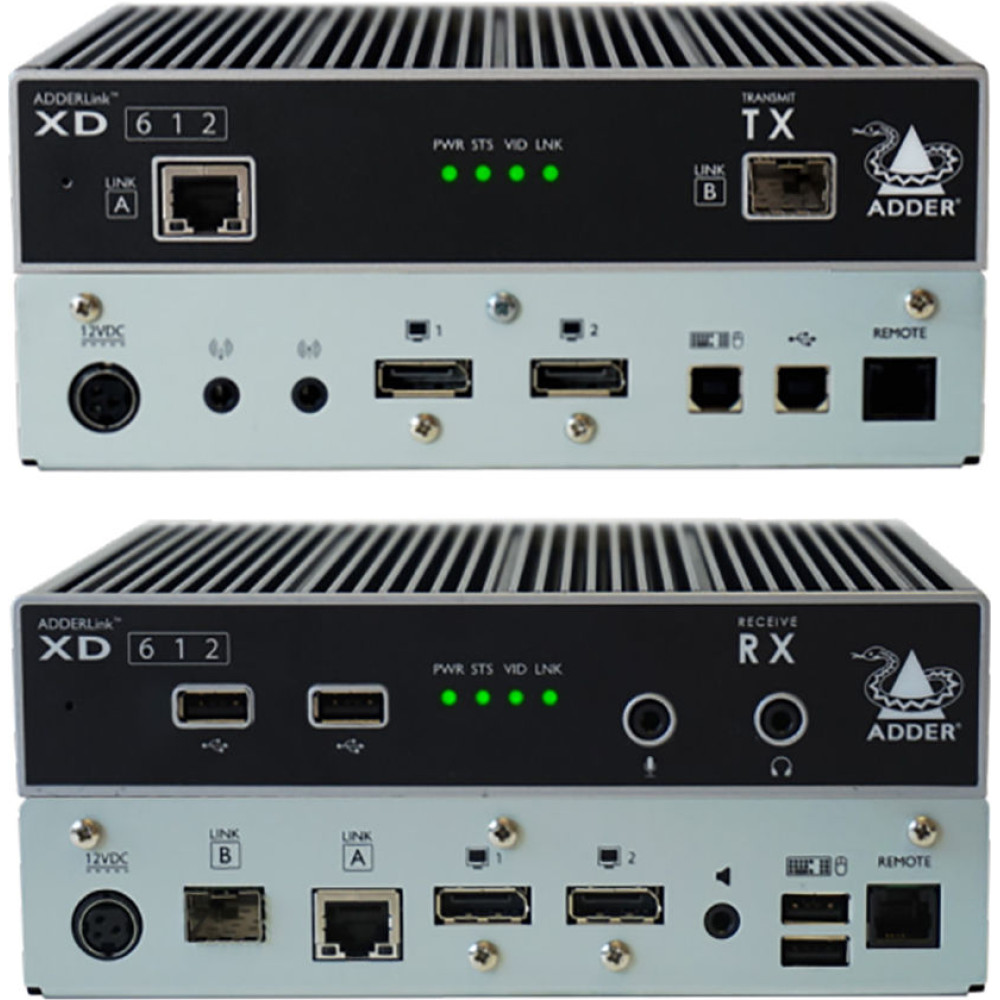

The ADDERLink™ XD612 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience. Developed for enterprise organizations and highpressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straight forward solution.

real-time control
Flexibility between copper and fiber connectivity
Point-to-point protocol for ultra-low latency
Adder’s USB True Emulation ensures reliable computer bootup
EID management

File - Datasheet 1
