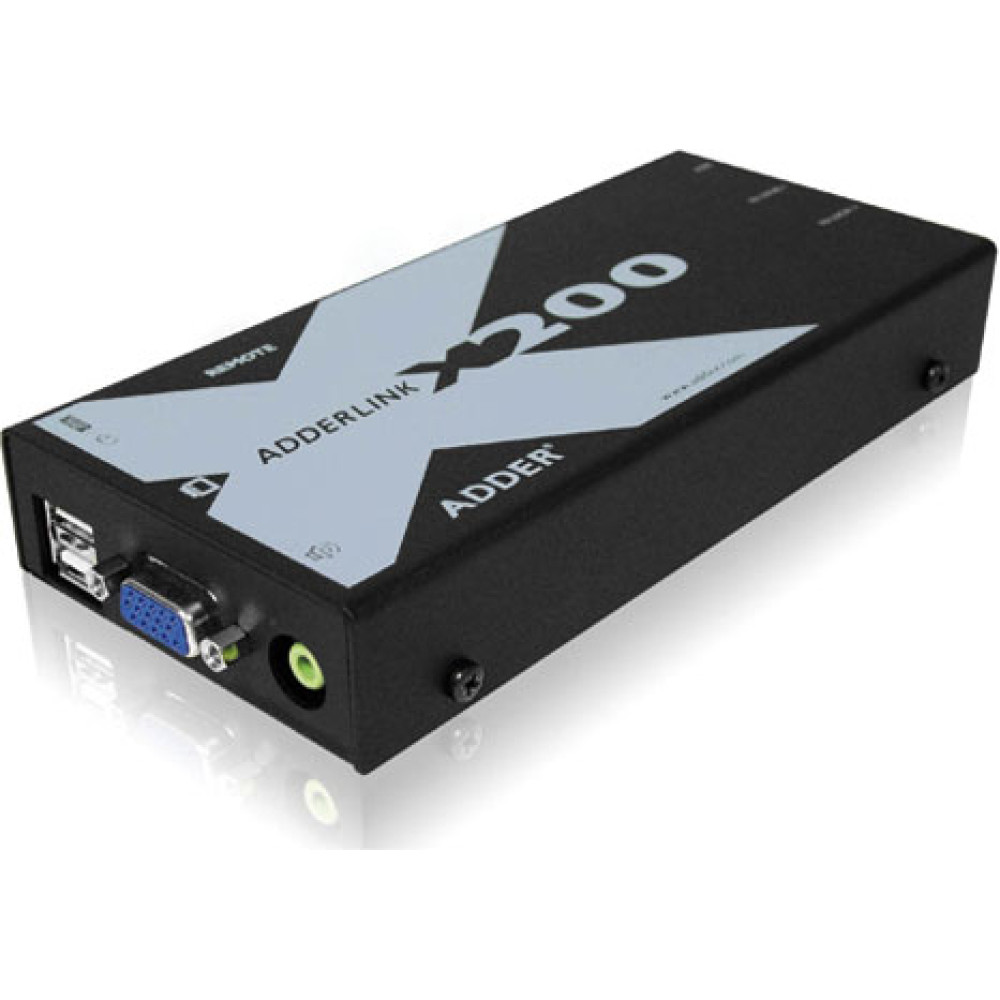

Adder X200 USB KVM RECEIVER

Adder X200 USB KVM RECEIVER

Product Code: X200/R
Barcode 8716065239973
Brand: ADDER

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
connections: USB, VGA, RJ45
connections (console): RJ45 female (x2), USB A female (x2), VGA HD D-sub 15-pin female (x1)
country of origin: XU
extension cable: CATx (x1)
extension connector: RJ45
extension over: CATx
extension protocol: Own
included: Power adapter, mount material
max. extension distance: 300 m
max. resolution @ 60hz: 1900 x 1200
other signals: USB 2.0 - HighSpeed (Enhanced)
power supply: Built-in power supply
supported features: DDC
video signal: VGA
Description
The X200 workstation module is very flexible. Combined with the CATx KVM switches - which support this module - a remote workstation can be realised. Combined with a CATx system module, it forms a KVM extender set. If a second CATx system module is combined, the X200 console functions as a KVM switch between the two systems, because of the built-in switch function. Extension distance/resolution: 1920 x 1200 to 50 metres, 1600 x 1200 to 100 metres and 1280 x 1024 to 300 metres.

Including 128 steps of video compensation.
Full DDC support.
Automatic brightness correction.
High quality audio.

File - Datasheet 1
