Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector

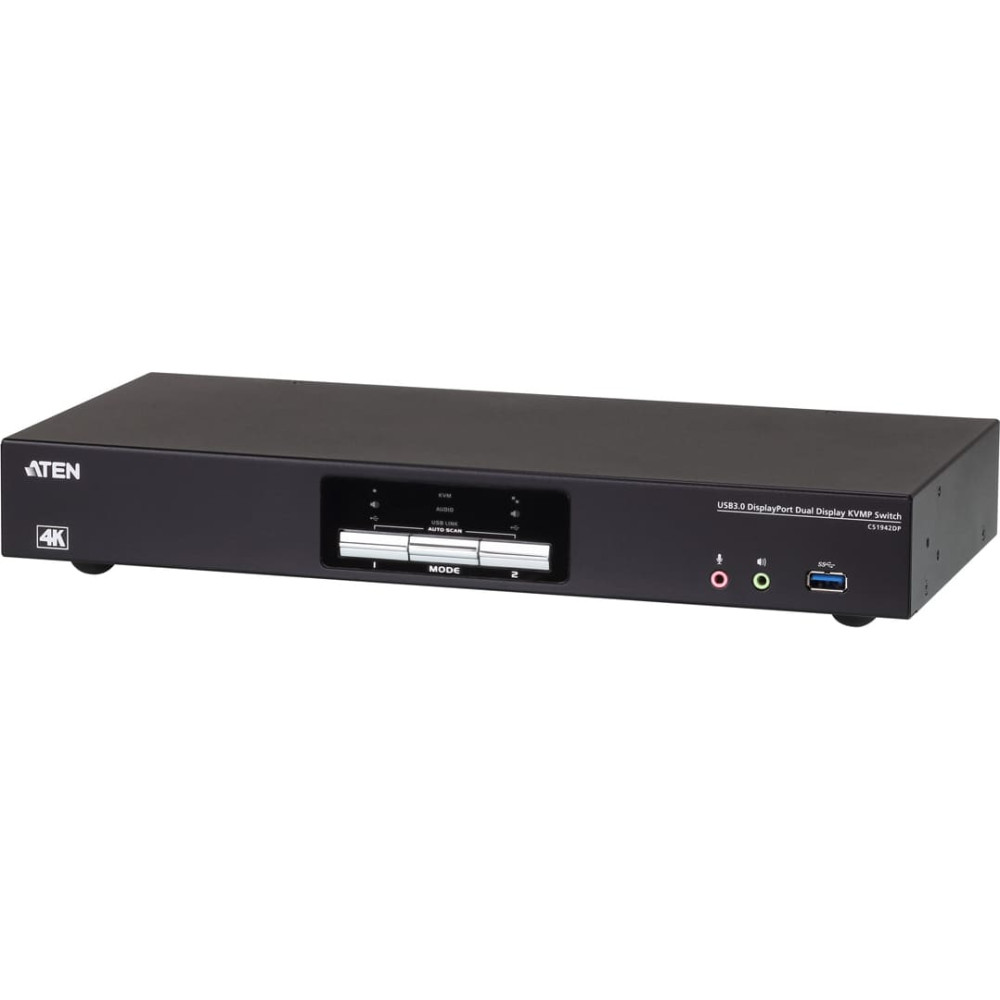

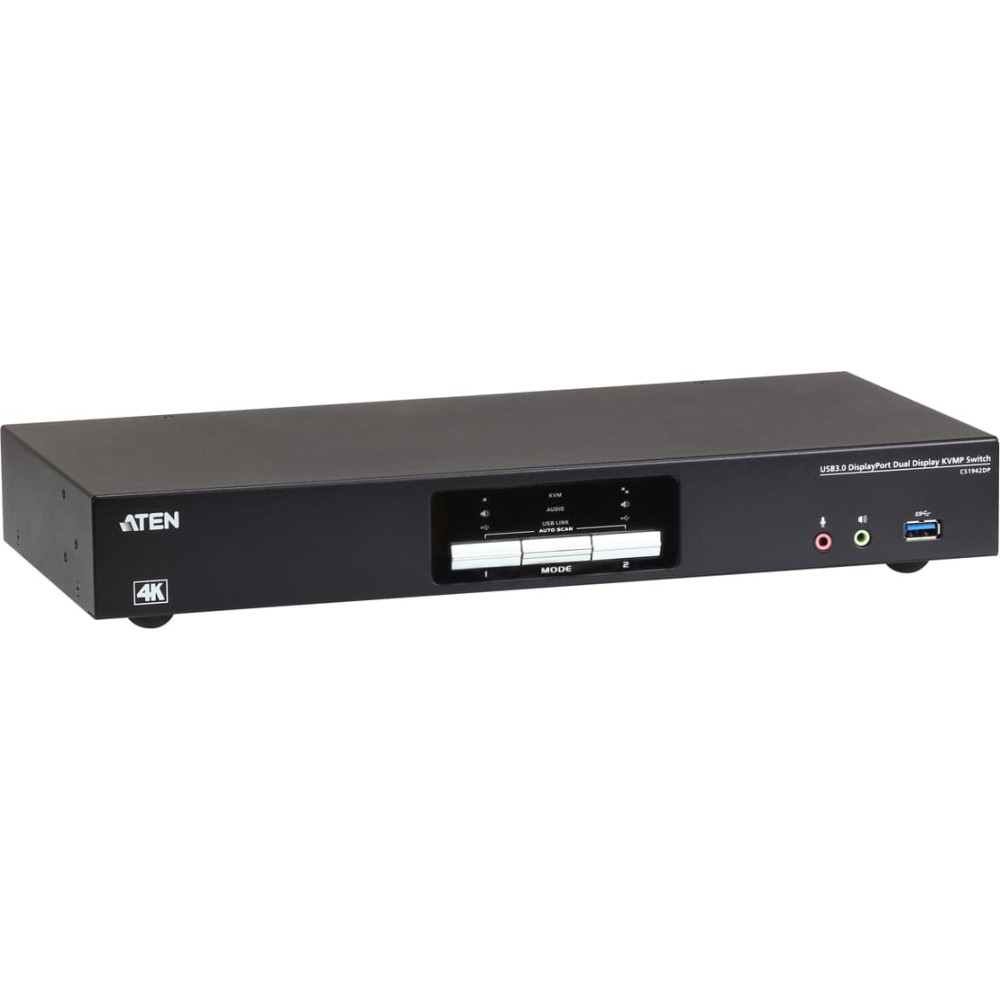

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.

Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.

Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.

• One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
• Supports Quad Display by connecting two Dual Display KVM switches
• Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
• Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
• 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Supports DisplayPort Dual-Mode technology (DP++)
• Supports MST (Multi-Stream Transport)
• Supports Console keyboard emulation / bypass feature
• Supports Console mouse emulation / bypass feature
• Independent switching of KVM, USB, and Audio
• Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
• DisplayPort 1.2 compliant; HDCP compliant
• Supports HD audio
• Power on detection
• Firmware upgradable
