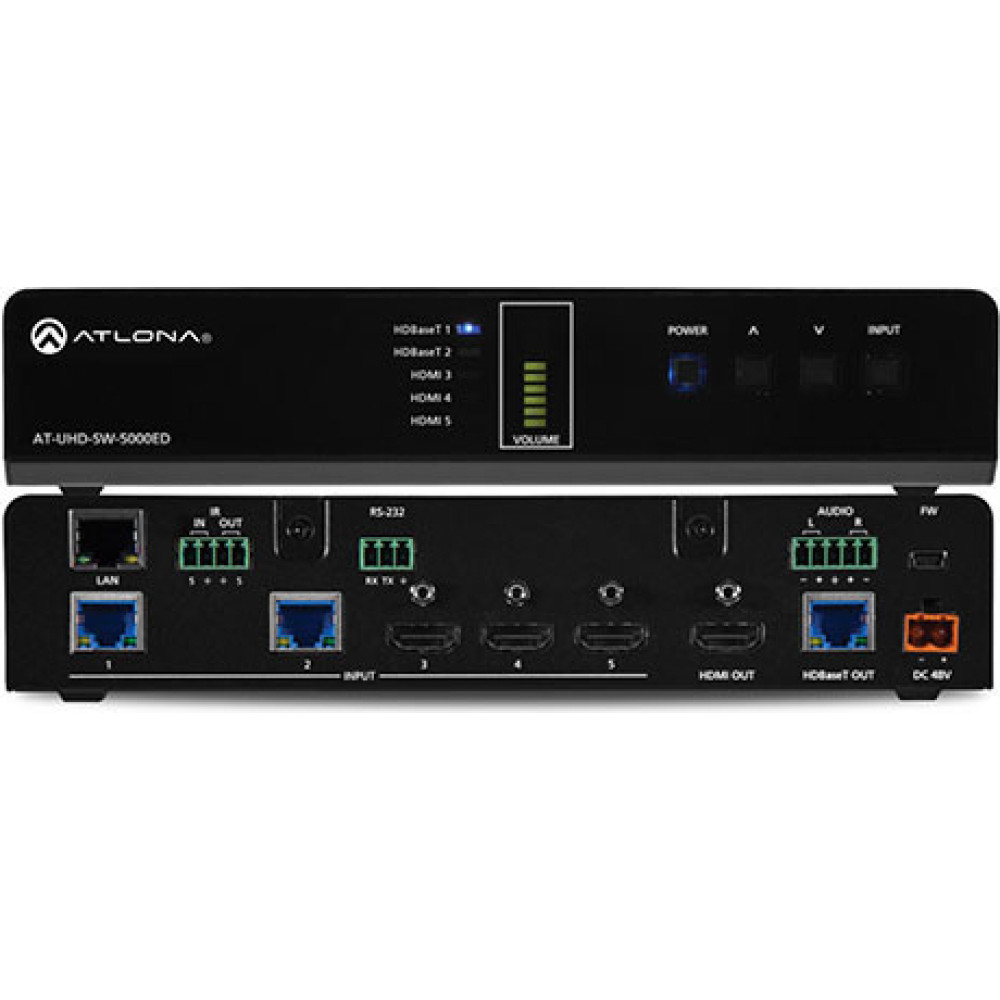

Atlona 4K HDMI/HDBASET SWITCH 5 PORTS
To purchase this product you must be registered in our system.
Specification
4k compatible: Yes
connections: Terminal block, RJ45, HDMI
connections (in): RJ45 female (x3), Terminal block 4-pin female (x1), Terminal block 3-pin female (x1), HDMI A (full-size) female (x3)
connections (out): RJ45 female (x1), Terminal block 6-pin female (x1), HDMI A (full-size) female (x1)
control method: Button, Remote control (IR), Software, Serial
country of origin: TW
hdbaset specification: HDBaseT 5play
hdmi specification: Not specified by manufacturer
included: Power supply, captive screw connectors, mount kit
max. resolution @ 60hz: 2160p
other signals: Analog audio, RS-232, Digital audio
power supply: External power supply
supported features: EDID, HDCP
video signal: HDMI
Description
| The Atlona AT-UHD-SW-5000ED is a 5 x1 switcher with two HDBaseT™ inputs, three HDMI inputs,mirrored HDMI and HDBaseT outputs, balanced audio outputs,automatic input selection,and advanced display control capability. The HDBaseT inputs match perfectly with the HDVS-200-TX modules to enable VGA and HDMI sources to be easily integrated into a system. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; (10.2 Gbps). Displays are automatically turned on and off using CEC, IP, or RS-232.
HDMI/HDBaseT five input switch Mirrored HDBaseT and HDMI outputs Two HDBaseT and three HDMI inputs Automatic display control EDID and HDCP management Easy to use GUI Multi-channel audio compliant File - Datasheet 1 |
