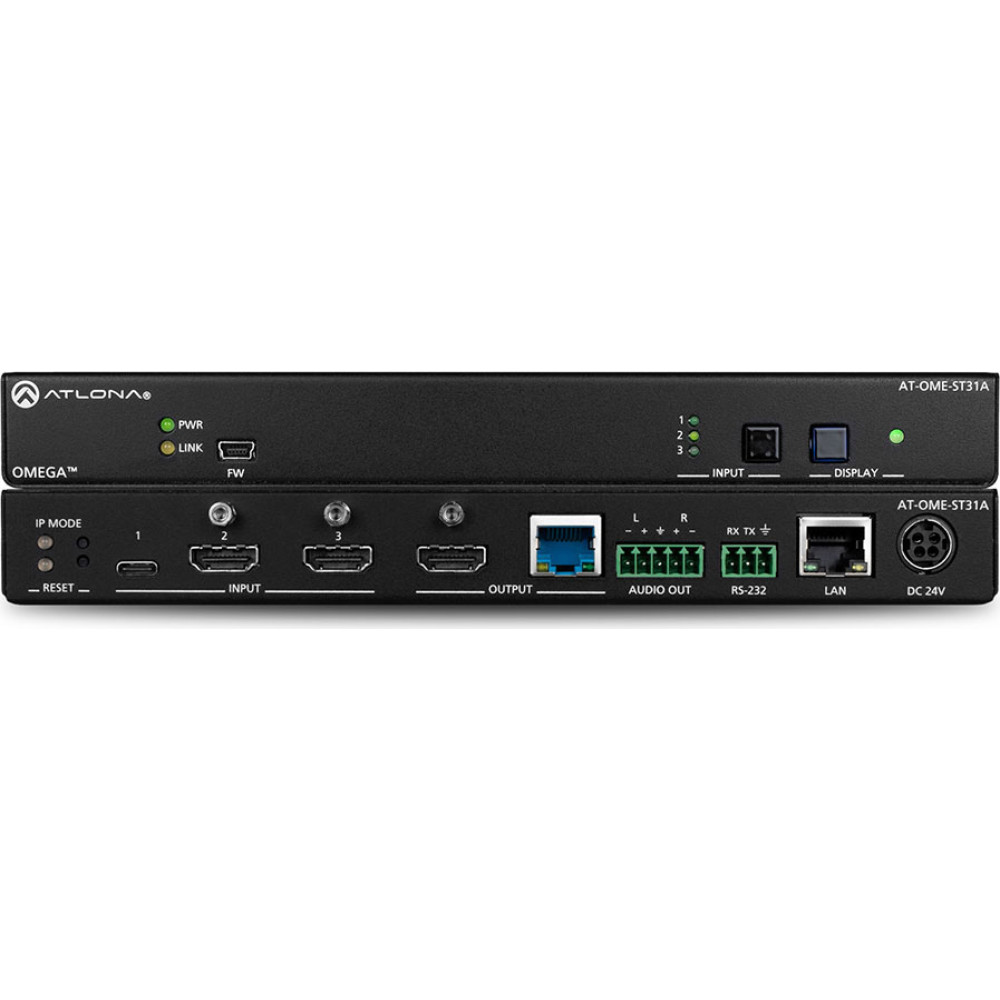

Atlona OMEGA SWI/TR. WITH ANAL.AUDIO
To purchase this product you must be registered in our system.
Specification
4k compatible: Yes
connections: HDMI, RJ45, USB, Terminal block
connections (in): RJ45 female (x1)
connections (out): HDMI A (full-size) female (x1), RJ45 female (x1), Terminal block 5-pin female (x1)
control method: Serial, Software, Button
country of origin: TW
hdbaset specification: HDBaseT 5play
hdmi specification: HDMI High Speed
included: USB C-cable, mounting brackets, mounting screws
max. resolution @ 60hz: 2160p
other signals: RS-232, Digital audio
power supply: External power supply
supported features: HDCP
video signal: HDMI
Description
| The Atlona AT-OME-ST31A is a 3×1 switcher and HDBaseT transmitter designed for remote powering, with HDMI and USB-C inputs. The OME-ST31A features two-channel audio de-embedding (to an analog balanced audio output). The OME-ST31A features mirrored HDMI and HDBaseT outputs and is HDCP 2.2 compliant. The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows®PCs, as well as smartphones and tablets. Video signals up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet can be transmitted over HDBaseT up to 330 feet (100 meters). All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output.
Local powering available with optional AT-PS-245-D4 power supply All-in-one switch, controller and extender Automatic Display Control Reliable auto-switching HDCP and EDID compatible Remote powered via HDBaseT or local power Low profile design File - Datasheet 1 |
