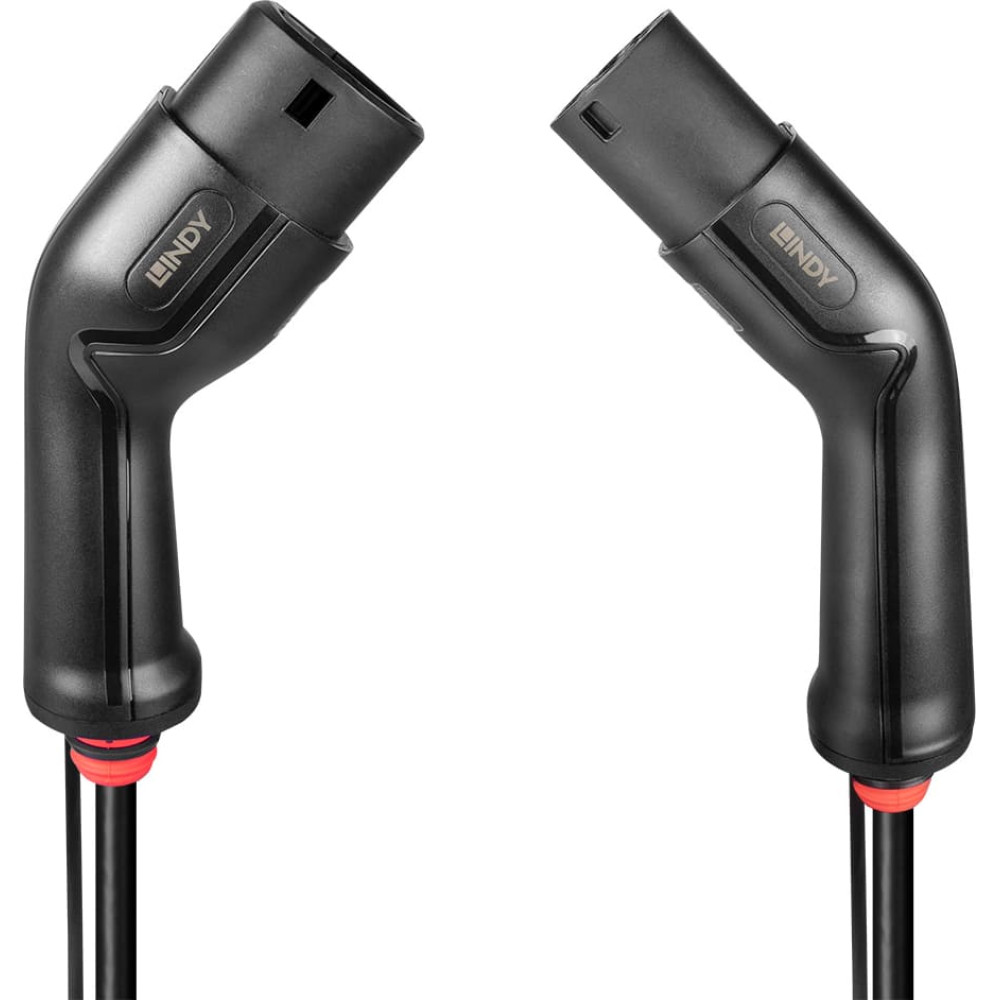

Lindy 5m Type 2 EV-Charging Cable, 22kW

Product Code: 30112

Barcode 4002888301121

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Black

cable diameter: 1.36 cm

cable length: 5 m

carrying case: Yes

ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/56/05/2b/63/632b05564d213d8c014836e4/CE_DoC_DE_30112_30113.pdf

certification: UKCA, TÜV

compliance certificates: CE, REACH, RoHS

connector 1: Type 2

connector 1 form factor: Angled

connector 2: Type 1

connector 2 form factor: Angled

gross weight: 0.00

handle colour: Black

international protection (ip) code: IP55, IP65

maximum operating current (three-phase): 32 A

maximum operating power (three-phase): 22000 kW

net weight: 3.23

number of phases: 3

operating temperature (t-t): -30 - 50 °C

operating voltage: 480 V

packaging height: 37.50

packaging lenght: 37.50

packaging width: 10.00

quantity per pack: 1 pc(s)

storage temperature (t-t): -30 - 40 °C

sustainability compliance: Yes

tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/7f/05/2c/63/632c057f070dd8eb9d4cb6f3/30112_TDS_v1.pdf

variations: 30113

warranty: 2

Description

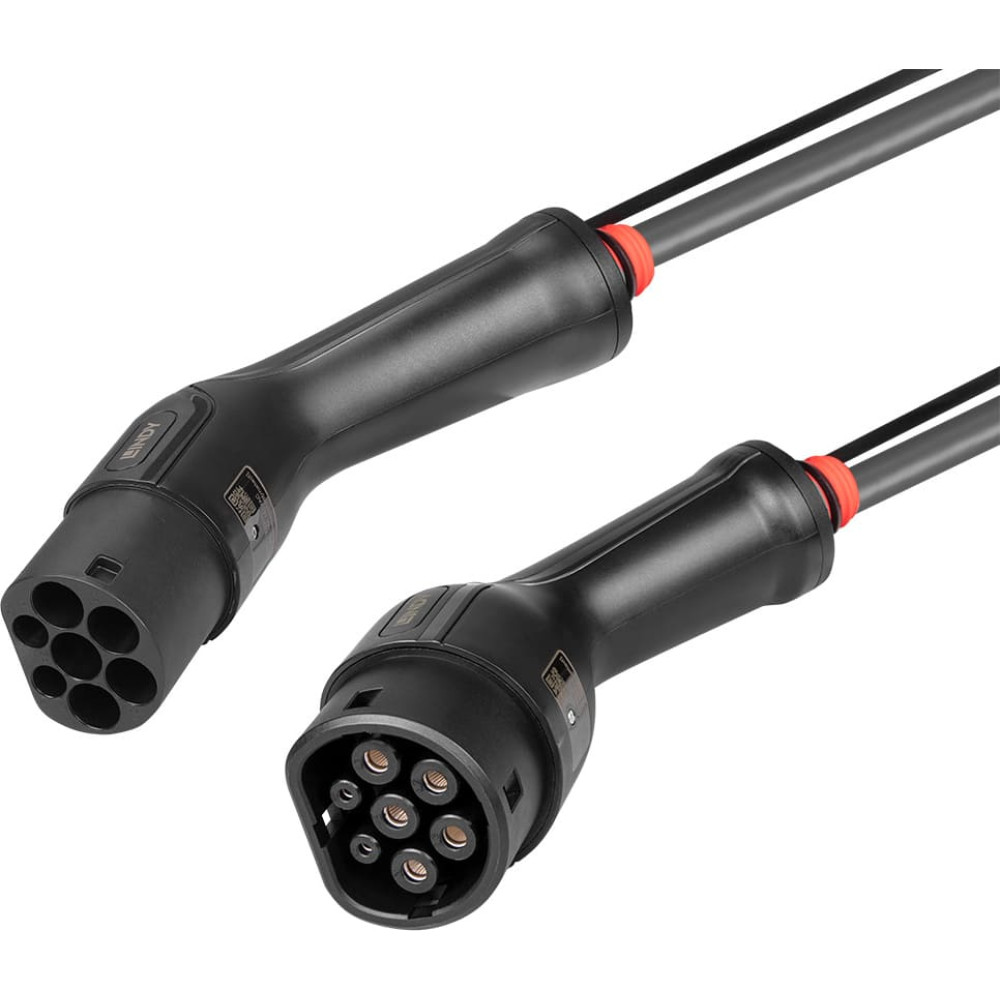

Connectors

Connector A: Type 2 Female (IEC 62196)
Connector B: Type 2 Male (IEC 62196)
Housing Material: PC & Nylon
Dimensions (approx.) WxDxH:
- Type 2 Female: 204.2x122.3x71mm (8,04x4.81x2.8in)
- Type 2 Male: 214.1x115.5x56mm (8.43x4.55x2.2in)

Cable Construction

Length: 5m (16.40ft)
Colour: Black
Charging Mode: Mode 3
Number of Phases: 3
Jacket Diameter: 16.8mm (0.66in)
Jacket Material: TPU
Conductor Material: Copper alloy with silver plating

Specifications

Rated Current: 32A
Operation Voltage: 480V
Charging Power: 22kW
Minimum Bend Radius: 84mm (3.31in)
Protection Level: IP55, IP65 (with protection caps)
UV Resistant: Yes
Flame Retardant Grade: UL 94 V-0 (connectors), EN 60332-1-2 (cable)
Operating Temperature: -30°C - 50°C (-22°F - 122°F)
Storage Temperature: -30°C - 40°C (-22°F - 104°F)

Miscellaneous

Packaging Type: Carton Box
Warranty (Years): 2
Product Compliance: CE, UKCA, RoHS, REACH, TÜV

Package Contents

5m Type 2 Charging Cable, 22kW

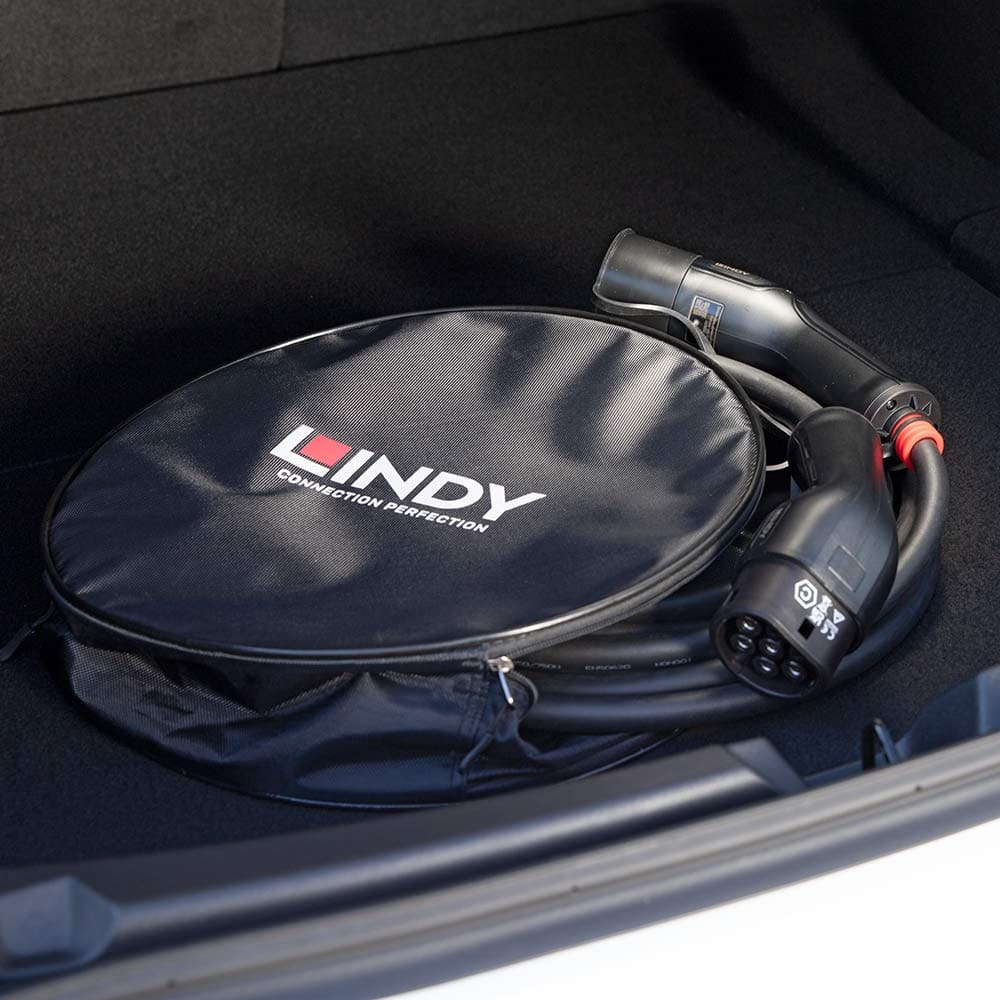

Carrying bag

Purchasing Information

No.: 30112
EAN: 4002888301121

This product is also available in other lengths

30112 - 5m (16.40ft)
30113 - 7m (22.97ft)

CE Doc: CE_DoC_DE_30112_30113.pdf
Tech Data Sheets: 30112_TDS_v1.pdf
