Home Network products Switches and Hubs Gigabit switches Lindy 2 Port HDMI 8K60 Bidirektionaler Switch

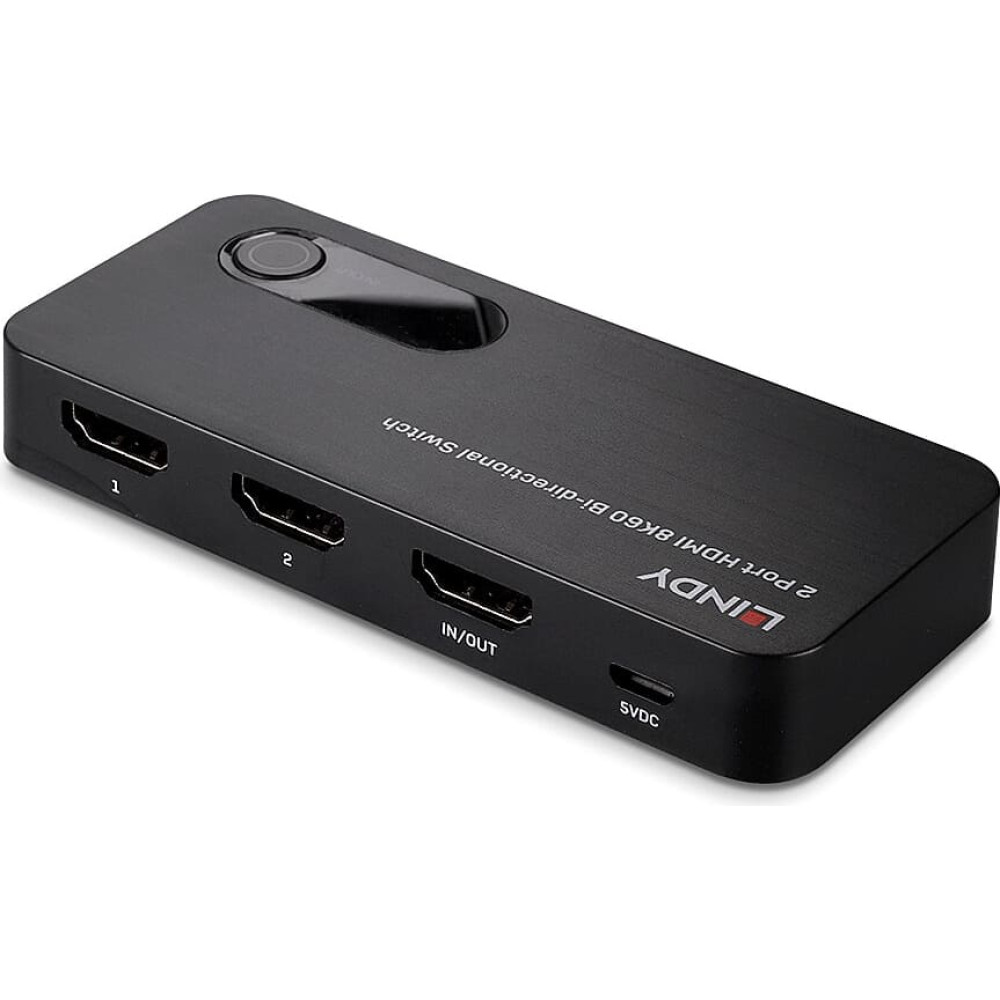

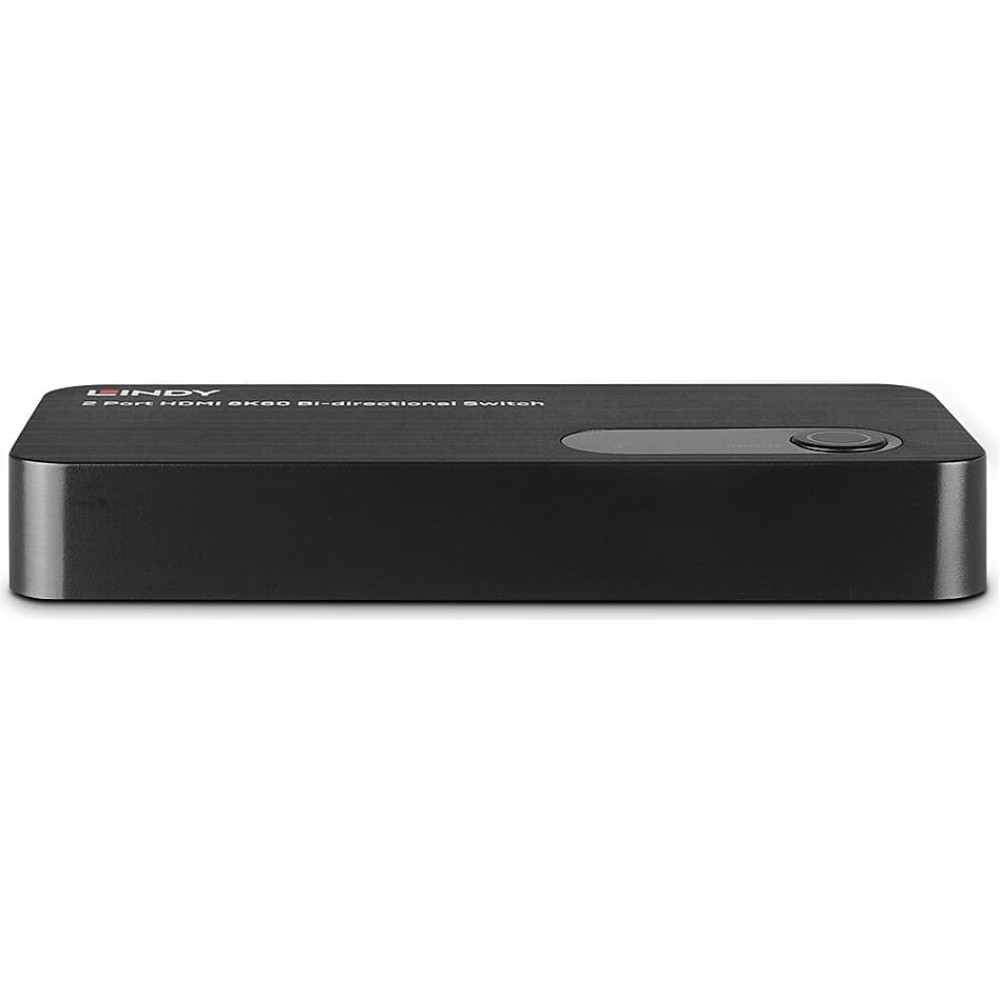

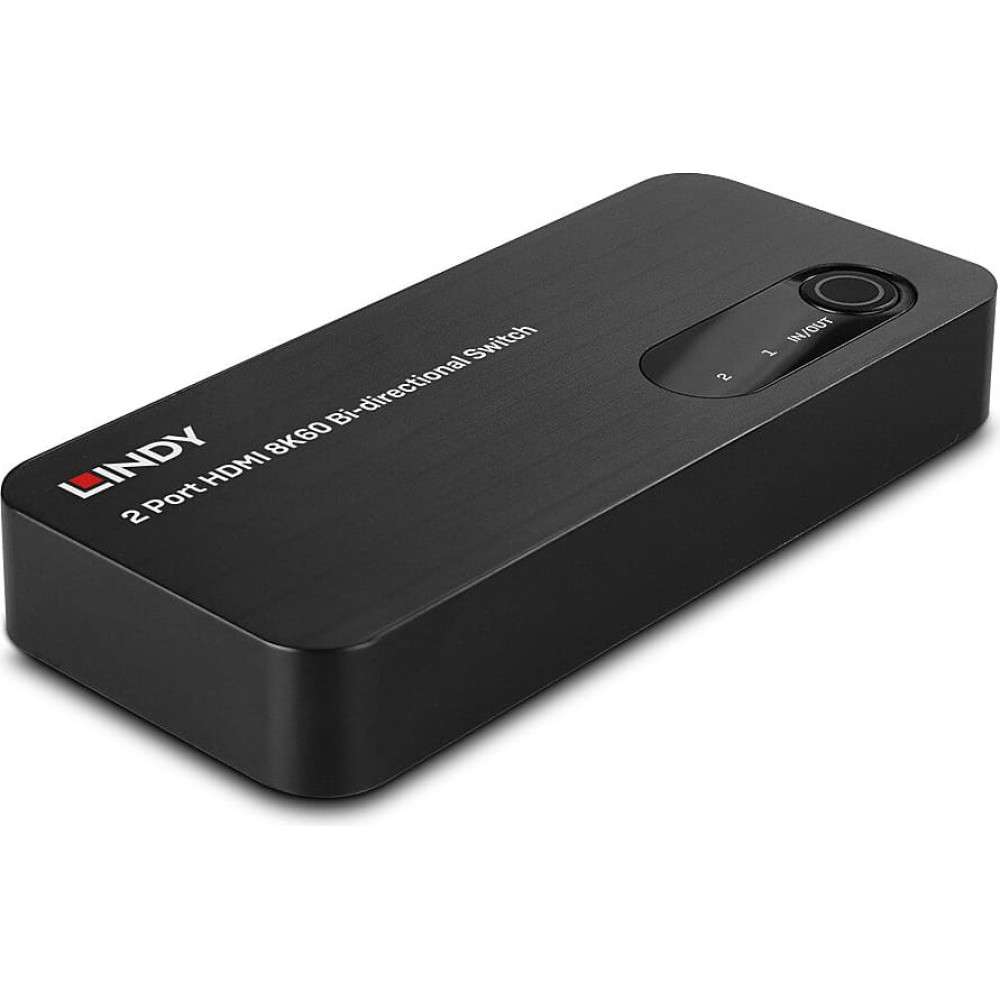

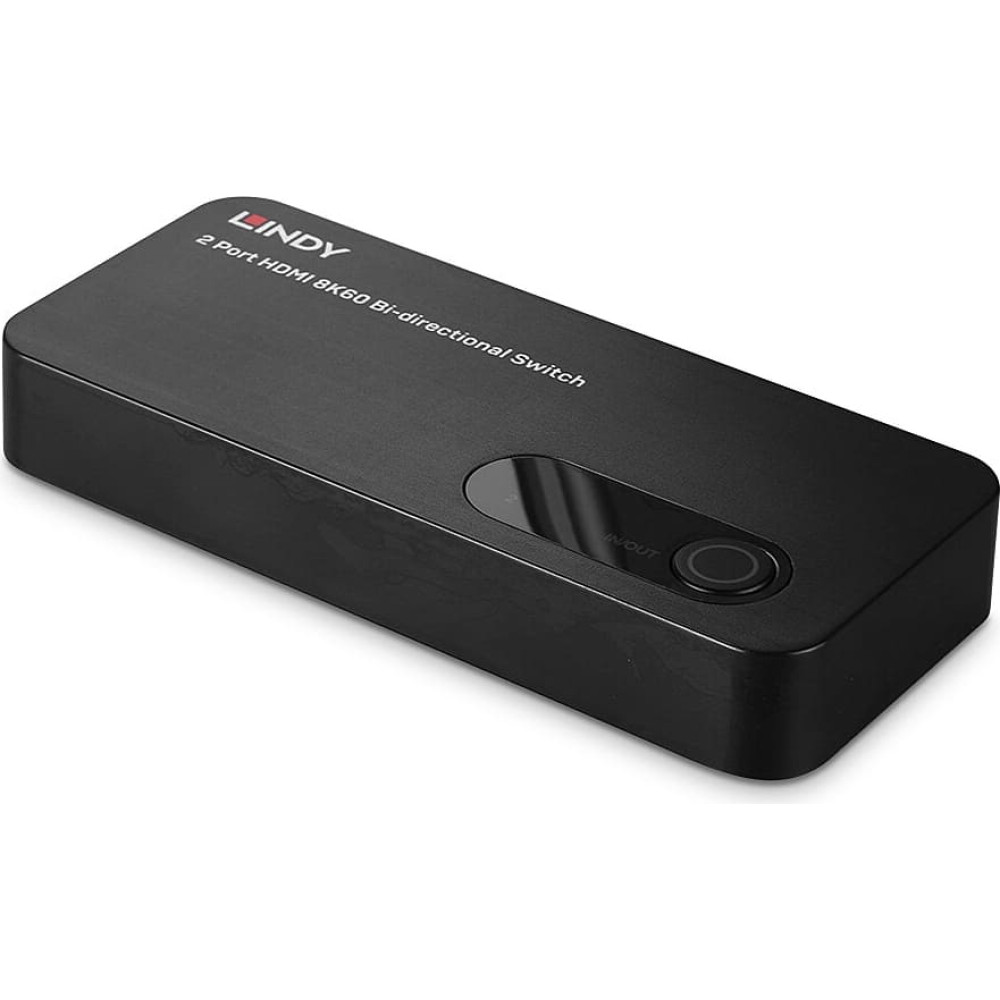

Lindy 2 Port HDMI 8K60 Bidirektionaler Switch

Product Code: 38339

Barcode 4002888383394

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

ac adapter output current: 1 A

ac adapter output voltage: 5 V

bandwidth: 48 Gbit/s

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/df/0e/1c/64/641c0edfa4d8e6a0b3f9b6ce/CE_38339.pdf

colour depth: 10 bit

compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

consumer electronics control (cec) support: No

country of origin: CN

depth: 45 mm

hd type: 8K Ultra HD

hdcp: Yes

hdcp version: 2.3

hdmi ports quantity: 2

hdmi version: 2.1

height: 14 mm

high dynamic range (hdr) supported: Yes

led indicators: Yes

material: ABS

maximum refresh rate: 120 Hz

maximum resolution: 7680 x 4320 pixels

operating relative humidity (h-h): 5 - 90%

operating temperature (t-t): 0 - 70 °C

package depth: 93 mm

package height: 17 mm

package weight: 88 g

package width: 127 mm

packaging height: 9.3

packaging lenght: 12.7

packaging width: 1.7

product colour: Black

quantity per pack: 1 pc(s)

rack mounting: No

storage temperature (t-t): -10 - 80 °C

supported graphics resolutions: 3840 x 2160, 7680 x 4320

sustainability compliance: Yes

video port type: HDMI

warranty: 2.0

weight: 47 g

width: 102 mm

Description

Specifications

AV Interface: HDMI
Interface Standard: HDMI 2.1
Supports Bandwidth: 48Gbit/s
Maximum Resolution:
- 7680x4320@60Hz 4:2:0 10bit
- 3840x2160@120Hz 4:4:4 10bit
HDCP Support: HDCP 2.3
Supported Audio: Pass-Through
Separate Audio Ports: -
IR Support: -
CEC Support: -
Serial Interface: -
Special Features: HDR10

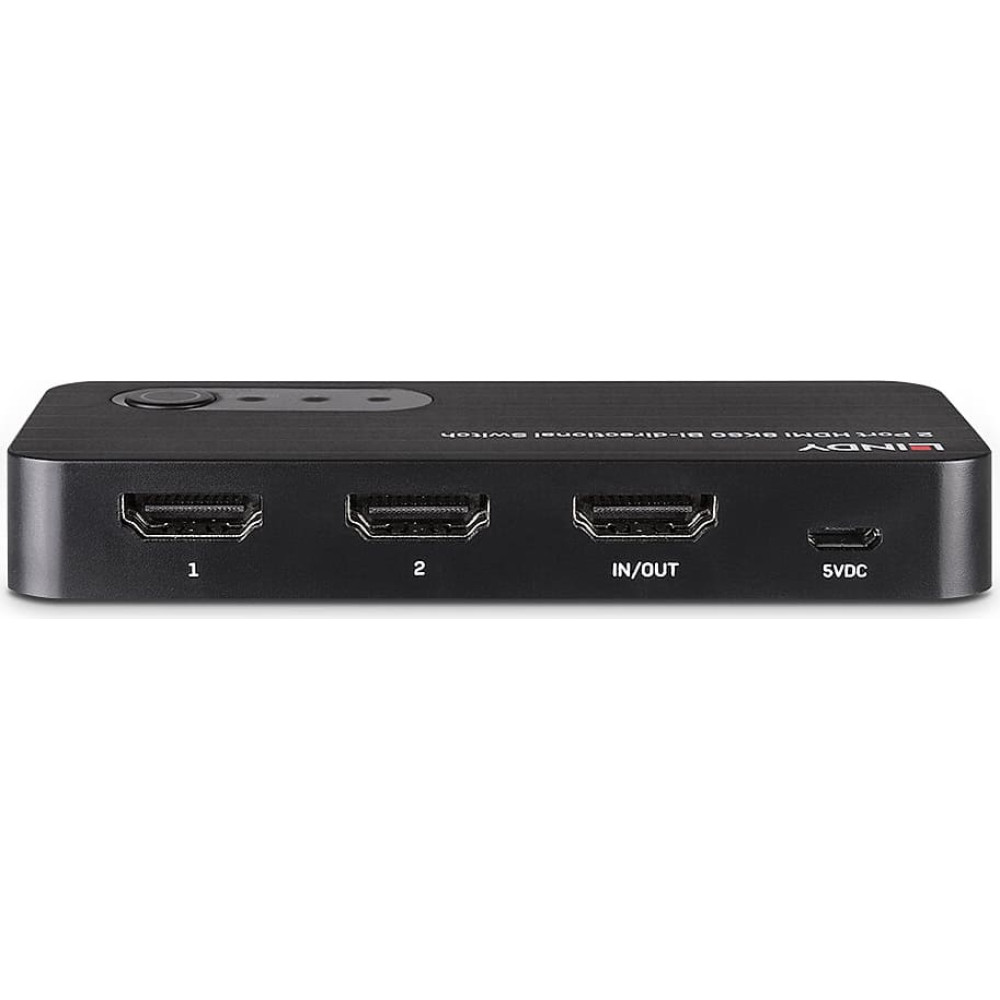

Connectors

Input: 2 x HDMI Type A (Female)
Output: HDMI Type A (Female)
Control: -
Power: USB Micro-B (Female)

Physical Properties

Dimensions (approx.) WxDxH: 102x45x14mm (4.02x1.77x0.55in)
Housing Material: ABS
Net Weight: 0.047kg (0.1lb)
Operating Temperature: 0°C - 70°C (32°F - 158°F)
Storage Temperature: -10°C - 80°C (14°F - 176°F)
Humidity: 5 - 90% RH (non-condensing)
Power Requirements: 5VDC 1A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 127x93x17mm (5x3.66x0.67in)
Gross Weight: 0.088kg (0.19lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS & REACH

Package Contents

2 Port HDMI Switch
0.8m USB A to Micro-B cable
Lindy Manual

Purchasing Information

No.: 38339
EAN: 4002888383394
