Specifikācija
10g support: No
ac input frequency: 50/60 Hz
ac input voltage: 100 - 240 V
access control list (acl): Yes
authentication: MAC-based authentication, Port-based authentication
basic switching rj-45 ethernet ports type: No
broadcast storm control: Yes
cables included: AC, LAN (RJ-45)
combo sfp ports quantity: 8
compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
console port: RJ-45
copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-X, 1000BASE-T
country of origin: China
dc input voltage: 36 - 75 V
depth: 45 mm
ethernet ring protection switching (erps): Yes
fanless: Yes
flow control support: Yes
forwarding rate: 101.1 Mpps
harmonized system (hs) code: 851762
height: 280 mm
international protection (ip) code: IP40
ip source guard (ipsg): Yes
ipv4 & ipv6 features: IPv4/IPv6 access-control list (ACL)
jumbo frames: 10000
jumbo frames support: Yes
led indicators: Power, System, USB
mac address entries: Dynamic MAC address entries, Static MAC address entries
mac address filtering: Yes
mac address table: 16000 entries
master (outer) case gross weight: 22.5 kg
master (outer) case height: 408 mm
master (outer) case length: 400 mm
master (outer) case width: 535 mm
master (outer) cases per pallet (air): 14 pc(s)
mean time between failures (mtbf): 200000 h
networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): -40 - 80 °C
package depth: 390 mm
package height: 95 mm
package weight: 5.29 kg
package width: 525 mm
packet buffer memory: 12 MB
packet filtering: Y
pallet gross length: 80 cm
pallet gross width: 120 cm
pallet height (air): 177.6 cm
port mirroring: Yes
port trunking: Yes
power consumption (max): 36 W
power over ethernet (poe): No
power source: AC
power supply included: Yes
product colour: Black
products per master (outer) case: 4 pc(s)
quality of service (qos) support: Yes
queue scheduling algorithms: Weighted Round Robin (WRR)
quick start guide: Yes
rack mount kit: Yes
rack mounting: Yes
rate limiting: Yes
redundant power supply (rps) support: Yes
security algorithms: HTTPS, SSH
sfp module slots quantity: 20
spanning tree protocol: Yes
storage relative humidity (h-h): 5 - 95%
storage temperature (t-t): -40 - 85 °C
surge protection: Yes
surge protection voltage: 6 kV
switch layer: L2+
switch type: Managed
switching capacity: 68 Gbit/s
system event log: Yes
terminal block included: Yes
usb 2.0 ports quantity: 1
virtual lan features: MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping
vlan support: Yes
web-based management: Yes
weight: 4.14 kg
width: 440 mm
Preces apraksts

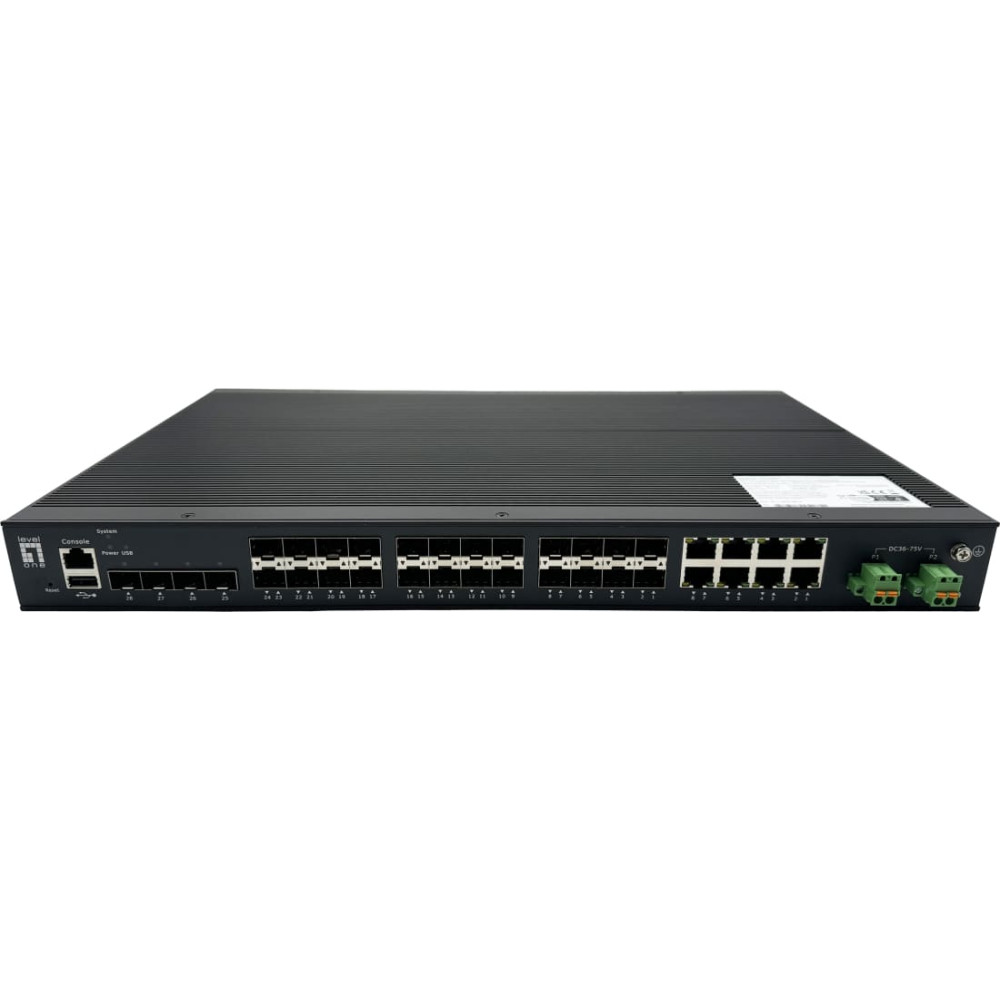

| LevelOne IGU-2872. Slēdža tips: Vadīts, Slēdža līmenis: L2+. USB 2.0 pieslēgvietu skaits: 1, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 68 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... DC ievades spriegums: 36 - 75 V. Statņa montāža |
