BACHMANN

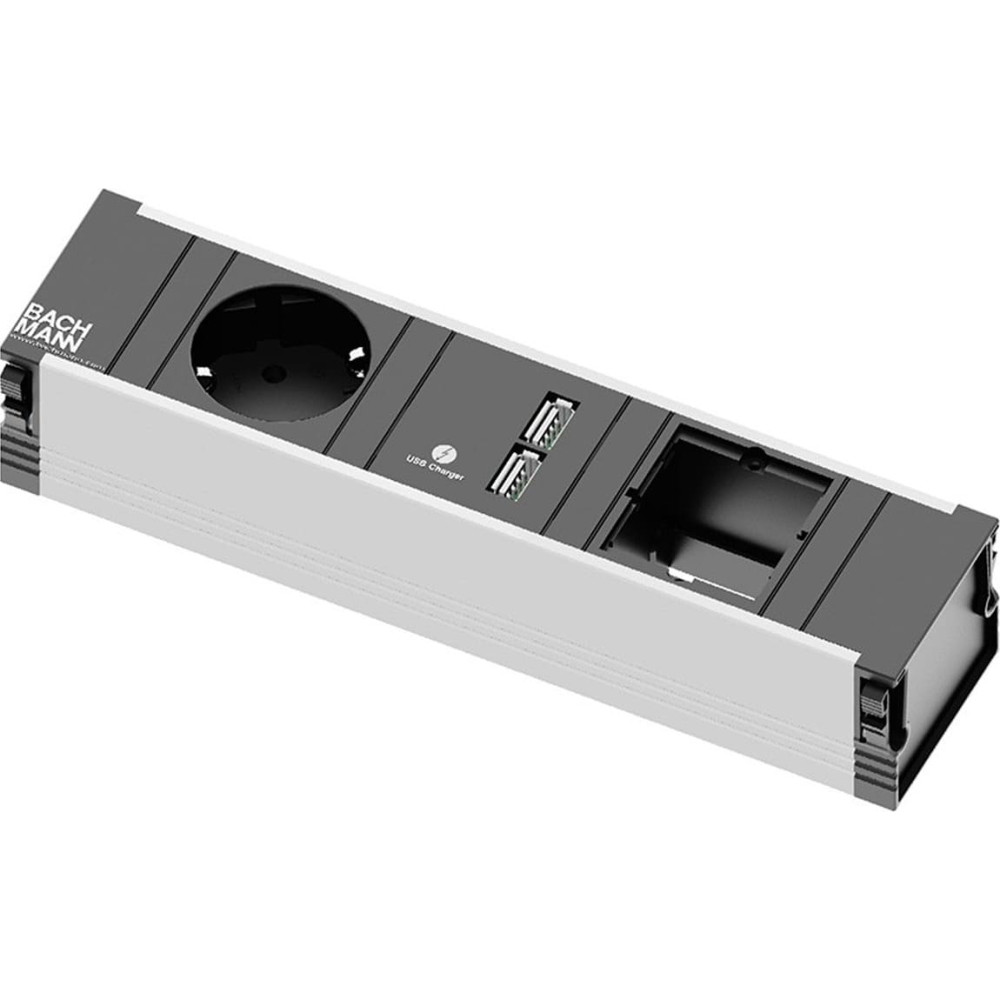

Bachmann CONI Small 1x earthing contact 1x USB Charger 1x ABD

Product Code: 912.0167
Barcode 4016514059485

To purchase this product you must be registered in our system.



Specification
colour: various
colour (design profile): RAL 7035 lichtgrau
connection cable: 0,2m H05VV-F3G1,5mm² Leitung
connector plug: GST18i3 Steckverbinder
current catalog edition: 24.1
depth: 59 mm
depth of packaging (single piece): 320 mm
function: Einbau-Anschlussfeld
gross weight: 0.346
height: 255 mm
height of packaging (single piece): 80 mm
length: 0.2 m
length: 0.2 m
manufacturer: BACHMANN
material (casing): Kunststoff, Aluminium
max. capacitance: 3600W
max. voltage: 230V
number of socket pots: 4
output alignment: 1x Schutzkontakt, 2x USB, 1x ABD
package weight (single piece): 0.346 kg
product group: Power Bars
product type: Integrated unit CONI
regional use: Germany, Austria, Netherlands
usb charger: yes
weight: 334 g
width: 151 mm
width of packaging (single piece): 70 mm

Description

Power strips for CONI, CONI DUO and CONI COVER

CONI brings flexibility to the work surface, because CONI enables free, individual access to power. Thanks to its minimal installation depth, CONI provides sufficient space, even when installed close to the edge. Different standard surface designs also ensure design freedom. When closed, the furniture surface and CONI form a flat surface. If connections are required, CONI can be opened, the required plugs inserted and then closed again. The cables are not pinched thanks to the integrated brush insert. With CONI, the configuration of the socket outlets can be freely selected, as the respective socket outlet unit can be replaced quickly and without tools.

- Integrated into the furniture surface - Minimal installation depth - robust frame design - Integrated brush insert for closing when cables are plugged in - Quick replacement of the power strip - Subsequent installation possible - Dimensions: 255 x 151 x 59 mm - For panel thickness: 10 - 35 mm
