Home Network products Switches and Hubs Gigabit switches Roline Industrial Gigabit PoE++ Mid-Span Injector, 90W
Roline Industrial Gigabit PoE++ Mid-Span Injector, 90W

ROLINE

Roline Industrial Gigabit PoE++ Mid-Span Injector, 90W

Product Code: 21.13.1202
Barcode 7630049612440

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: black
current catalog edition: C25-01.07
current catalog page: 1.08
depth: 24 mm
depth of packaging (single piece): 150 mm
dimensions (hxwxd): 85 x 73 x 24 mm
gross weight: 0.278
height: 85 mm
height of packaging (single piece): 70 mm
mains connection: Loose cable / screw terminals
manufacturer: ROLINE
max. poe output power (total): 90 W
max. poe output power per port: 90 W
package weight (single piece): 0.278 kg
power over ethernet (poe): PoE++
product group: PoE adapter
product type: Gigabit PoE-Injector
quantity of poe ports: 1
scope of delivery: Injektor, Bedienungsanleitung
weight: 184 g
width: 73 mm
width of packaging (single piece): 130 mm
Description

The ROLINE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.

A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.

  • Supply of data and power into the network cables

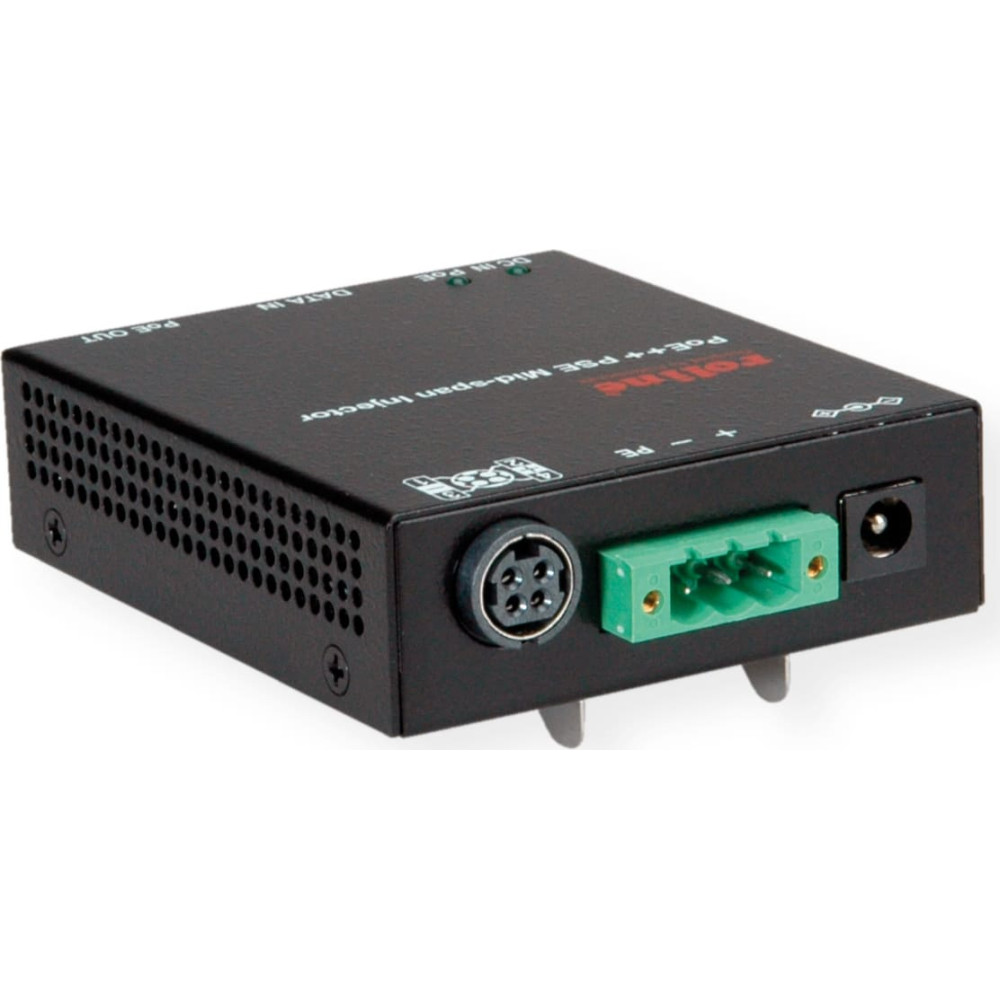

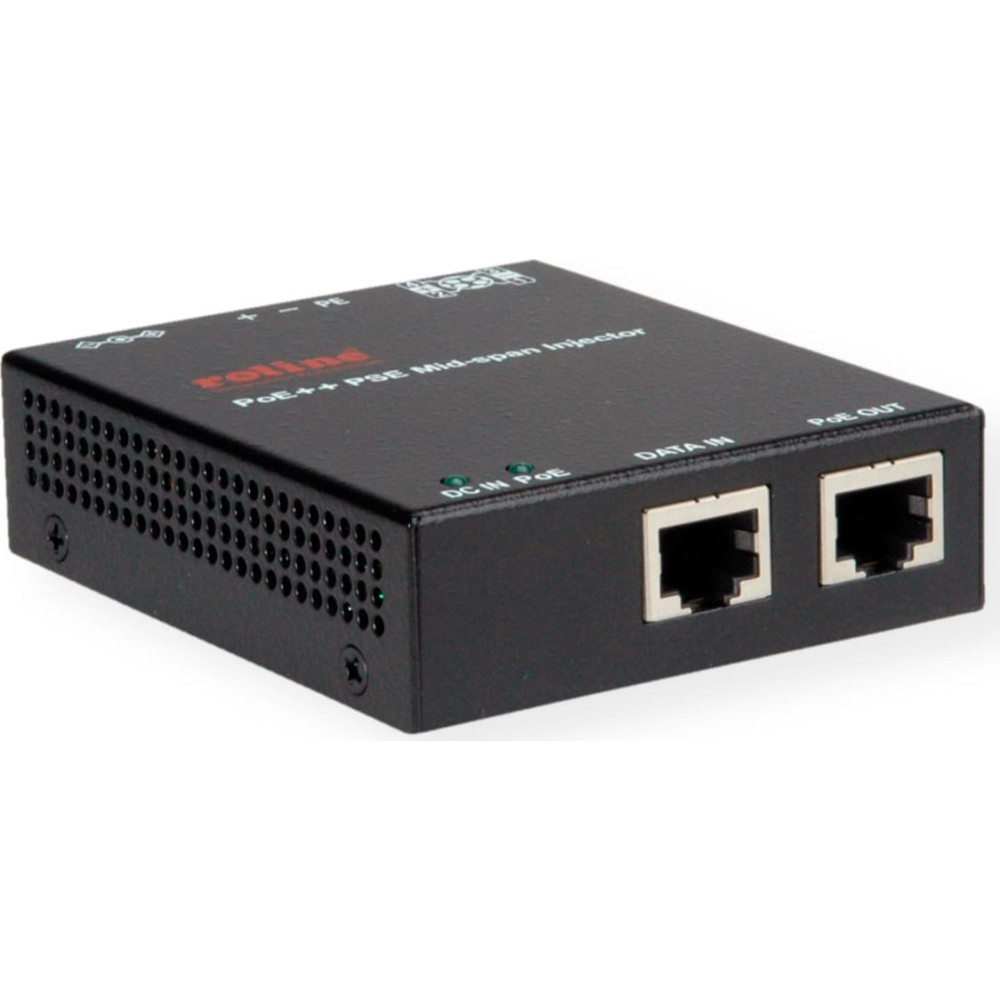

  • Connectors: 1x RJ-45 port (Data In, Data input), 1x power socket (Power In, input power supply), 1x RJ-45 port (Data & Power Out, output data and power)
  • Compatible with 802.3af and 802.3at
  • Power via PoE++: up to 90W
  • LED indicators for Power, Link / Act. and PoE
  • Output voltage: 802.3af standard (45V-57V DC)
  • Contents: Injector, manual
