Home UPS / Power features Charging and supplies Delock DC Splitter Cable 5.5 x 2.1 mm 1 x female to 2 x male screwable

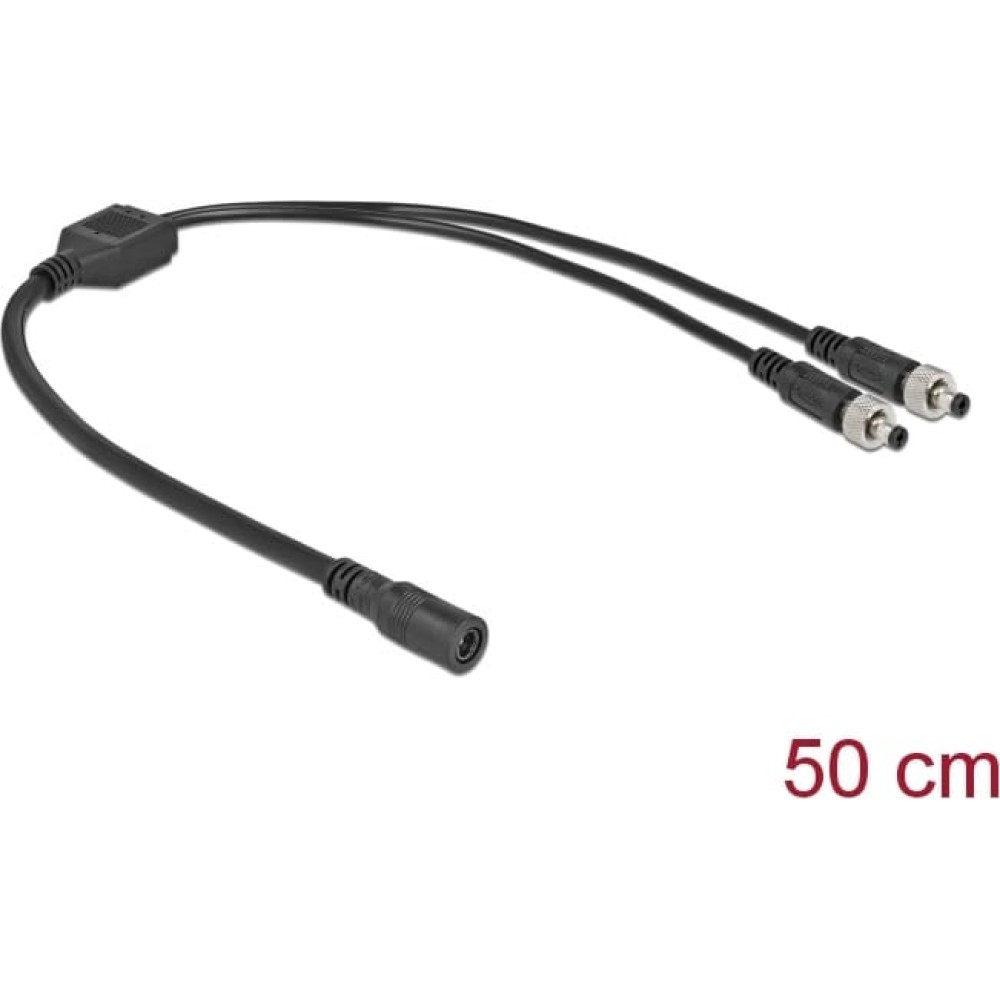

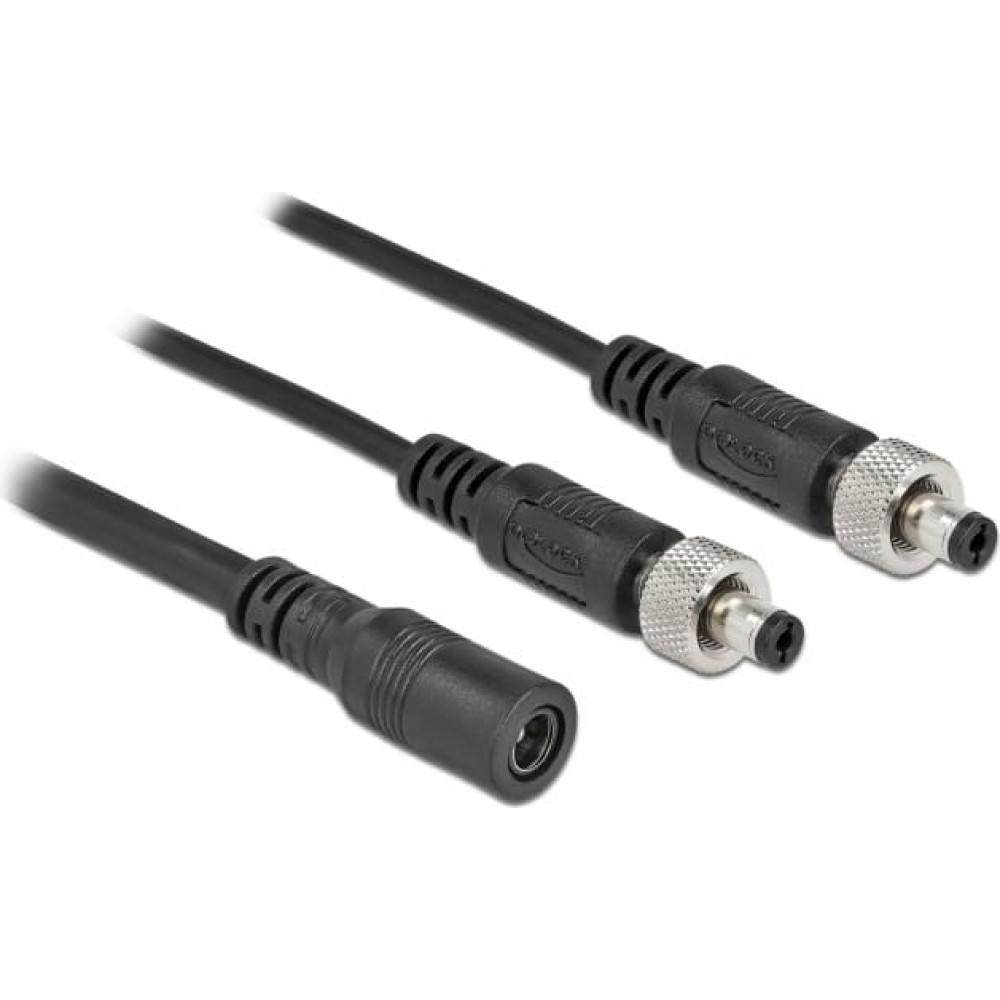

Delock DC Splitter Cable 5.5 x 2.1 mm 1 x female to 2 x male screwable

Product Code: 86571

Barcode 4043619865710

To purchase this product you must be registered in our system.

Description

Related products

Description

This splitter cable by Delock can be used for the connection of two devices which need low voltage e. g. cameras or LED-stripes to a power supply with DC connector. The screw type connector on the plugs supports a tight connection with the suitable DC jacks.

System requirements:
• Power supply with DC 5.5 x 2.1 mm male

Specification:
• Connectors:
  1 x DC 5.5 x 2.1 mm female
  2 x DC 5.5 x 2.1 mm male screwable
• Maximum current: 2 A
• Voltage: max. 30 V
• Cable gauge: 21 AWG
• Cable jacket material: PVC
• Nickel-plated contacts
• Screw type: M8 x 0.75
• Length incl. connectors: ca. 50 cm

Specification of power connector
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  Length: ca. 18.7 mm

Package content:
• Splitter cable

Data sheet:
http://www.delock.de/produkt/86571/pdf.html?sprache=en
