Lindy 2 Port Type C,Dual HDMI 4K60 KVM Switch

Product Code: 42321

Barcode 4002888423212

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

automatic switching: Yes

built-in display: No

cables included: USB Type-C

compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

console ports: USB C

depth: 78 mm

hd type: 4K Ultra HD

hdcp: Yes

hdcp version: 2.2

hdmi ports quantity: 2

hdmi version: 2.0

height: 26.8 mm

housing material: Metal

input voltage: 7.5 V

keyboard port type: USB

led indicators: Yes

manual: Yes

maximum resolution: 3840 x 2160 pixels

mouse port type: USB

number of computers controlled: 2

operating relative humidity (h-h): 5 - 85%

operating temperature (t-t): 5 - 40 °C

package depth: 53 mm

package height: 138 mm

package type: Box

package weight: 330 g

package width: 183 mm

power source: USB

product colour: Grey

push button: Yes

rack mounting: No

storage relative humidity (h-h): 5 - 85%

storage temperature (t-t): -15 - 60 °C

sustainability compliance: Yes

usb 2.0 type-a hub ports quantity: 2

usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: 2

usb connector type: USB Type-A, USB Type-C

usb power delivery (usb pd): Yes

usb power delivery revision: 3.0

usb power delivery up to: 100 W

video port type: HDMI

weight: 230 g

width: 78 mm

Description

The Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch is a compact solution for providing access and control over two Type C equipped devices with from a console with keyboard, mouse and two displays. It's an Ideal solution for flexible, plug and play workstations, allowing users to control multiple laptops, or a single laptop and another Type C device such as a mobile phone or tablets with Type C DisplayPort Alt Mode interface.

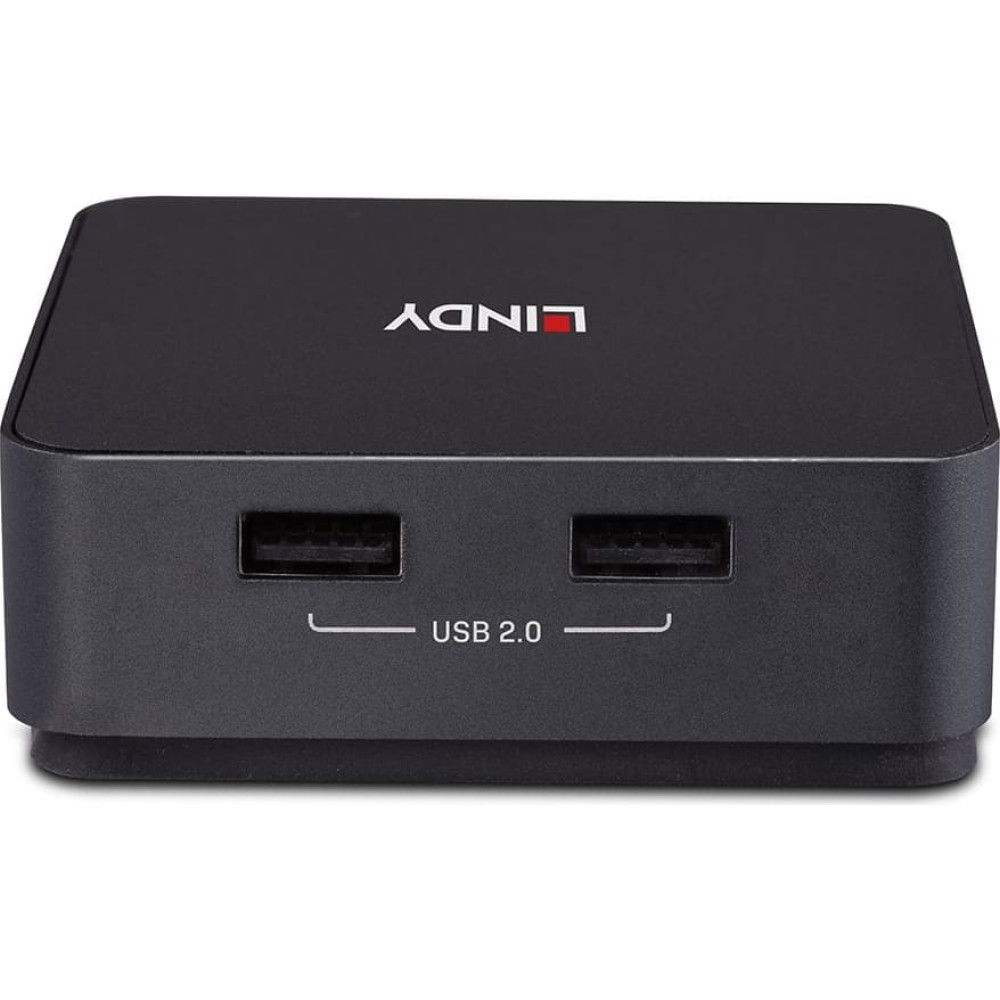

Support for Ultra HD resolutions up to 4K30Hz connecting both outputs, and 4K60Hz connecting one to ensure optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. MST and SST functions allow the connection of two displays with extended desktop or in mirror mode while additional USB peripherals can be connected via the 2 ports USB 2.0.

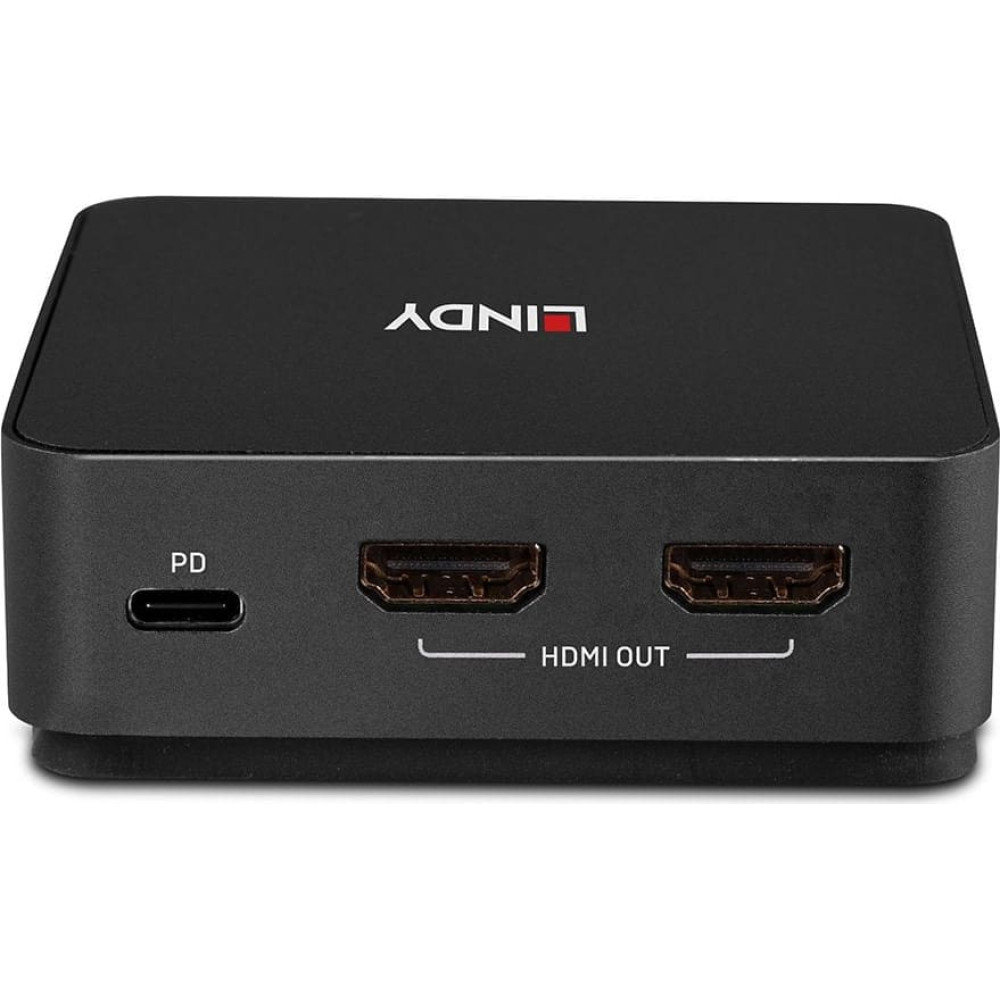

Connecting an additional Type C power supply (optional, not included) ensures host device on port 2 can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.

This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.

Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported.
