Level One LevelOne NVR-0508 8-Kanal Netzwerk Videorek. PoE H.265/264
To purchase this product you must be registered in our system.
Specification
ac adapter included: Yes
ac input voltage: 100 - 230 V
audio rca inputs: 1
audio rca outputs: 1
browser supported: Internet Explorer 9+
cables included: AC
cd manual: Yes
certification: CE, FCC, ISO9001, ISO14001, uL
compatible products: Onvif camera
country of origin: China
depth: 52 mm
ethernet lan (rj-45) ports: 9
ethernet lan data rates: 10,100,1000 Mbit/s
hdd capacity: 0 GB
hdd interface: Serial ATA
hdmi output: Yes
height: 385 mm
led indicators: Alarm, HDD, Power
master (outer) case gross weight: 14.1 kg
master (outer) case height: 412 mm
master (outer) case length: 450 mm
master (outer) case width: 548 mm
maximum resolution: 3840 x 2160 pixels
maximum storage capacity: 12 TB
networking standards: IEEE 802.3at
number of fans: 1 fan(s)
number of hdds supported: 2
number of users: 64 user(s)
on/off switch: Yes
operating relative humidity (h-h): 10 - 90%
operating system installed: Embedded LINUX
operating temperature (t-t): -10 - 55 °C
package depth: 450 mm
package height: 387 mm
package type: Box
package weight: 3.23 kg
package width: 435 mm
power consumption (typical): 180 W
power over ethernet (poe): Yes
power over ethernet (poe) ports quantity: 8
product colour: Black
products per master (outer) case: 4 pc(s)
rack mounting: Yes
supported network protocols: TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP
throughput data rate: 160 Mbit/s
usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: 2
vga (d-sub) output ports: 1
video formats supported: H.264, H.264+, H.265, MPEG4
video input channels: 8 channels
video recording modes: 720p, 1080p
weight: 3 kg
wi-fi: No
width: 315 mm
Description

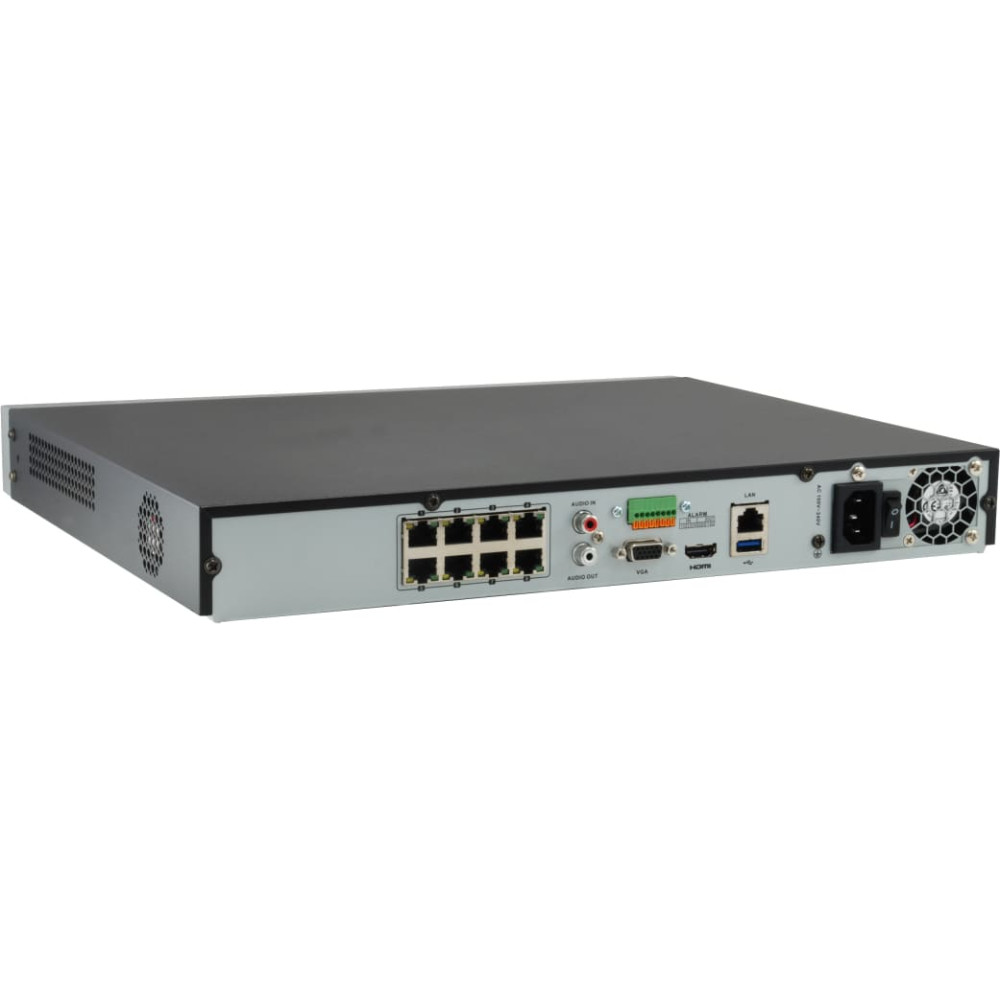

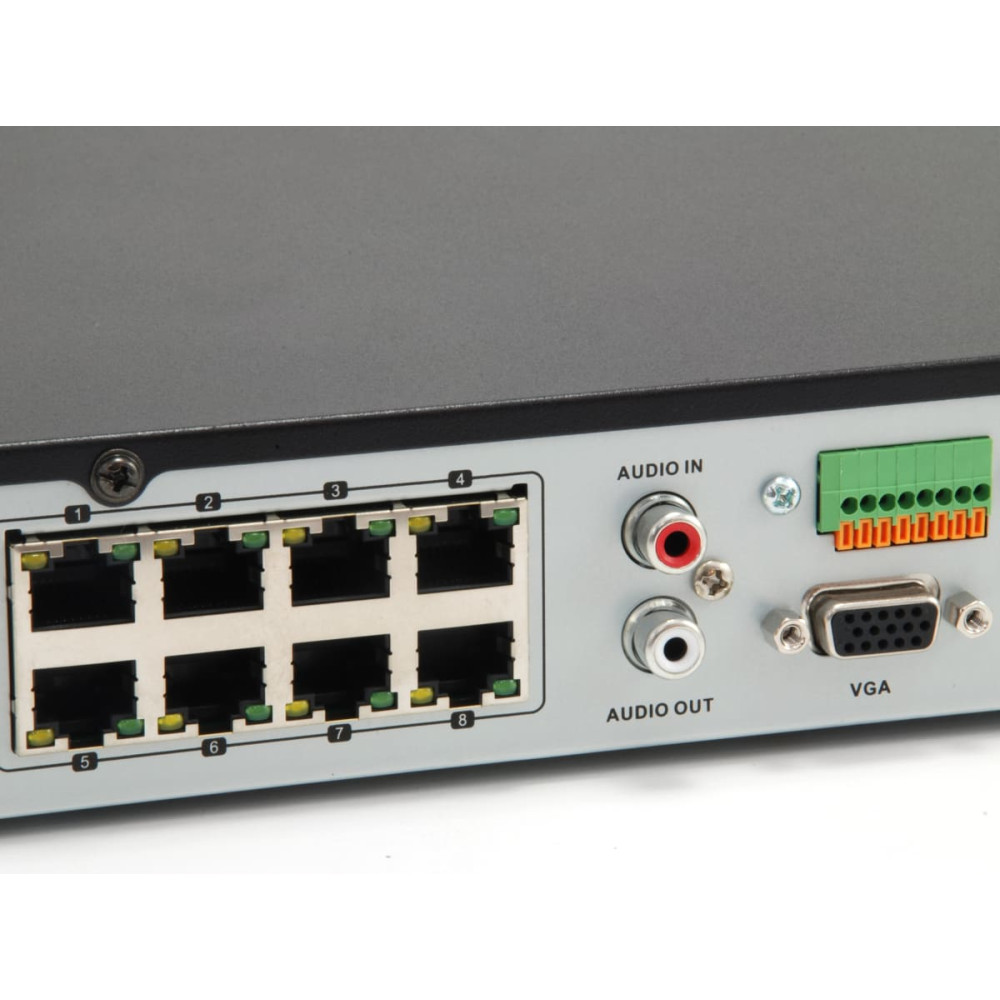

| The LevelOne NVR-0508 NVR enables live view, recording and playback for up to 8 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264/MPEG4 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app. The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 2 HDD bays complete the package, with a disk capacity of up to 6TB making the LevelOne NVR-0508 a powerful, smart and cost-effective solution for managing your security network. An integrated 8-port 802.3at PoE switch enables the NVR to run both power and data on the one cable to power up connected PoE cameras. Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications. |
