Delock Converter Mini PCIe male to PCI Express x1 Slot with flexible cable and USB Port

DELOCK

Delock Converter Mini PCIe male to PCI Express x1 Slot with flexible cable and USB Port

Product Code: 64345
Barcode 4043619643455

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.000
height: 0.000
width: 0.000
Description

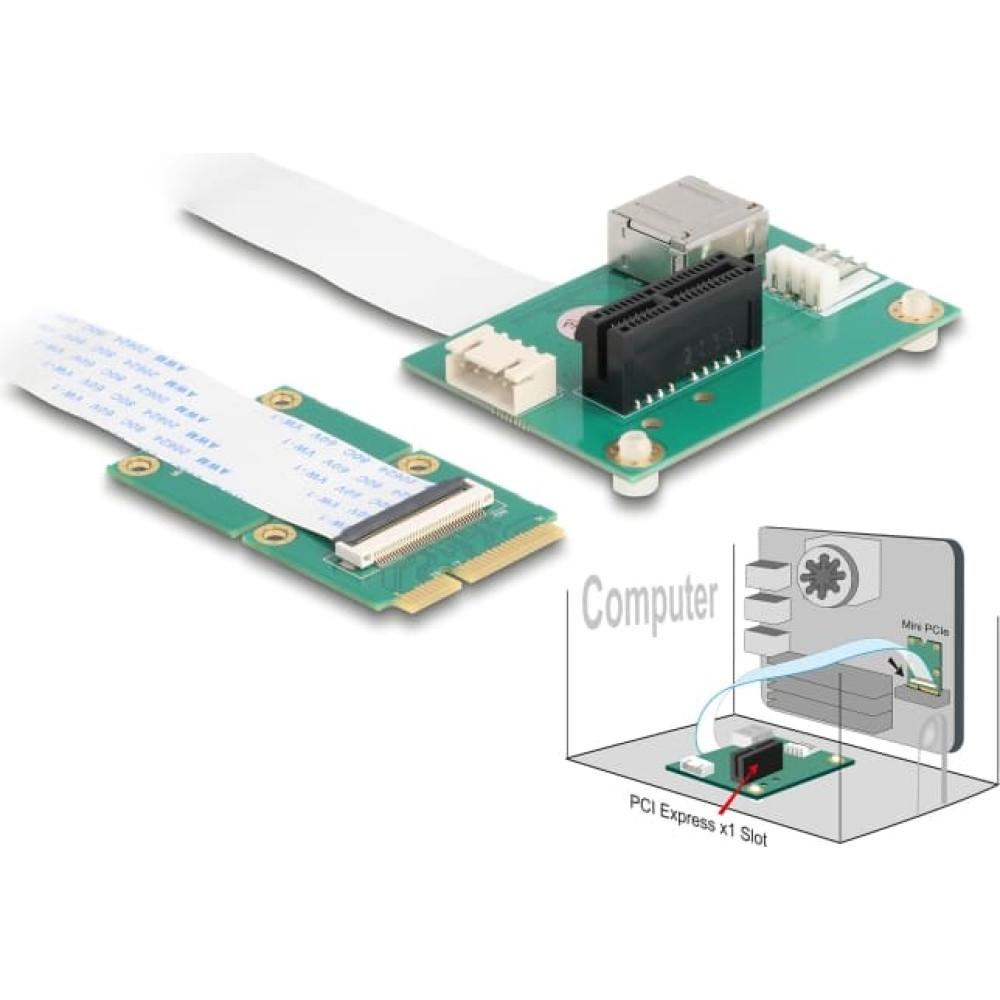

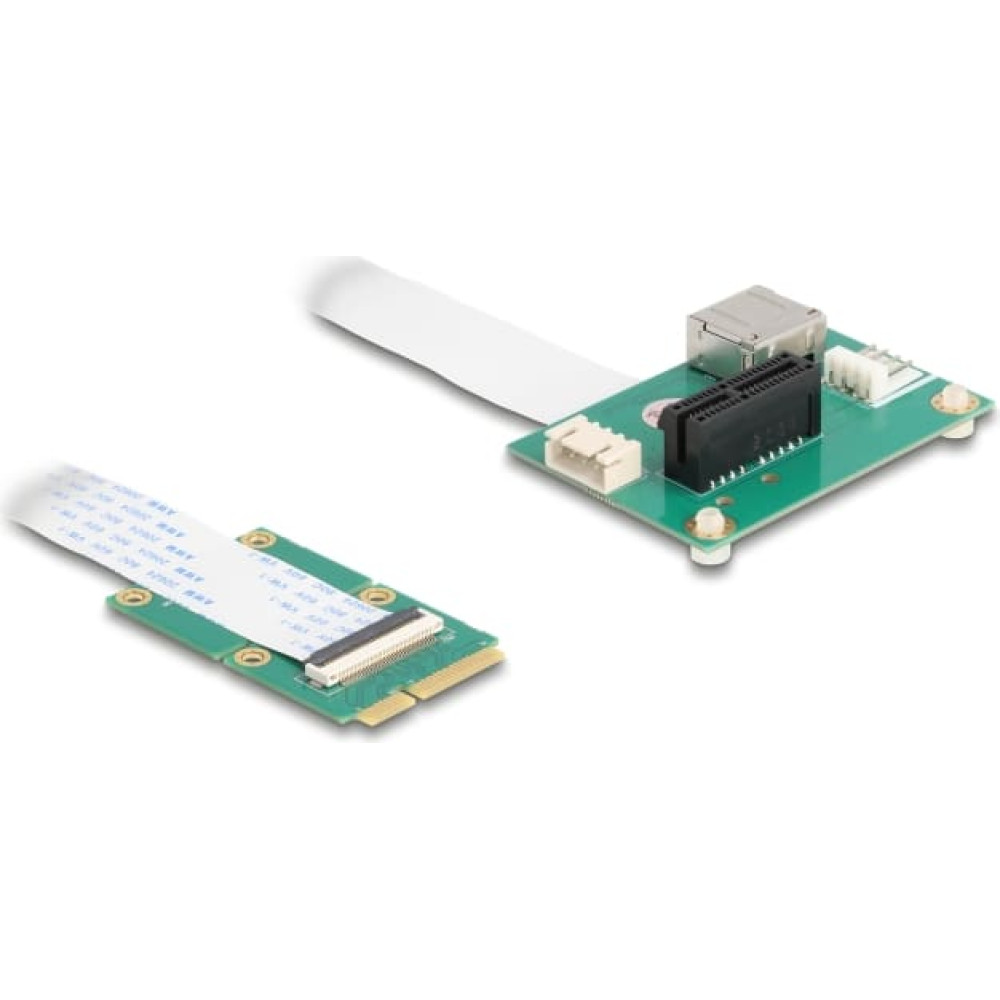

This converter by Delock changes the Mini PCIe interface into a PCI Express slot. Different PCI Express cards can be inserted into the PCIe slot.

Additional USB Type-A port
Different USB devices can be connected to the USB interface.
Specification:
• Connectors:
  1 x Mini PCIe male
  1 x PCI Express x1, V1.1
  1 x USB 2.0 Type-A female
  1 x Floppy 4 pin power plug
  1 x 4 pin power connector
• PCI Express Rev. 1.1
• Interface: PCIe + USB
• Form factor Mini PCIe: half size and full size
• Bootable
• Power supply:
  3.3 V (for PCIe slot) from Mini PCIe
  5 V (for USB) from 4 pin power connector
  12 V (for PCIe slot) from 4 pin power connector
• Dimensions (LxWxH):
  PCIe board: ca. 60 x 42 x 15 mm
  Mini PCIe board: ca. 51 x 30 x 3 mm
Package content:
• Converter board M.2
• Mini PCIe board

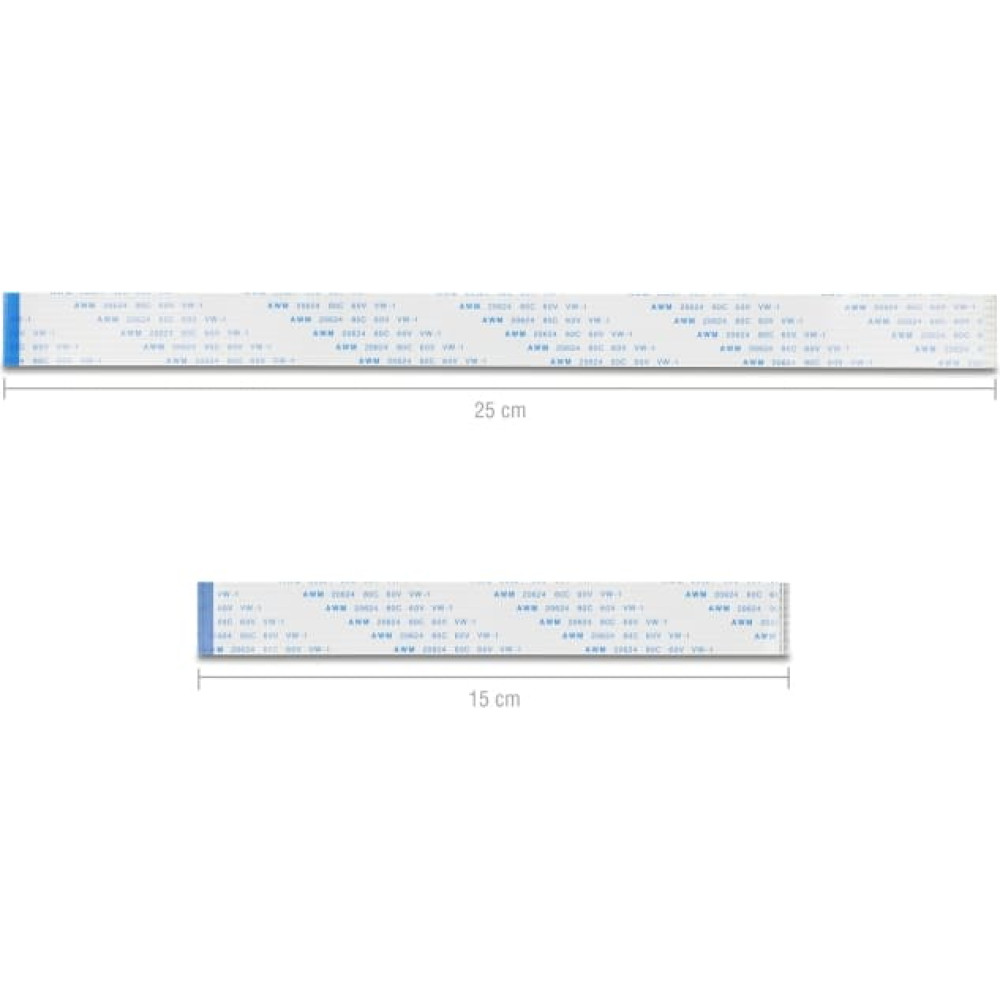

• 2 x flat cable, length ca.: 1 x 15 cm, 1 x 25 cm

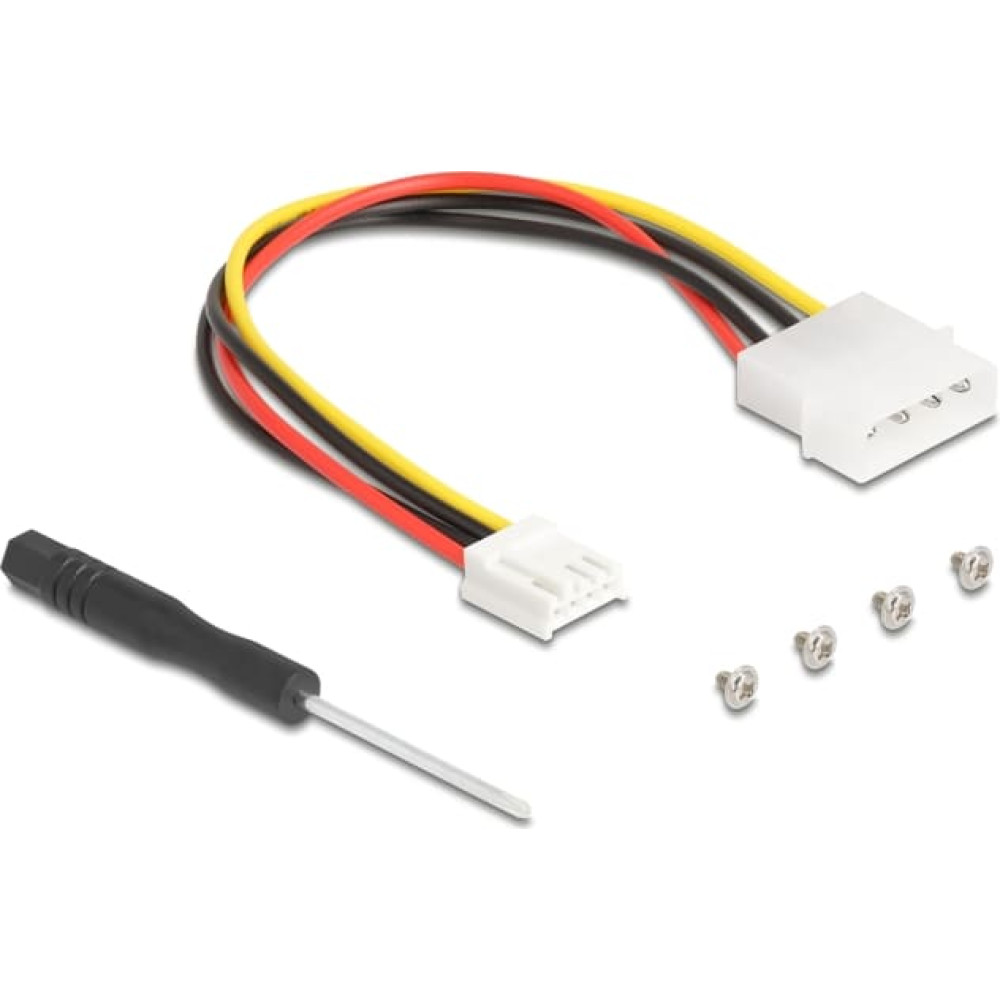

• Power cable
• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/64345/pdf.html?sprache=en
