Schroff Socket Strip, SCHUKO, 8 Sockets, 19", With Switch

Schroff Socket Strip, SCHUKO, 8 Sockets, 19", With Switch

Produkta kods: 60110206
Svītrkods: 4036088046346

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
colour: grey
colour (design profile): RAL 7035 Light grey
connection cable: mit Schutzkontakt/UTE Stecker
connector plug: Schuko
current catalog edition: 23.1
current catalog page: 1.94
depth: 44 mm
depth of packaging (single piece): 490 mm
function: 19" socket strip
garums: 2 m
gross weight: 0.858
height: 44 mm
height of packaging (single piece): 70 mm
manufacturer: SCHROFF
max. capacitance: 3600 W
max. voltage: 230 V AC
mounting form: 19" Rackmount
number of socket pots: 8
on/off switch: yes
output alignment: Reihe
package weight (single piece): 0.868 kg
product group: Power Bars
product type: SCHUKO socket
quantity of outputs/angles: 8 / 45°
scope of delivery: Mounting bracket for 19" mounting RAL 7035 light grey
switch type: Wipp-Schalter beleuchtet
test symbol: VDE
width: 439 mm
width of packaging (single piece): 90 mm
Preces apraksts

Socket strip with 8 earthing contact plug inserts and switch

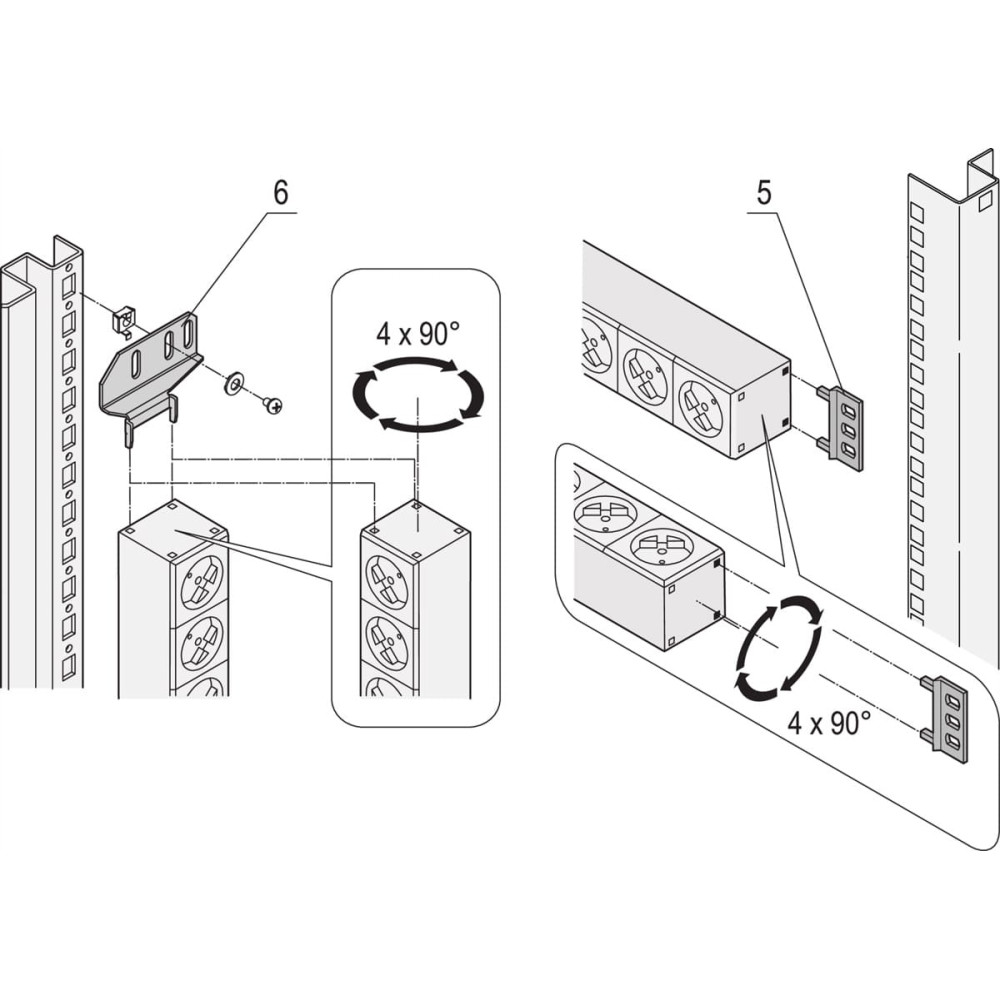

- Installation height 1 U, 19'' installation dimension - Connection cable 2 m with earthing contact - Socket strip can be rotated in all four directions (in 90° steps) during installation - Can be installed horizontally and vertically - Suitable angles for vertical installation 26.14.0229
