Xilence M504D AMD and Intel CPU Cooler, 2x 92mm PWM fans, 180W TDP

Product Code: XC044
Barcode 4044953501197

To purchase this product you must be registered in our system.



Specification
acoustic level: 14,0 - 21,8 dB (A)
assembly type: On CPU/Chip
colour: Red Black
connector type: Molex 4-pin (SMALL)
cpu max. watt: 180 W
current catalog edition: 24.1
depth: 125 mm
depth of packaging (single piece): 140 mm
dimensions (hxwxd): 123 x 105 x 125 mm
dimensions (hxwxd) fan: 2 x 92 x 92 x 25 mm
fan performance: 111,2 CFM
fan rotational speed: 600 - 2200 ± 10% RPM
gross weight: 0.875
heatpipes: 4
height: 123 mm
height of packaging (single piece): 180 mm
manufacturer: XILENCE
noise level spinning (max.): 21.8 dB (A)
package weight (single piece): 0.875 kg
processor socket: AMD: AM5/AM4, INTEL: LGA 1700/1150/1151/1155/1156/2011/12...
product group: Cooler/Fan
product type: Cooler/Fan
quantity of fans: 2
scope of delivery: M504D AMD and Intel CPU Cooler, 2x 92mm PWM Fans, Thermal...
technical particularity: Red fan with black frame
weight: 685 g
width: 105 mm
width of packaging (single piece): 110 mm

Description

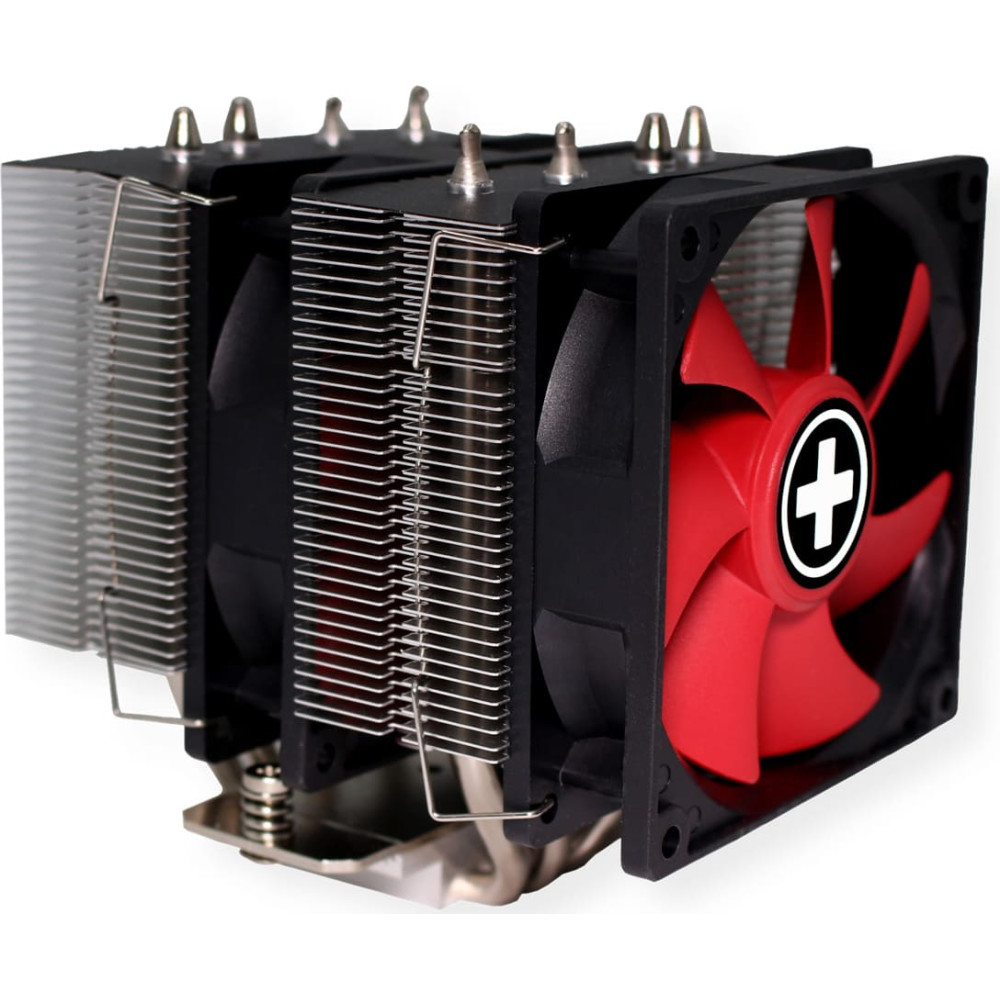

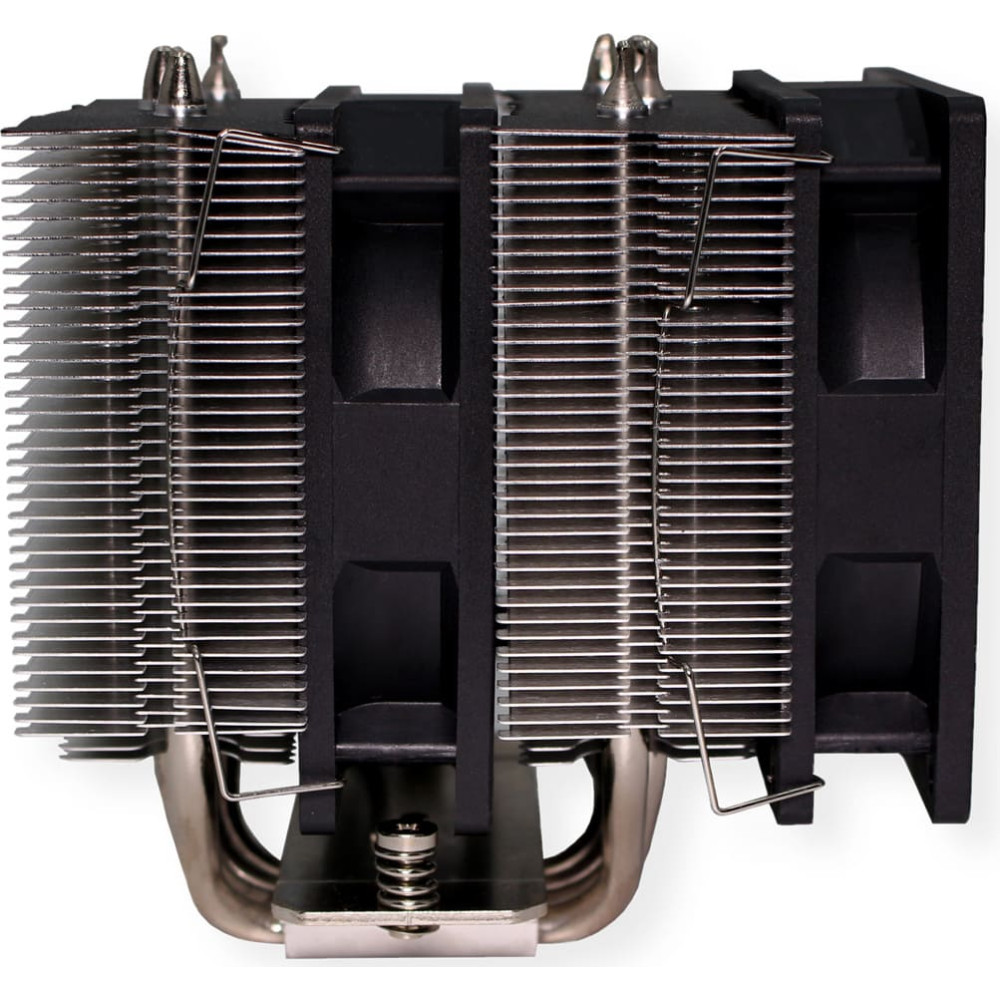

The compact twin tower cooler M504D is the multi socket solution of the Performance C series.

Its 4 extremely efficient heatpipes conduct heat up to 200W to the innumerable cooling fins. Thus, it is predestined for powerful multi-core processors. Due to the direct contact of the heatpipes, the heat transfer between CPU and cooler is highly efficient and very even. With its multi socket, the cooler can be used for all current Intel and AMD sockets. Besides are included the double heat sink and the two 92mm PWM fans, mounting brackets for the sockets LGA LGA 1150/1151/1155/1156/2011/1700/2066/ 1200 and AMD AM5/AM4, illustrated assembly instructions and a tube of thermal paste.

  • Performance C Series
  • Two heatsinks with fin design ensure efficient cooling of the CPU and all surrounding components
  • Two 92mm PWM fans, liquid-bearing

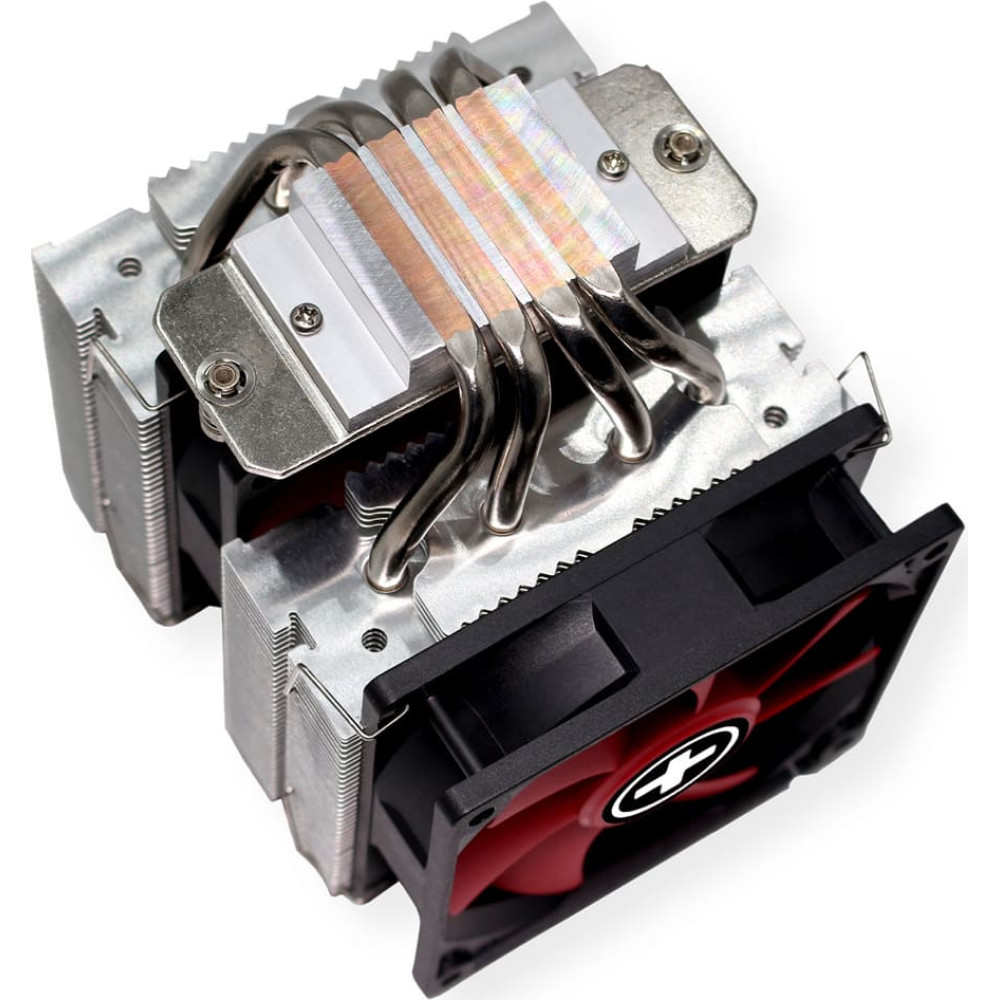

  • Four 6mm copper heatpipes for maximum heat dissipation
  • Hotspots are avoided by slightly overhanging the fans at the top and bottom
  • The fans can be mounted on both sides of the heatsink
  • Suitable for all common AMD & INTEL sockets
