19" kabeļu organizators 1U melns – Delock kvalitāte sakārtotai infrastruktūrai

DELOCK

19" kabeļu organizators 1U melns – Delock kvalitāte sakārtotai infrastruktūrai

Produkta kods: 43345
Svītrkods: 4043619433452

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
cable jacket material: Thermoplastic polyurethane (TPU)
cable length: 30 m
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6b/55/97/62/6297556ba7fecca6d5a65e95/CE_DoC_DE_43345_43346.pdf
compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
connector 1: USB A
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: 2 x USB A
connector 2 form factor: Straight
connector 2 gender: Male/Female
country of origin: CN
maximum data transfer rate: 5 Gbit/s
operating temperature (t-t): 0 - 70 °C
package depth: 240 mm
package height: 65 mm
package type: Box
package width: 240 mm
packaging height: 24.0
packaging lenght: 24.0
packaging width: 6.5
product colour: Blue, Silver
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 85 °C
usb version: USB 3.2 Gen 1 (3.1 Gen 1)
variations: 43346
warranty: 2.0
Preces apraksts

Connectors

  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: USB Type A Male
  • Housing Material: Zinc Alloy
  • Connector Plating: Nickel
  • Pin Construction: Copper Alloy
  • Pin Plating: Nickel + Gold
  • Dimensions (approx.) WxDxH:
    • USB A Female: 82x26x14.5mm (3.23x1.02x0.57in)
    • USB A Male: 41.6x19.2x8mm (1.64x0.76x0.31in)

Cable Construction

  • Length: 30m (98.42ft)
  • Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
  • Colour: Blue
  • Type: Round
  • Jacket Diameter: 3mm (0.12in)
  • Jacket Material: TPU
  • Conductor Material: -
  • Conductor Gauge: -
  • Shielding: -

Specifications

  • Supported Bandwidth: 5Gbps
  • Nominal Attenuation: 4dBm/km
  • Minimum Bend Radius: 30mm (1.18in)
  • Maximum Tensile Load: 0.3GN/m²
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • Transmission Medium: Optical Fiber 62.5/125/250 Multimode Fiber
  • Transmission Technology: 850nm Laser Optical

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
  • Net Weight: 0.3kg (0.66lb)
  • Gross Weight: 0.4kg (0.88lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP65

Purchasing Information

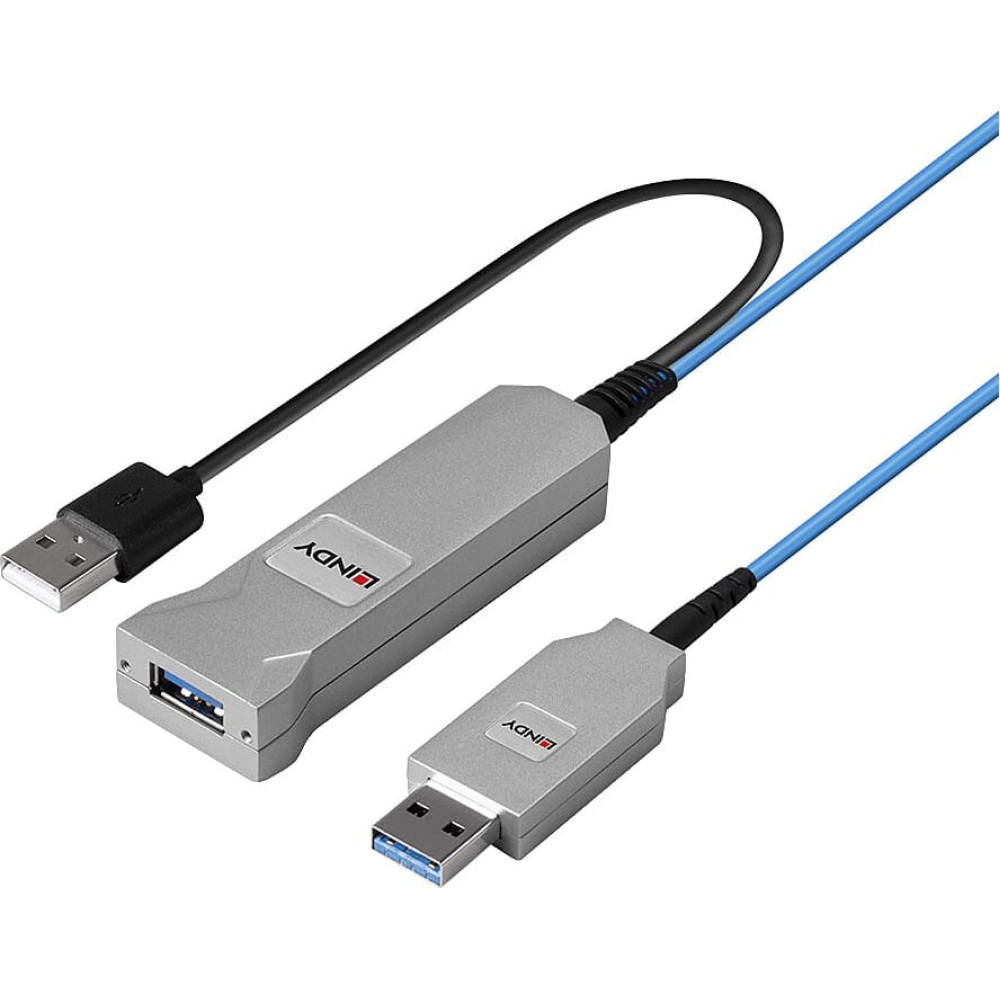

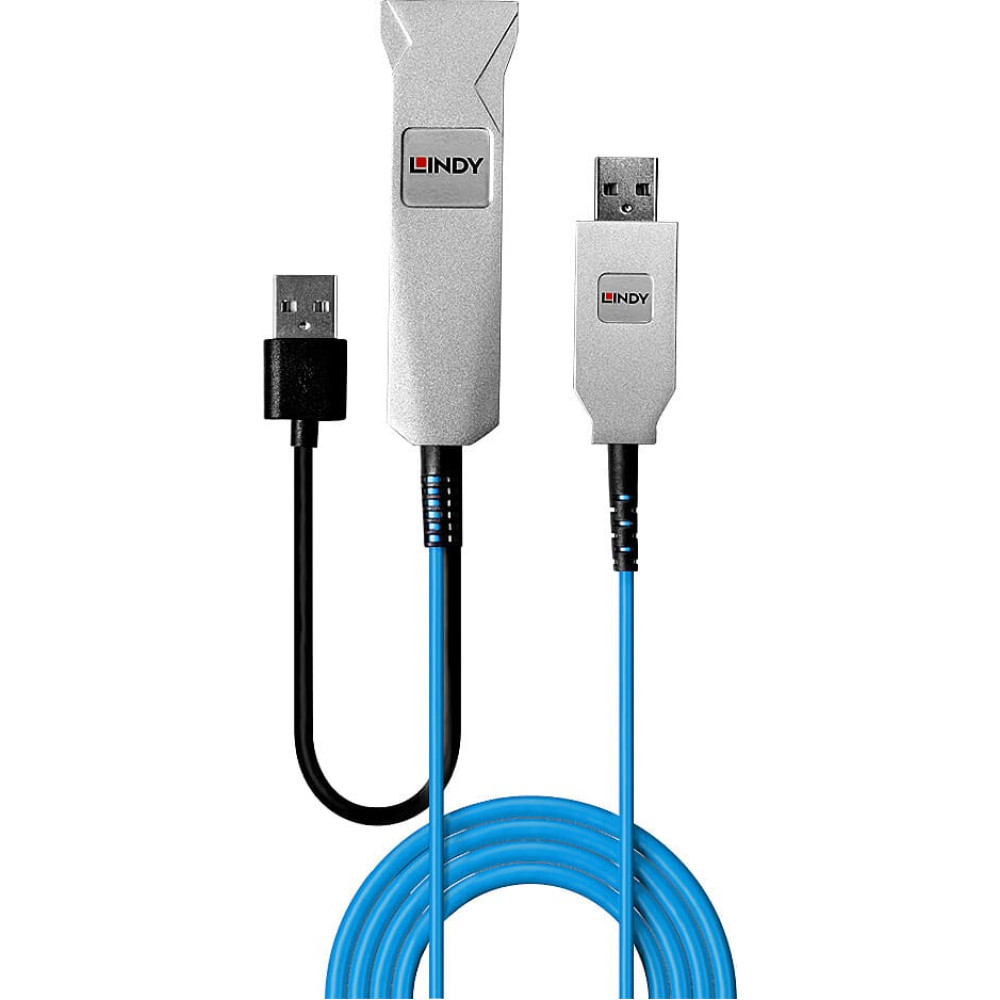

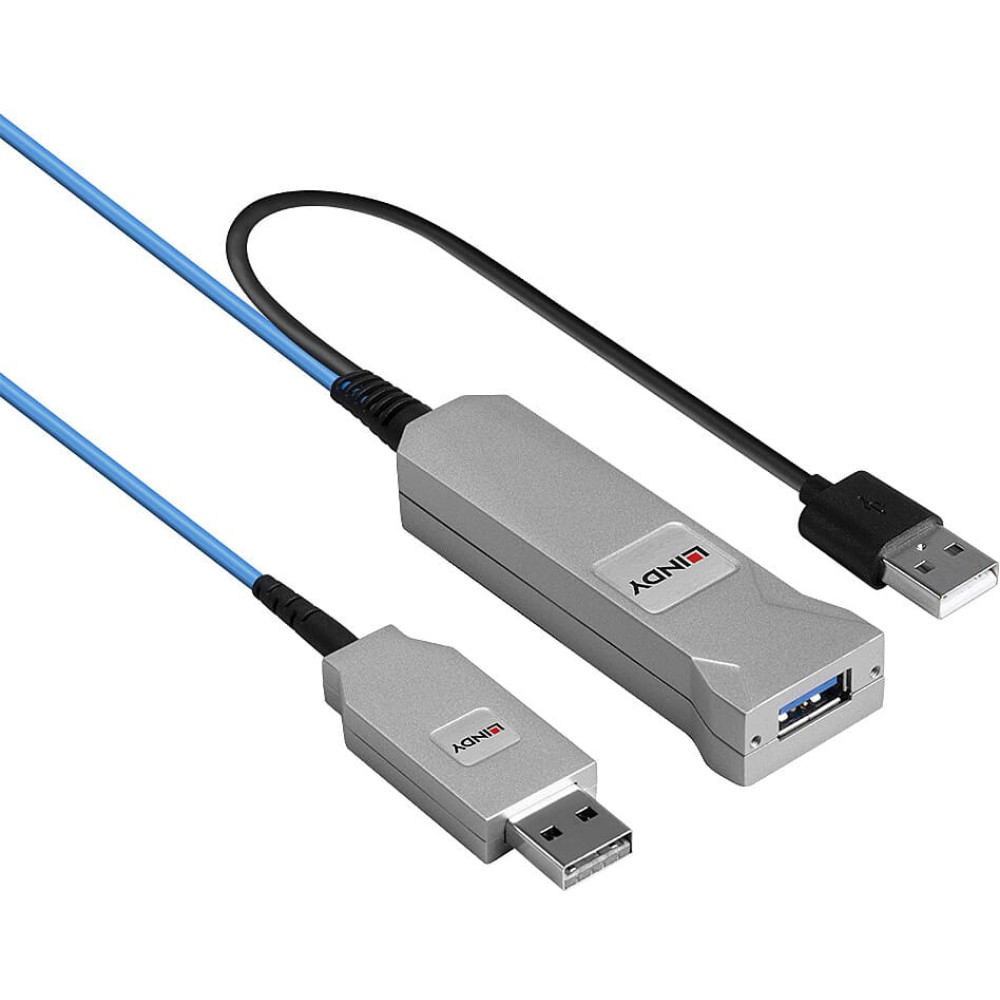

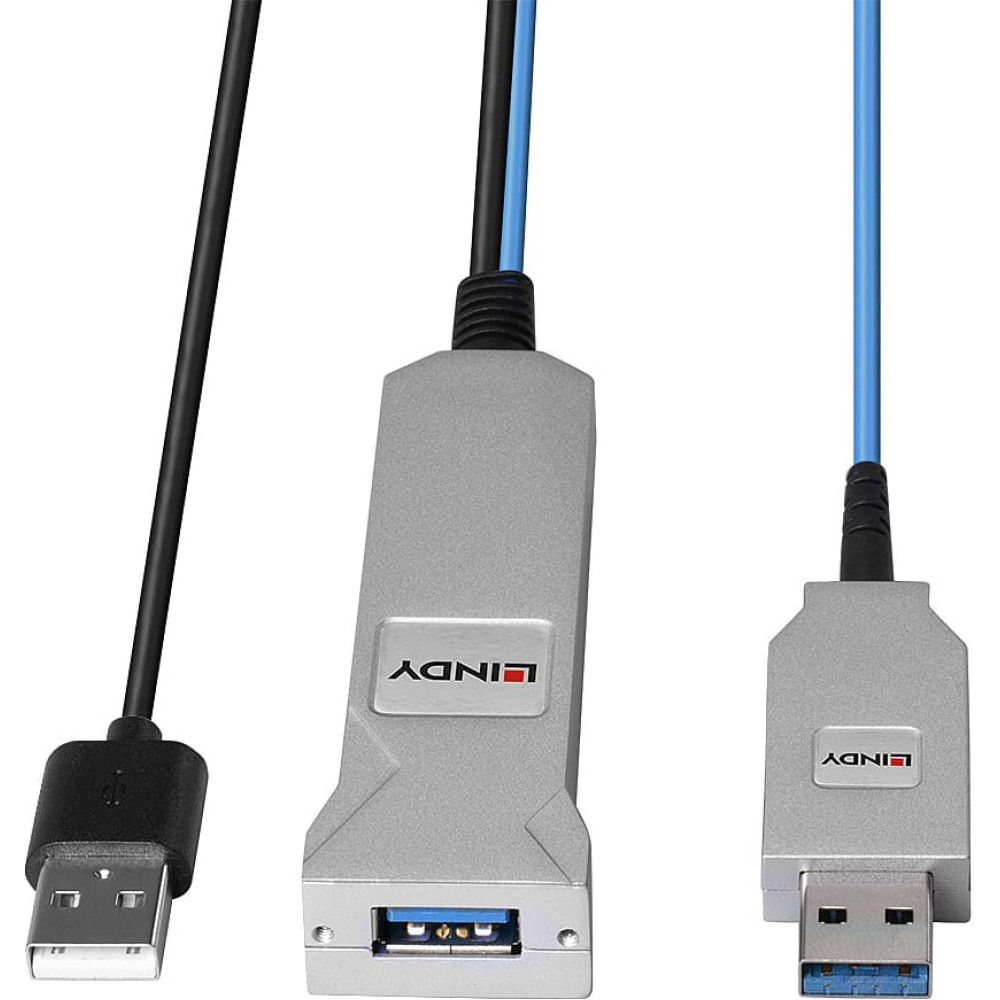

  • 30m Fibre Optic USB 3.0 Cable with USB Type A cable for power (0.6m)
  • Lindy manual

Package Contents

  • No. 43345
  • EAN: 4002888433457
