Sākums Datu slēdži / HUB KVM datu slēdži Lindy 150m USB 2.0 Cat.6 Extender
Lindy 150m USB 2.0 Cat.6 Extender

LINDY

Lindy 150m USB 2.0 Cat.6 Extender

Produkta kods: 43391
Svītrkods: 4002888433914

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
cable types supported: Cat6
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/89/60/cb/64/64cb60892b5de14fe30491de/CE_43391.pdf
compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
country of origin: TW
data transfer rate: 480 Mbit/s
dc-in jack: Yes
depth: 32 mm
height: 25 mm
housing material: Metal
led indicators: Activity, Power
manual: Yes
maximum transfer distance: 150 m
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): 0 - 50 °C
output current: 3 A
output voltage: 5 V
package depth: 194 mm
package height: 60 mm
package weight: 600 g
package width: 220 mm
packaging height: 6.0
packaging lenght: 22.0
packaging width: 19.4
plug and play: Yes
power source type: DC
product colour: Black
receiver weight: 84 g
rj-45 ports quantity: 2
storage temperature (t-t): -20 - 70 °C
sustainability compliance: Yes
transmitter weight: 84 g
type: Console transmitter & receiver
usb 2.0 type-a ports quantity: 1
usb 2.0 type-b ports quantity: 1
warranty: 2.0
width: 67 mm
Preces apraksts

Specifications

  • USB Standard: USB2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Distance: 150m (492ft)
  • Transmission Medium: Cat. 6 UTP network cable
  • Chipset: CH317Q
  • Special Features: LEDs for Power, Link, Activity; Supports control, bulk, interrupt and isochronous data transfer

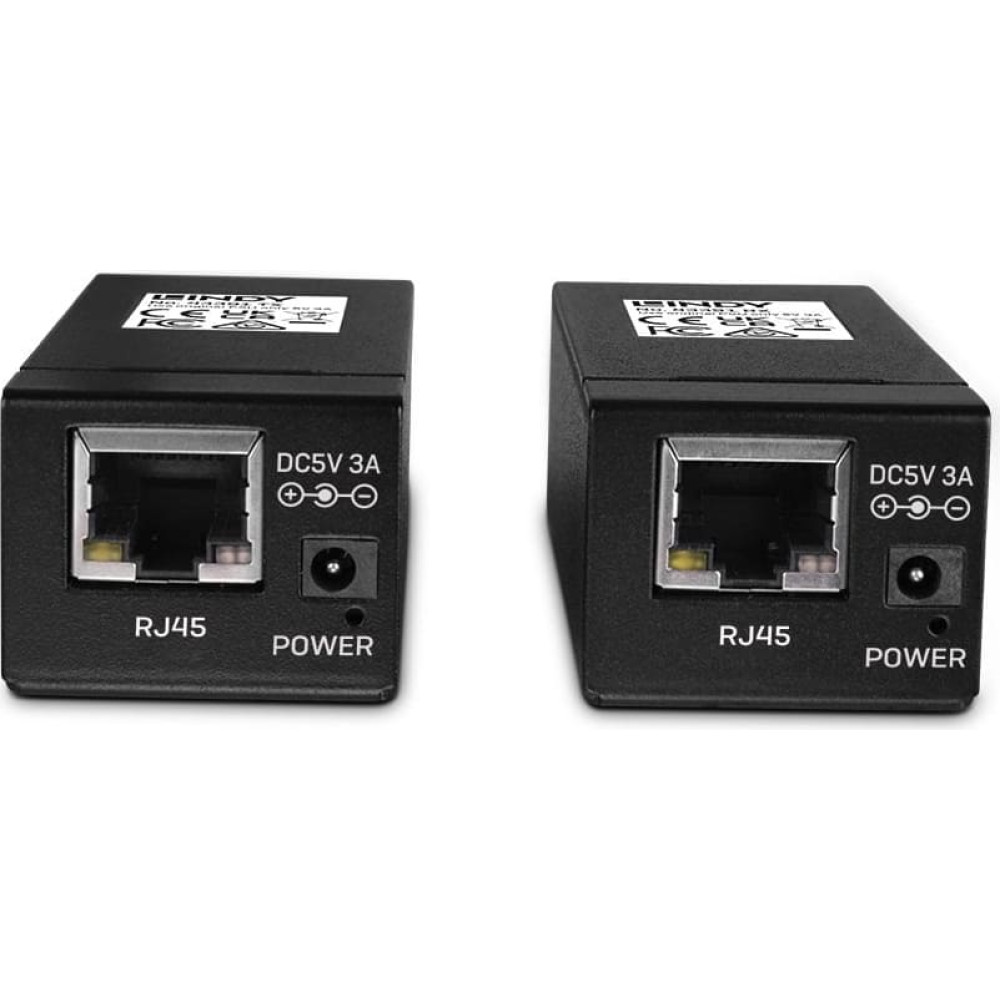

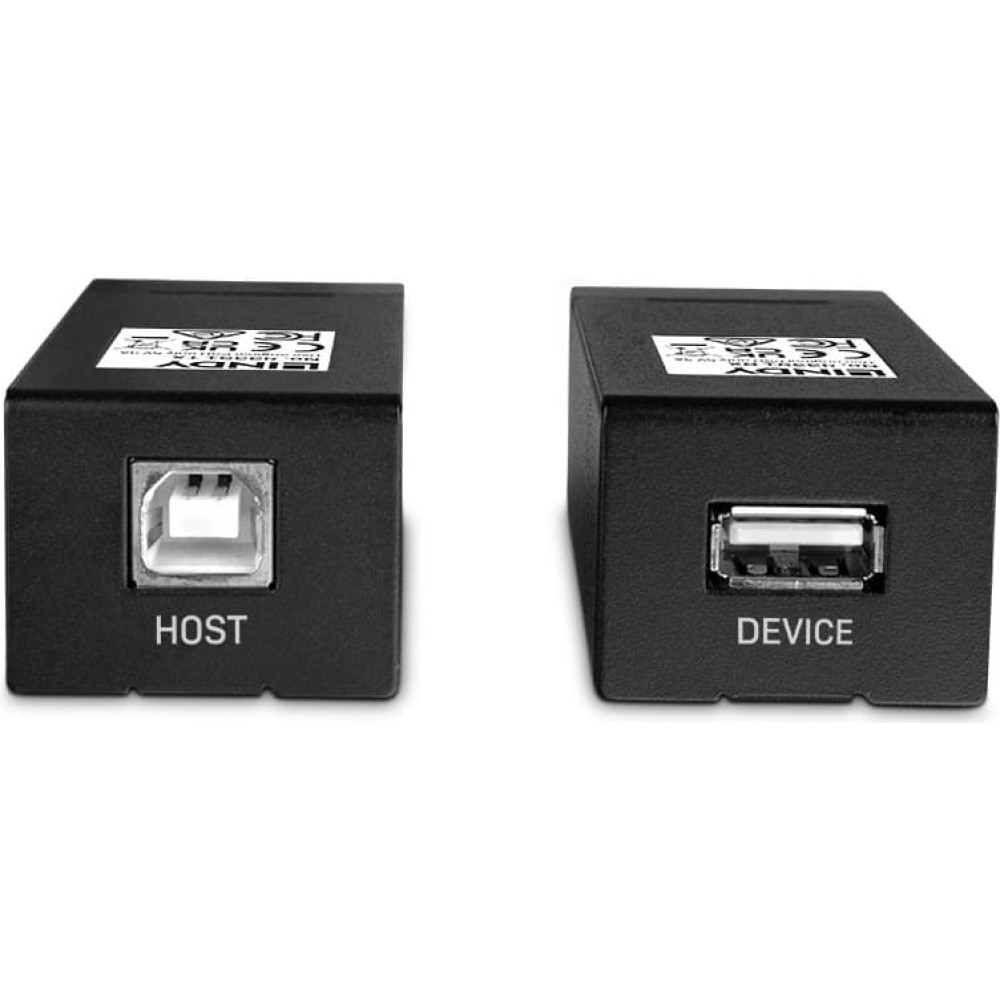

Connectors

  • Transmitter Input:  USB Type B (Female)
  • Transmitter Output:  RJ45 (Female)
  • Receiver Input:  RJ45 (Female)
  • Receiver Output: USB Type A (Female)
  • Power: 3.5/1.35mm DC socket

Physical Properties

  • Dimensions WxDxH: 67x32x25mm (2.6x1.3x1.0in) / unit
  • Housing Material: Metal
  • Net Weight: 0.084kg (0.19lb) per unit
  • Operating Temperature: 0° - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 10 - 90% RH (non-condensing)
  • Power Requirements: 5V DC 3A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x194x60mm (8.66x7.64x2.36in)
  • Gross Weight: 0.6kg (1.32lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP65, TAA

Package content

  • Transmitter unit
  • Receiver unit
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 43391
  • EAN: 4002888433914
