Sākums Kabeļi USB USB 2.0 Lindy 8m Active USB 3.2 Gen 2 C/C Cable

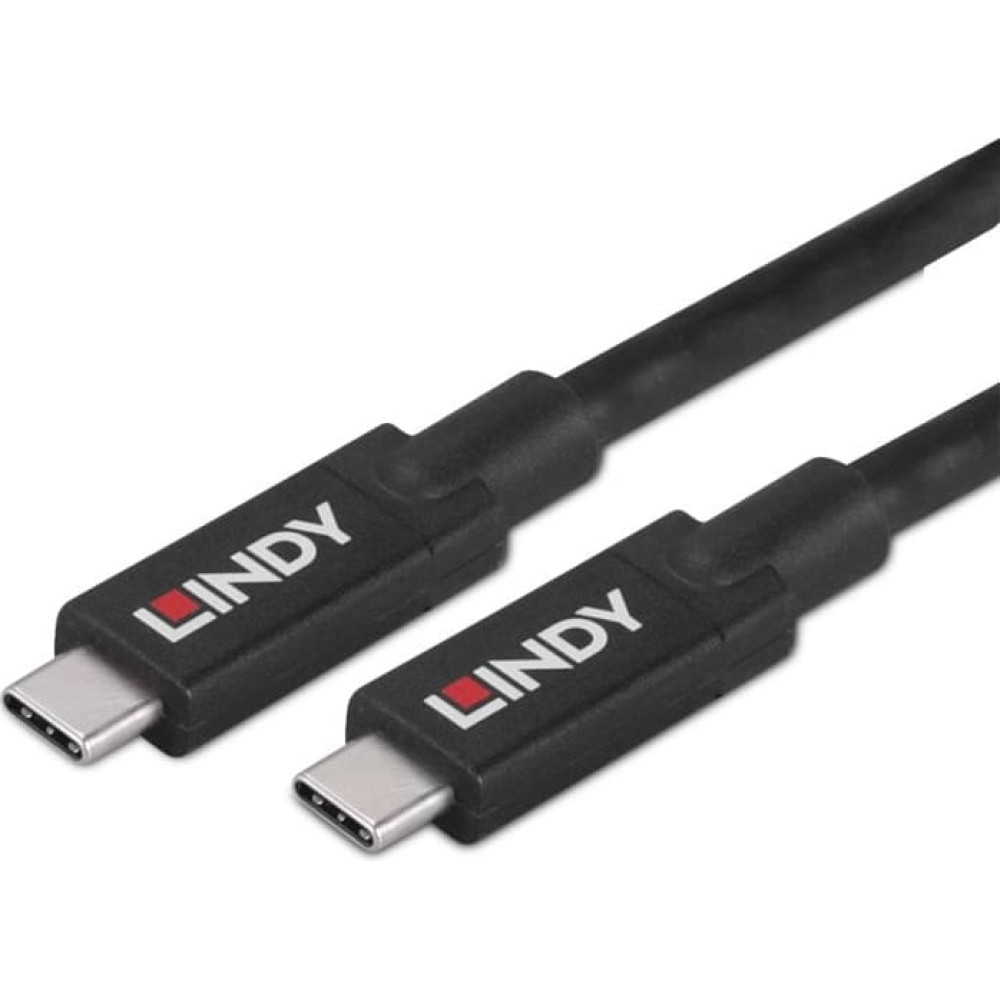

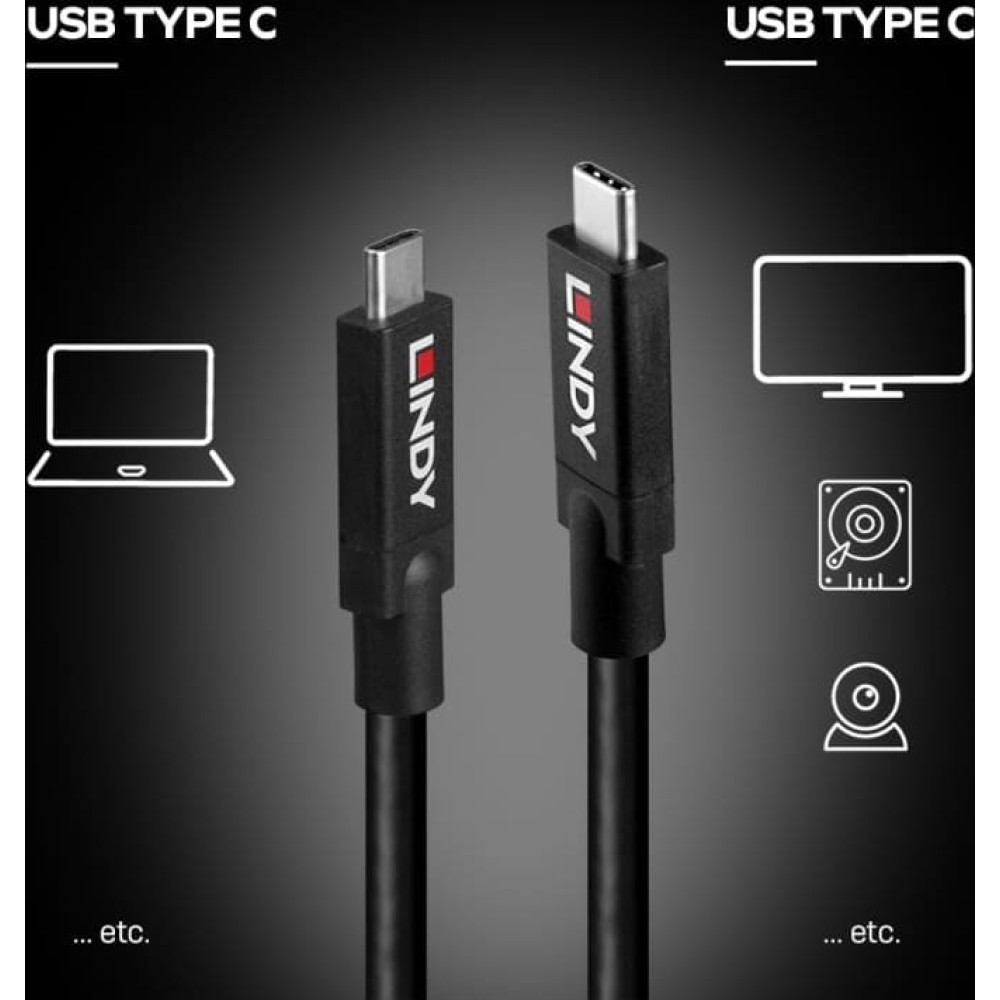

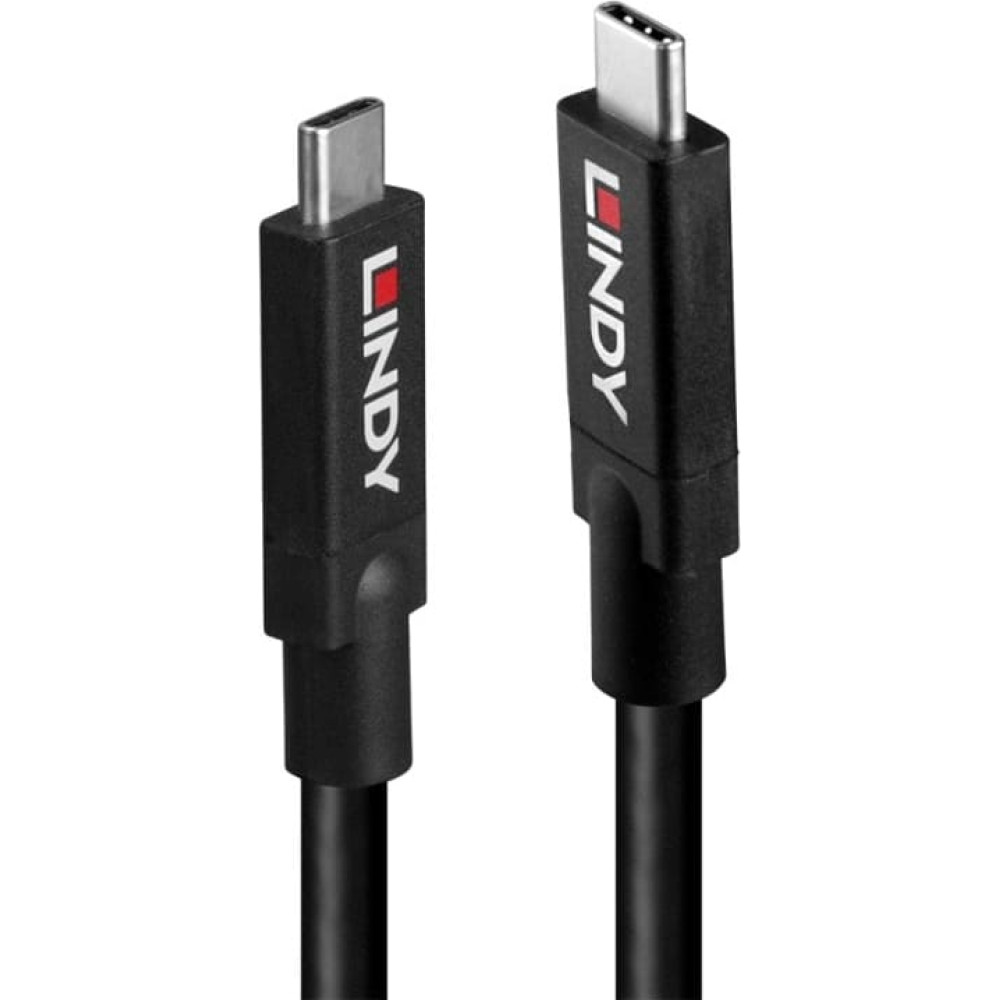

Lindy 8m Active USB 3.2 Gen 2 C/C Cable

LINDY

Lindy 8m Active USB 3.2 Gen 2 C/C Cable

Produkta kods: 43411
Svītrkods: 4002888434119

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
cable diameter: 6 mm
cable jacket material: Polypropylene, Thermoplastic elastomer (TPE)
cable length: 8 m
cable type: Round cable
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/33/e4/3d/67/673de4333ee56826a073dd9c/CE_43411.pdf
certification: CE, FCC, RoHS & REACH, CP65
conductor material: Tinned copper
connector 1: USB C
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB C
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Nickel
country of origin: CN
depth: 12.4 mm
height: 8.8 mm
maximum data transfer rate: 10 Gbit/s
package depth: 255 mm
package type: Polybag
package weight: 516 g
package width: 236 mm
packaging height: 33.5
packaging lenght: 32.4
packaging width: 5.0
product colour: Black
quantity per pack: 1 pc(s)
usb power delivery up to: 100 W
usb version: USB 3.2 Gen 2 (3.1 Gen 2)
variation of: 43308.0
warranty: 2.0
weight: 500 g
width: 41 mm
Preces apraksts

Connectors

  • Connector A: USB Type C Male
  • Connector B: USB Type C Male
  • Power: PD 5A/20V (100W)
  • Housing Material: TPE, PP
  • Connector Plating: Nickel plated
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH: 41x12.4x8.8mm (1.61x0.49x0.35in) each

Cable Construction

  • Length:  8m (26.25ft)
  • Standard: USB 3.2 / 3.1 Gen 2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6mm (0.24in)
  • Jacket Material: TPE
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG+32AWG+26AWG+20AWG
  • Shielding: 80% Tinned Copper

Specifications

  • Supported Bandwidth: 10Gbps
  • Maximum Resolution: UHD 8K 7680x4320@60Hz including 4K 4096x2160@120Hz
  • Nominal Attenuation: -24.6Db@5GHz
  • Minimum Bend Radius: 120mm (4.72in)
  • Operating Temperature: 0°C to 40°C (32°F - 104°F)
  • Storage Temperature: -10°C to 60°C (14°F - 140°F)

Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 236x255mm (9.29x10.04in)
  • Net Weight: 0.5kg (1.1lb)
  • Gross Weight: 0.516kg (1.135lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP65

Packaging Content

  • 8m Active USB 3.2 Gen 2 C/C Cable
  • Lindy manual

Purchasing Information

  • No.: 43411
  • EAN: 4002888434119

This product is also available in other lengths

  • 43348 - 3m (9.84ft)
  • 43308 - 5m (16.4ft)
  • 43411 - 8m (26.25ft)
