Specifikācija
10g support: No
basic switching rj-45 ethernet ports quantity: 4
basic switching rj-45 ethernet ports type: Fast Ethernet (10/100)
compliance certificates: CE, Federal Communications Commission (FCC)
copper ethernet cabling technology: 10BASE-T, 100BASE-TX
country of origin: China
depth: 50 mm
din rail included: Yes
din rail mounting: Yes
fast ethernet (copper) ports quantity: 4
fiber optic connector: SC
fiber ports quantity: 1
fiber type: Single-mode
flash memory: 1 MB
flow control support: Yes
full duplex: Yes
harmonized system (hs) code: 85176990
height: 165 mm
housing material: Metal
input voltage: 0 - 56 V
internal memory: 1 MB
international protection (ip) code: IP30
led indicators: Activity, Link, Power
mac address table: 1000 entries
master (outer) case gross weight: 8 kg
master (outer) case height: 320 mm
master (outer) case length: 380 mm
master (outer) case width: 450 mm
master (outer) cases per pallet (sea): 12 pc(s)
mean time between failures (mtbf): 150000 h
networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
operating temperature (t-t): -40 - 75 °C
package depth: 60 mm
package height: 185 mm
package type: Gift box
package width: 120 mm
packet forwarding rate (10 mbps): 14880 pps
packet forwarding rate (100 mbps): 148000 pps
pallet gross length: 80 cm
pallet gross width: 120 cm
pallet height (air): 162 cm
power consumption (typical): 3.76 W
power over ethernet (poe): Yes
power over ethernet (poe) power per port: 30 W
power source: DC/PoE
power supply included: Yes
product colour: Black
products per master (outer) case: 15 pc(s)
quick start guide: Yes
sustainability compliance: Yes
switch type: Unmanaged
switching capacity: 1 Gbit/s
terminal block included: Yes
terminal block port: Yes
total power over ethernet (poe) budget: 126 W
transmission distance (max): 30 km
wall mountable: Yes
wall mounting kit: Yes
weight: 500 g
width: 114 mm
Preces apraksts

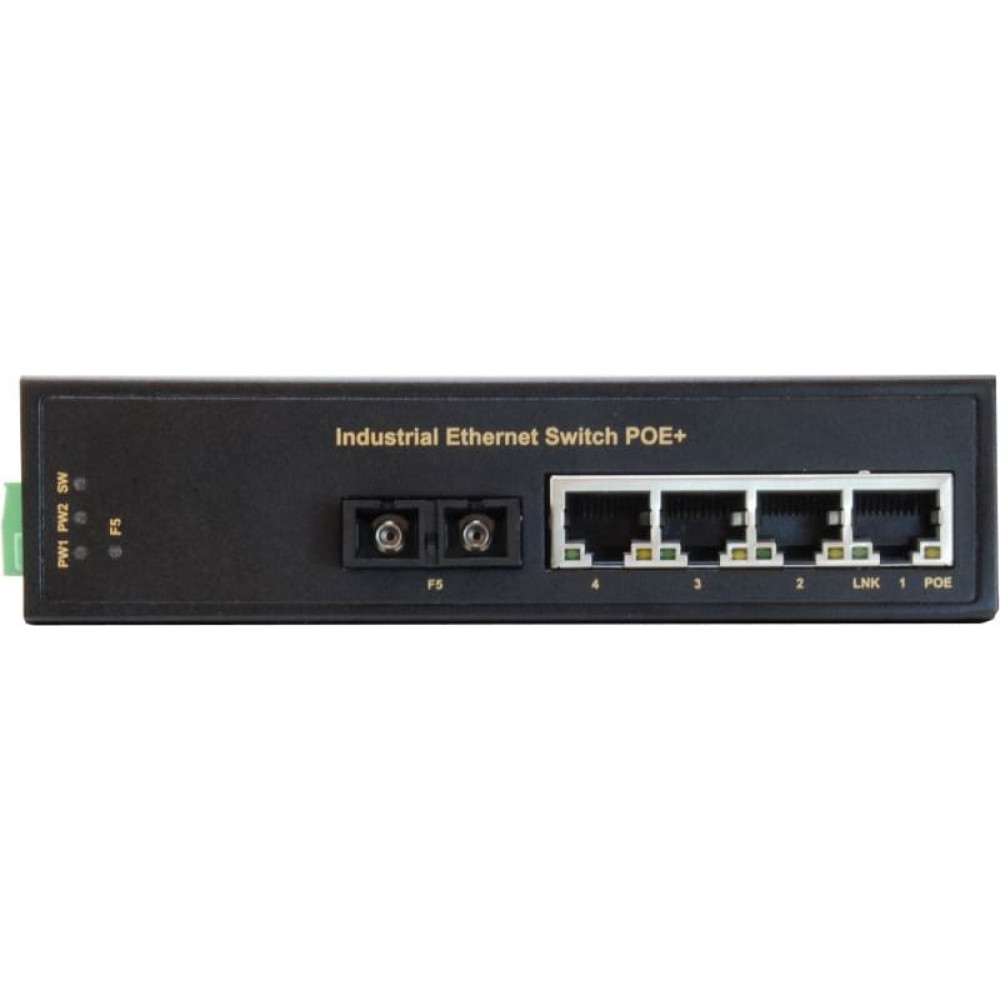

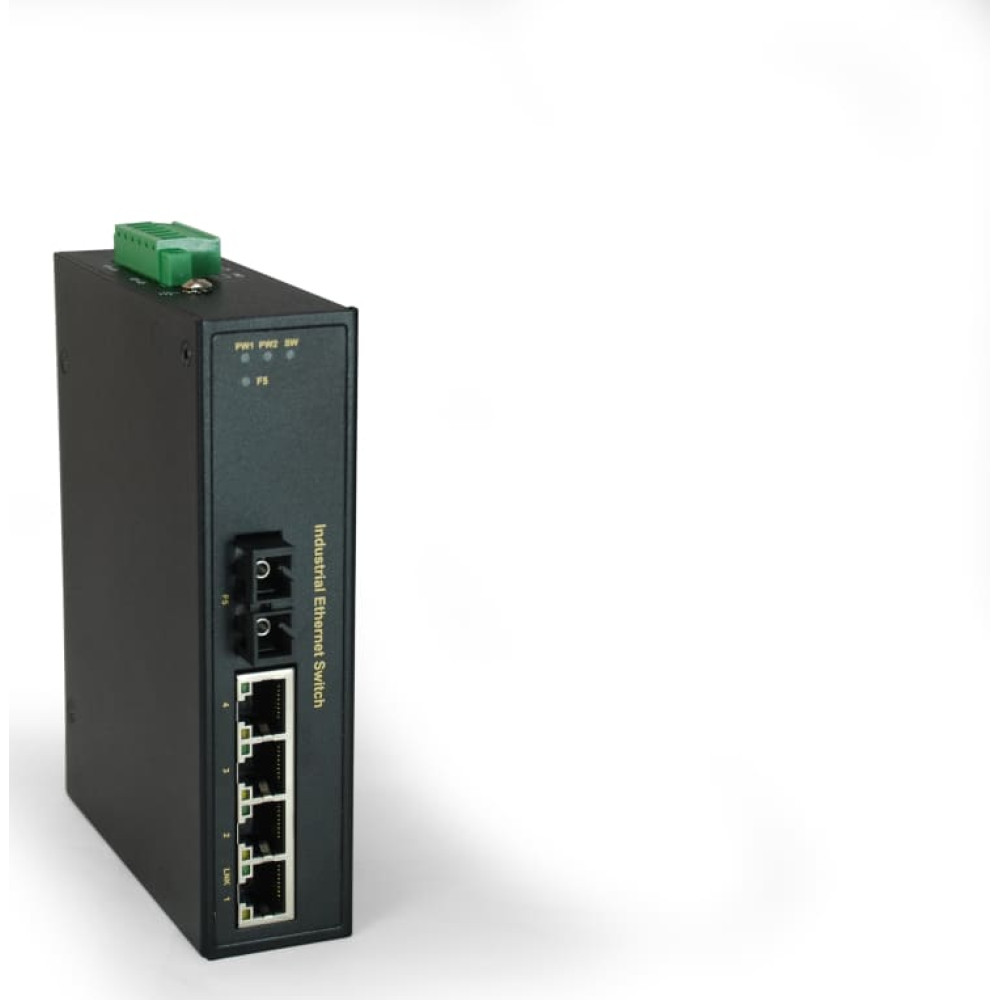

| LevelOne IFP-0503. Slēdža tips: Nepārvaldīts. Basic switching RJ-45 Ethernet portu veids: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet portu daudzums: 4. Pilns duplekss. Adrešu tabulas izmērs: 1000 ieraksti, Komutācijas ietilpība: 1 Gbit/s. Tīkla standarts: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Pie sienas piestiprināms |
