Specifications

• AV Interface: DVI to DisplayPort
• Interface Standard: DVI-I, DisplayPort 1.1
• Supported Bandwidth: 4.45Gbps
• Maximum Input Resolution: 1920x1200@60Hz
• Maximum  Output Resolution: 1920x1200@60Hz
• Chipset: STDP2600
• HDCP Support: HDCP 1.3
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: Powered by DVI or USB port

Connectors

• Input:
  • DVI-I Female
  • USB Type A Male for optional power
• Output: DisplayPort Male

Physical properties

• Dimensions (approx.) WxDxH:
  • DP: 47.35x19.45x11.75mm (1.86x0.77x0.46in)
  • DVI: 44.9x45.3x17.3mm (1.77x1.78x0.68in)
  • USB: 47.15x15.2x8mm (1.86x0.6x0.31in)
• Cable Length: 100mm (3.94in), USB cable: 200mm (7.87in)
• Housing Material: LD PE
• Jacket Material: PVC
• Jacket Diameter: 5mm (0.2in)
• Minimum Bend Radius: 55mm (2.17in)
• Net Weight: 0.028kg (0.06lb)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 20 - 90% RH (non-condensing)
• Colour: Black, red USB connector

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.057kg (0.13lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

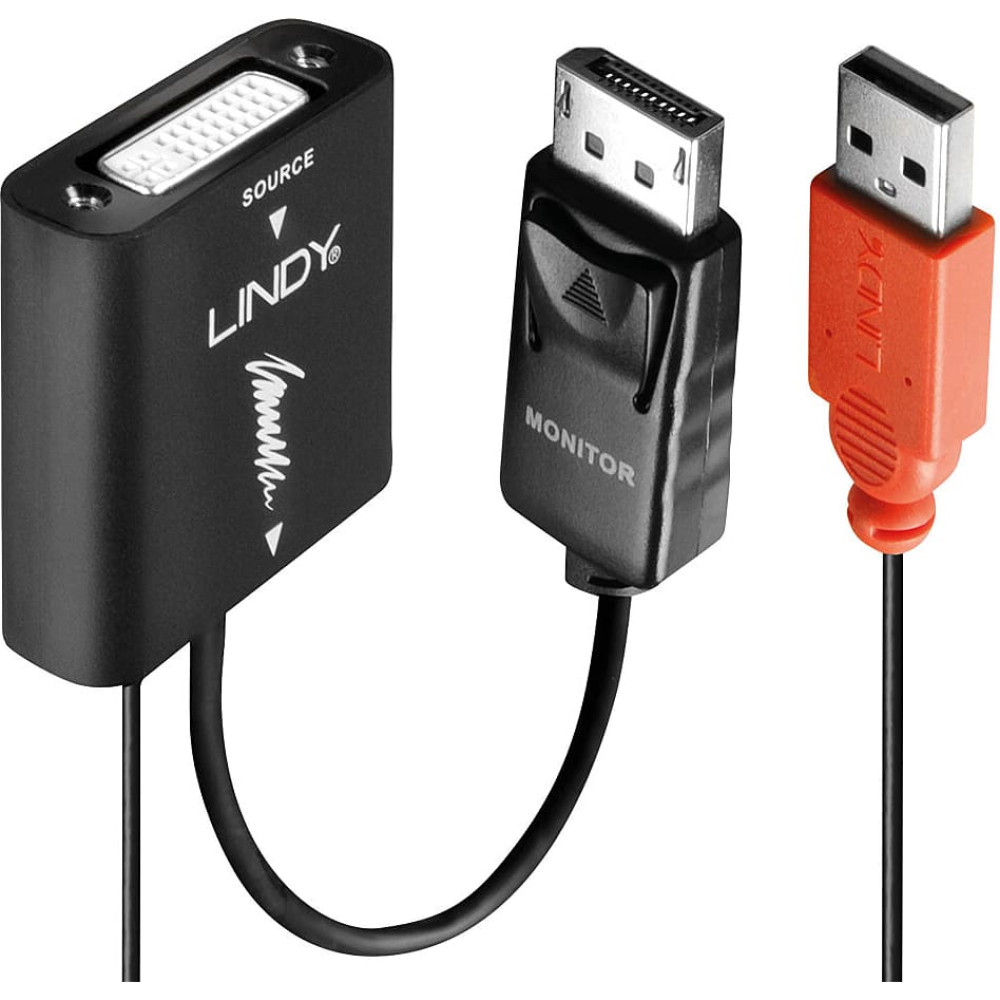

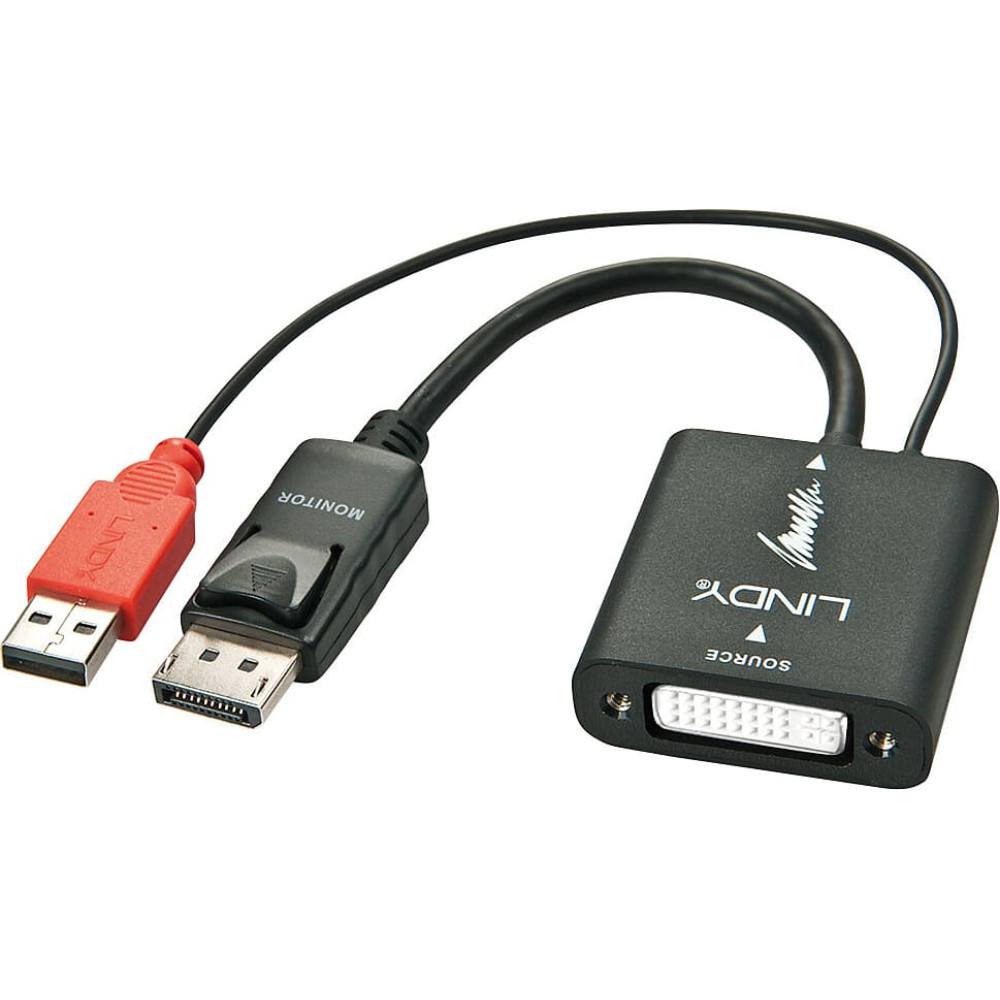

• DVI to DisplayPort Active Converter

Purchasing Information

• No.: 38145
• EAN: 4002888381451
