Specifications

• AV Interface: DisplayPort to HDMI, VGA, DVI
• Interface Standard: DisplayPort 1.1, HDMI 1.4, VGA, DVI-D
• Supported Bandwidth: 10.8Gbps
• Maximum Input Resolution: 3840x2160@30Hz
• Maximum  Output Resolution:
  • HDMI: 3840x2160@30Hz
  • DVI: 1920x1200@60Hz
  • VGA: 1920x1200@60Hz
• Chipset: Paradetech PS8339
• HDCP Support: HDCP 1.4
• Supported Audio: Pass-through for HDMI
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: Mini DisplayPort Male
• Output:
  • HDMI Type A Female
  • VGA Female
  • DVI-D Female



Physical properties

• Dimensions (approx.) WxDxH:
  • 60x60x16,4mm (2.36x2.36x0.65in) / Housing
  • 10.9x24.5y8mm (0.43x0.96x0.31in)
• Cable Length: 200mm (7.87in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 5mm (0.2in)
• Minimum Bend Radius: 50mm (1.97in)
• Net Weight: 0.053kg (0.12lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Colour: White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.06kg (0.13lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

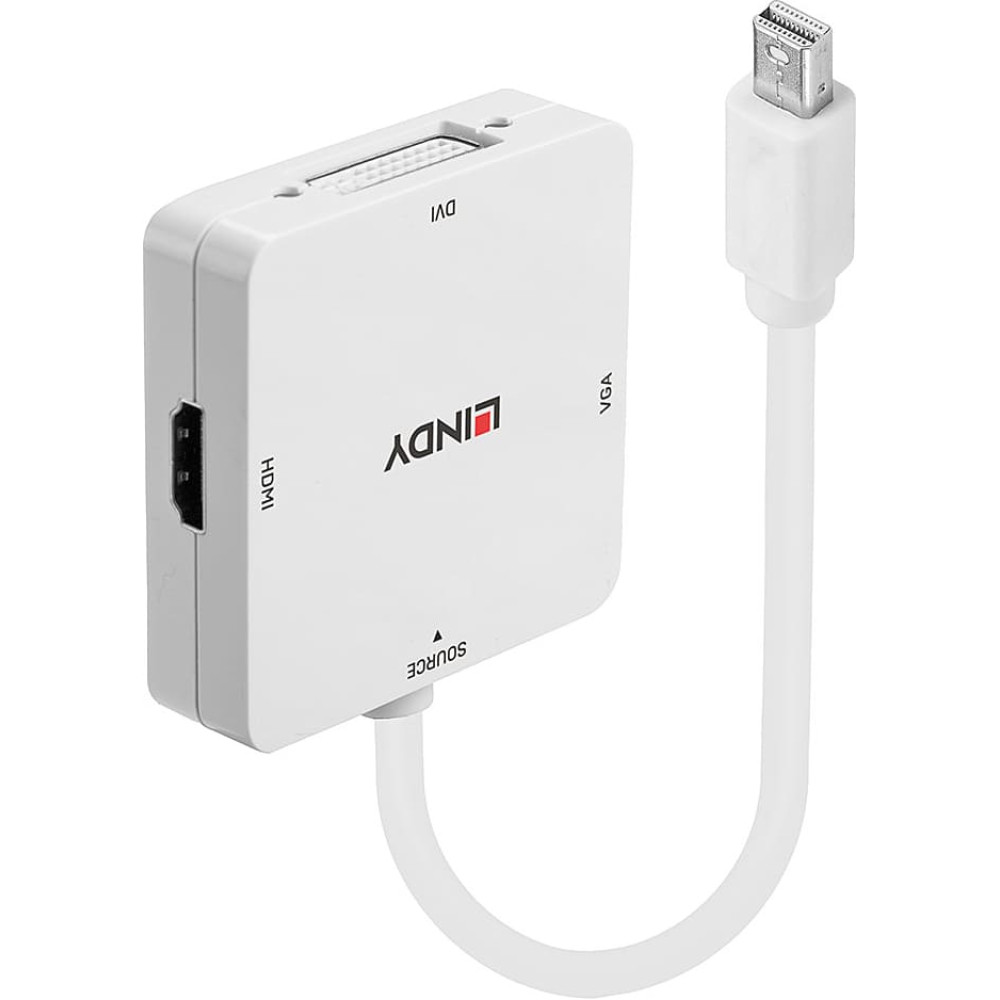

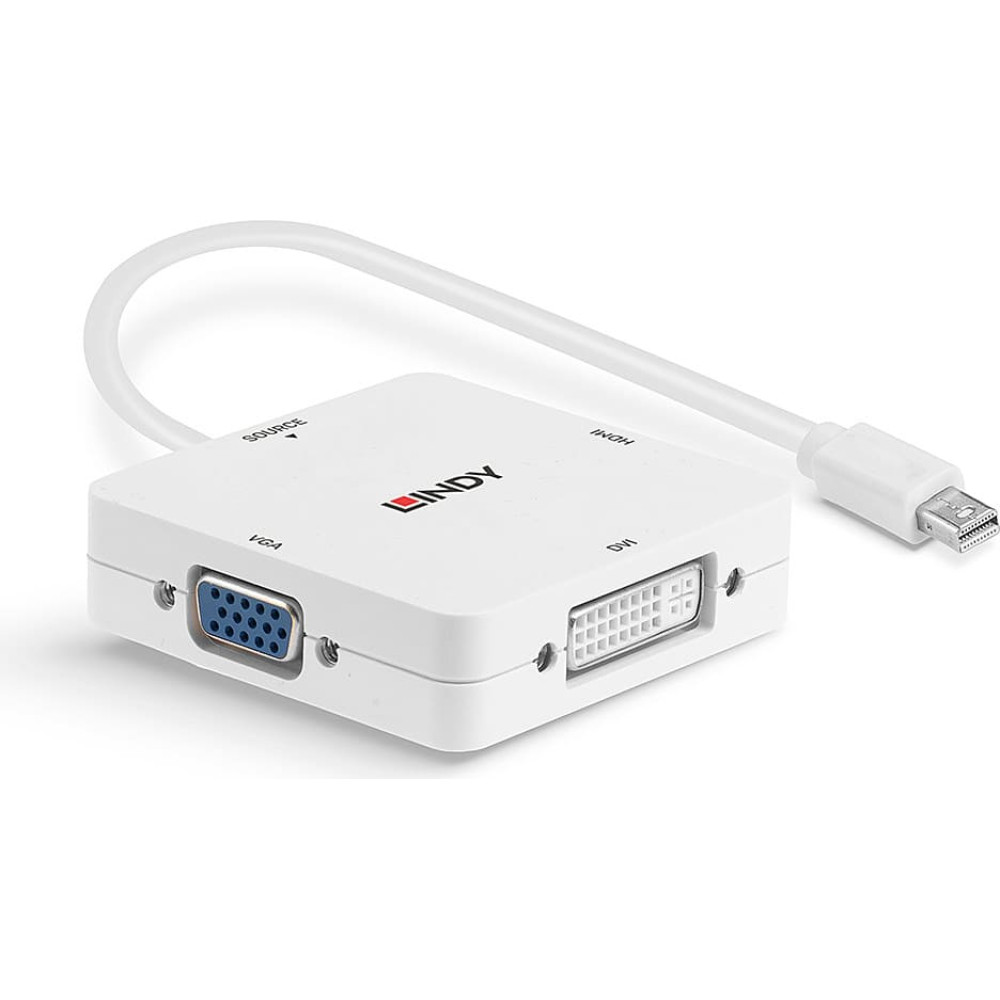

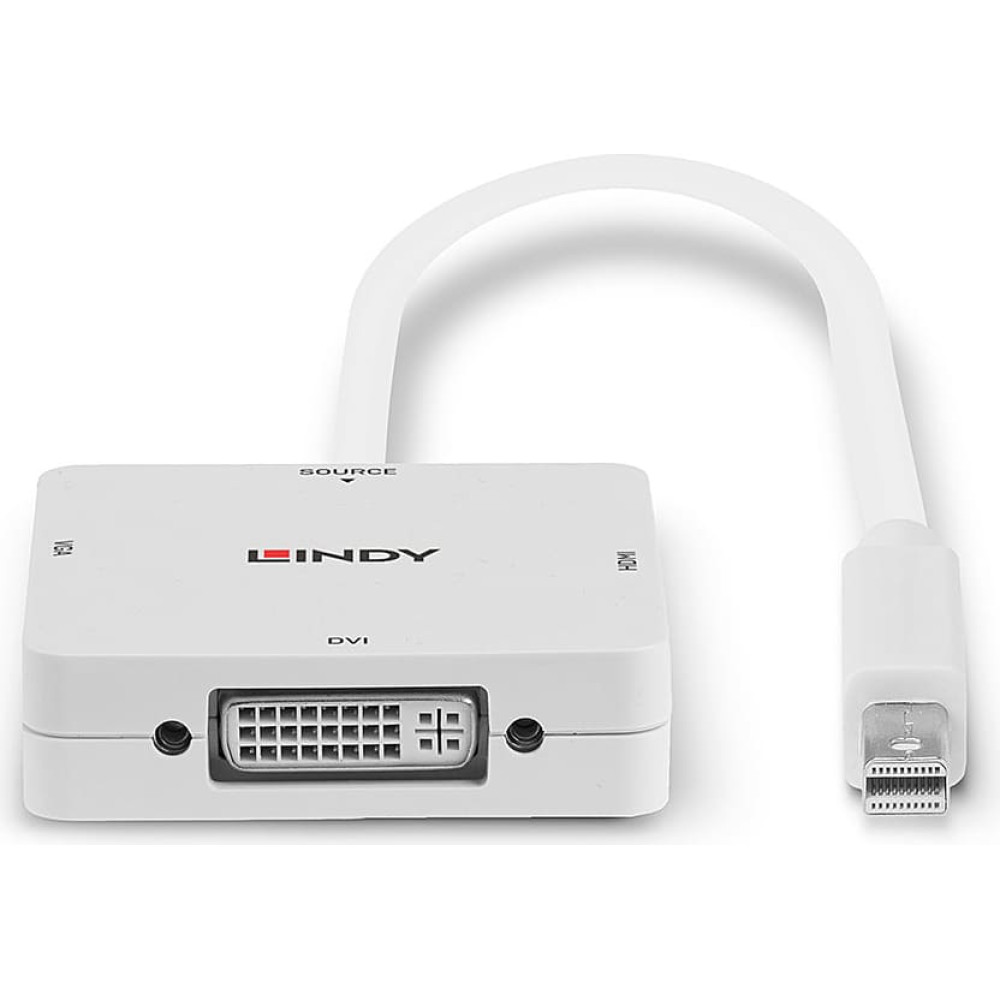

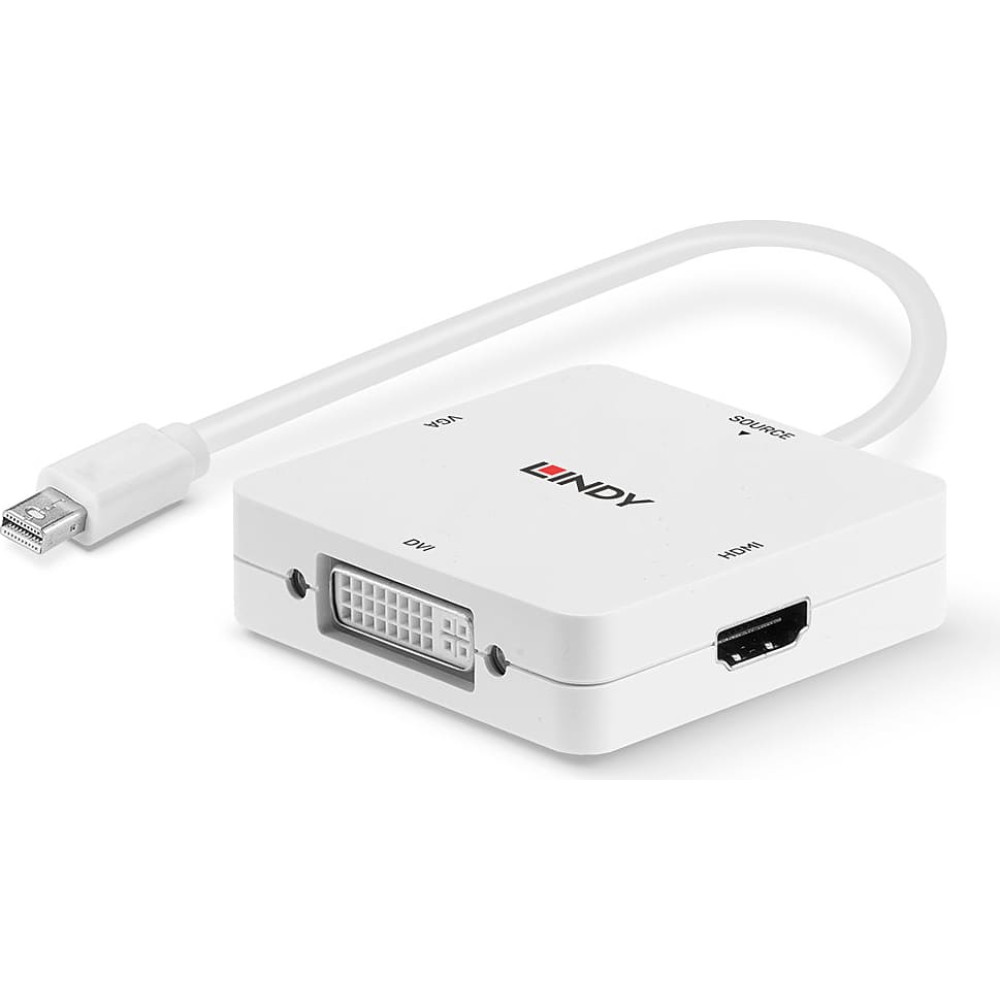

• Mini DisplayPort to HDMI 1.4, DVI & VGA Converter

Purchasing Information

• No.: 41035
• EAN: 4002888410359
