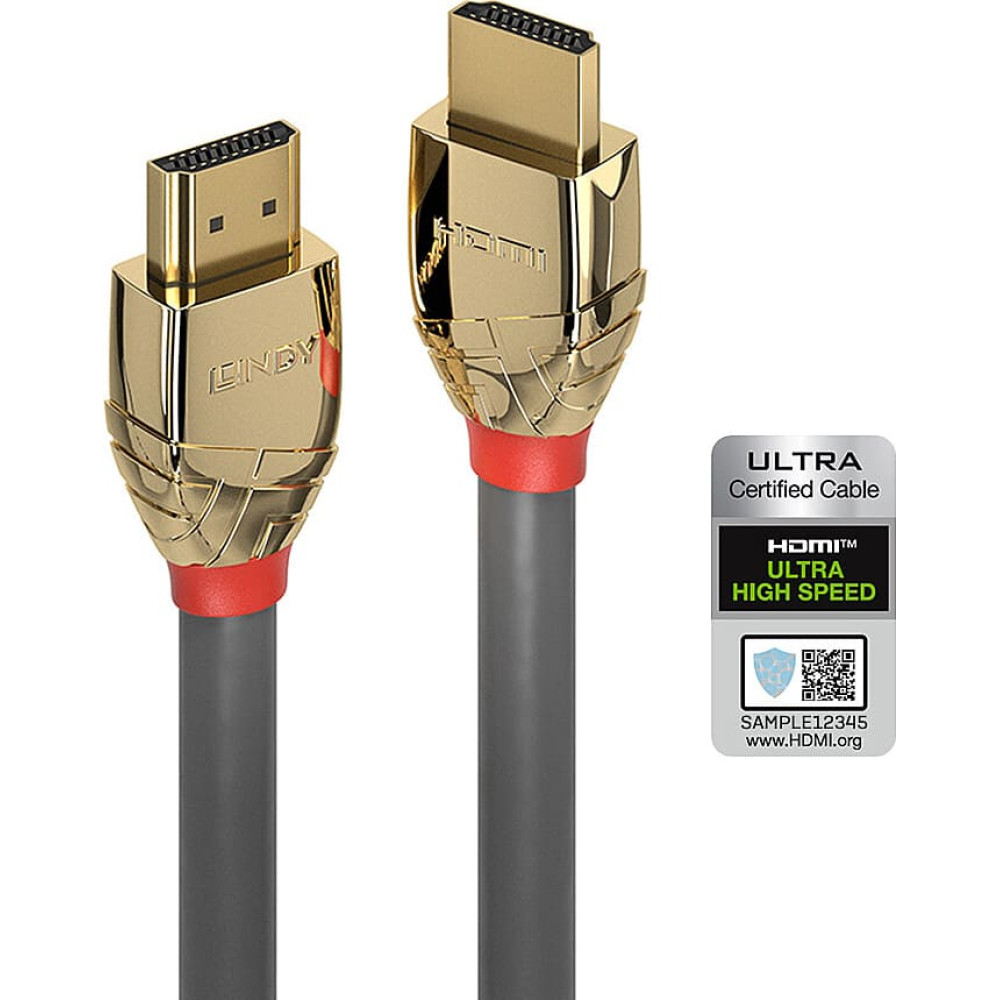

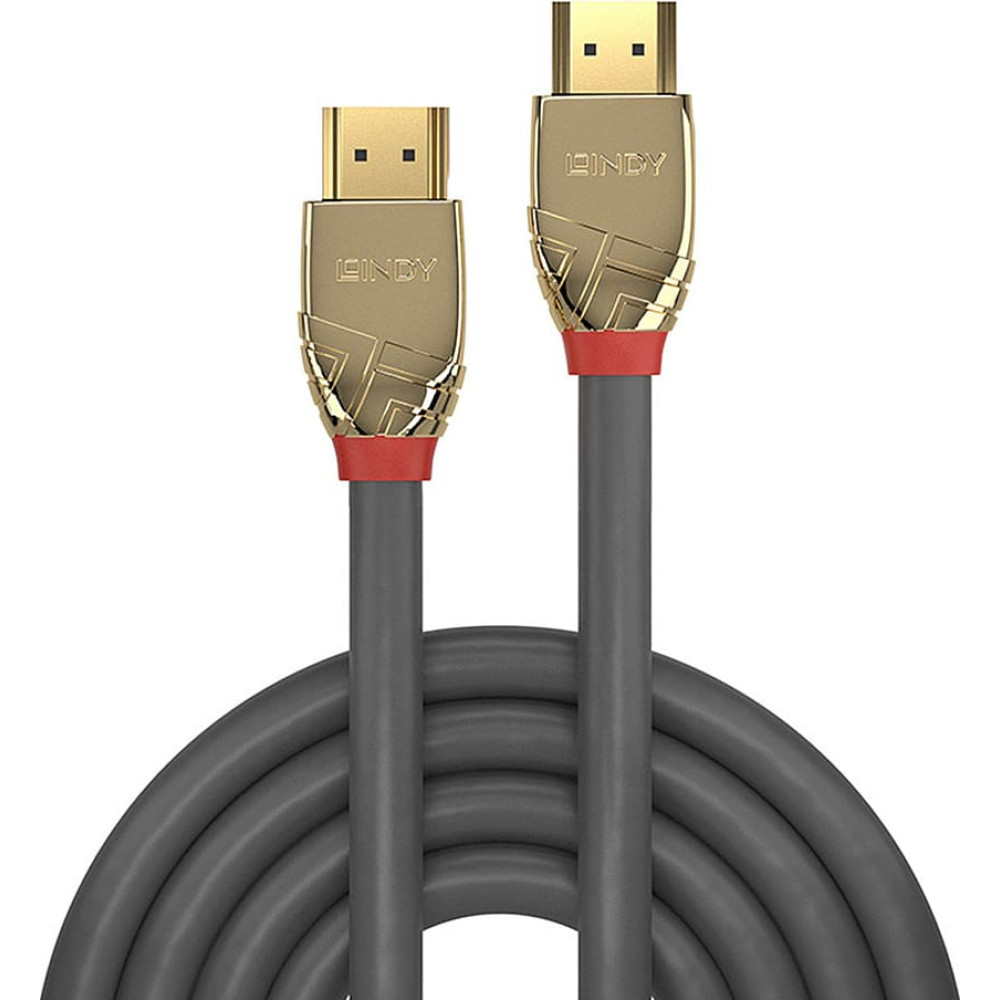

Lindy HDMI Kabel Ultra High Speed 2m, Gold Line

Product Code: 37602
Barcode 4002888376020

To purchase this product you must be registered in our system.



Specification
awg wire size: 30
cable jacket material: Polyvinyl chloride (PVC)
cable length: 2 m
connector 1: HDMI Type A (Standard)
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: HDMI Type A (Standard)
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
country of origin: CN
data transfer rate: 48 Gbit/s
harmonized system (hs) code: 84733080
hdmi version: 2.1
high dynamic range (hdr) supported: Yes
maximum refresh rate: 120 Hz
operating temperature (t-t): 0 - 55 °C
packaging height: 25.9
packaging lenght: 23.6
packaging width: 1.5
product colour: Grey
quantity per pack: 1 pc(s)
storage temperature (t-t): -10 - 60 °C
supported graphics resolutions: 3840 x 2160, 4096 x 2160, 7680 x 4320, 10240 x 4320
variation of: 37601.0
warranty: 25.0

Description

Connectors:

  • Connector A: HDMI Type A Male
  • Connector B: HDMI Type A Male
  • Housing Material: 24K Gold Plated Zinc Alloy
  • Connector Plating: 24K Gold 3µm
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold 15µm
  • Dimensions (approx.) WxDxH: 20x34.1x11.6mm (0.79x1.34x0.46in)



Cable construction:

  • Length: 1m (6.56.28ft)
  • Standard: Certified Ultra High Speed HDMI
  • Colour: Grey
  • Type: Round
  • Jacket Diameter: 6mm (0.24in)
  • Jacket Material: PVC
  • Conductor Material: OFC Copper
  • Conductor Gauge: 30AWG
  • Shielding: Tinned Copper Braid, 85%



Specifications:

  • Supported Bandwidth: 48Gbps
  • Maximum Resolution: 10240x4320@120Hz 4:2:0 12bit
  • Nominal Attenuation: ≤- 5 dB from 0 GHz to 1 GHz
  • -6.5 dB @ 2 GHz
  • -9.2dB @ 3 GHz
  • -16.5 dB @ 6 GHz
  • -29 dB @ 12 GHz
  • Minimum Bend Radius: 80mm (3.15in)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: 0°C - 50°C (32°F - 122°F)
  • ATC Approved: Yes



Miscellaneous:

  • Packaging Type: Polybag
  • Warranty (Years): 25
  • Product Compliance: RoHS, REACH, UL, ATC



Purchasing Information:

  • No.: 37602
  • EAN: 4002888376020



This product is also available in other lengths:

  • 37601 - 1m (3.28ft)
  • 37602 - 2m (6.56ft)
  • 37603 - 3m (9.84ft)
  • 37604 - 5m (16.44ft)
