Home Adapters / Converters HDMI Lindy HDMI 4K60 auf DisplayPort 1.2 Konverter

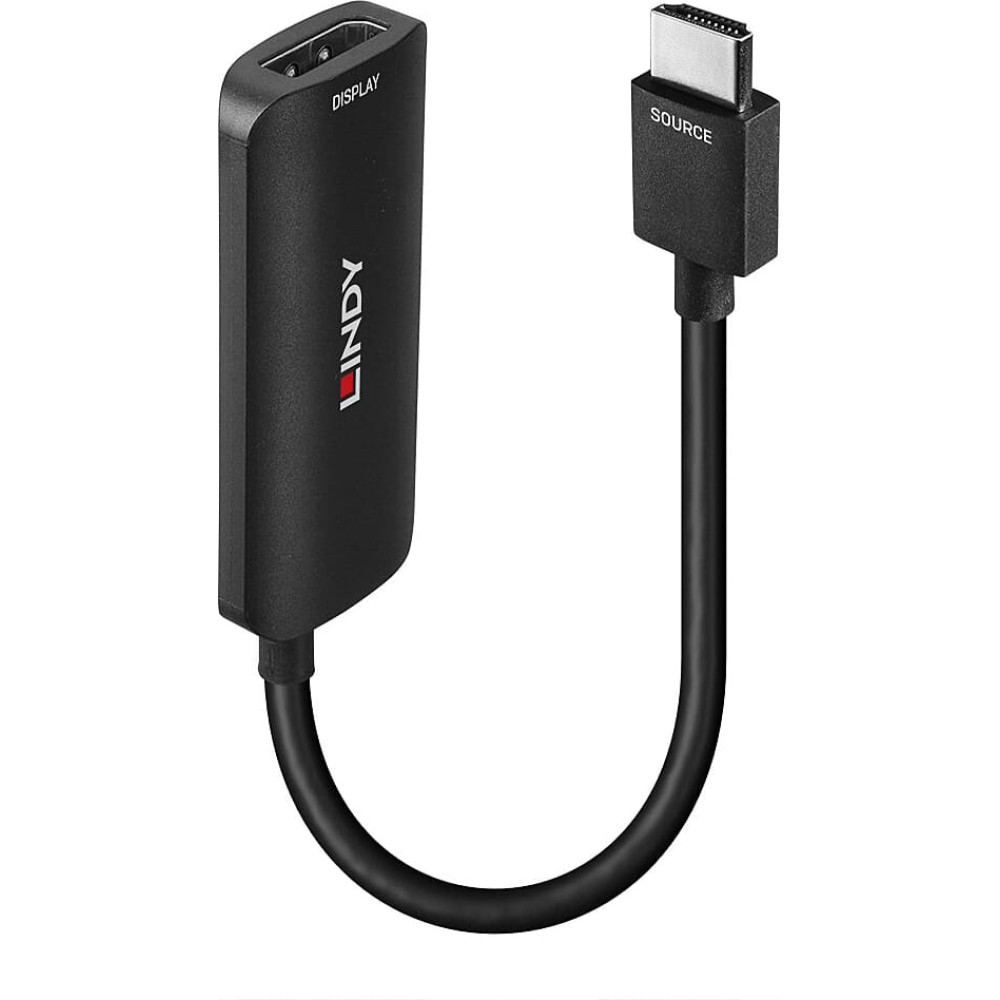

Lindy HDMI 4K60 auf DisplayPort 1.2 Konverter

Product Code: 38327

Barcode 4002888383271

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

bend radius (min): 2.5 cm

cable length: 157 m

cable type: Round cable

chipset: LT6711A

colour depth: 8 bit

colour sampling: 4:4:4

compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

connector 1: HDMI Type A (Standard)

connector 1 dimensions (wxdxh): 30 x 8 x 17 mm

connector 1 form factor: Straight

connector 1 gender: Male

connector 2: DisplayPort

connector 2 dimensions (wxdxh): 71 x 12 x 31 mm

connector 2 form factor: Straight

connector 2 gender: Female

connector housing material: Acrylonitrile butadiene styrene (ABS)

data transfer rate: 21.6 Gbit/s

displayport version: 1.2

hdmi version: 2.0

jacket material: Nylon/Polyvinyl Chloride (PVC)

maximum refresh rate: 60 Hz

maximum resolution: 3840 x 2160 pixels

operating relative humidity (h-h): 20 - 70%

operating temperature (t-t): 0 - 40 °C

package depth: 194 mm

package height: 20 mm

package type: Polybag

package weight: 60 g

package width: 174 mm

power source: USB

product colour: Black

quantity per pack: 1 pc(s)

refresh rate at maximum resolution: 60 Hz

storage temperature (t-t): -20 - 45 °C

sustainability compliance: Yes

weight: 50 g

Description

Specifications

AV Interface: HDMI to DisplayPort
Interface Standard: HDMI 2.0, DisplayPort 1.2
Supported Bandwidth: 21.6Gbps
Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8Bit
Maximum Output Resolution: 3840x2160@60Hz 4:4:4 Bbit
Chipset: LT6711A
HDCP Support: HDCP 2.2
Supported Audio: 96kHz/24bit
Separate Audio Ports: -
Special Features: Power via USB

Connectors

Input: HDMI Type A (Male)
Output:
- DisplayPort (Female)
- USB Micro-B (Female)

Physical Properties

Dimensions (approx.) WxDxH:
- HDMI: 30x8x17mm (1,18x0,31x0,67in)
- DP: 71x12x31mm (2,8x0,47x1,22in)
Cable Length: 157mm (6.18in), USB cable: 0.5m (1.64ft)
Housing Material: ABS
Jacket Material: PVC
Jacket Diameter: 4.8mm (0.19in)
Minimum Bend Radius: 25mm (0.98in)
Net Weight: 0.05kg (0.11lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 45°C (-4°F - 113°F)
Humidity: 20 - 70% RH (non-condensing)
Colour: Black

Miscellaneous

Packaging Type: Polybag
Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
Gross Weight: 0.06kg (0.13lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS & REACH

Package Contents

HDMI to DisplayPort Converter
USB Type A to Micro-B Cable

Purchasing Information

No.: 38327
EAN: 4002888383271
