Roline USB to RS-422/485 Converter

ROLINE

Roline USB to RS-422/485 Converter

Product Code: 12.02.1174
Barcode 7630049674325

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
area of application: External
colour: black
colour (cable): black
conversion direction: USB - RS422/485
current catalog edition: 25.1
depth: 45 mm
depth of packaging (single piece): 200 mm
gross weight: 0.25
hand locking screws: yes
height: 15 mm
height of packaging (single piece): 20 mm
length: 1.2 m
length: 1.2 m
manufacturer: ROLINE
material: 1,2 m
operating temperature max.: 60 °C
operating temperature min.: 0 °C
package weight (single piece): 0.25 kg
product group: Adapters, Terminators, Converters
product type: USB - Serial Converter
scope of delivery: Converter Cable, DB9 Female - to 5 Pin Terminal Block Ada...
side 1 connection (pc): USB A Male
side 1 connector gender: Male
side 1 connector type: USB 2.0 Type A
side 2 connection (peripherals): DB9 Male
side 2 connector gender: Male
side 2 connector type: D-Sub 9-pin (DE-9)
storage temperature max.: 85 °C
storage temperature min.: -30 °C
technical particularity: Windows 7 / 8 / 10 / 11 and Linux 2.6.x or later
weight: 81 g
width: 33 mm
width of packaging (single piece): 100 mm
Description

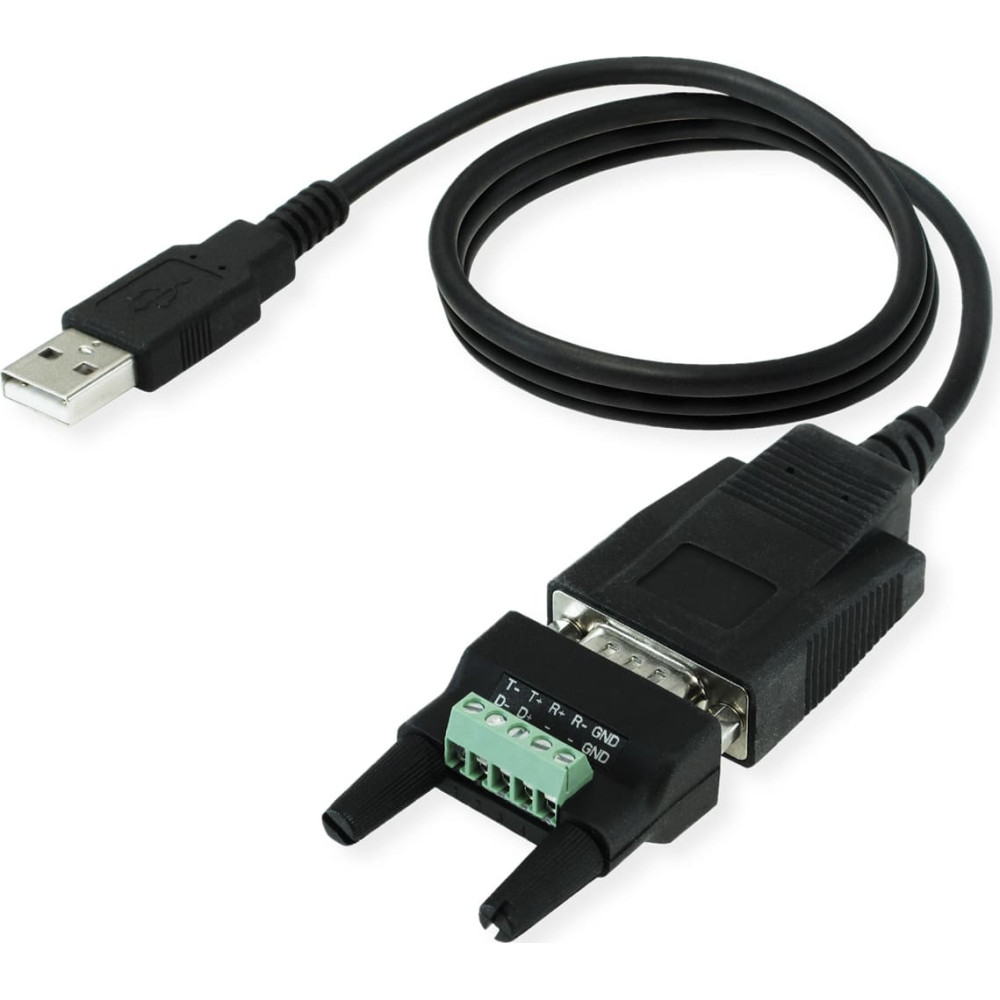

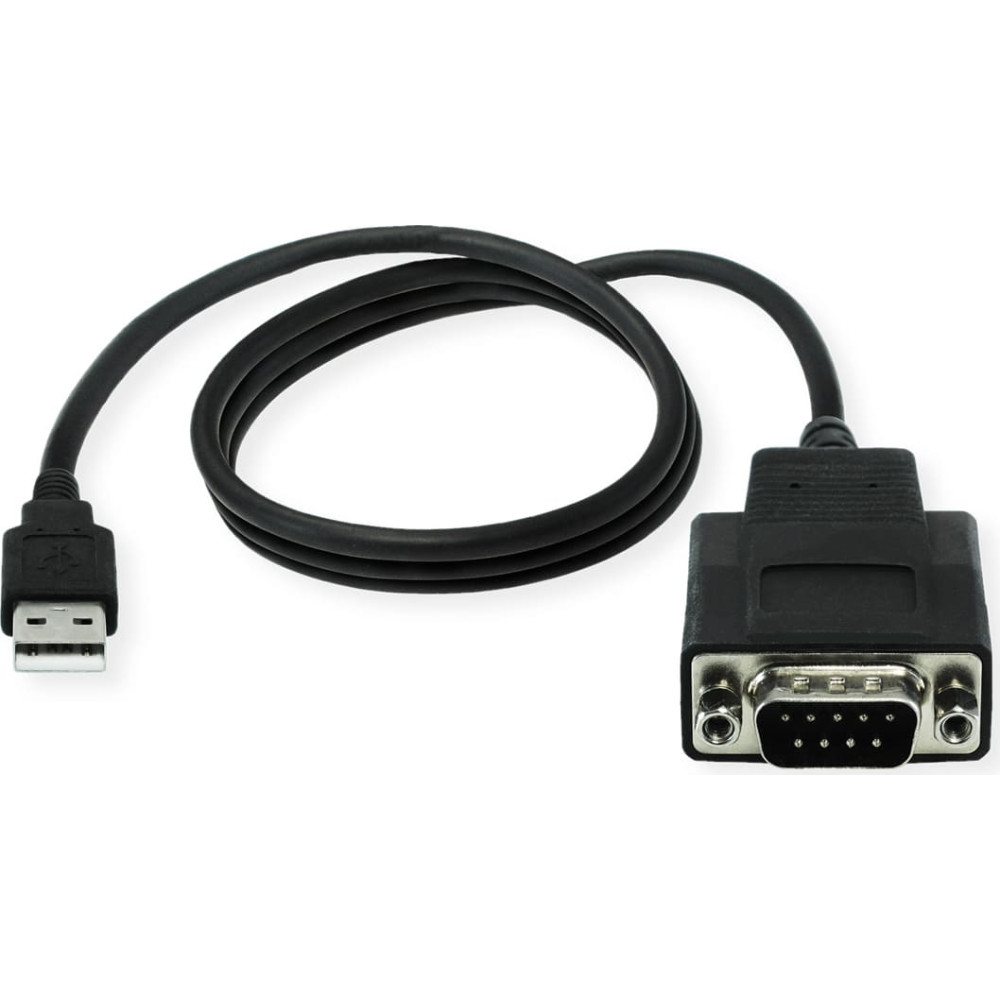

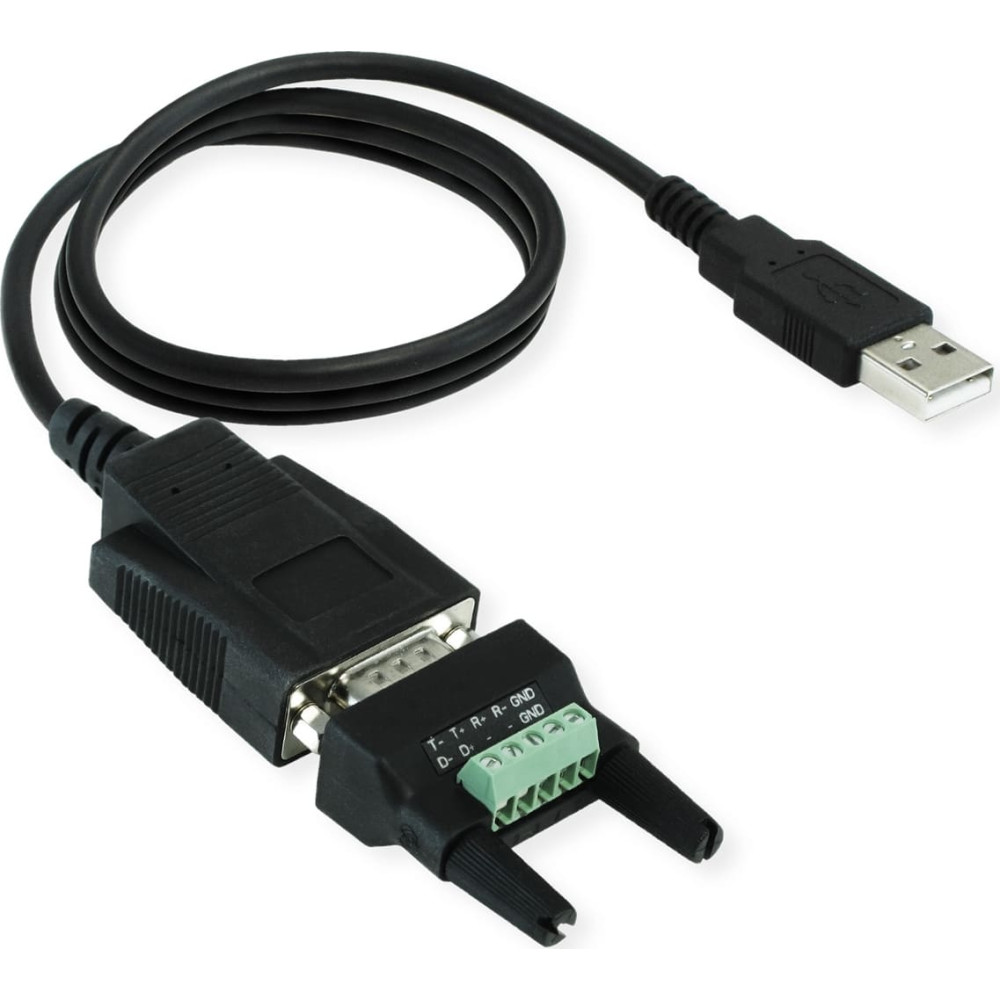

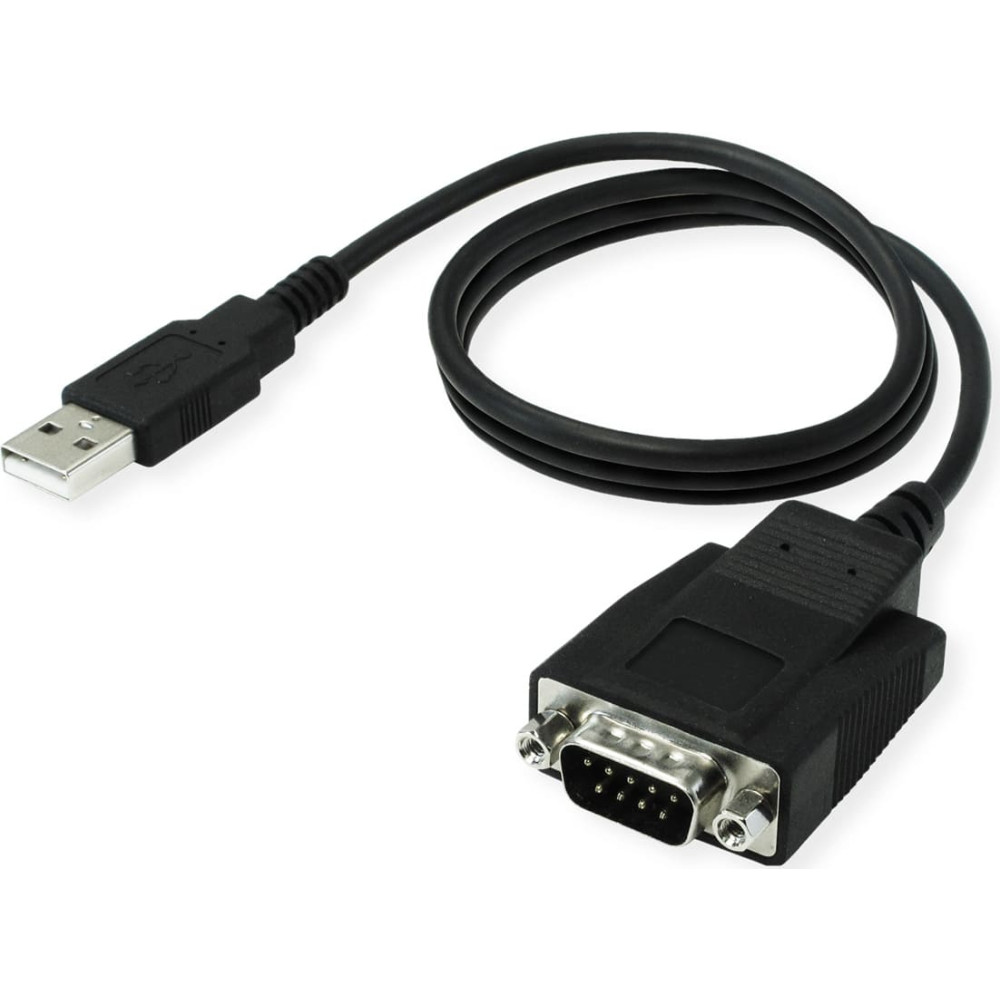

USB-to-serial converter for use with computers without a serial interface and mobile devices, which often only offer USB interfaces.

This converter provides an extra Serial RS-422/485 port via USB connection
  • To connect serial devices (e.g. modem) to one USB port
  • Built-in +/- 15 KV ESD protection

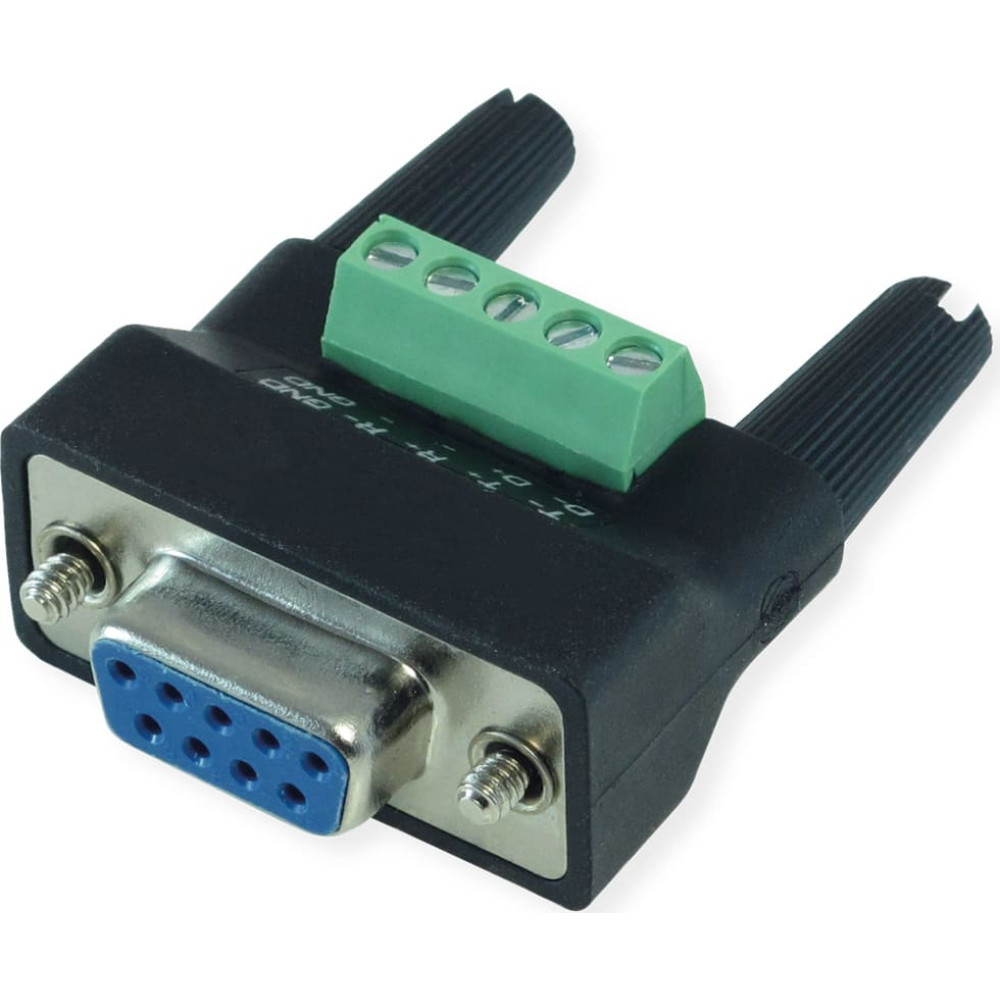

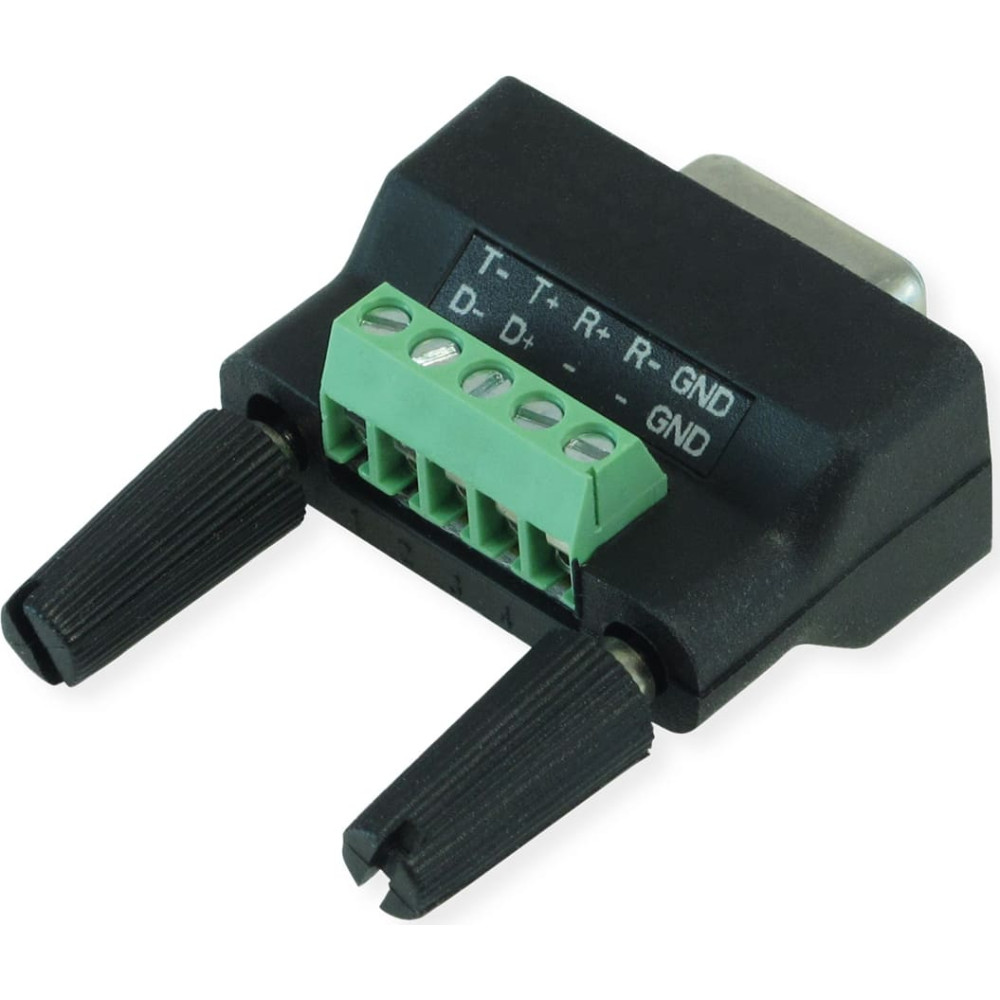

  • DB9 female to 5 pin terminal block adapter included
  • Supports data transfer rates of up to 921.6 kbit/s
  • Power supply via USB interface from PC / notebook
  • Plug & play
  • Supports Microsoft Windows and Linux
