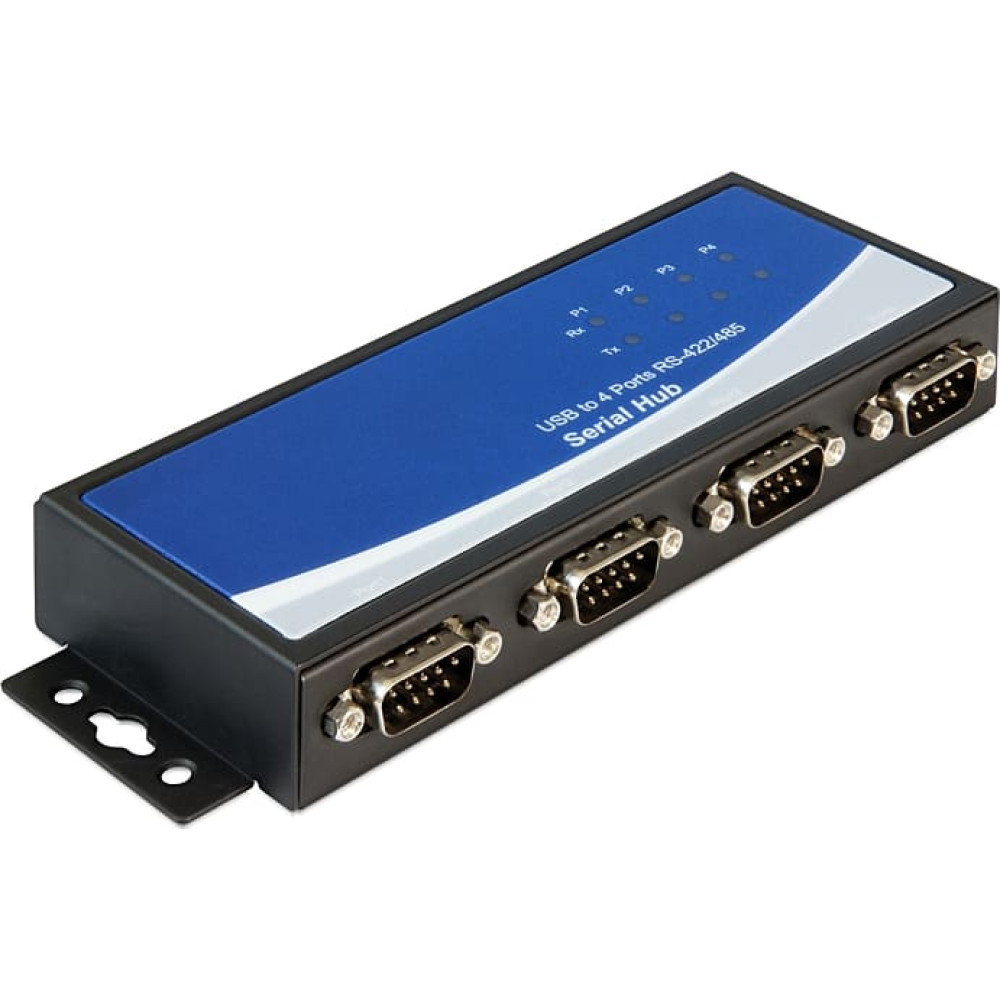

Delock Adapter USB 2.0 to 4 x serial RS-422/485
To purchase this product you must be registered in our system.
Specification
depth: 0.213
height: 0.043
width: 0.152
Description

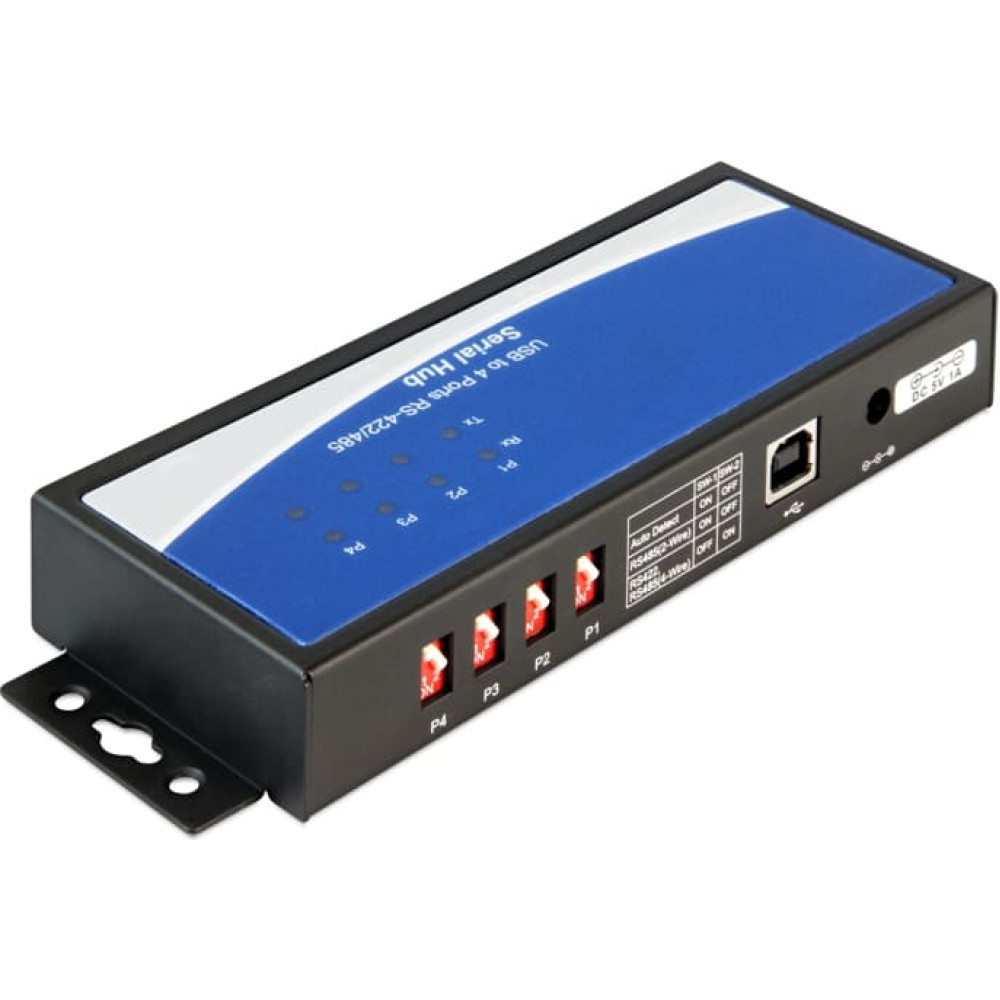

| This adapter by Delock enables the connection of up to four serial devices via a USB Type-A port. System requirements: • Linux Kernel 2.6 or above • Windows Server 2012/Server 2012 R2/Server 2016 • Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11 • PC or laptop with a free USB Type-A port Specification: • Connectors: 1 x USB 2.0 Type-B female > 4 x serial RS-422/485 DB9 male 1 x 5 V DC jack • Chipset: FT4232HL, SP3078EE • 4 x DIP switch: RS-422/485 operation setting • Internal pin header: jumper switch terminator on / off • Serial connector with nuts • Data transfer rate up to 1 Mbps • LED for indication of TxD / RxD activity • Automatical recognition and switching between RS-422 and RS-485 • ±15 kV ESD protection on all signal pins • Wall mounting integrated in the housing • Current consumption: operation: ≤ 143 mA / 715 mW standby: ca. 92 mA / 460 mW • Additional I/O and IRQ are not required • DC jack for optional power supply • Operating temperature: 0 °C ~ 70 °C • Dimensions (LxWxH): ca. 172 x 65 x 23 mm Specification of power connector • 5 V, ground outside, plus inside • Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9.5 mm Package content: • USB 2.0 to 4 x serial RS-422/485 adapter • USB 2.0 cable • 8 x jumper • Driver CD • User manual Data sheet: http://www.delock.de/produkt/87587/pdf.html?sprache=en |
