Home Adapters / Converters USB Delock Cable USB 2.0 Type-B female panel-mount USB 2.0 Type-A female panel-mount 25 cm

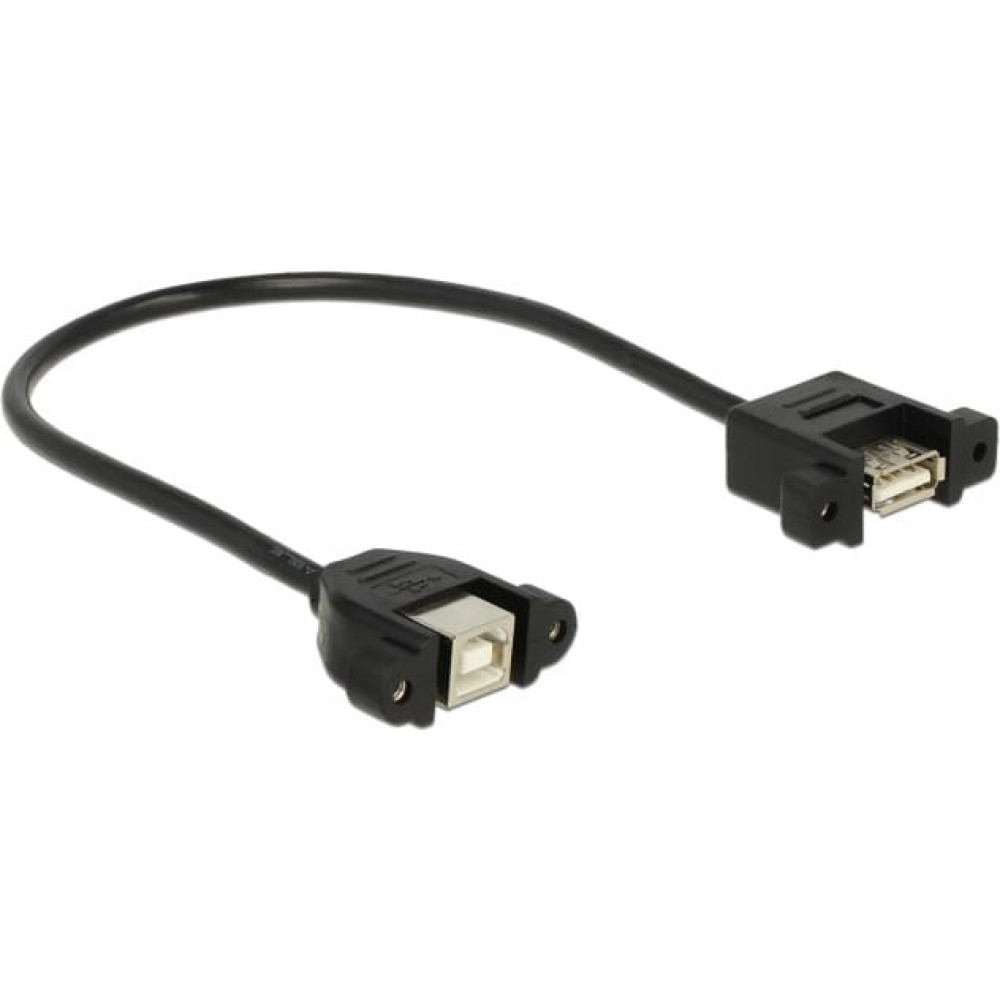

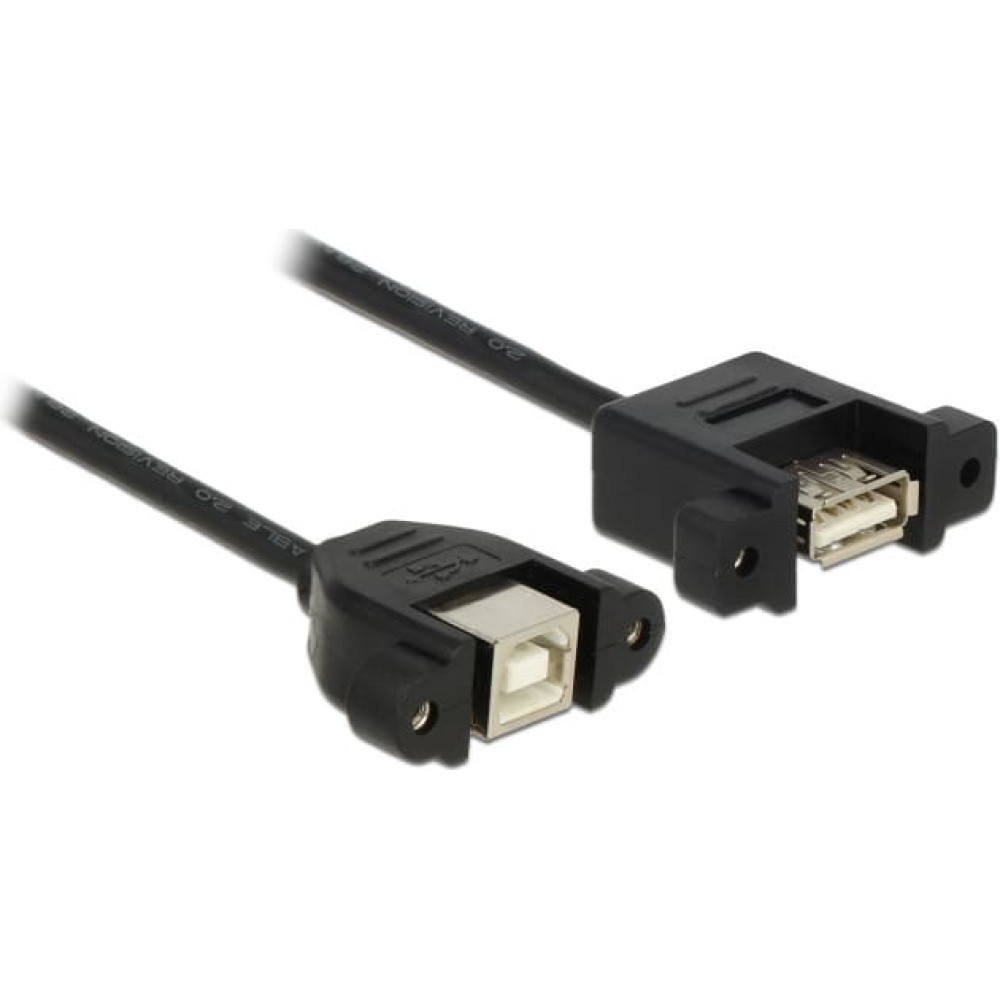

Delock Cable USB 2.0 Type-B female panel-mount USB 2.0 Type-A female panel-mount 25 cm

Product Code: 85107

Barcode 4043619851072

To purchase this product you must be registered in our system.

Description

Related products

Description

This cable by Delock can be used to extend a USB 2.0 connection and to connect various devices. The female ports can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a USB connector in an easily accessible position.

System requirements:
• A free USB port

Specification:
• Connectors:
1 x USB 2.0 Type-B female with screw nuts for installation >
1 x USB 2.0 Type-A female with screw nuts for installation
• Screw type: #4-40 UNC

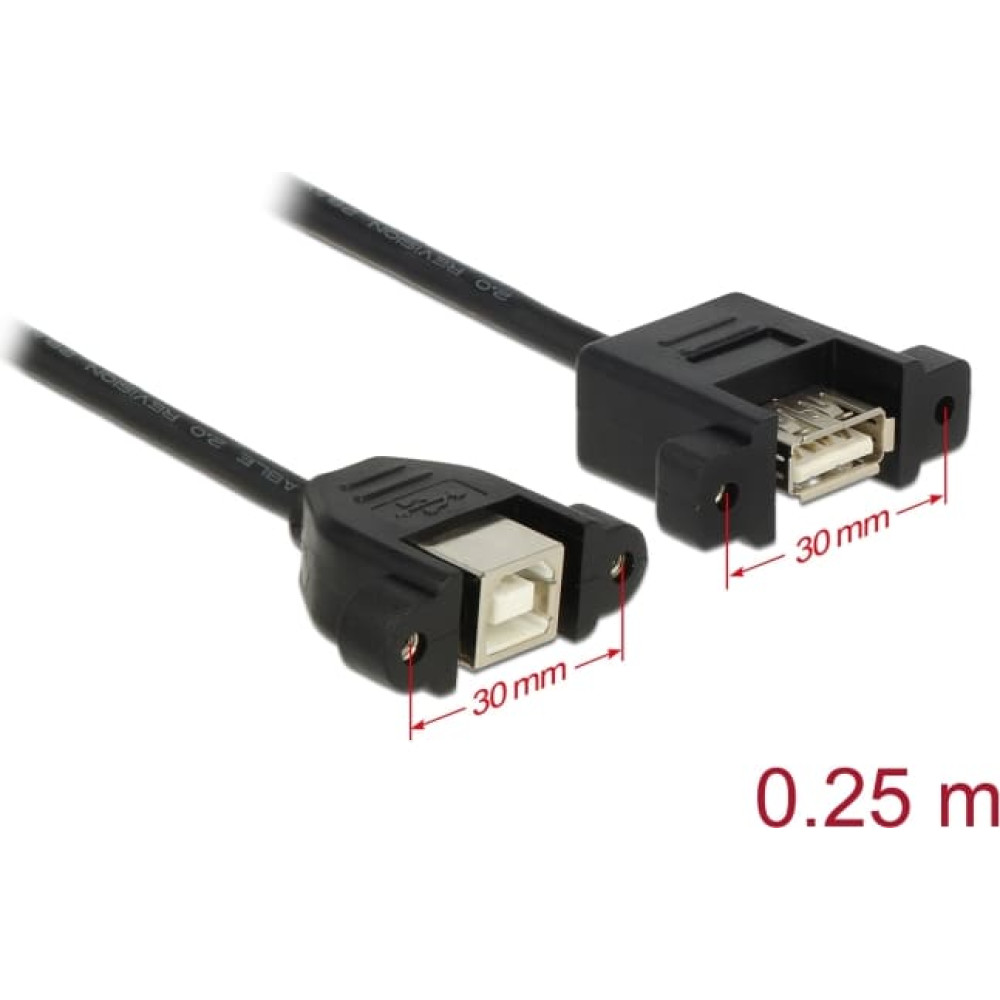

• Mounting hole Type-B ca. 12 x 11 mm, screw hole pitch ca. 30 mm
• Mounting hole Type-A ca. 15 x 8 mm, screw hole pitch ca. 30 mm
• Data transfer rate up to 480 Mbps
• Cable gauge:
28 AWG data line
24 AWG power line
• Cable diameter: ca. 4.5 mm
• Colour: black
• Length incl. connectors: ca. 25 cm

Package content:
• USB panel-mount cable
• 4 screws

Data sheet:
http://www.delock.de/produkt/85107/pdf.html?sprache=en
